Saramonic 2x 3.5mm to 4x 3.5mm TRS Splitter for Blink 500 Pro B8

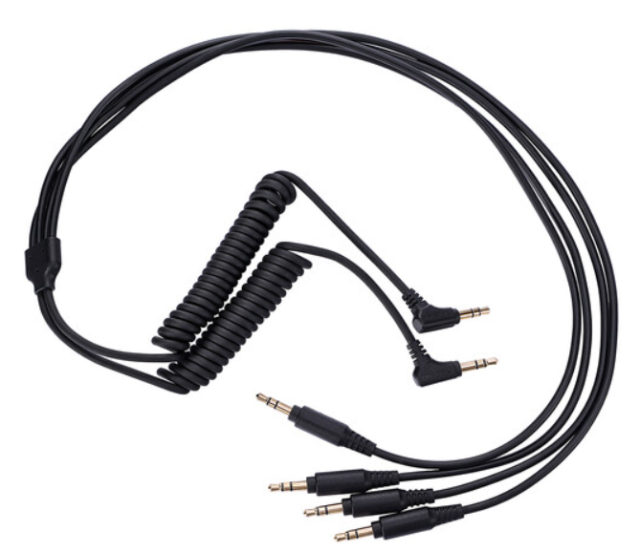

The Saramonic SR-C2019 is a splitter cable for the 4RX receiver of the Saramonic Blink500 ProX B8 and Blink500 Pro B8 wireless systems. Two right-angle 3.5 mm TRS plugs go into the receiver's OUT1 and OUT2 outputs, and four straight 3.5 mm TRS plugs feed each of the four transmitters to a separate input, for example on a multitrack recorder with jack inputs. The cable is 0.6 m long.

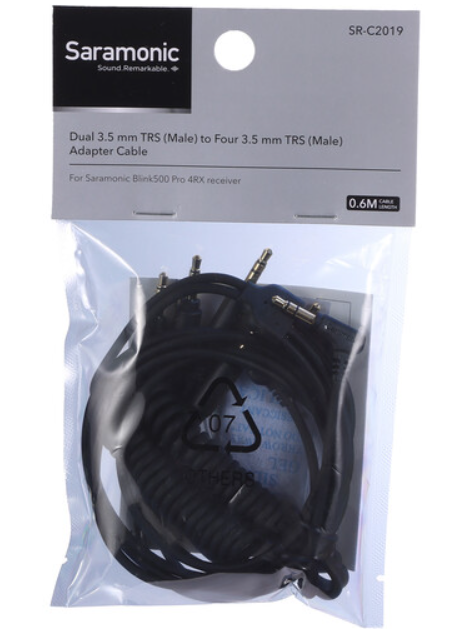

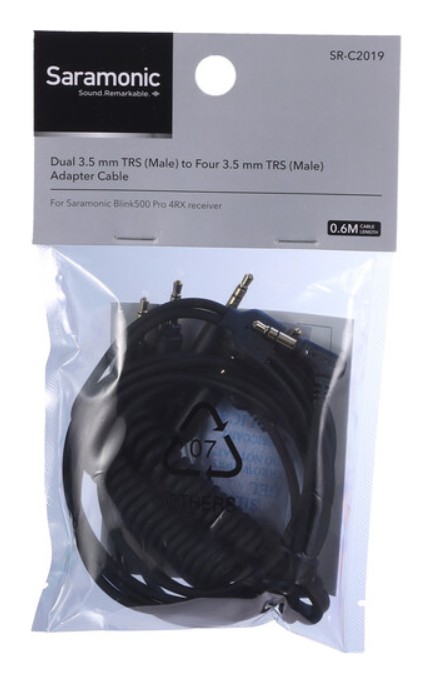

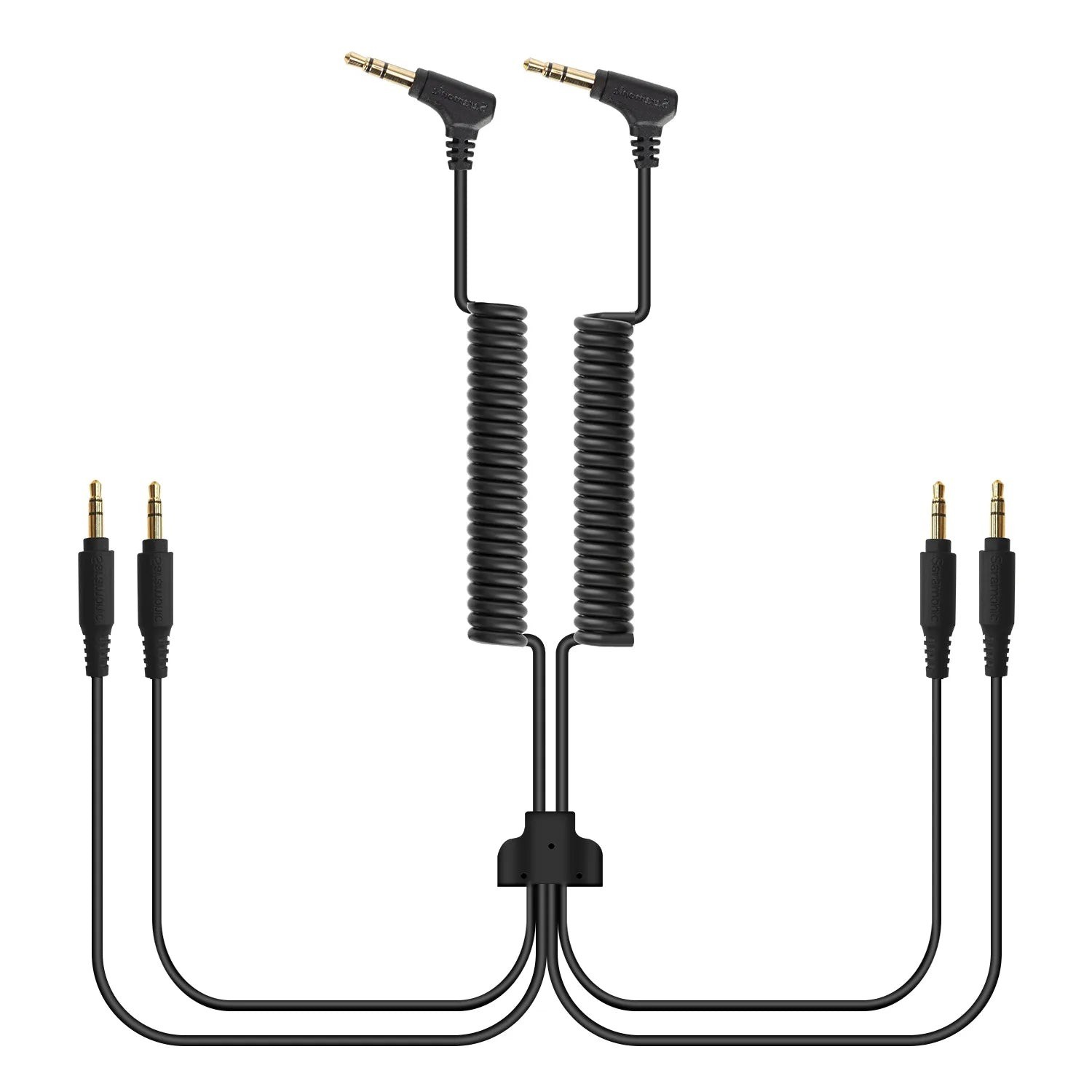

Saramonic SR-C2019

Four separate channels with 3.5 mm TRS plugs from the two outputs of the 4RX receiver.

2× 3.5 mm TRS4× 3.5 mm TRS0.6 m length

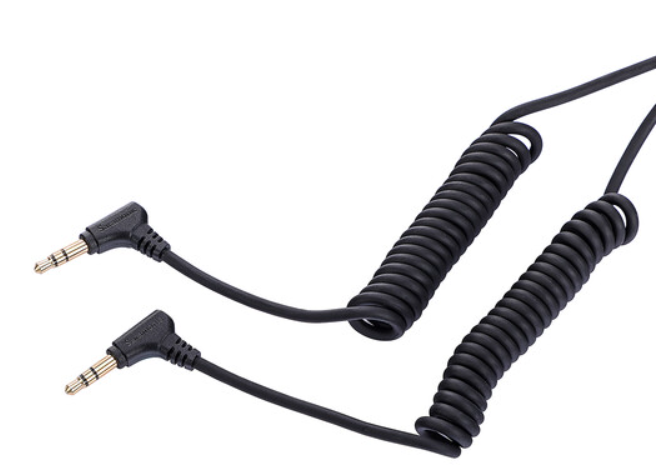

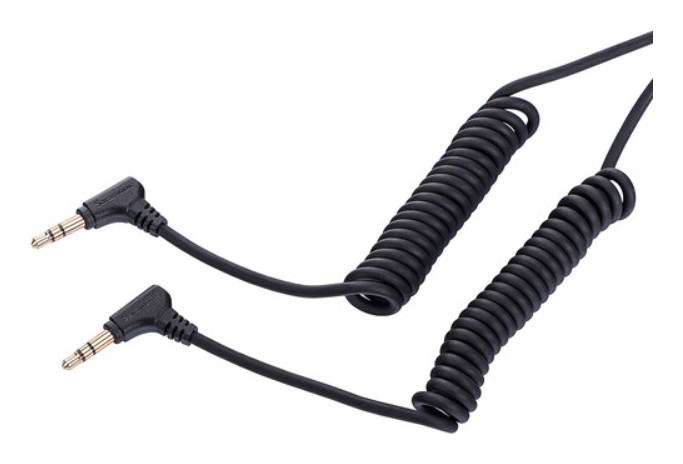

Two right-angle TRS plugs

Two 3.5 mm TRS plugs with right-angle bodies on coiled sections go into the OUT1 and OUT2 outputs of the 4RX receiver. OUT1 carries transmitters A1 and A2, OUT2 transmitters B1 and B2.

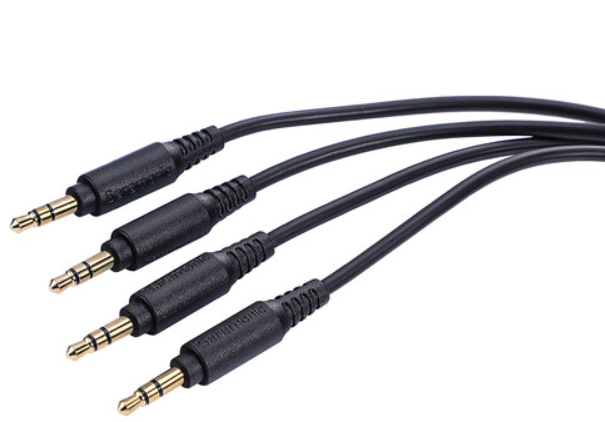

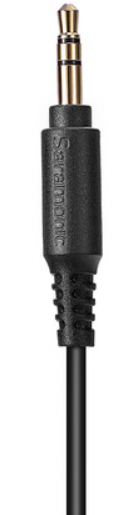

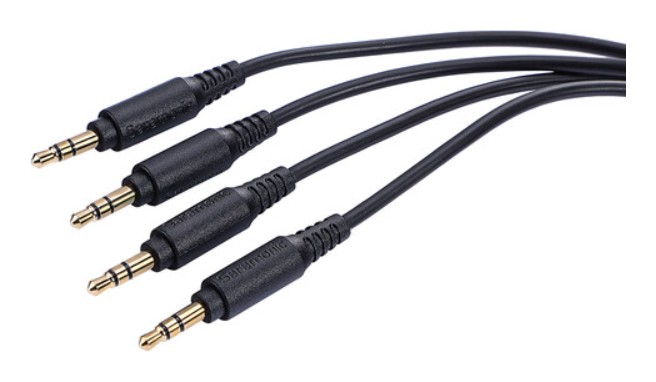

Four straight TRS plugs

The cable splits the left and right channels of both outputs into four straight 3.5 mm TRS plugs. Each carries the signal of one transmitter, so the voices can be recorded and edited separately.

Four tracks from two outputs

In the 4RX receiver menu, set the track number to 4 and the output mode to stereo. The left and right channels of both outputs then carry one transmitter each, and the cable splits them into four separate connectors.

Additional information

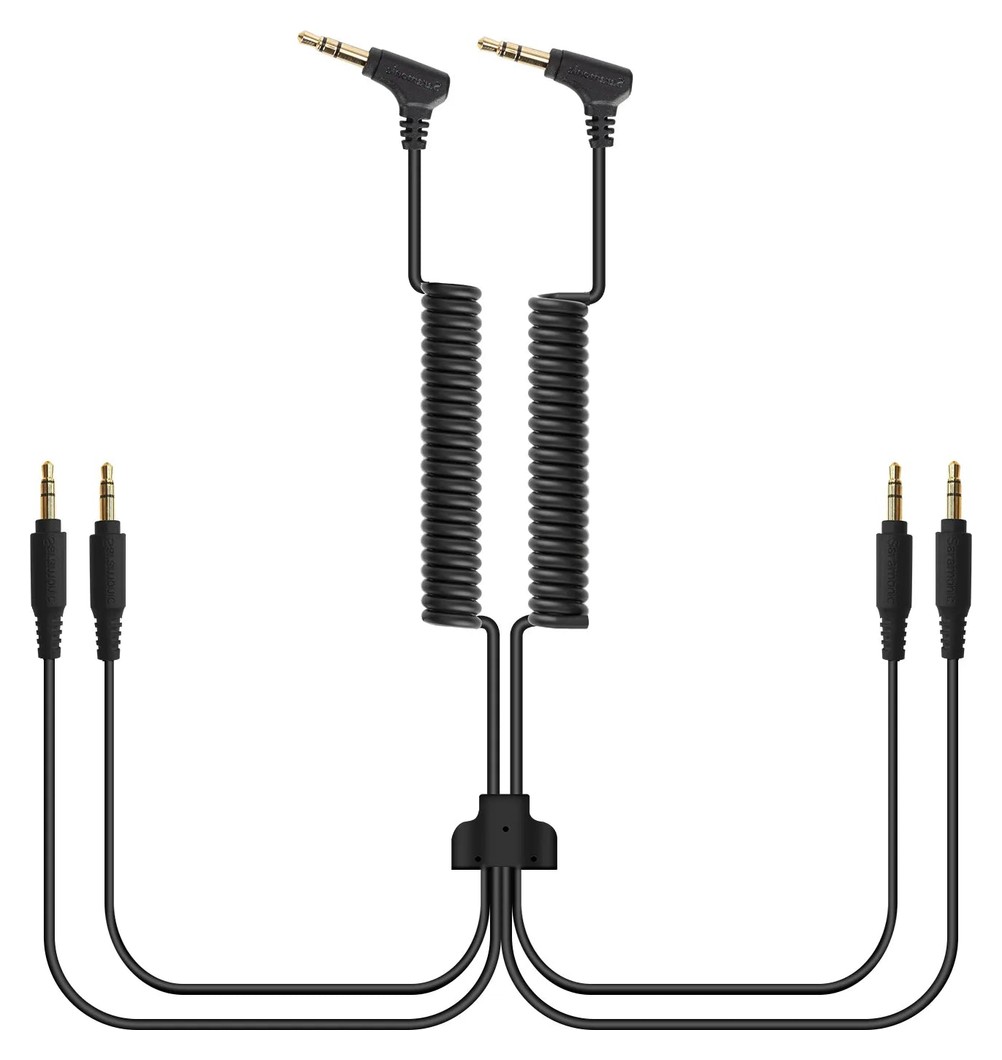

The SR-C2019 is a 60 cm coiled splitter cable; the coiled section stretches from 14 cm to 60 cm, so there is no unnecessary slack. Two right-angle 3.5 mm TRS plugs go into the receiver outputs, and four straight 3.5 mm TRS plugs lead to the devices. Gold-plated connectors ensure reliable signal transfer and resist corrosion.
