Roland Bridge Cast X

Professional streaming interface with two buses for streaming/recording video and handling the audio part of the show with effects, equalizer, microphone input (XLR, phantom), etc.

BRIDGE CAST X is a desktop streaming mixer and video capture device in one. It connects game consoles, computers, a camera and a microphone, offers two independent sound mixes, an XLR preamp with phantom power, voice effects and six assignable pads, so you run your stream without repatching cables.

Your whole streaming setup in one unit

Two HDMI inputs with thru to a monitor, two USB-C ports, two audio buses, a 32-bit DSP and hands-on controls for gamers, podcasters and vloggers.

2× HDMI + HDMI Thru2× USB-CStream and personal mixXLR with phantom6 assignable padsVirtual 7.1

Capture, mix and control

From gaming to podcasts and vlogs, the integrated design simplifies connections and reduces clutter, while the intuitive panel lets you mix audio and control the action in the flow.

Professional sound

The advanced audio tools in BRIDGE CAST X give your content the high-quality sound it deserves, from the microphone to the audience mix.

Control without distraction

Knobs, buttons and pads sit right at your fingertips, so you fire actions mid-stream without leaving the game.

Two mixes, one desk

BRIDGE CAST X is a dual-bus mixer: set your own balance in the headphones while the audience gets a separately balanced mix of mic, team chat, game audio and music. The powerful 32-bit DSP leaves all your computer resources for gaming and streaming.

Game EQ

Five custom Game EQ presets highlight critical sounds such as enemy footsteps, with real-time waveform analysis.

Voice changer

Effects derived from the Roland VT series shift pitch and formant, from a different age or gender to an alien.

BRIDGE CAST app

Mic and audio settings, routing, Game EQ presets, control assignments and knob LED colours.

PlayStation 5

Using USB-C and HDMI together, you control PS5 chat and game audio independently.

Enhance your streams with Bridge Cast X, a compact all-in-one desktop solution with convenient controls and Roland's professional A/V features. Say goodbye to a cluttered mess of tiny accessories and unify your workflow with multiple connections for game consoles, computers, cameras and audio devices. Crush the competition with great features like dual audio mixes, support for professional microphones (XLR, phantom), effects-based vocal processing, ergonomic pad control and more..

From online gaming to podcasts, vlogs, and other video content, Bridge Cast X lets you focus on creating - instead of fussing with cables and various specialized accessories. The integrated design simplifies connections and reduces cable clutter, while the intuitive interface lets you seamlessly mix audio and control all the features you need. With multiple USB-C and HDMI ports (only one HDMI input can be active at a time, seamless live switching between HDMI inputs is not supported), you can connect all your devices and avoid having to manually reconnect everything every time you want to change your lineup for a scheduled stream.

• Professional A/V streaming interface for online gamers, podcasters and vloggers.
• Connect multiple devices at once and switch between them without having to reconnect cables
• Two USB-C ports for computers and mobile devices
• Two HDMI inputs for game consoles, cameras and other devices
• HDMI Thru for connecting to an external monitor
• Powerful 32-bit DSP processor lets you take full advantage of PC power for gaming and streaming
• Create independent mixes for you and your online audience using two audio buses
• High-quality microphone preamp with XLR input and phantom power
• High-sensitivity headphone amplifier with headset or built-in microphone support
• Hand controls and buttons for quick audio control
• Six assignable control panels for sound effects, equalizer presets and other functions
• Purposeful design with color-adjustable LED knobs
• Voice Changer effects derived from the Roland VT series
• High-quality vocal processing: EQ, compressor, noise cancellation, hiss remover and reverb
• Delay function to synchronize audio with video
• Aux input for audio playback from smartphone or external device
• Customize settings and save hardware configurations with the Bridge Cast app
• Add royalty-free background music and sound effects to your streams with BGM Cast, available through the Bridge Cast app and Roland Cloud

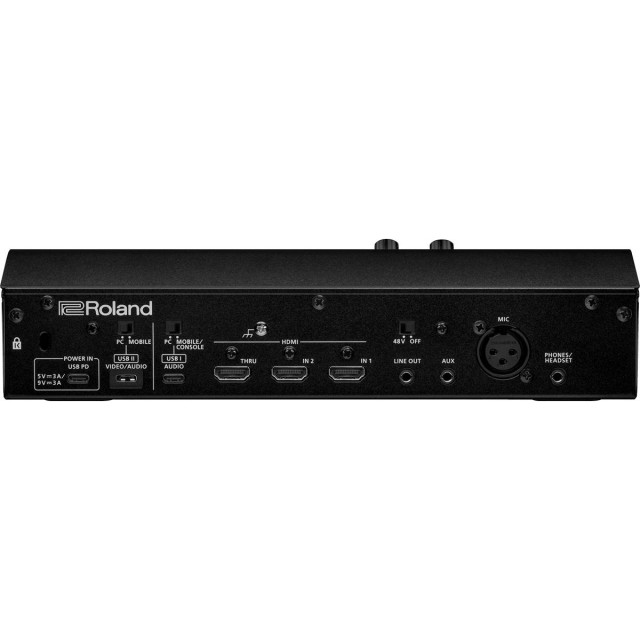

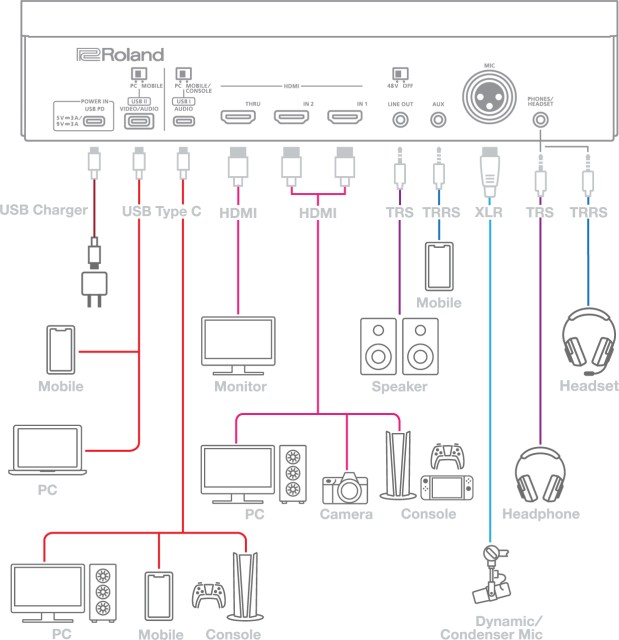

Connections. Two HDMI inputs for consoles and cameras with HDMI Thru to a monitor, USB-C for computers and mobile devices, an XLR mic, headphones or a headset, an aux input and a line output for speakers.

Dual PCs. Gaming on one PC and streaming from another? The USB II port carries audio and video to the streaming computer over a single cable, while USB I and HDMI serve the gaming PC, including HDMI thru to a monitor.

PC and gaming consoles. Connect a PC and two gaming consoles to BRIDGE CAST X and stream their video and audio without repatching.

Video chat. Swap the webcam for a high-quality camera on an HDMI input, perfect for interviews, gameplay recaps and Just Chatting.

All gain, no pain. Connect any dynamic or condenser XLR mic without an external preamp or mic activator. The headphone jack also supports a headset mic.

In the mix. Mic level, team chat, game sound and music are balanced separately for you and for your audience.

Morph your voice. Adjust pitch and formant to change your character’s age or gender, or even sound like an alien.

Broadcast polish. EQ, compression, a low-cut filter for plosives, a de-esser for harsh “S” tones, a noise suppressor and reverb.

Deep mic settings. From version 5.00 the BRIDGE CAST app adds quick-access EQ controls, a studio-grade compressor run by a single fader and an expander that cuts background noise without unnatural artefacts.

Virtual surround sound. Virtual 5.1 or 7.1 for headphones from HDMI or USB, with the angles of the virtual speakers set in the app.

Control in hand. Knobs and buttons for the mix, six pads for up to 30 OBS commands, sound effects and music shortcuts, and a bottom row of buttons for paging.

Game time advantage. Up to five custom Game EQ presets boost game-critical sounds. Fine-tune them against the analysed waveform, save them to profiles and recall them at a button press.

BRIDGE CAST app. Mic and audio parameters, signal routing, Game EQ presets, control assignments and LED colours for different games and audiences.
