RGBlink MSP 318-4

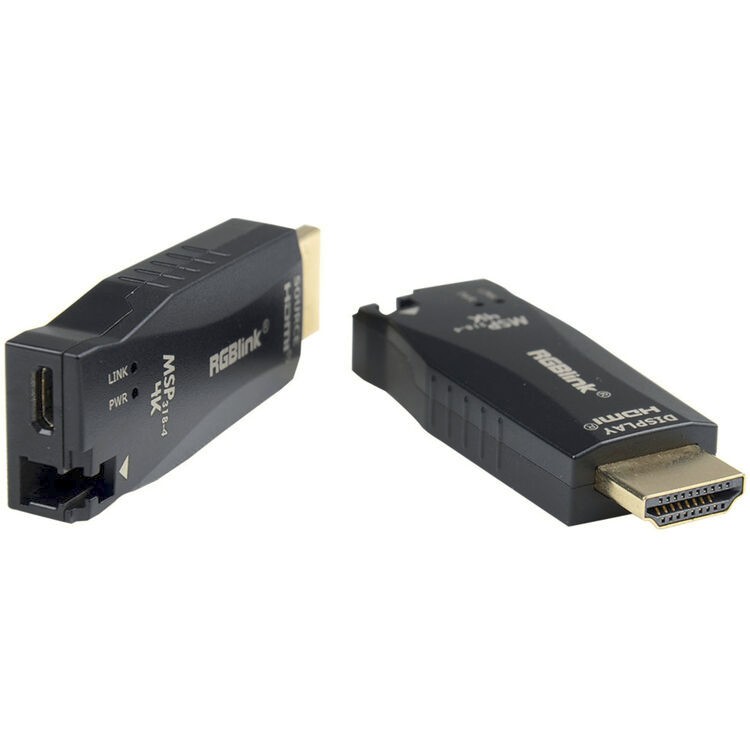

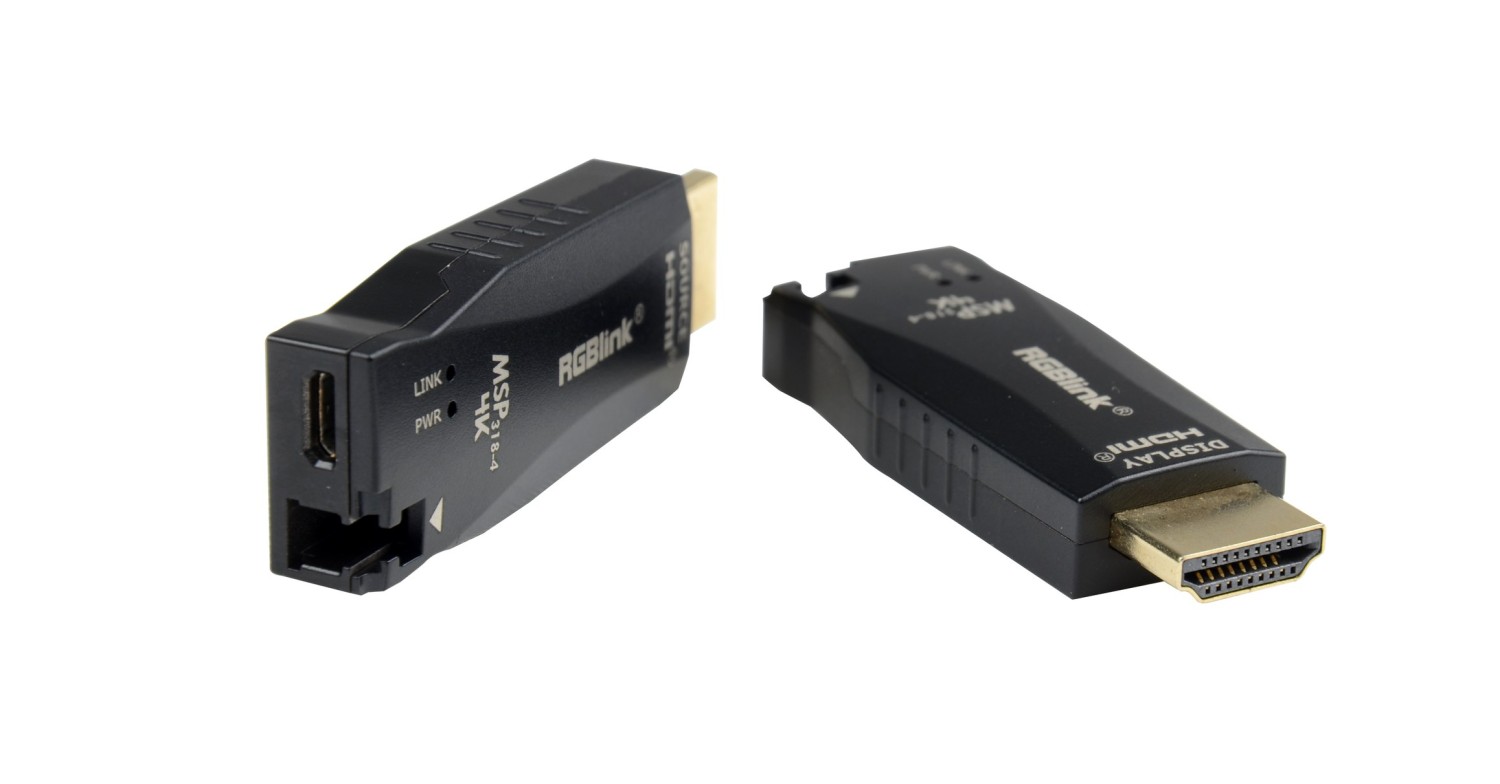

The RGBlink MSP 318-4 is a miniature transmitter and receiver set that carries an HDMI 1.4 signal over optical fibre: up to 2,000 m over single-mode fibre (200 m with HDCP) and up to 300 m over OM3 multi-mode fibre. Both units plug straight into an HDMI port, have an LC connector and are powered by the included 5 V USB adapters. Resolutions up to 3840 × 2160 at 30 Hz.

The transmitter plugs into the HDMI output of the source, the receiver into the input of the display, and a single optical fibre runs between them. No extra boxes – the set suits places with little space as well as mobile use.

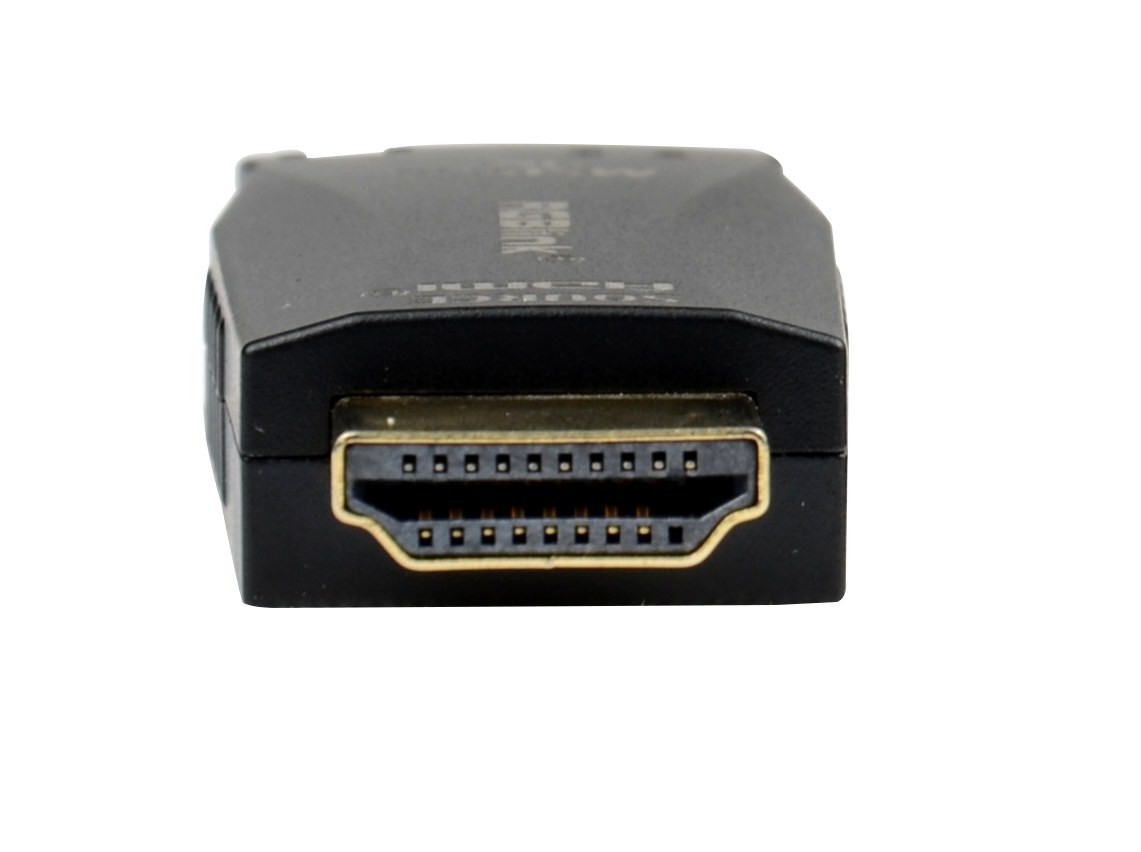

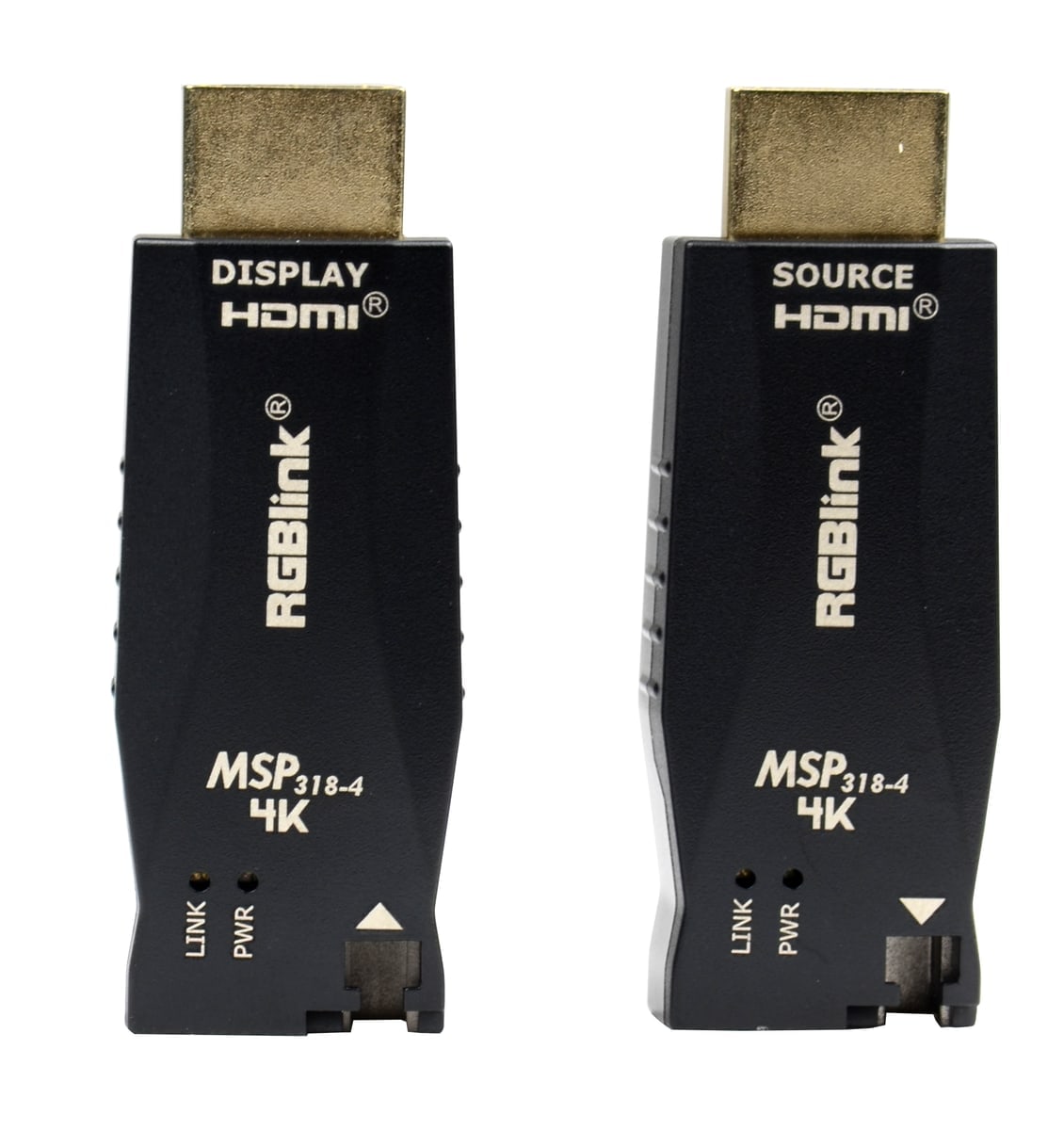

Transmitter and receiver right in the HDMI port

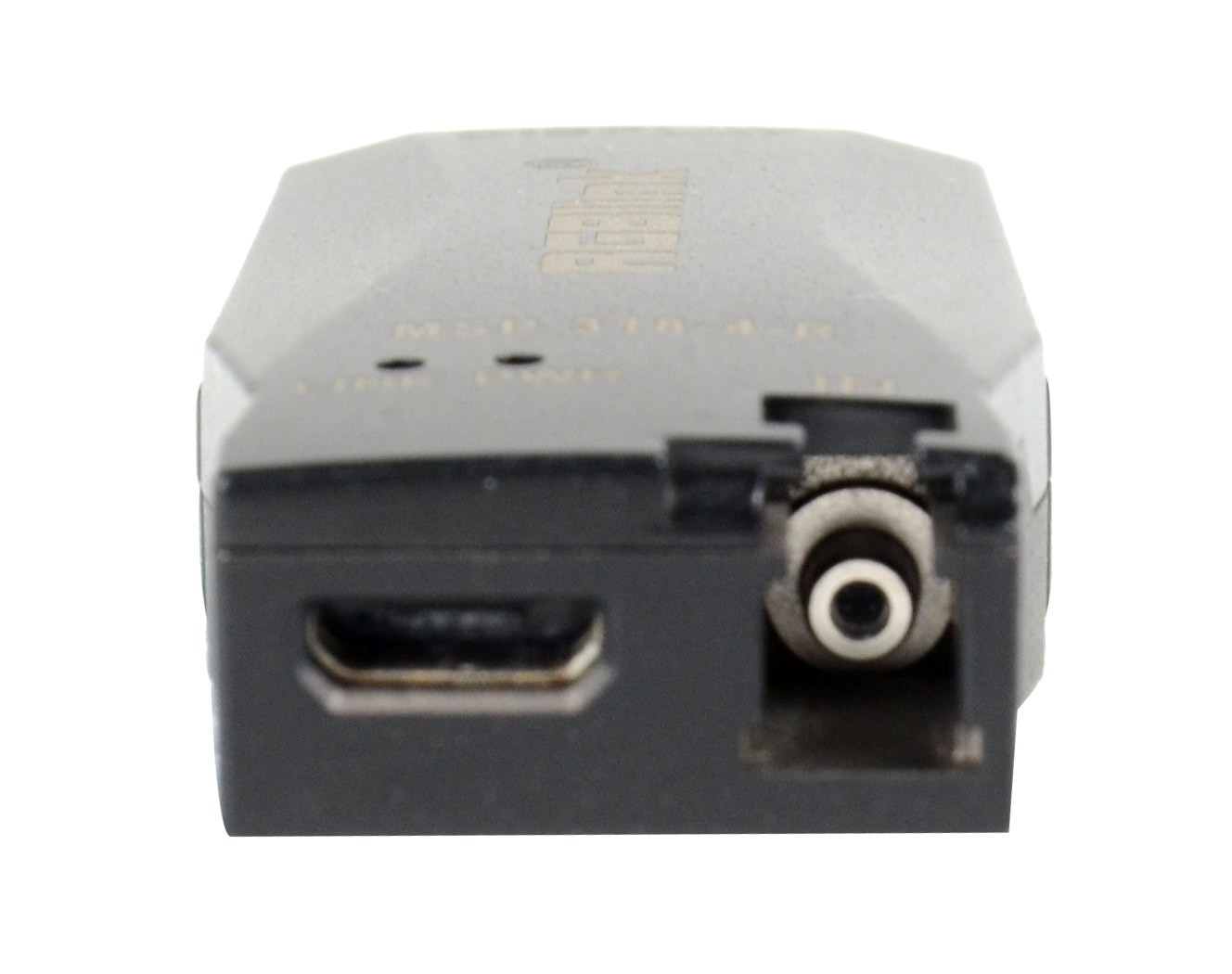

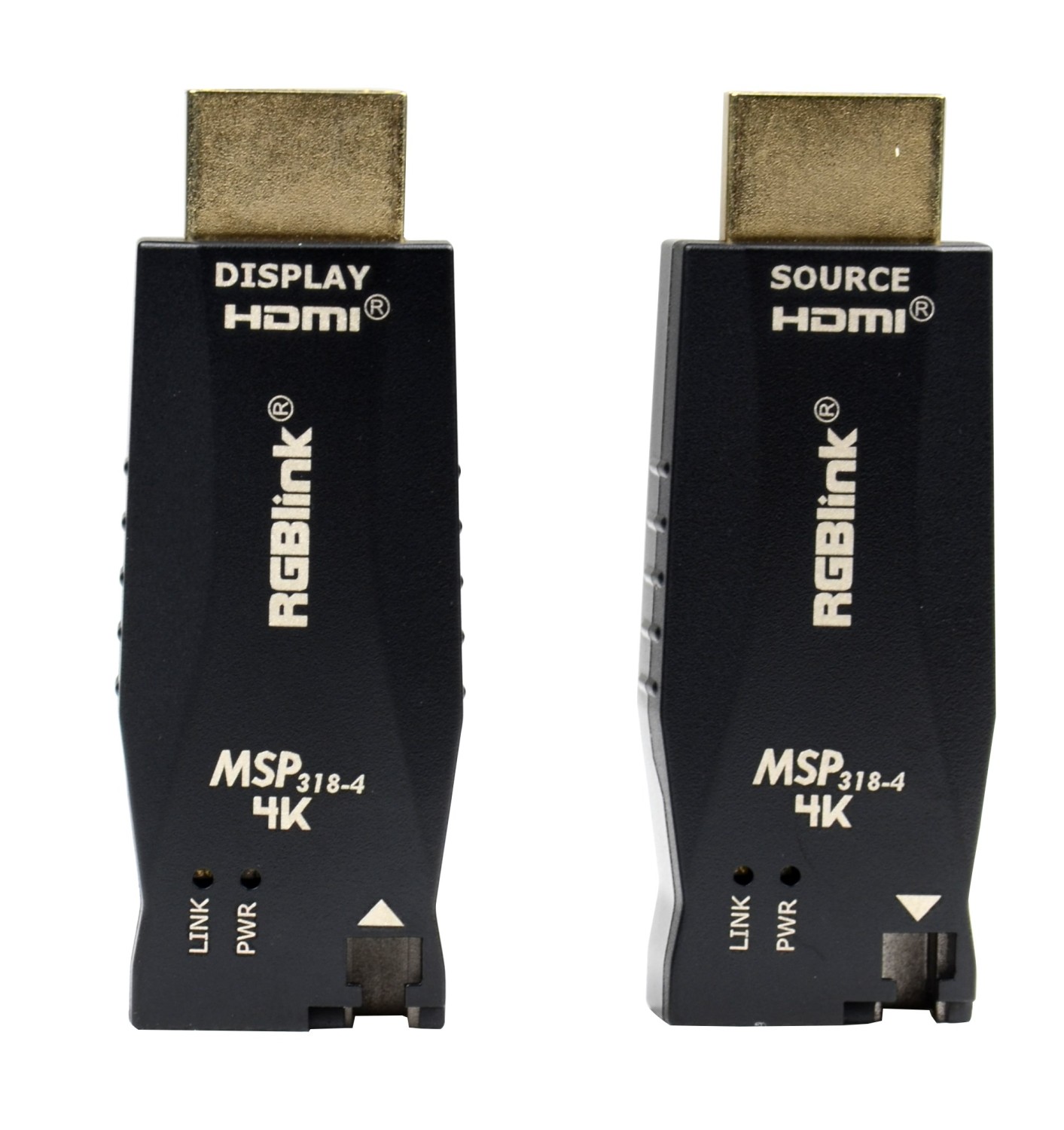

The units measure just 60 × 22 × 11 mm and weigh 60 g. The transmitter (SOURCE) plugs into the source, the receiver (DISPLAY) into the display or another device; both have an integrated LC connector for the optical fibre.

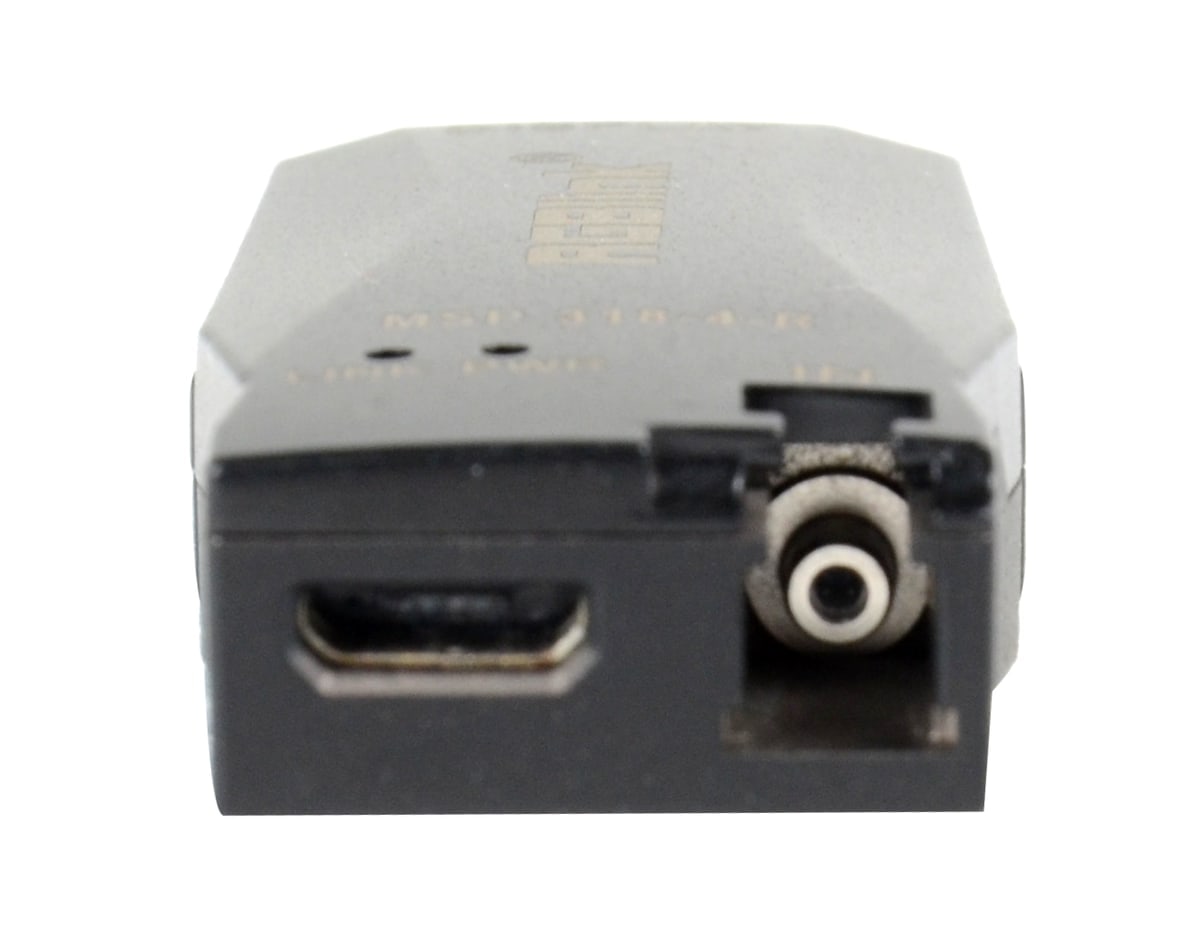

One fibre for both directions

The MSP 318-4 uses a single optical fibre for both directions. The optical source is a 1310/1550 nm laser diode with a built-in WDM filter, and the transmission speed is 10.2 Gb/s; the optical link resists electromagnetic interference.

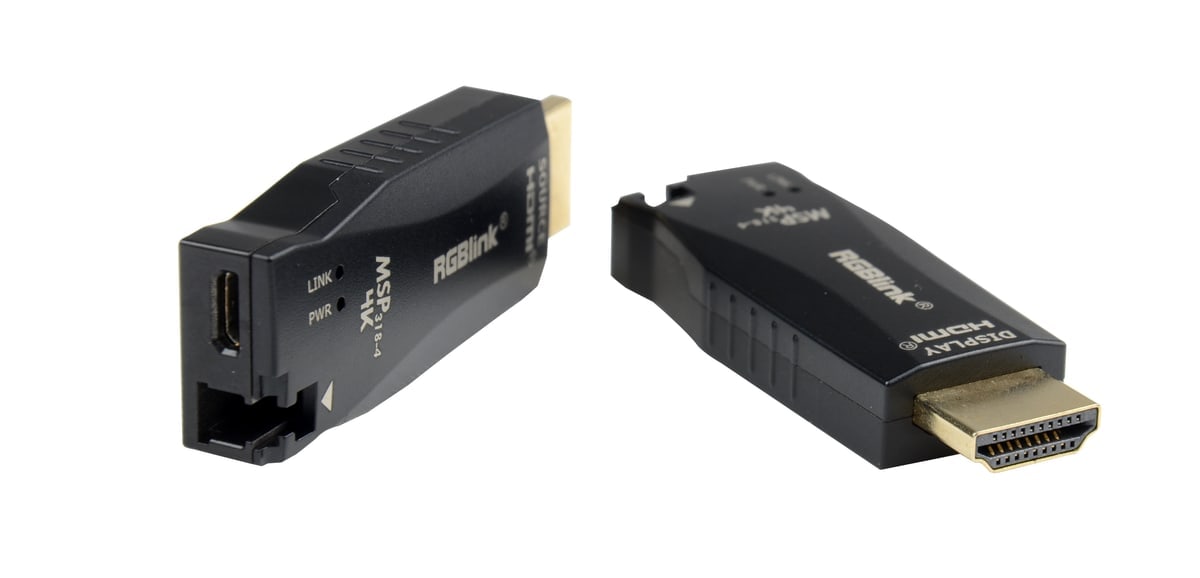

Resolutions and EDID

The set carries SMPTE resolutions up to 1080p at 50/60 Hz and VESA up to 3840 × 2160 at 30 Hz and is HDCP compatible. With HDCP it reaches 200 m over single-mode fibre, without HDCP 2,000 m. EDID management is available via the micro USB port.

More information

The RGBlink MSP 318-4 Fiber Extender Set enables reliable long-distance HDMI signal transmission far beyond the limits of standard copper cables. Consisting of a transmitter and receiver, the system connects directly to HDMI source and display devices while using fiber optic cabling for signal transport.

The MSP 318-4 supports resolutions up to 3840×2160@30, is HDCP compatible, and achieves transmission distances of up to 2000 meters over single-mode fiber (non-HDCP) or 200 meters when HDCP is enabled. With a 10.2 Gb/s transmission speed, built-in 1310/1550nm WDM filtering, and strong resistance to electromagnetic interference, it ensures stable, high-quality video delivery in demanding environments.

Its ultra-compact design, integral LC fiber ports, and simple plug-and-play installation make it ideal for portable setups, space-constrained installations, control rooms, digital signage, and professional AV applications.

Key features

• Supports HDMI resolutions up to 3840×2160@30
• HDCP compatible
• Transmission distance: Up to 2000 m over single-mode fiber (HDCP off)
• Up to 200 m over single-mode fiber (HDCP on)
• 1310/1550nm laser diode optical source
• Built-in WDM filter
• 10.2 Gb/s transmission speed
• Strong resistance to electromagnetic interference
• Compact design for easy installation
• EDID management via Micro USB
