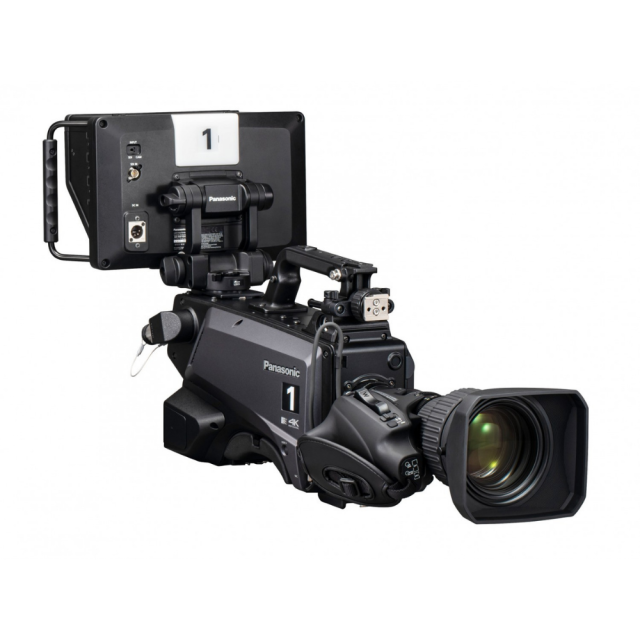

Panasonic AK-UC3300

The new 4K studio camera features an 11MP 4K MOS S35 sensor, support for HDR (HLG) and ITU-R BT.2020, 12G-SDI output, TICO technology for transmission of compressed 4K video over 3G-SDI interface, and support for the next-generation IP video protocol SMPTE ST2110. Of course, there are technologies for compensating chromatic…

More information

31 218 € with VAT 25 800 € without VAT
-+
Availability
on request

Show all accessories

Product description

Product description

The new 4K studio camera features an 11MP 4K MOS S35 sensor, support for HDR (HLG) and ITU-R BT.2020, 12G-SDI output, TICO technology for transmission of compressed 4K video over 3G-SDI interface, and support for the next-generation IP video protocol SMPTE ST2110. Of course, there are technologies for compensating chromatic lens defects or fast sensor readout (1/100 sec.) to reduce image distortion when capturing fast motion (sports matches, etc.). Camera body only. On sale from Q4/2020.

The AK-UC3300 studio camera is equipped with a large 11MP 4K image sensor and offers a resolution of 2,000 TV lines as well as support for modern HDR standards (HLG, ITU-R BT.2020). With a sensitivity of F10 (2,000 lx), it guarantees clear image reproduction with minimal noise (S/N 62 dB) and is a highly versatile solution thanks to its support for both 4K and HD standards. The modern 12G-SDI interface allows the transmission of uncompressed 4K material over a single coaxial cable; support for the TICO standard then presents an interesting option for the transmission of compressed 4K video over 3G-SDI! The camera also supports the next generation protocol for video over IP networks, SMPTE ST2110.

In addition to high-speed capture (2x in HD), it also offers fast sensor readout (1/100 s) to reduce image distortion when capturing fast movements (sports matches, etc.). The camera system can be complemented by the new AK-HRP1015 remote control or the existing AK-HRP1000/AK-HRP1005 models, and of course also by the high-end 0.7" FHD OLED viewfinder AJ-CVF70GJ.

Parameters

Parameters

Manufacturer: Panasonic
Category: Broadcast

Main parameters

Camera Sensor sizeSuper35
ResolutionUHD
Output12G SDI
Output3G SDI

Other parameters

Versionstudio
FPSHD 120fps
FPSUHD 30fps
FPSHD 60fps
FPSHD 100fps
FPSUHD 60fps
FPSHD 50fps
FPSUHD 50fps
FPSUHD 25fps
