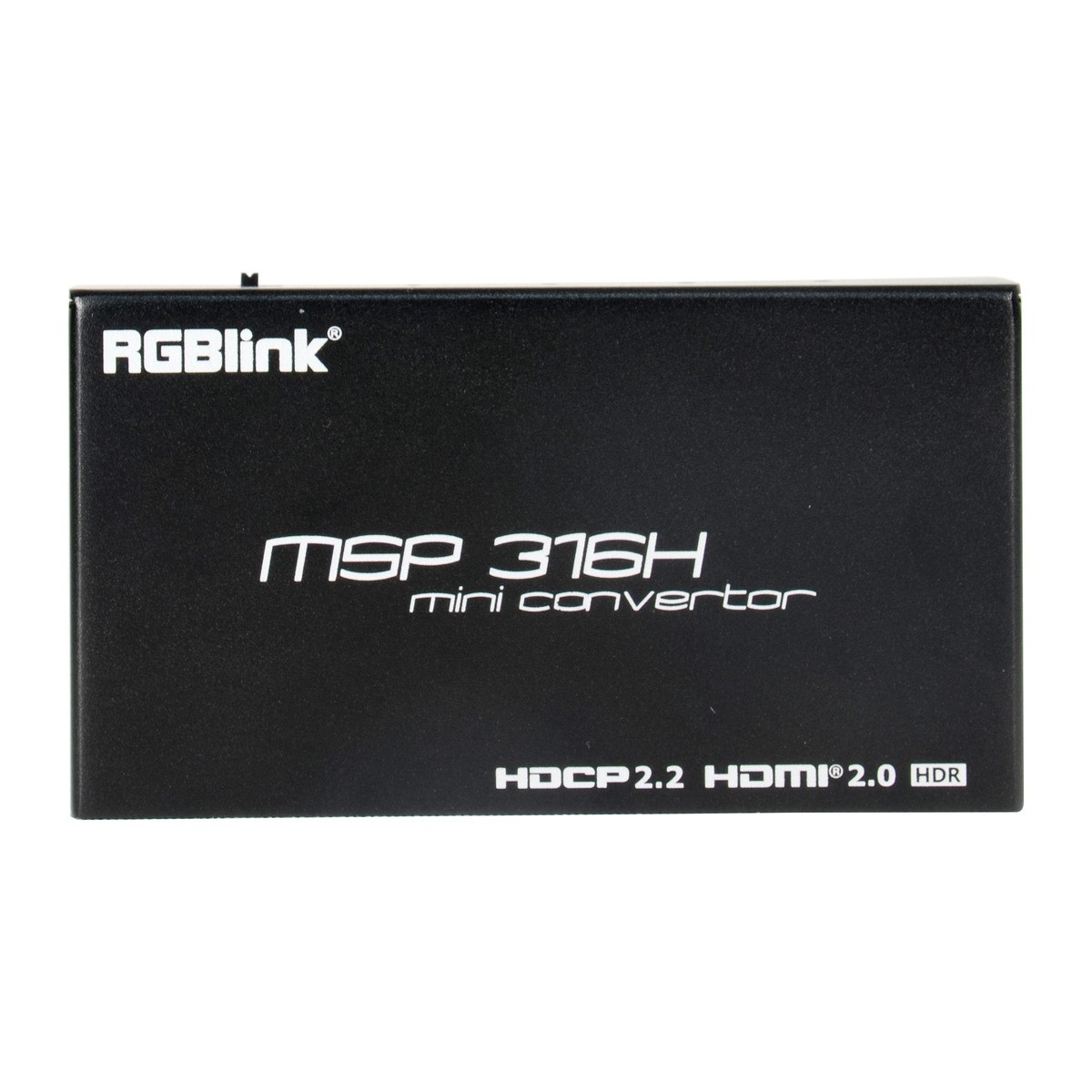

RGBlink MSP 316H

The RGBlink MSP316H is a professional HDMI 2.0 1-in-2-out distributor that reliably splits high-resolution signals up to 4K@60Hz with HDR support. Designed for professional AV setups, it features built-in signal equalization, intelligent EDID recognition, and full support for high-quality audio formats including LPCM 7.1, Dolby TrueHD, and DTS-HD.

The MSP 316H from the RGBlink mini converter range splits one HDMI 2.0 signal into two identical outputs. It suits any setup where the same picture has to run on two displays at once, or on a display and a projector.

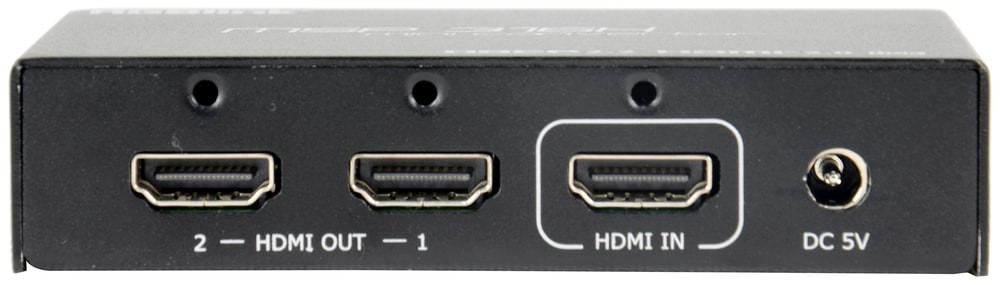

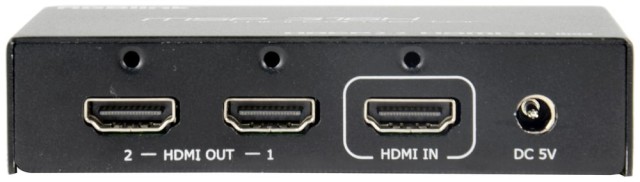

One HDMI 2.0 input, two outputs

The rear panel carries one HDMI input and two HDMI outputs, all HDMI 2.0b with HDCP 2.2. The distributor passes signals up to 4096 × 2160 at 60 Hz in 24-bit RGB or YCbCr 4:4:4, computer formats up to 2560 × 1600 (QSXGA), and HDR signals too.

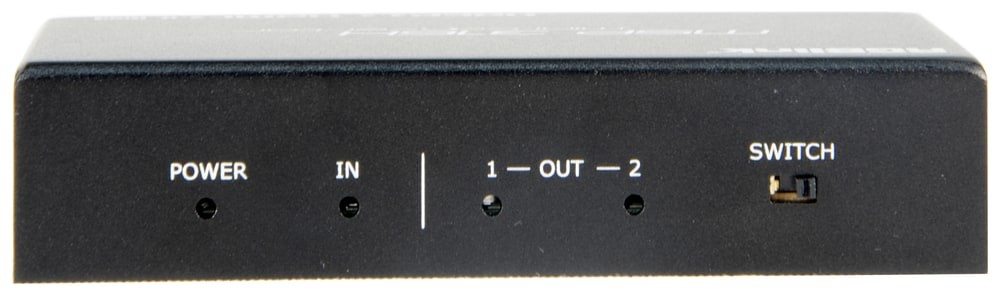

EDID switch and indicators

The switch on the front panel selects the EDID mode, i.e. how the distributor reports the capabilities of the connected displays to the source: standard mode on the left, TV mode on the right. Next to it are indicators for power, the input and both outputs.

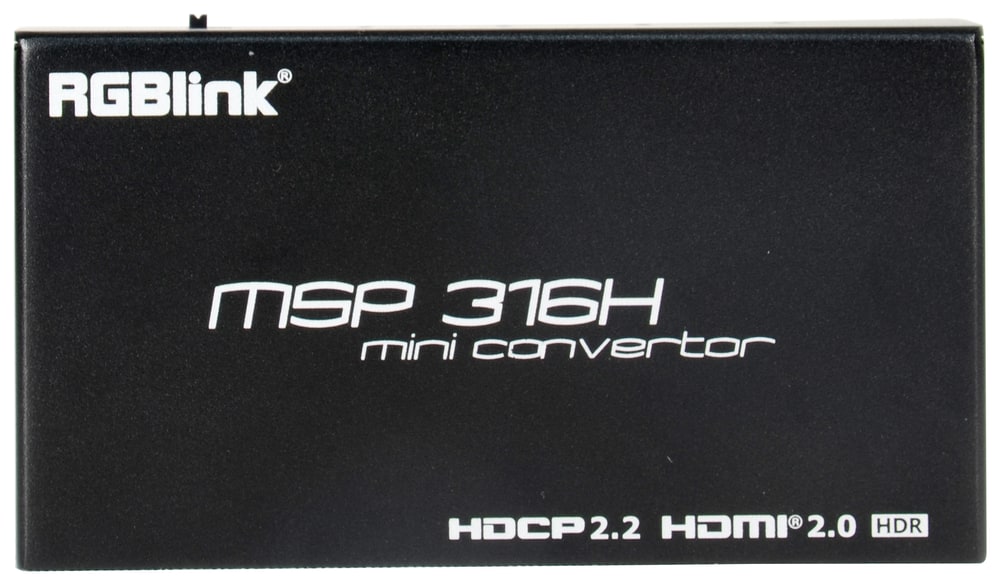

Multichannel audio and a stable signal

The distributor carries LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio. A built-in equalizer, retiming and output driver keep the signal stable. The housing measures 102 × 58 × 23 mm and weighs 0.17 kg.

More information

The RGBlink MSP316H is a compact yet powerful HDMI 2.0 1-in-2-out distributor, ideal for professional AV installations, live events, and digital signage. It supports video resolutions up to 4K@60Hz (24-bit RGB/YUV 4:4:4) including HDR content, while ensuring stable signal transmission with its built-in equalizer, retiming and output driver.

Audio is fully supported, including LPCM 7.1 channel, Dolby TrueHD, and DTS-HD, making it perfect for high-quality AV systems. The distributor also incorporates intelligent EDID recognition, offering standard and TV modes for compatibility with a wide range of displays and devices. For larger setups, two MSP316H units can be slotted together, and optional rack or wall mounting kits are available for flexible installation. Compact and reliable, the MSP316H ensures that both video and audio signals remain pristine across multiple displays.

Key Features

• HDMI 2.0 1-in-2-out distributor
• Supports up to 4K@60Hz (24-bit RGB/YUV 4:4:4)
• HDR compatible
• Built-in equalizer, retiming and output driver
• LPCM 7.1 channel, Dolby TrueHD, DTS-HD audio support
• Intelligent EDID recognition with standard and TV modes
• Can be slotted in pairs for extended setups
• Optional rack or wall mounting kit
• Compact and professional-grade design
