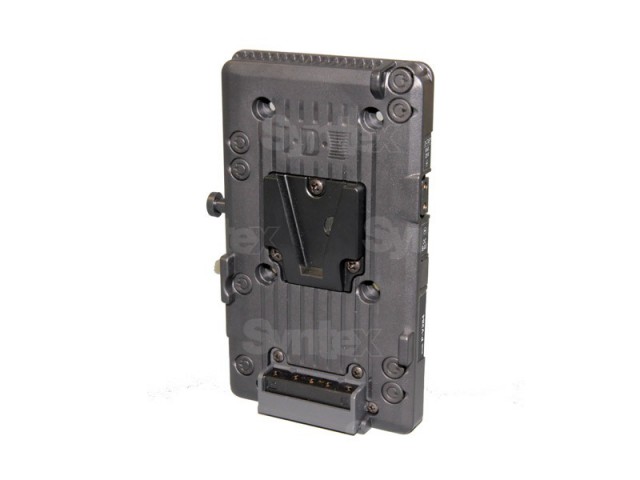

IDX P-V284

ENDURA V-Mount Plate with Dual 2-Pin D-Tap DC Outs and Digi-View
For operators of Sony’s HVR series camcorders, the P-V284 V-Plate features dual 2-Pin D-Taps – one 2-Pin D-Tap serves as the 8.4V (regulated) connection; and a second 2-Pin D-Tap is included for optional accessory power – its unregulated battery throughput voltage output can be as high as 16.8V with IDX Li-Ion batteries.

TECHNICAL SPECIFICATION

• D-Tap Power Out (Primary):
• P-V212: 12V Regulated
• P-V257: 5V/7.3V Regulated
• P-V284: 8.4V Regulated
• D-Tap Power Out (Secondary):
• 50W Maximum (on-board lights, etc.)
• (Unregulated)
• Dimensions: 82.5 (W) x 142(H) x 12(D) mm
• Weight: 180g approx. (plate series)
