RGBlink MSP 204

The RGBlink MSP 204 is a compact and reliable HDMI to SDI video converter designed for professional AV and broadcast workflows, converting HDMI signals to SDI with embedded analog audio support across a wide range of SD and HD resolutions. It detects the input format automatically; the audio source is chosen with the DIP switch or from a computer over USB.

The MSP 204 converter brings the picture from an HDMI computer or camera into an SDI broadcast chain and embeds audio from a microphone or mixing desk.

Connectors

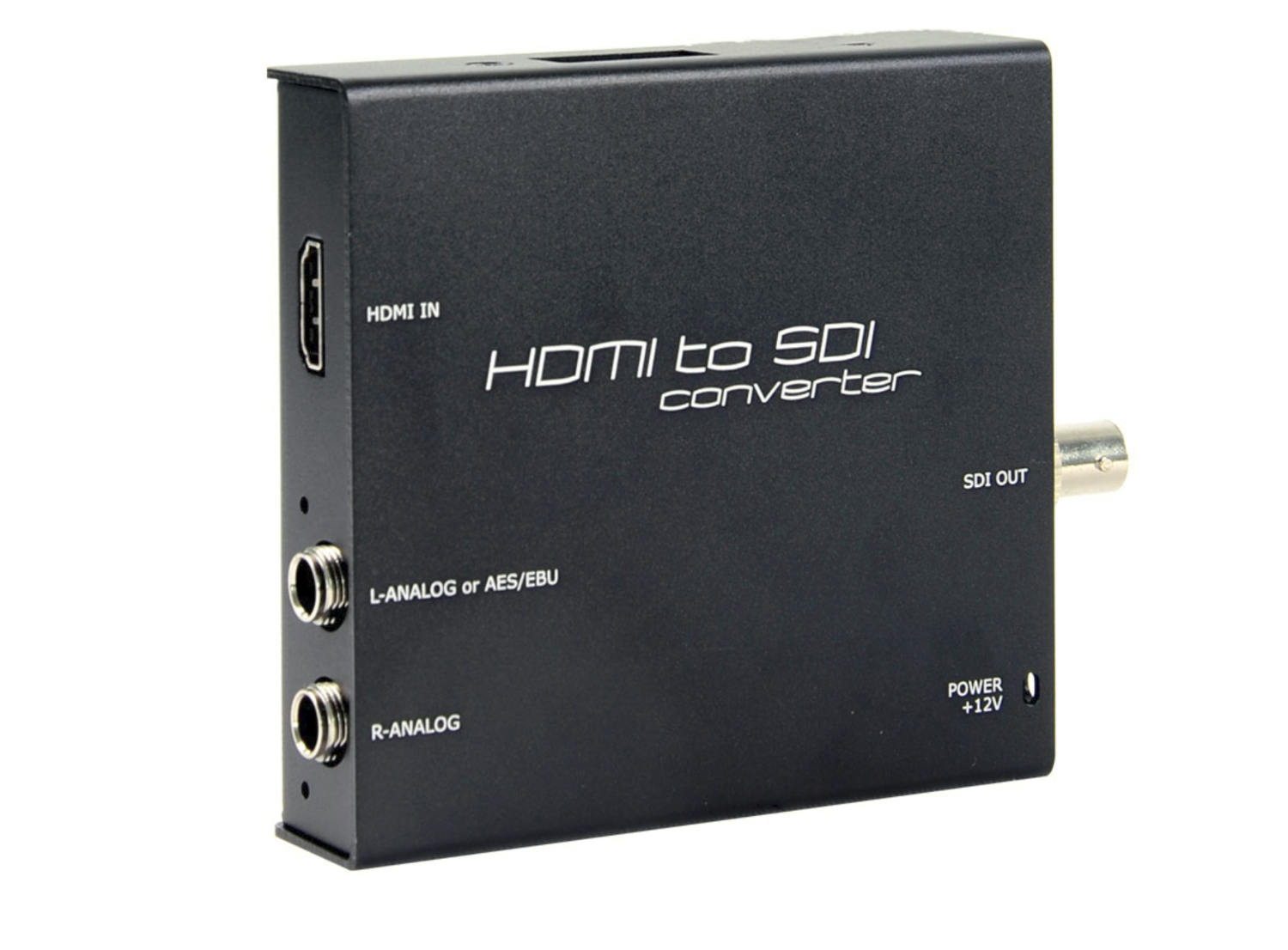

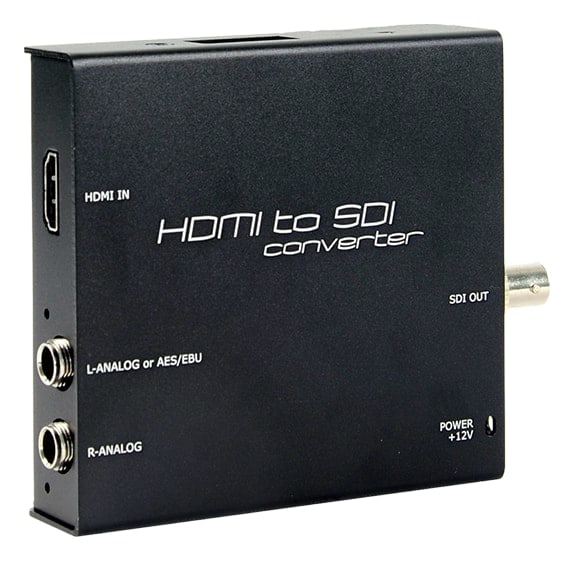

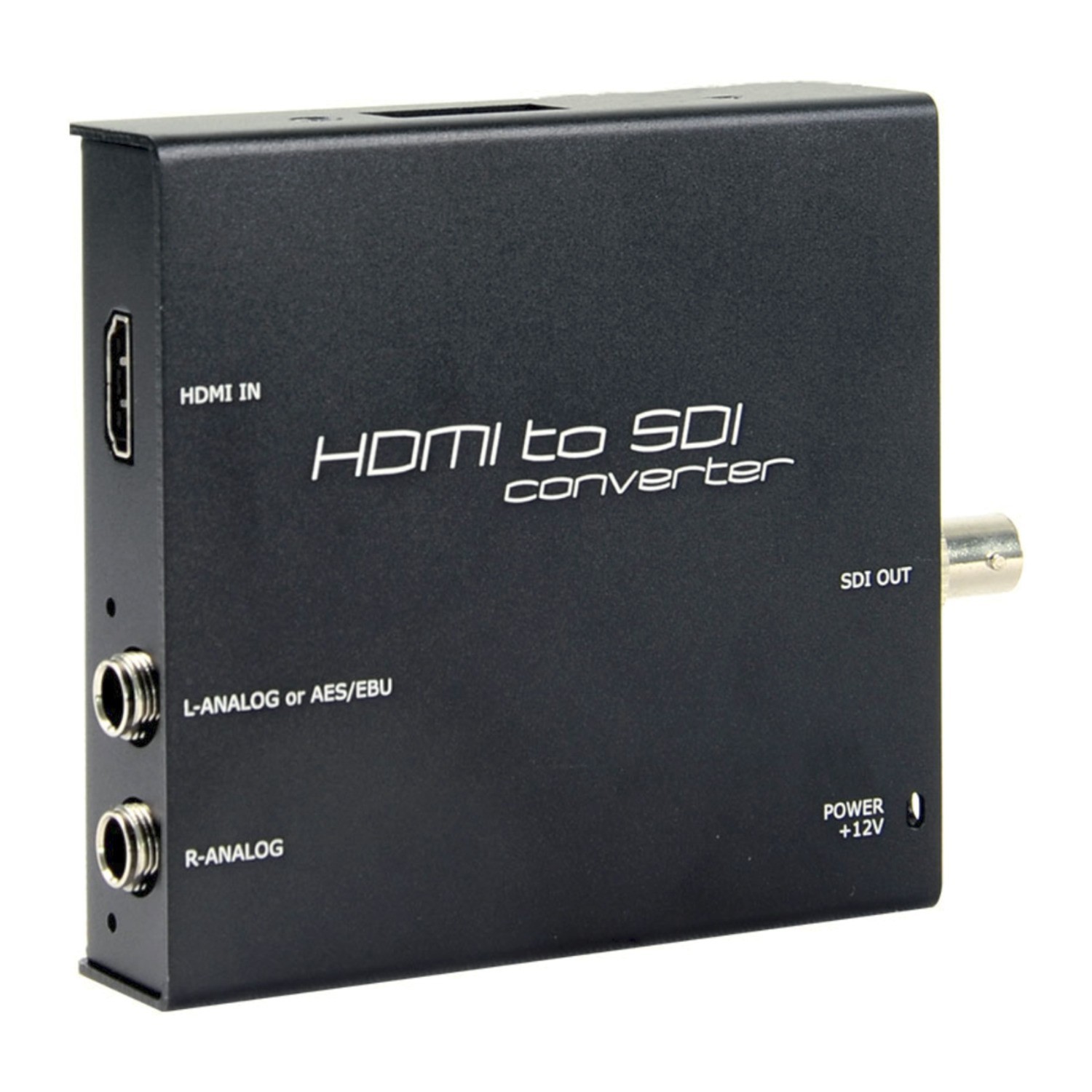

The signal enters through the HDMI IN connector and leaves through the SDI OUT output (3G/HD/SD-SDI) on BNC. Two jacks accept the left and right analog channels, the left one optionally digital AES/EBU – this audio is embedded into SDI independently of the HDMI audio. 12 V power connects to the POWER socket.

DIP switch and USB

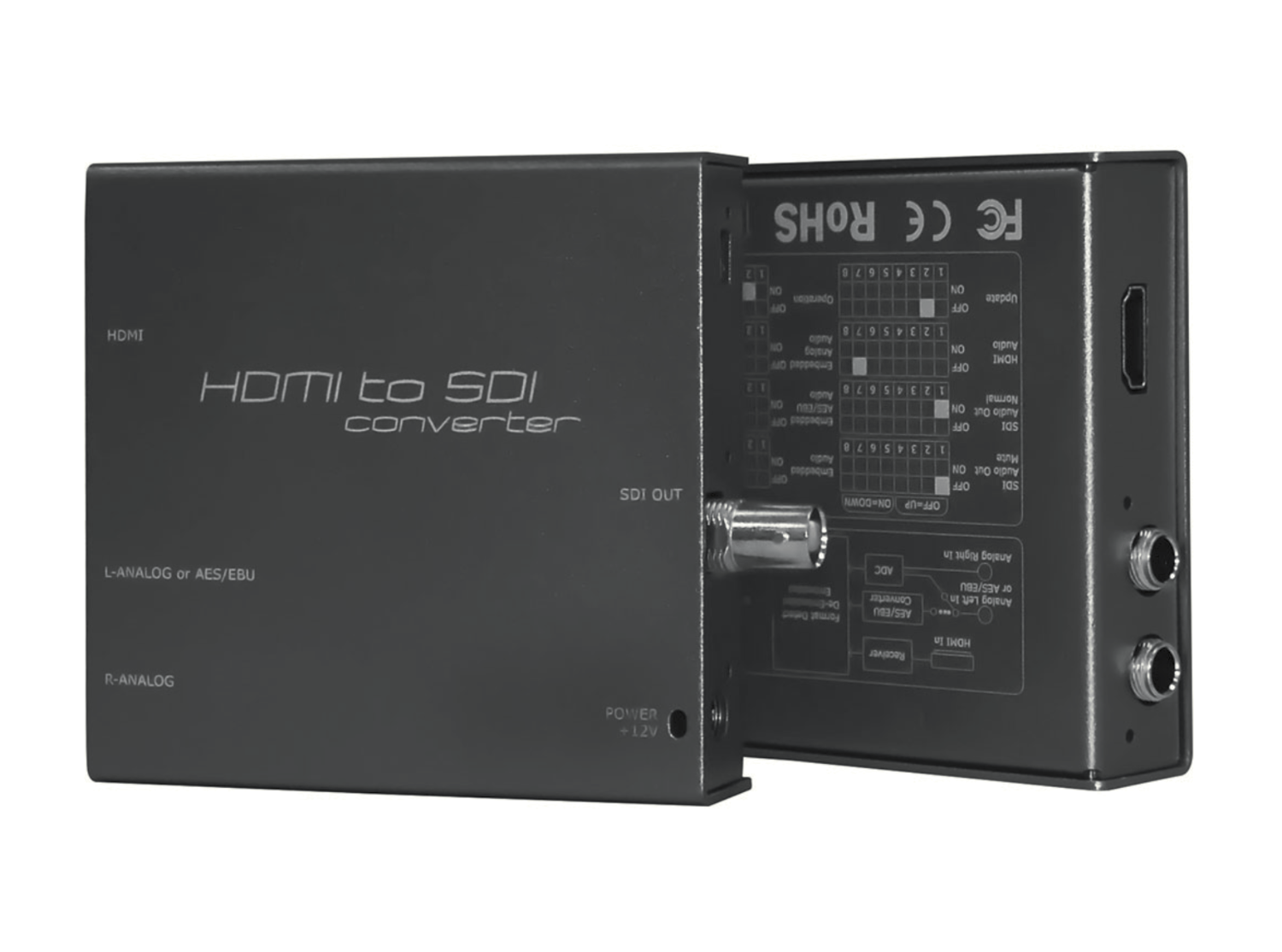

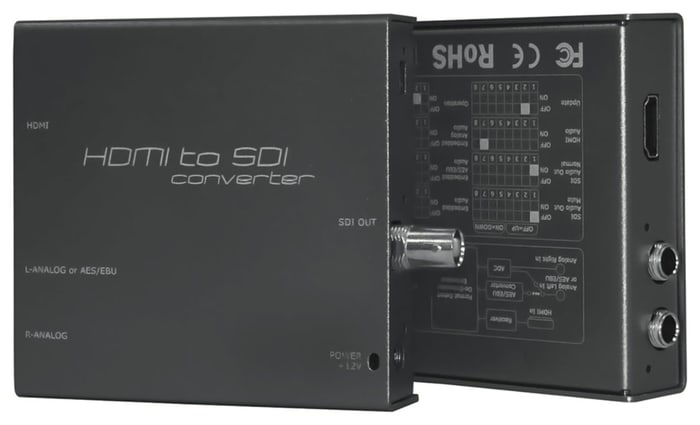

The converter detects the input format automatically. Audio source and other options are set with the DIP switch on the underside or from a computer over USB.

Connection example

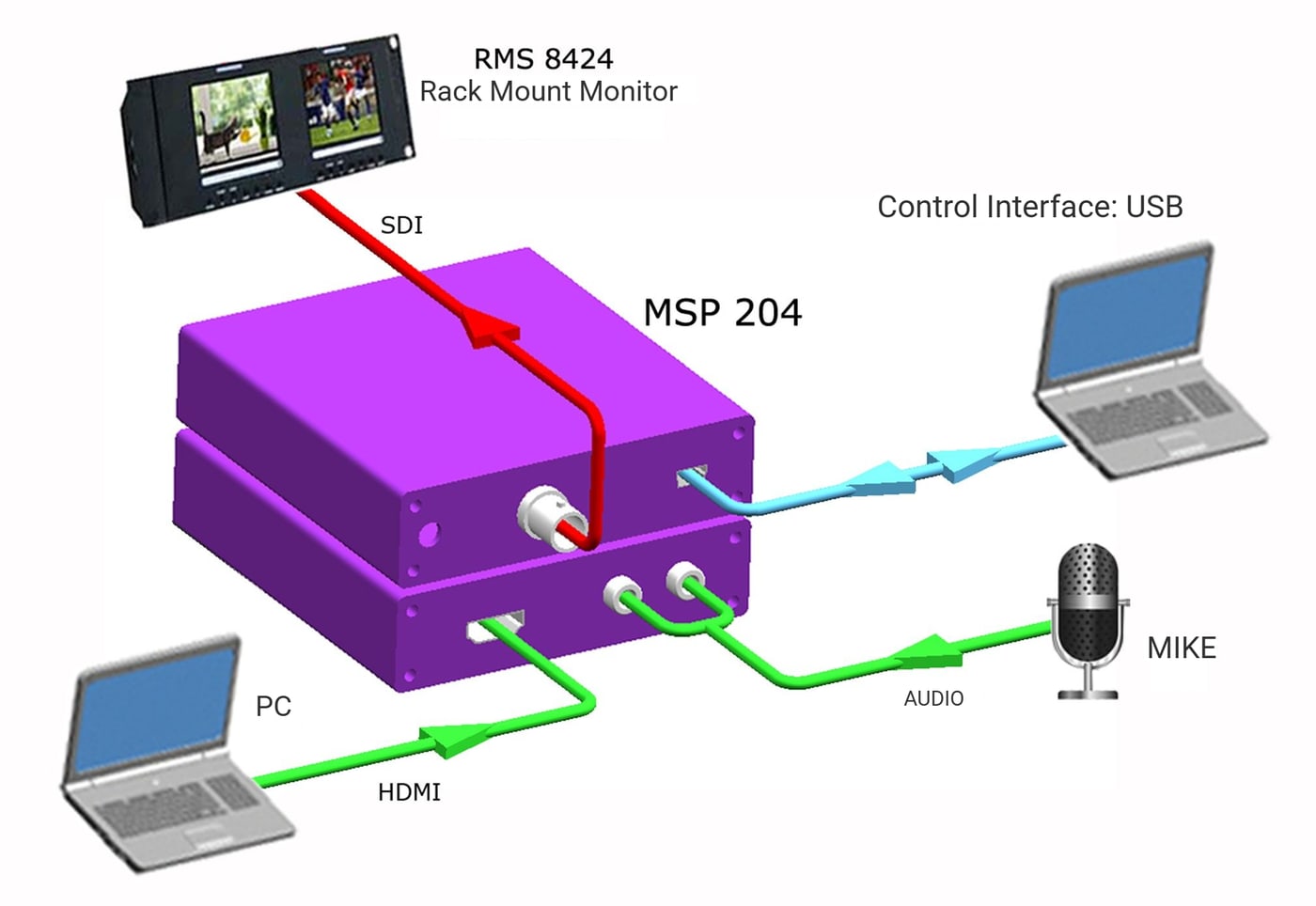

A computer on the HDMI input, a microphone on the audio inputs, the SDI output to an RGBlink RMS 8424 rack monitor and a laptop on USB for control.

More information

The RGBlink MSP 204 is a professional HDMI to SDI converter that enables seamless integration of HDMI sources into SDI-based broadcast and production environments. Featuring one HDMI input and one SDI output, the MSP 204 supports resolutions from 480i and 576i up to 1080p, including full 3G-SDI compatibility for high-quality signal transmission over long distances.

A key advantage of the MSP 204 is its ability to embed two channels of balanced analog audio directly into the SDI output, independently of the HDMI source. This makes it ideal for applications where external audio sources such as mixers or microphones need to be integrated into the video signal. Supporting industry standards including SMPTE 259M, 292, and 297, the converter ensures broad compatibility with professional broadcast equipment.

With its compact form factor, low power consumption, and straightforward operation, the MSP 204 is easy to deploy in mobile setups, fixed installations, or rack-mounted configurations using the RGBlink MSP Garage. It is well-suited for broadcast studios, live events, OB vans, and AV installations requiring dependable HDMI to SDI conversion.

Key Features:

• HDMI input to SDI output conversion
• Supports SD, HD, and 3G-SDI formats
• Converts 480i, 576i, 720p, 1080i, and 1080p resolutions
• Embeds left/right balanced analog audio into SDI
• Independent audio embedding from HDMI source
• Compact, lightweight, and easy to install
• Compatible with MSP Garage rack mounting
