Portkeys LEYE II viewfinder
SKU: LEYEII
This product is no longer offered. Please select from the alternatives below.
Top accessories for Portkeys LEYE II viewfinder
Panasonic LUMIX DC-BS1H
Gift Included 154.3 €
Panasonic announced a new full-frame box-style LUMIX DSLM camera, the DC-BS1H. As
3 643.68 €
on request
Canon C70
The EOS C70 introduces RF bayonet technology to the Cinema EOS system and features
5 761.57 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

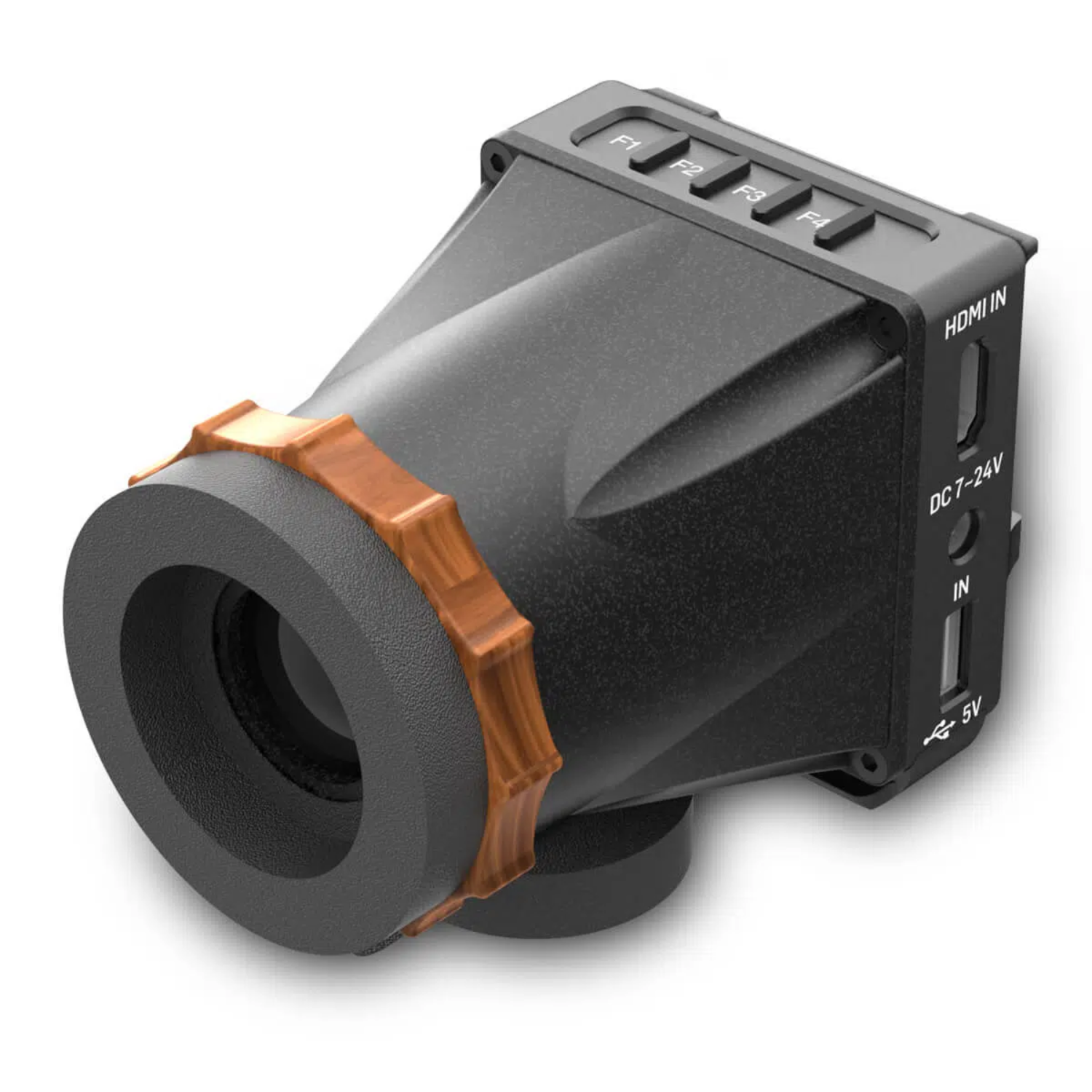

Portkeys’ LEYE HD electronic viewfinder provides clear viewing options for your mirrorless cameras, Z CAM, BMPCC, Canon C70 or other cameras that lack an integrated viewfinder. The viewfinder has an HDMI input and can support up to 4K30p video.
PACKAGE CONTENT
In the box:
- LEYE EVF 1x
- HDMI Ttransverter 1x
- Sponge Eye Mask 1x
- USB Disk 1x
- Power Cord ( DTap-DC ) 1x
SPECIFICATIONS

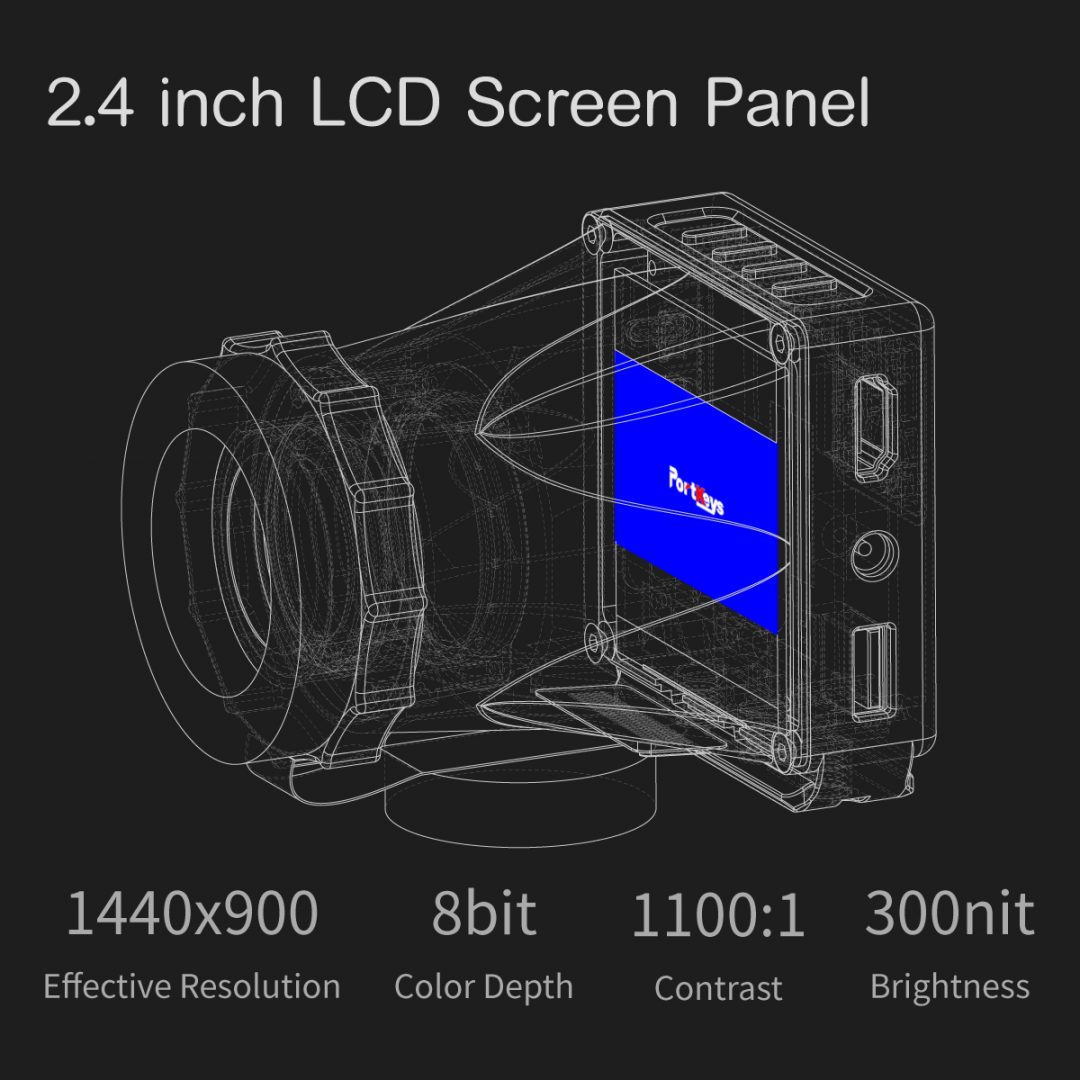

- LCD Resolution: 1440 x 900
- Size: 2.4″
- FOV: 178º

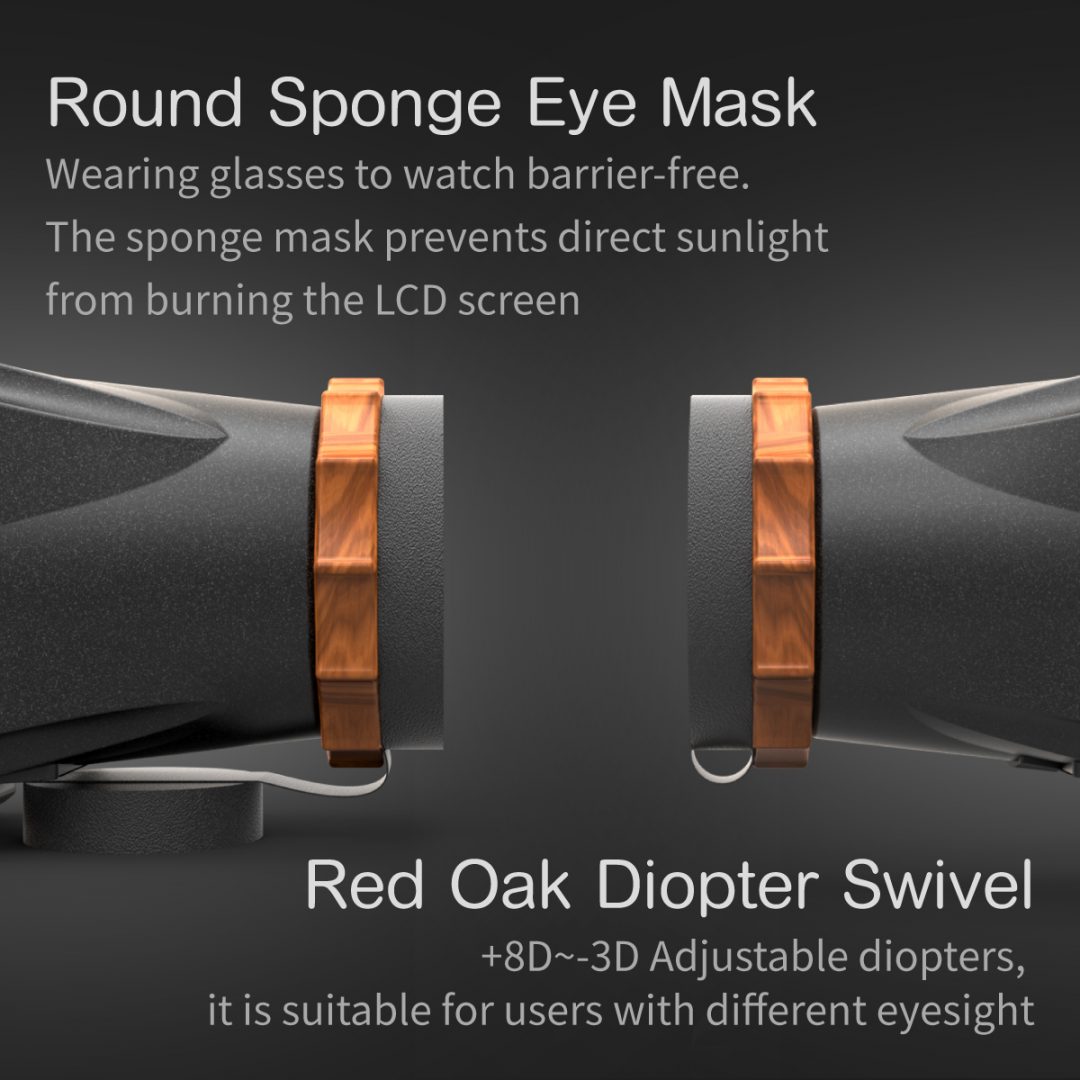

- Diopter range: +8 to -3
- HDMI: Input Video resolution up to UHD 30fps
- SDI: NO
- USB (Type A): Load user-defined LUTs

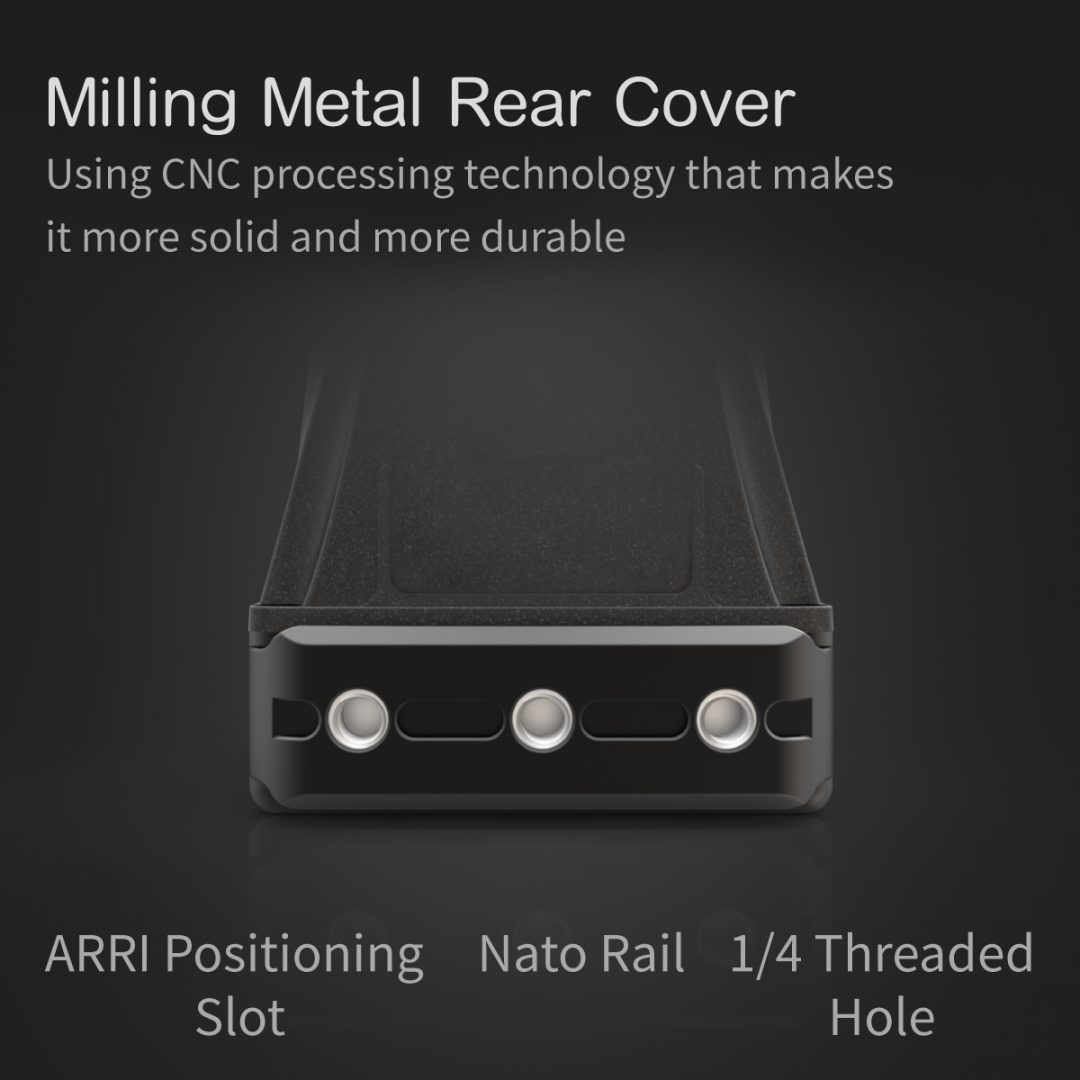

- Mounting Option: Metric Rosette with 1/4″-20 screw thread
- Input color depth: 8-bit

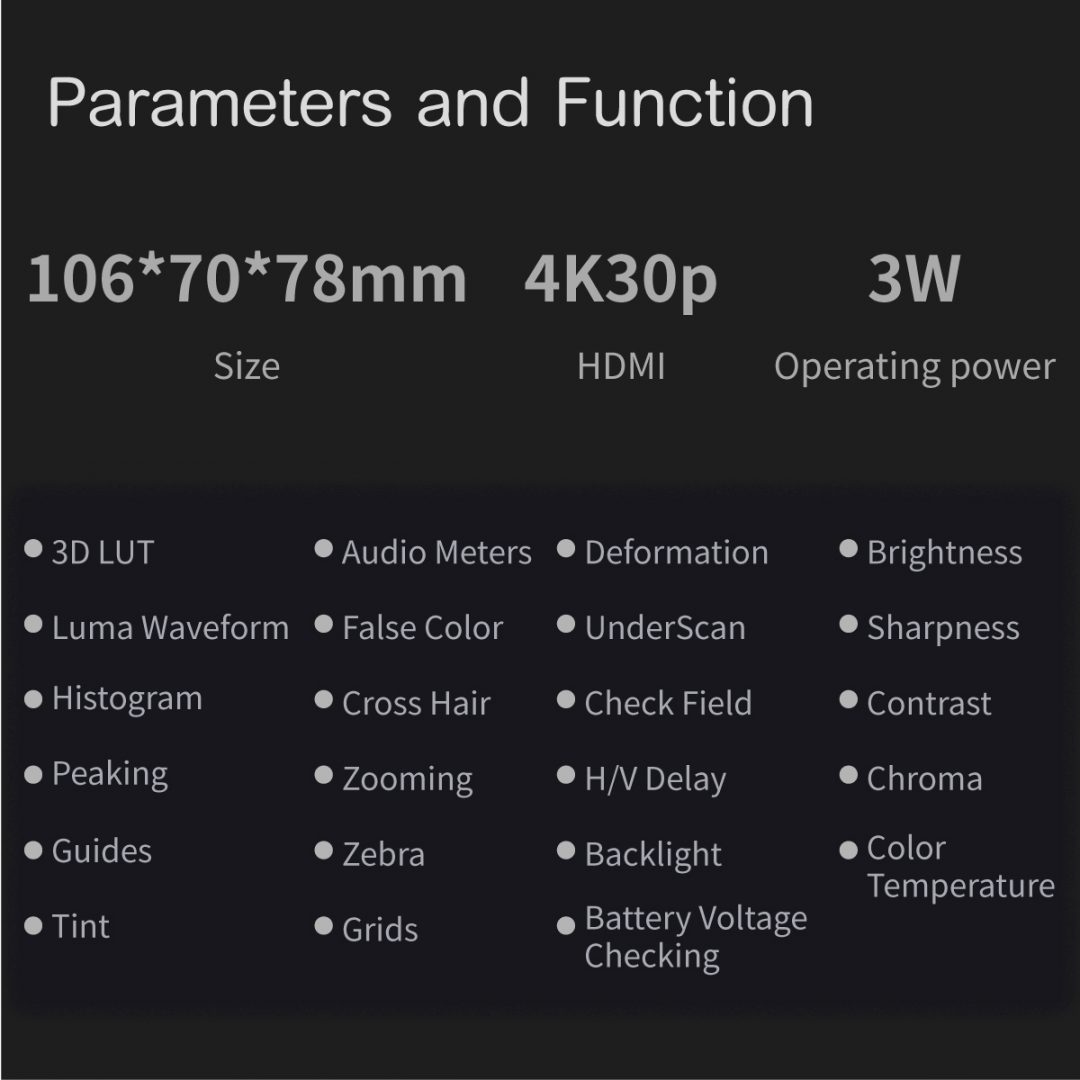

- Exposure tools: Zebra, False color, Waveform, Histogram, Vectorscope,
- Grids: Other tools
- Focus peaking, magnifier
- Built-in LUTs: Selectable LUTs & user-defined LUTs
- Power Input: 2-pin LEMO
- Power Consumption: 3W (maximum)
- LxWxH: 106 x 70 x 78mm (approximately)
- Net weight: 300 gram (approximately)
Parameters
Parameters
| Manufacturer: | PortKeys |
| Category: | EVF (Electronic View Finder) |
Main parameters
| Size | 2.4" |
| Monitor inputs | HDMI |
| Monitor inputs | 4K HDMI |
| Panel resolution | 1440x900 |
