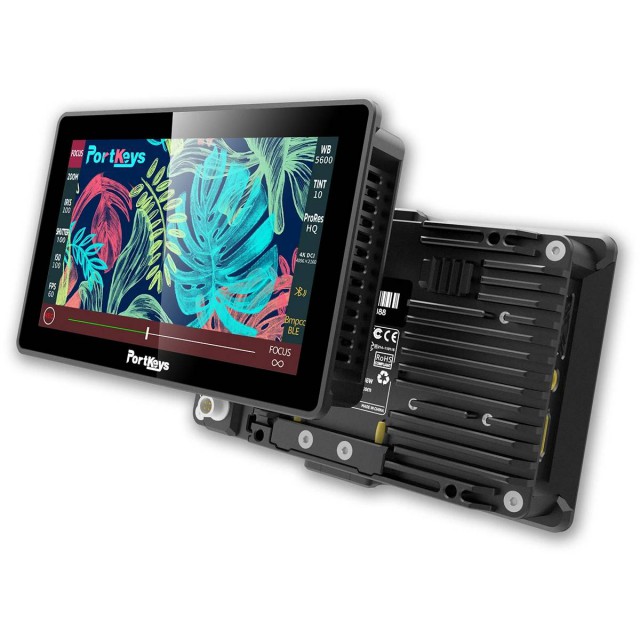

PortKeys BM5 III

New 2021 generation of the popular BM5 monitor adds a bigger screen (5.5“ compared to 5.2“ of the previous model), a whole new peak algorithm, Freeze Frame functionality, and wired control Tilta motors and cursor display.

More information

554.18 € with VAT 458 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs

Show all accessories

Product description

Product description

New 2021 generation of the popular BM5 monitor adds a bigger screen (5.5“ compared to 5.2“ of the previous model), a whole new peak algorithm, Freeze Frame functionality, and wired control Tilta motors and cursor display.

  • Material: Aluminum alloy+ Touch screen +Toughened glass
  • Picture Size: 5.5"
  • Resolution: 1920x1080
  • Color: 16.7M
  • HDMI/SDI: 1080p60
  • Max Power Consumption: 16W
  • Max Brightness: 2200nits
  • Viewing Angle: 178°H/178°V
  • Color Depth: 8bit
  • Contrast: 1000:1
  • Weight: 351g
  • Signal input: 3G/HD/SD-SDI, HDMI, USB
  • Signal output: 3G/HD/SD-SDI
  • Battery model: Sony NP-F970/960/F750/F550
  • Power input interface: 4pin Aviation Connector
  • Functions: 3D LUT, Waveform, Peaking, Histogram, Guides, Zebra, Check Field, Grids, Audio Meters, Tint, Touch Capability, Backlight, Adjustable Fan, Zooming, Image Flip, OSD Flip, Cross Hair, HLG, BMD SDI Tally, Camera Control, False Color, Anamorphic, 3D LUT SDI Output
  • Camera Control Interface: Focus Puller/Camera Remote

Supported Camera Models

  • Sony: A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02 (Multi control line), FS5, FS7, FX6, FX9 (LANC control line), A7S III [Type-C(USB-C) control line)]
  • Canon: 5D Mark III, 5D Mark II, 6D, 6D Mark II, 80D (Mini USB control line), 1DX, 1DX Mark II, 5DS, 5DS R, 5D Mark IV (Micro USB control line), R5, R6, C70, EOS R [Type-C(USB-C) control line)], C700 PL, C700 GSPL, C300 Mark 2, C300 Mark 2 PL, C200, C200B, C100, C100 Mark 2 (LANC control line)...
  • Tilta: Nucleus-N, Nucleus-M (Tilta Nucleus-N/M control line)
  • Panasonic: GH5, GH5S, S1, S1H, S1R, S5, G9, BGH1
  • Z CAM: E2, E2 S6, E2 F6 (LANC control line)
  • REC key
  • RED
  • Blackmagic Design: BMPCC4K, BMPCC6K, URSA Mini 4K, URSA Mini 4.6K, URSA Mini Pro 4.6K G2, URSA Broadcast, Cinema Camera 2.7K, Cinema Camera 4K, Micro Studio Camera 4K (LANC control line)

Parameters

Parameters

Manufacturer: PortKeys
Category: Camera monitors

Main parameters

Size5.5"
Monitor inputsHDMI
Monitor inputsSDI
Monitor power supplySony NP-F
Luminosity2200cd/m2
Panel resolution1920x1080

Other parameters

Other featuresTouchscreen
Other featuresTally
Other featuresCamera control
High Brightness (NITS)Yes
