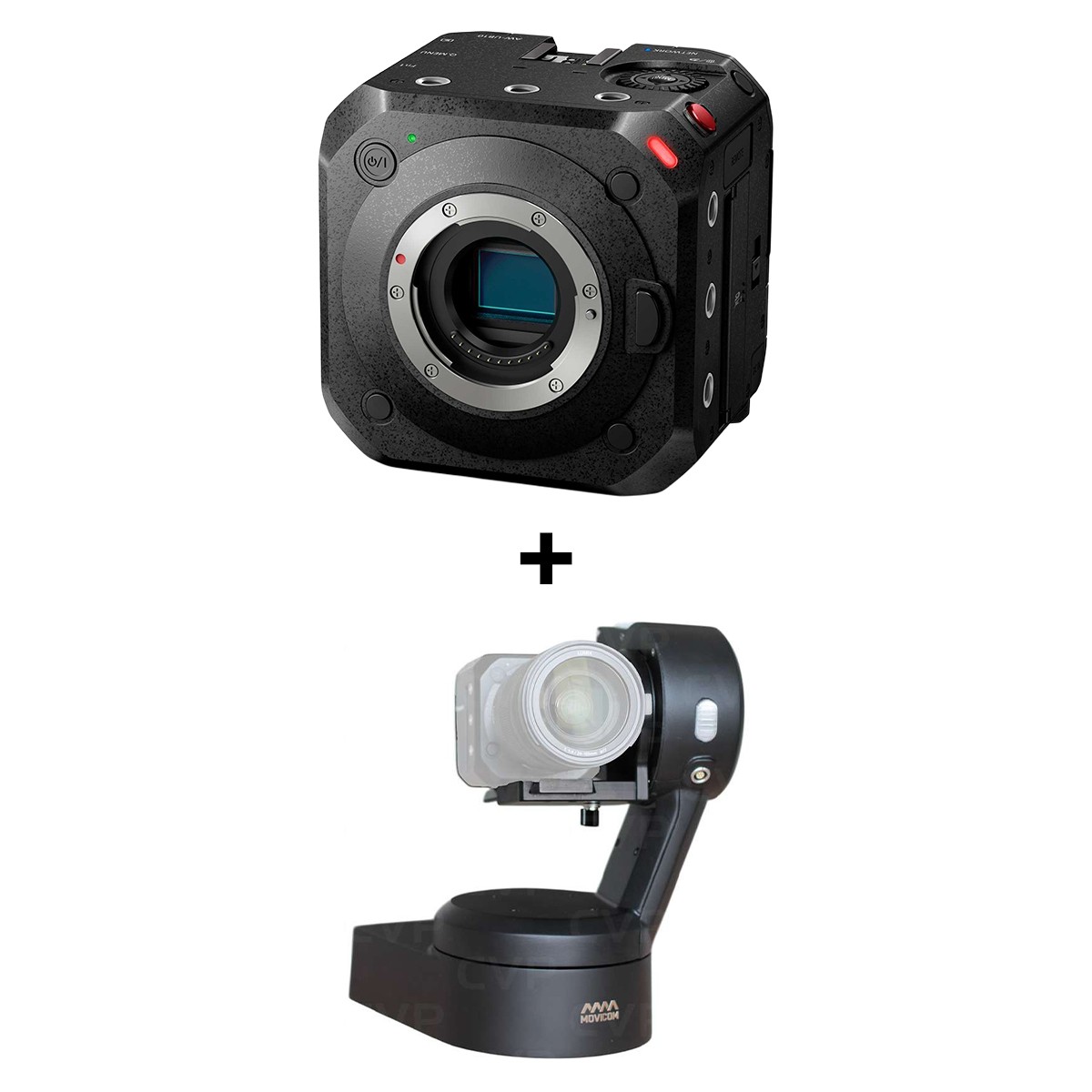

Panasonic AW-PT-UB10

Theversatile Panasonic AW-UB10 "box-style" 4K camerais equipped with an MFT (Micro 4/3) MOS sensor and supports all standard IP protocols, such as the Panasonic AW control protocol and RTP and RTSP protocols. Ina value bundlewith theRobyHead D2devicefor pan, tilt, and zoom capabilities.

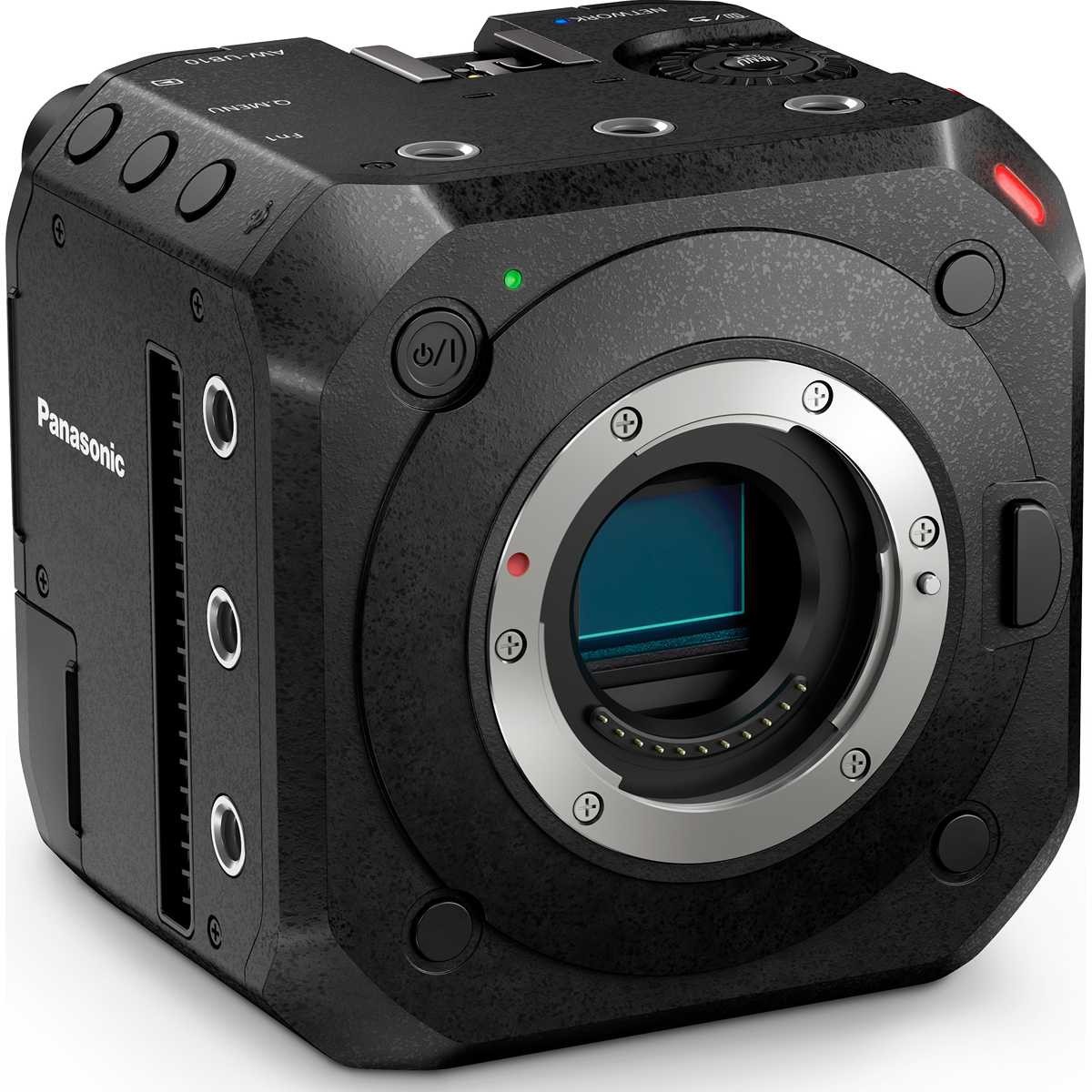

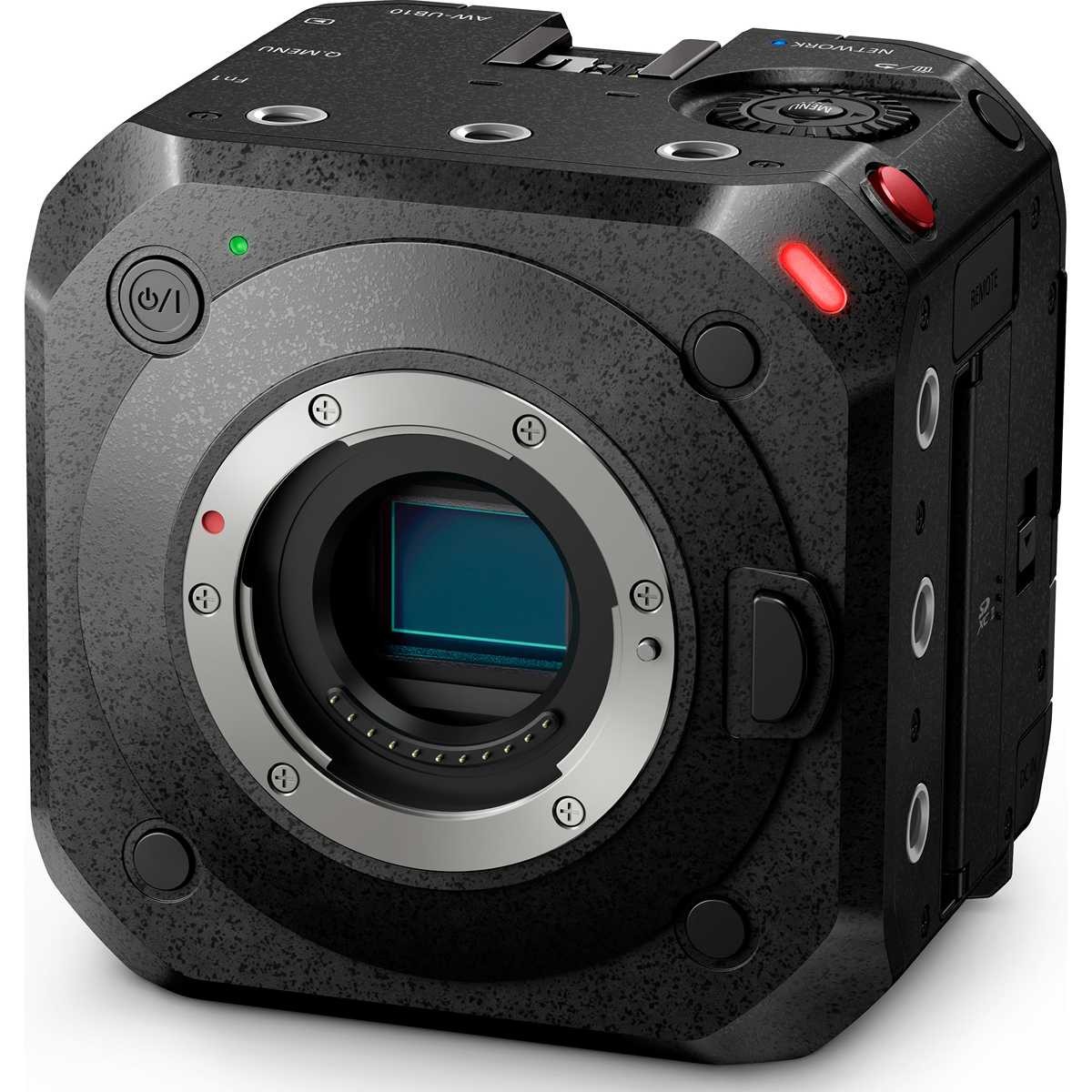

Panasonic AW-UB10

The groundbreaking, versatile "box-style" 4K cameras AW-UB50 and AW-UB10 are designed to let your creativity run free. Both cameras are based on LUMIX interchangeable-lens digital camera technology and feature a range of new functions designed to streamline video production workflows. They are ideal for the rapidly growing corporate and educational video production markets, as well as for broadcasting, live entertainment, and film and television production.Q1/2025.

State-of-the-art sensors
The AW-UB50 model is equipped with a full-frame MOS sensor, while the AW-UB10 variant features an MFT (Micro 4/3) size MOS sensor; both support all common IP protocols, such as the Panasonic AW control protocol and RTP, RTSP, and (via future updates) RTMPS, SRT, and NDI HX2 protocols. The AW-UB50 model has been optimized for film production and features a shallower depth of field than the AW-UB10 model. Both the AW-UB50 and AW-UB10 cameras utilize autofocus technology with real-time subject recognition, which enables automatic identification and tracking of subjects. Both cameras are also equipped with Dual Native ISO and V-Log features to provide video production teams with the flexibility needed to create a camera ecosystem optimized for the requirements of individual productions.

Versatility and Flexibility

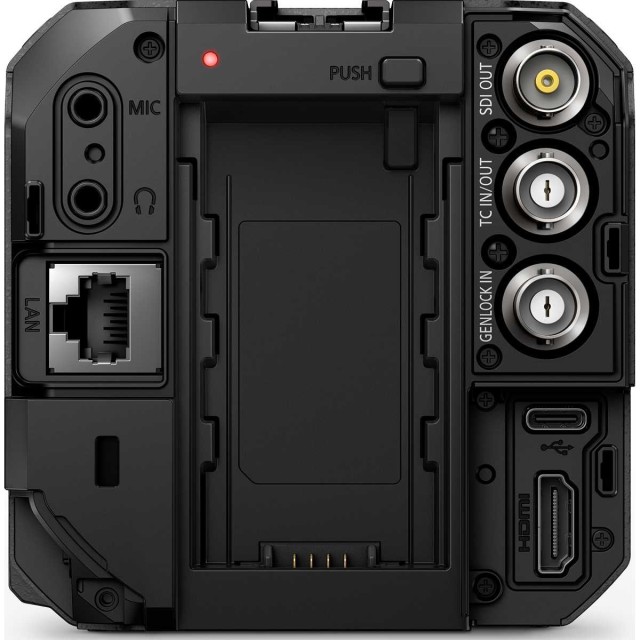

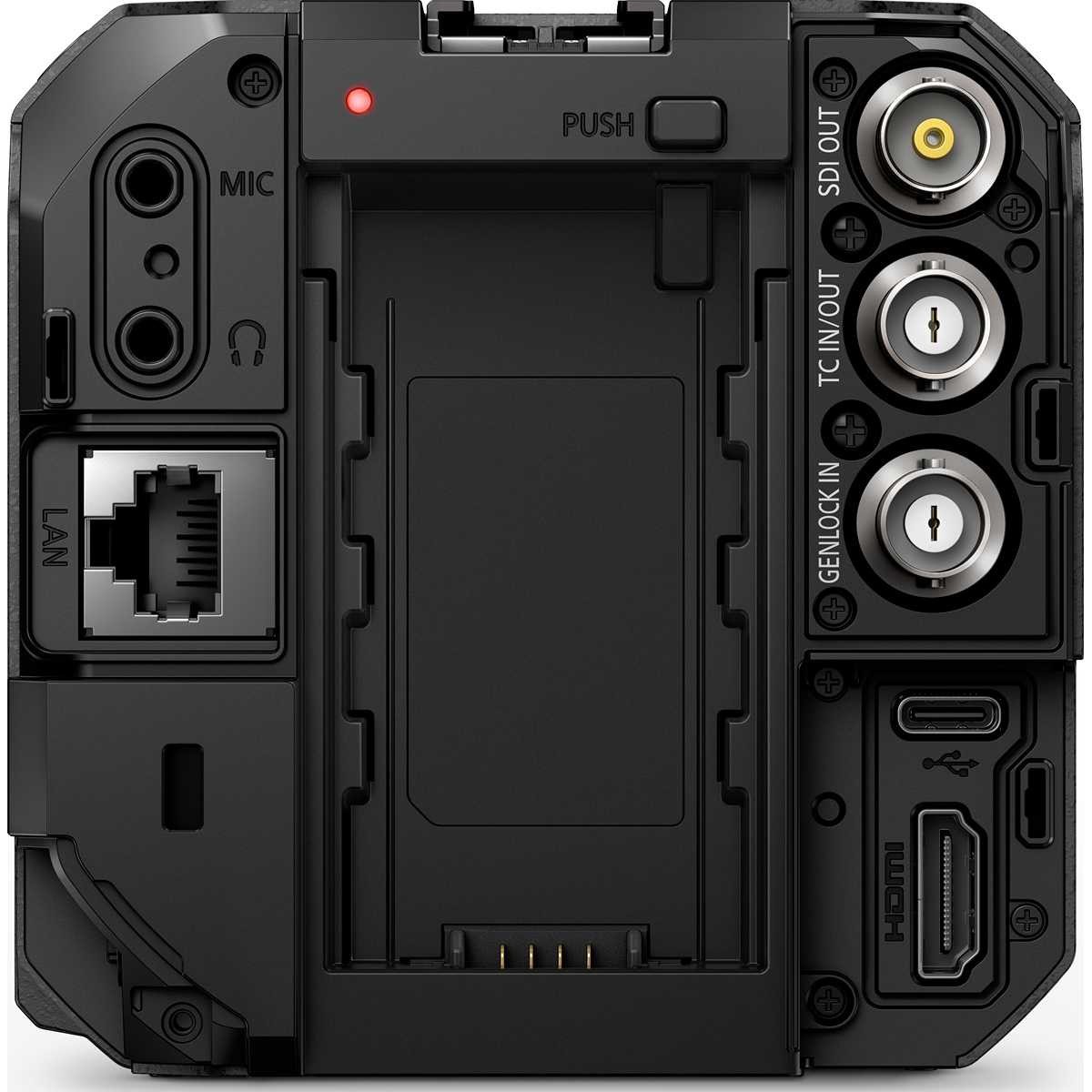

The AW-UB50 and AW-UB10 cameras simplify operations in professional broadcast environments and are ideal for shooting, recording, and distributing video content at large-scale live events. These versatile 4K cameras support rich and versatile image capture, and their on-site operation is incredibly easy, enabling more creative video production. Installation flexibility is a top priority in the design. Both models feature a compact chassis with a height, width, and depth of less than 10 cm, allowing for installation even in the tightest spaces. They can also be used for handheld shooting with a gimbal. Both the AW-UB50 and AW-UB10 cameras offer 3G-SDI output, an HDMI Type A interface, a LAN port, time code input/output, a Genlock input, and a USB-C interface. The LAN port is compatible with PoE (Power over Ethernet), so video transmission, control, and power are all handled by a single cable—further simplifying their use for live production.

Easy Control
When connected to remote camera systems on the same network, the AW-UB50 and AW-UB10 models are fully compatible with the Panasonic AK-HRP1010 remote control panel, and support for the AW-RP150G camera remote control and Panasonic production consoles is planned for the future. The cameras can also be used to control tally signals. By installing a color profile compatible with the integrated Panasonic AW-UE160 4K camera, colors can be easily matched in mixed operations with remote cameras. The future-ready design of the AW-UB50 and AW-UB10 cameras allows Panasonic to implement future support for IP-based transmission standards, such as NDI HX2. This supports increasingly flexible video production methods, such as video distribution via streaming services and the construction of IP-based systems.

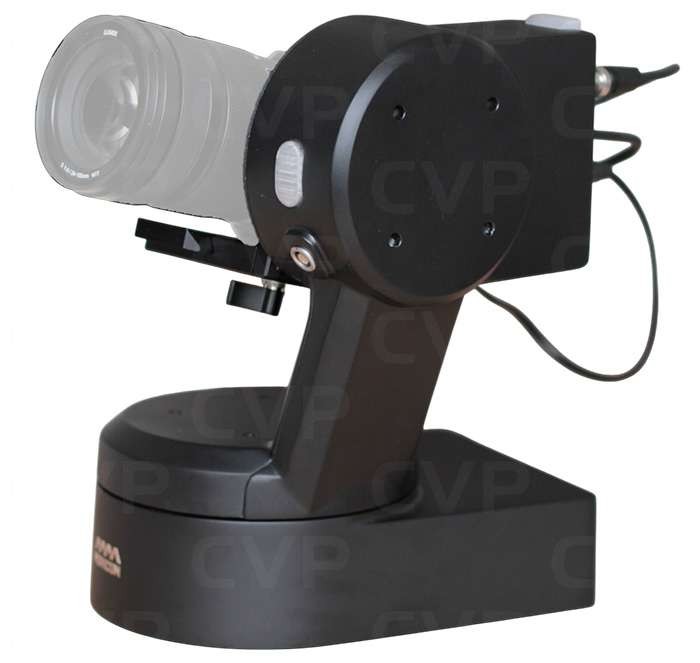

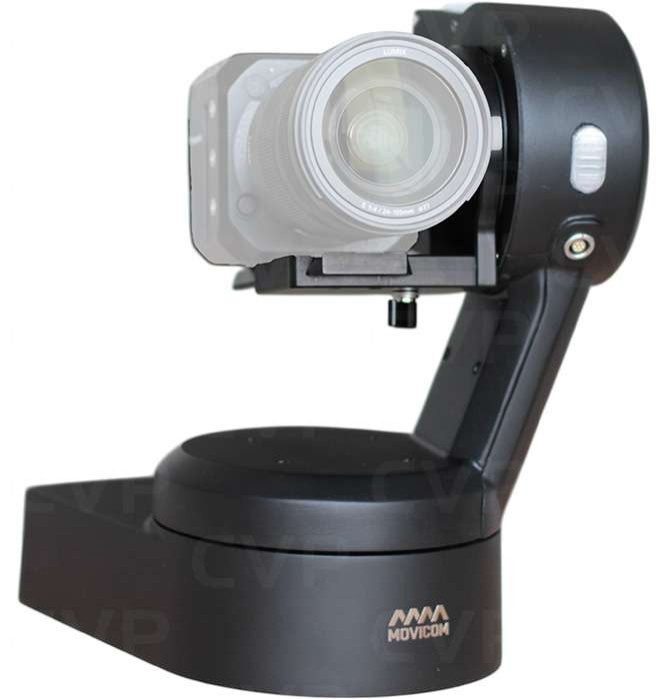

RobyHead D2

Designed for thePanasonic AW-UB50 and Panasonic AW-UB10 4K box-style multifunctional cameras, the RobyHead D2 offers fullpan,tilt, andzoom capabilities, as well as full compatibility withthe Panasonic AW-RP150GJ remote control unitviaIP protocol.

The RobyHead D2 offers the advantage ofprecise remote camera positioningina compactdesign, allowing for precise control of the camera’s field of view without the need for physical adjustments. This allows the camera to be fully controlled from any distance, making it ideal for applications where it is necessary to capture a specific area or track movement with minimal space requirements—such as sports broadcasts, studio productions, conference halls, events, and other situations that require a compact size without compromising on quality or control.

Key benefits of the compact RobyHead D2 motorized pan-tilt head:

• Precise control and smooth movement:Motorizedmovements allow for fine-tuning of the camera’s direction for precise framing and tracking of subjects. Direct-drive technology operates almost silently, allowing the camera to move even during live broadcasts or interviews.
• Remote control:Thecamera’s pan and tiltfunctionscan be controlled from virtually any distance using a remote or software, without the need for manual intervention. The camera can thus be installed and operated from anywhere. Thanks to the pan and tilt capabilities, a single camera position can cover a larger area while maintaining full control over all camera functions.

The RobyHead D2 is specially designed to fit even in very confined spaces and perfectly complements the compact dimensions of the AW-UB50 and AW-UB10 cameras.

Key Features:

• Sleek design
• Direct-drive motors
• Completely silent operation
• Weight: 3.7 kg
• Dimensions: 295 × 210 × 255 mm (H × W × D)
• Support for external lens motors (Tilta)
• Zero backlash
• Power supply: 12 V / 100 W
• Maximum load capacity: 5 kg
• Integrated HDMI to 12G HD-SDI converter
• Optional internal precision compass for tracking (FreeD protocol)
• Can be installed in both suspended and inverted positions (overslung / underslung)
• Control via Panasonic control panels (AWRP150, KAIROS, etc.)
