Noxon High-Speed Cablecam
SKU: HSC-05
The Noxon High-Speed Cablecam is a professional-grade cable camera system designed for smooth and dynamic high-speed tracking shots, supporting up to 20 kg payload with speeds reaching 70 km/h. Two 6-cell LiPo batteries, traction control and virtual limits make it a fast, safe tool for sports, concerts and live broadcasts. The rope and winch are sold sepa…
2 559 € with VAT
2 114.88 € without VAT
Availability
on request
Top accessories for Noxon High-Speed Cablecam
Noxon Polyester Rope 8mm – 100m
The Noxon Polyester Rope 8 mm – 100 m is designed for the High-Speed Cablecam, offering
155 €
on request
Noxon Polyester Rope 8mm – 200m
The Noxon Polyester Rope 8 mm – 200 m is a durable, high-strength rope designed for
275 €
on request
Noxon Spare Wireless Controller
The Noxon wireless controller runs every motorised Noxon device – the Mod Slider,
201 €
on request
Noxon Safety Rope Accessory for High-Speed Cablecam
The Noxon Safety Rope Accessory is designed to improve the safety of the High-Speed
82 €
on request
Noxon Transport Flightcase for High-Speed Cablecam
The Noxon Transport Flightcase for the High-Speed Cablecam provides rugged and secure
639 €
on request
Noxon DJI Control Cable
The Noxon control cable connects a Noxon High-Speed Cablecam or Portable Wirecam
28 €
on request
Noxon 1,000 kg Winch
The Noxon 1,000 kg Hand Winch is a heavy-duty winch for the High-Speed Cablecam,
73 €
on request
Noxon V-Mount Accessory
The Noxon V-Mount Accessory consists of two V-Mount (V-Lock) plates for the Noxon
234 €
on request
Product description
ARTICLES
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Noxon High-Speed Cablecam is a professional-grade cable camera system designed for smooth and dynamic high-speed tracking shots, supporting up to 20 kg payload with speeds reaching 70 km/h. Two 6-cell LiPo batteries, traction control and virtual limits make it a fast, safe tool for sports, concerts and live broadcasts. The rope and winch are sold separately.
A cablecam to fly fast
The High-Speed Cablecam on its own, with the wireless controller and batteries – for crews who already have a rope, winch and anchoring, or who want to choose them separately.
70 km/h20 kg payload2× LiPo 6S 22.2 V300 m controller rangeArca-Swiss
Up to 70 km/h on the rope
A 4,000 W drive with traction control lets the High-Speed Cablecam fly fast past the action in sports, concerts and other aerial shots, while the virtual limits act as an emergency brake before the anchor points.
Ready in about 2 minutes
Easy coupling and a quick-mount system; a screw on the unit helps you work out the rope tension.
Position control
A positioning sensor on the rope tracks the real movement, so automatic moves and virtual limits stay accurate.
Programmable moves
Automatic, manual, stop motion and timelapse modes with adjustable start and stop accelerations.

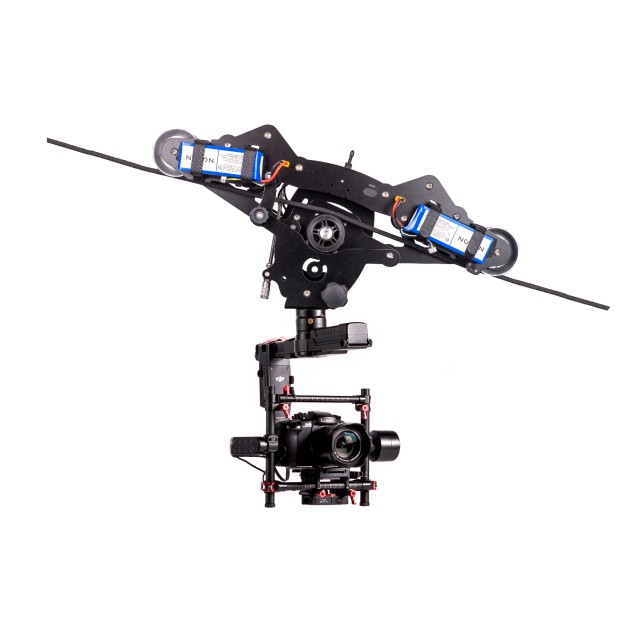

Up to 10° incline
With about 15 kg of payload the cablecam handles a 10° incline without loss of performance.
Working on an incline
The power reserve and the gimbal tilt adjustment let you work at demanding angles.

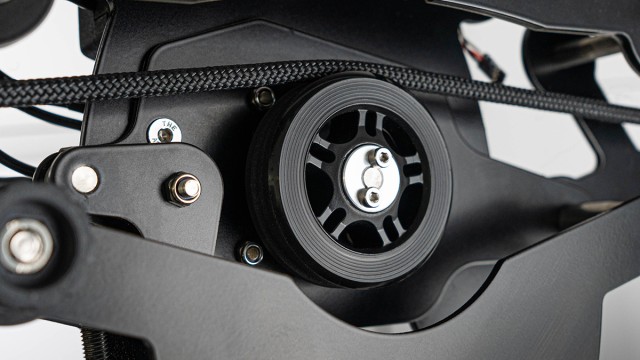

Traction control
Prevents the traction wheel from slipping, gives maximum acceleration and protects the rope.
4,000 W drive
Two 6-cell LiPo batteries supply the power for the full performance of the cablecam.
Real-time control
Programs automatic moves in real time; range up to 300 m in line of sight.
Wireless controller
Range up to 300 m, about 5 hours of operation on one charge, an ergonomic grip and USB charging.
More information
About the product
The Noxon High-Speed Cablecam is engineered for high-performance cinematography, offering exceptional speed, stability and payload capacity. With a lightweight yet robust construction made from aluminium, A2 stainless steel and Delrin, it ensures durability and precise movement in various filming environments.
The system is powered by two 22.2 V batteries, delivering a maximum speed of 70 km/h while maintaining smooth and controlled motion at a minimum speed of 16 mm/s. The 20 kg horizontal payload allows professional camera rigs to be mounted, making it ideal for film production, sports broadcasting and live events.
Designed for ease of use, the Noxon High-Speed Cablecam works with the Noxon control system and accessories and provides reliable and precise camera motion for dynamic and immersive footage.
Key features: a maximum speed of 70 km/h for high-speed tracking shots; precise motion control with a minimum speed of 16 mm/s; up to 20 kg of payload for professional cameras; aluminium, A2 stainless steel and Delrin construction; two 22.2 V batteries.
PACKAGE CONTENT
- Noxon High-Speed Cablecam
- Wireless controller
- Set of 2 LiPo 6S batteries
- USB cable
SPECIFICATIONS
- Maximum speed: 70 km/h
- Minimum speed: 16 mm/s
- Payload (horizontal): 20 kg
- Power: 2× 6-cell LiPo battery (6S), 22.2 V
- Drive power: 4,000 W
- Battery life: approx. 30 min at maximum load and continuous maximum speed; approx. 4 hours in a normal shoot
- Controller range: up to 300 m in line of sight
- Working on an incline: 10° with approx. 15 kg payload
- Camera mount: Arca-Swiss with a standard 1/4″ plate
- Safety: positioning sensor on the rope, virtual limits, support for a second rope
- Materials: aluminium, A2 stainless steel, Delrin
- Dimensions: 75 × 32 × 16 cm
- Weight: 5,025 g
ARTICLES
WE RECOMMEND
We recommend these Noxon accessories for the Noxon High-Speed Cablecam:
Parameters
| Manufacturer: | Noxon |
| Category: | Motorized heads |
Main parameters
| Power supply | 2× LiPo 6S 22.2 V |
| Maximum speed | 70km/h |
| Controller range | 300m |
| Type | Cablecam |
| Weight | 5kg |
Blog and news
Date: 01. 04. 2025, Category: News
Noxon: New brand in the offer!
Noxon is a Spanish company created to offer professional solutions for the audiovisual sector. It offers ideal products to achieve automatic…
ACCESSORIES (8)
ACCESSORIES (8)
Noxon Polyester Rope 8mm – 100m
The Noxon Polyester Rope 8 mm – 100 m is designed for the High-Speed Cablecam, offering
155 €
on request
Noxon Polyester Rope 8mm – 200m
The Noxon Polyester Rope 8 mm – 200 m is a durable, high-strength rope designed for
275 €
on request
Noxon Spare Wireless Controller
The Noxon wireless controller runs every motorised Noxon device – the Mod Slider,
201 €
on request
Noxon Safety Rope Accessory for High-Speed Cablecam
The Noxon Safety Rope Accessory is designed to improve the safety of the High-Speed
82 €
on request
Noxon Transport Flightcase for High-Speed Cablecam
The Noxon Transport Flightcase for the High-Speed Cablecam provides rugged and secure
639 €
on request
Noxon DJI Control Cable
The Noxon control cable connects a Noxon High-Speed Cablecam or Portable Wirecam
28 €
on request
Noxon 1,000 kg Winch
The Noxon 1,000 kg Hand Winch is a heavy-duty winch for the High-Speed Cablecam,
73 €
on request
Noxon V-Mount Accessory
The Noxon V-Mount Accessory consists of two V-Mount (V-Lock) plates for the Noxon
234 €
on request
Alternative (2)
Alternative (2)

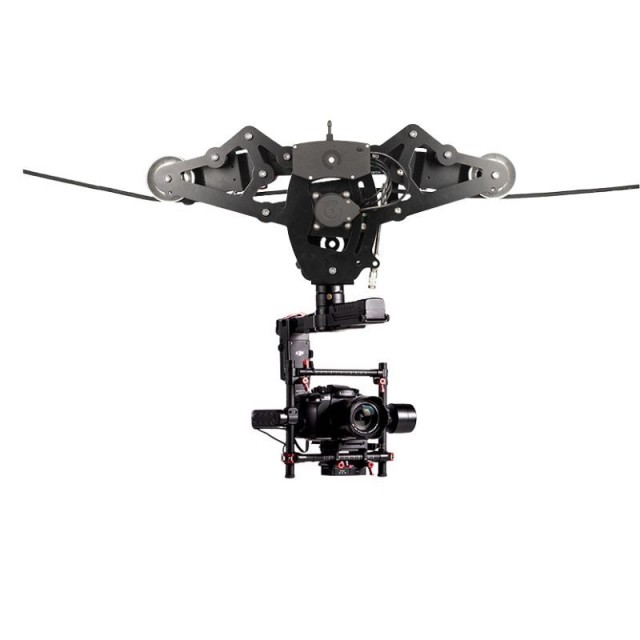

Noxon High-Speed Cablecam – Starter Kit
