Noxon TurnTable Kit 115 cm

  • Free transport
SKU: TT-111

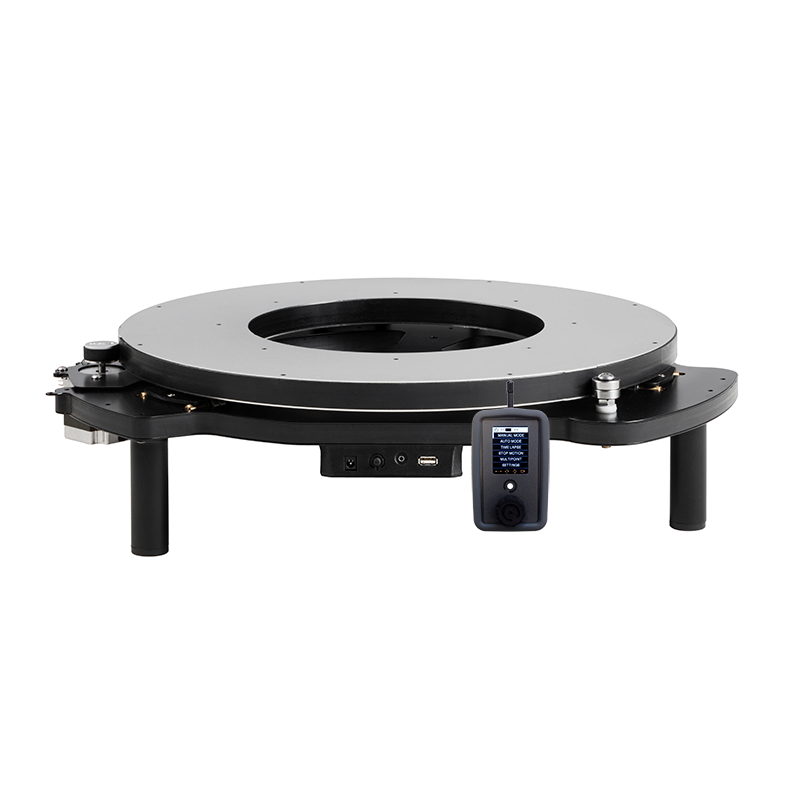

The Noxon TurnTable kit with a 115 cm White Table is a motorised, programmable turntable for 360° photography, photogrammetry and video of rotating products or people. It carries up to 150 kg, turns smoothly at 1.2 to 85 °/s and fires the camera itself through a 2.5 mm minijack. Control it with the Noxon wireless controller, Dragonframe or WebRotate 360.

More information

1 729 € with VAT 1 428.93 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TT-111
Add to Compare Price history

Noxon TurnTable Kit 80 cm

1 599 €without VAT 1 321.49 €

Noxon TurnTable (rotating platform only)

1 429 €without VAT 1 180.99 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Noxon TurnTable kit with a 115 cm White Table is a motorised, programmable turntable for 360° photography, photogrammetry and video of rotating products or people. It carries up to 150 kg, turns smoothly at 1.2 to 85 °/s and fires the camera itself through a 2.5 mm minijack. Control it with the Noxon wireless controller, Dragonframe or WebRotate 360.

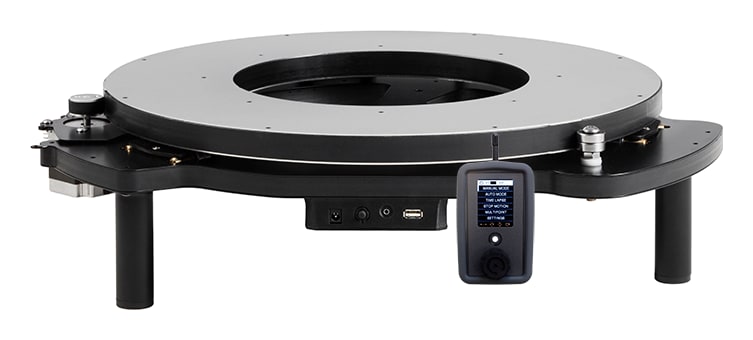

A turntable that carries 150 kg

A motorised TurnTable for 360° photography and video, with a 115 cm White Table and programmable moves.

A turntable that carries 150 kg
150 kg load1.2–85 °/s2.5 mm minijack115 cm table12 V DC

A full rotation, automatically

Set the number of stops and the platform fires the camera after every step – in the maker’s test a single rotation took 10,300 photos over 17 hours.

150 kg

Carries heavy products or a standing actor – tables can be swapped to suit the object size.

Smooth rotation

Speeds from 1.2 to 85 °/s for slow product shots or faster spins.

Four modes

Automatic, manual, stop motion and timelapse from the Noxon wireless controller.

Software

Dragonframe, WebRotate 360 and your own commands from a PC or Mac over a serial port.

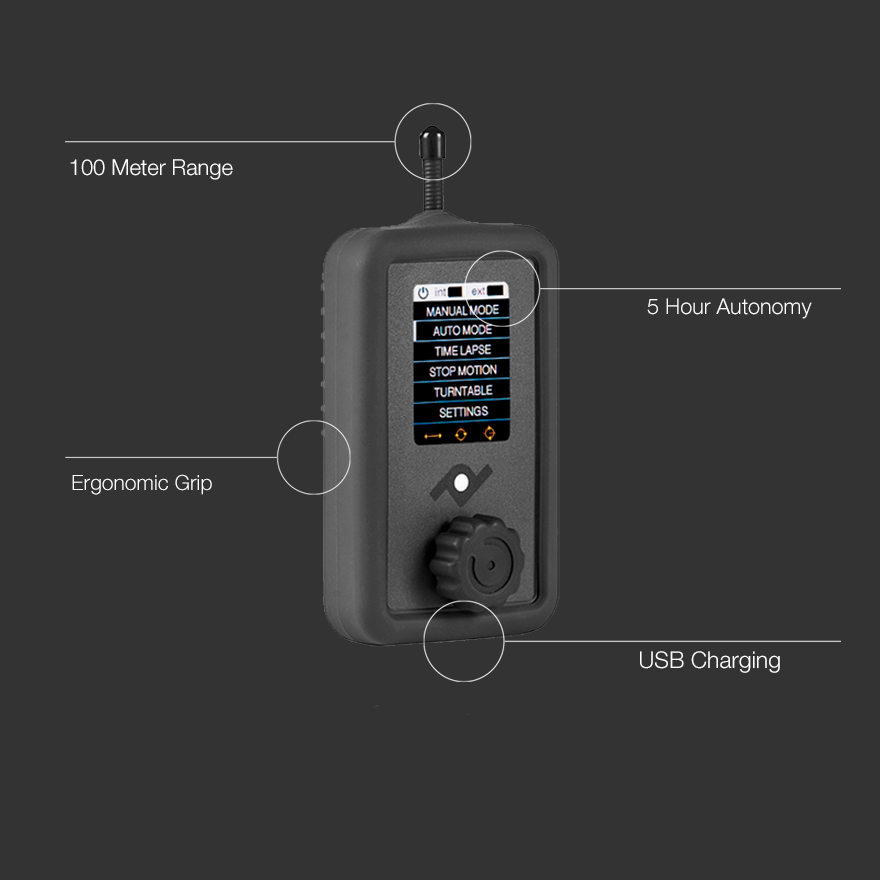

Wireless controller

Programmable moves are set on the display of the Noxon wireless controller. The same controller runs Noxon sliders and cable cams, and with the Dragonframe plugin it acts as a wireless transmitter from your computer.

A turntable that carries 150 kg – Wireless controller

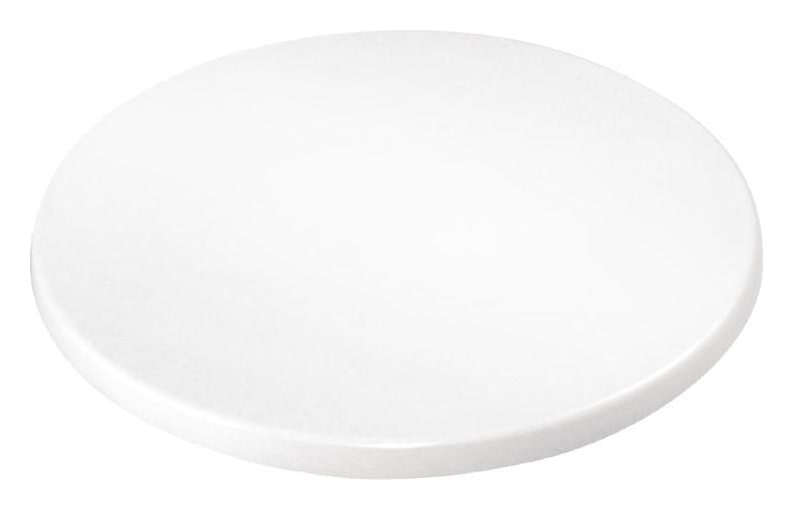

Interchangeable tables

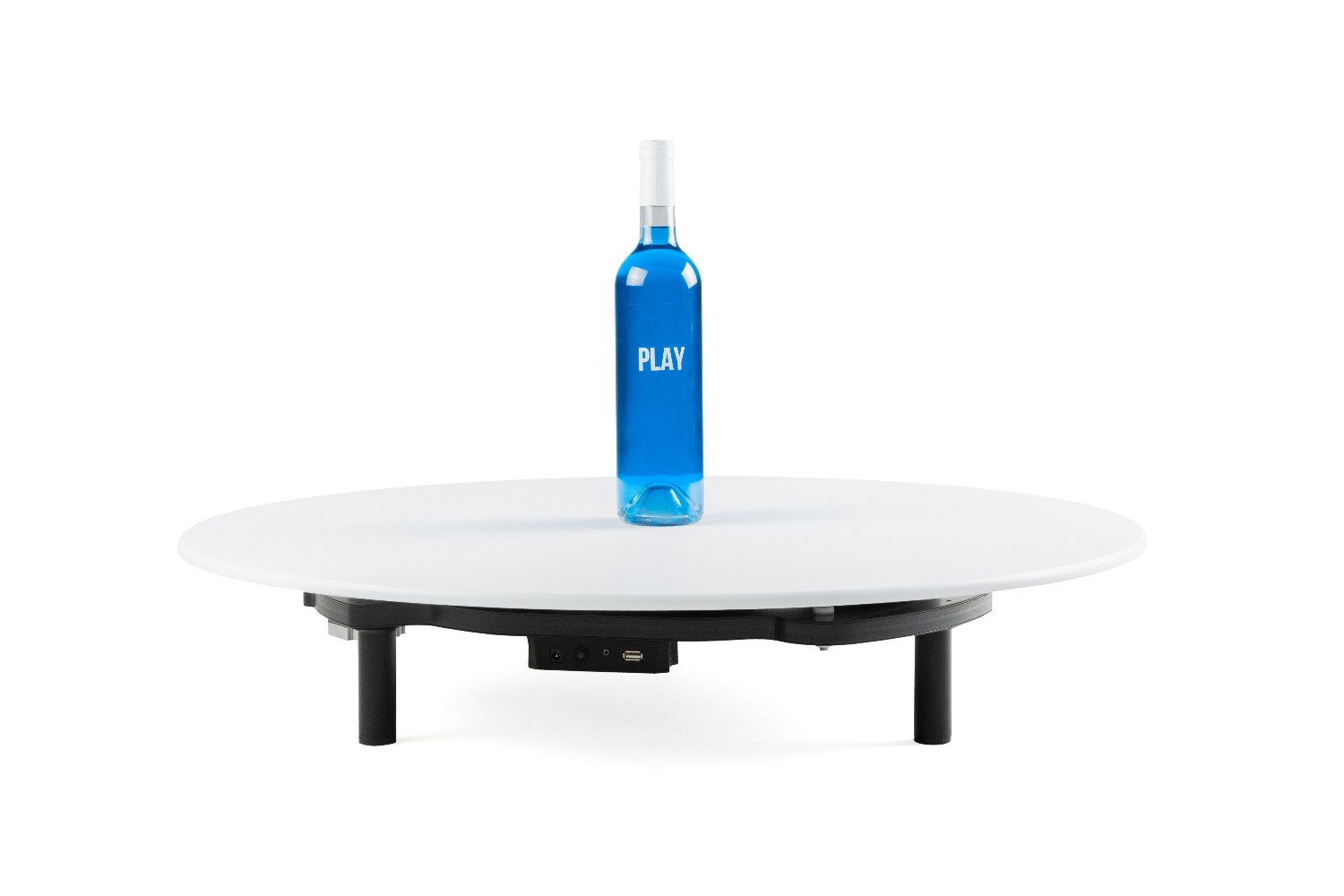

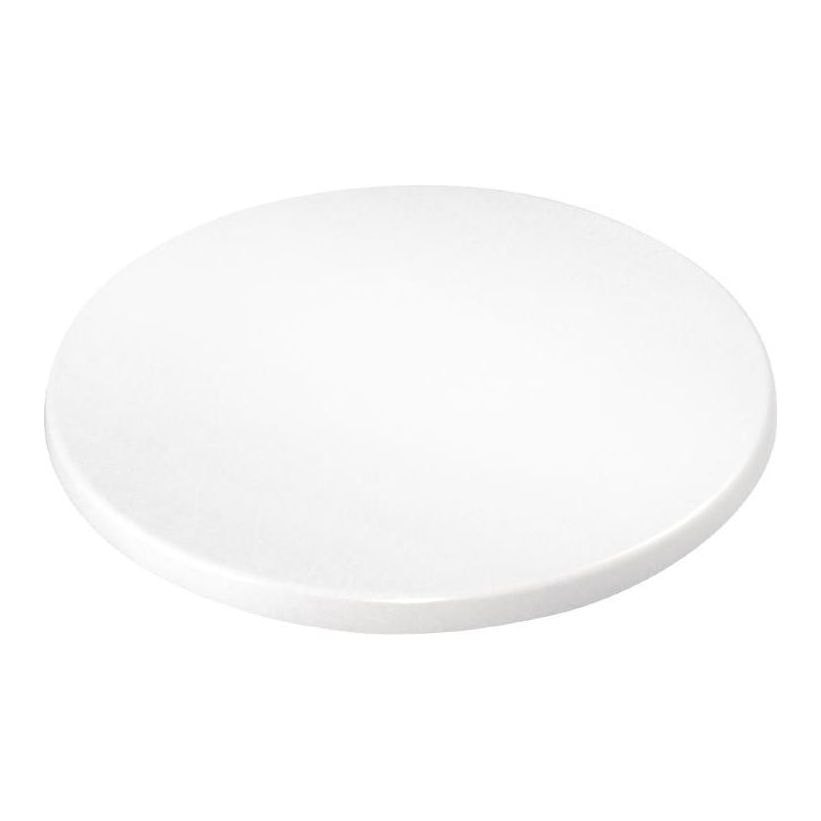

The White Table is 10 mm MDF with a white lacquer finish and a semi-gloss surface. For objects up to about 2 m choose the 80 or 115 cm table or your own surface – three plugs and a template help you centre it.

A turntable that carries 150 kg – Interchangeable tables

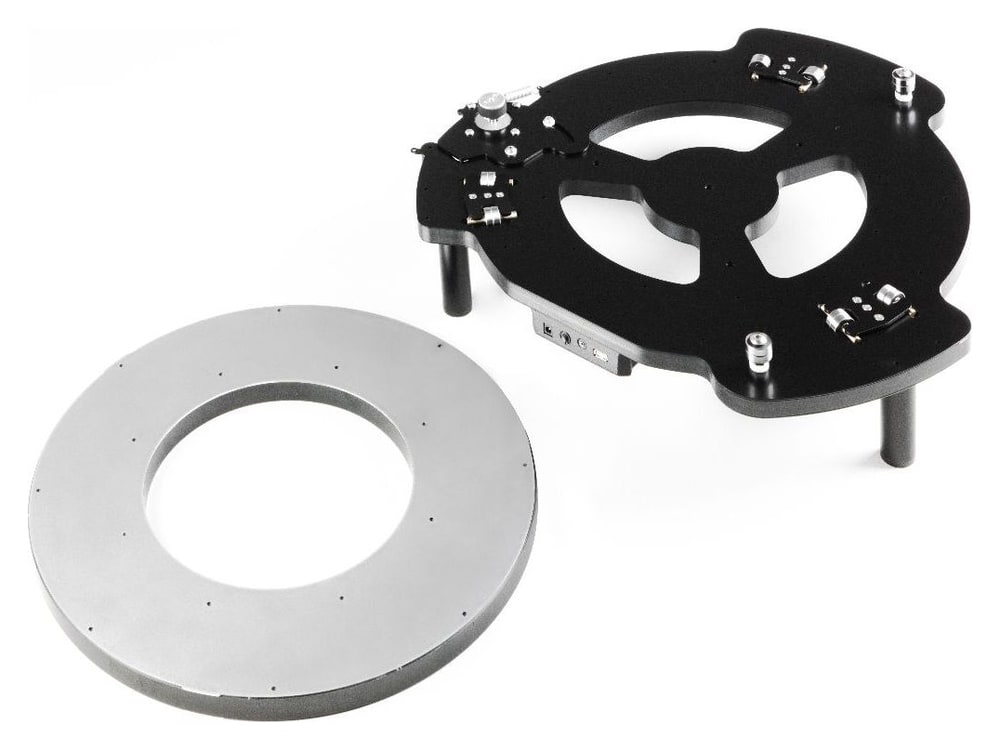

Solid construction

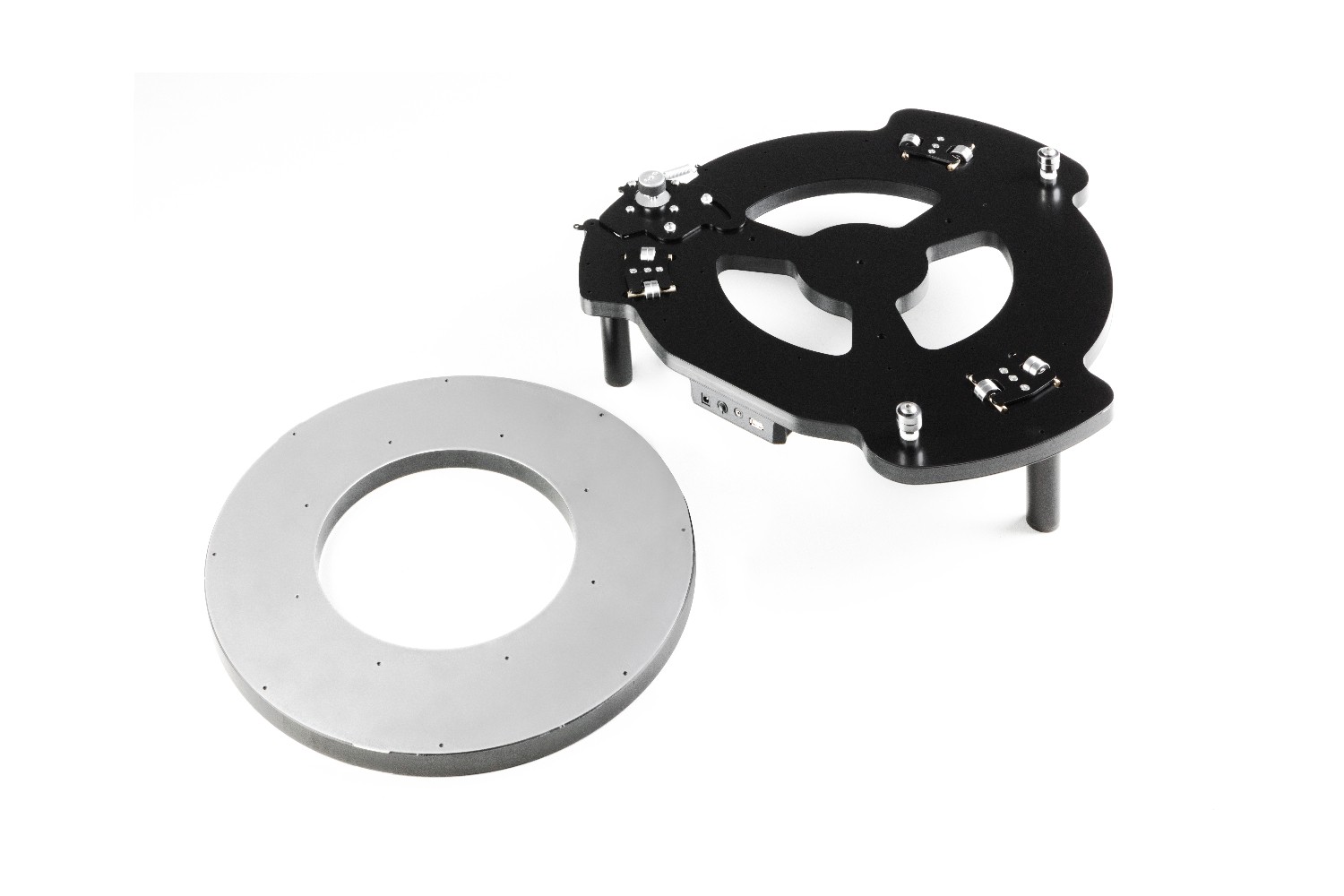

A fixed frame carries the rotating ring, built from stainless steel, MDF and polyethylene. The platform runs from a 12 V supply or a Noxon battery.

A turntable that carries 150 kg – Solid construction

More information

The Noxon TurnTable with White Table (115 cm) is designed for product displays, photography and filming. Made with a durable blend of MDF, stainless steel and polyethylene, it ensures longevity and stability while rotating even heavy objects. Its adjustable speed from 1.2 °/s to 85 °/s provides smooth motion for all types of shoots. With a load capacity of up to 150 kg it is suitable for large or heavy items. The white surface provides a clean, neutral backdrop. It is powered by a 12 V DC / 2 A output from a 110–240 V AC mains supply.

Key features:

  • High load capacity of 150 kg.
  • Adjustable speed from 1.2 °/s to 85 °/s.
  • Durable and stable construction with MDF, stainless steel and polyethylene.
  • White tabletop ideal for clean product photography.
  • Power: 12 V DC / 2 A from a 110–240 V AC mains supply.

PACKAGE CONTENT

  • 1× Noxon TurnTable rotating platform
  • 1× 115 cm White Table

SPECIFICATIONS

  • Type: motorised programmable turntable
  • Load capacity: 150 kg
  • Rotation speed: 1.2–85 °/s
  • Table: white, 115 cm diameter, 10 mm MDF with white lacquer
  • Platform dimensions: 48.5 × 50 × 14 cm
  • Platform weight: 12.5 kg
  • Material: MDF, stainless steel, polyethylene
  • Power: 12 V DC / 2 A (110–240 V AC mains supply)
  • Control: Noxon wireless controller
  • Modes: automatic, manual, stop motion, timelapse
  • Camera trigger: 2.5 mm minijack
  • Software: Dragonframe (with plugin), WebRotate 360, serial-port commands from PC/Mac
  • Manufacturer code: TT-007

WE RECOMMEND

Recommended for the turntable:

Parameters

Parameters

Manufacturer: Noxon
Category: Finished kits

Main parameters

Power supply12 V battery · 12 V DC / 2 A
Type360
Payload150
Weight12.5kg
