Neutrik NTP3RC
SKU: NTP3RC

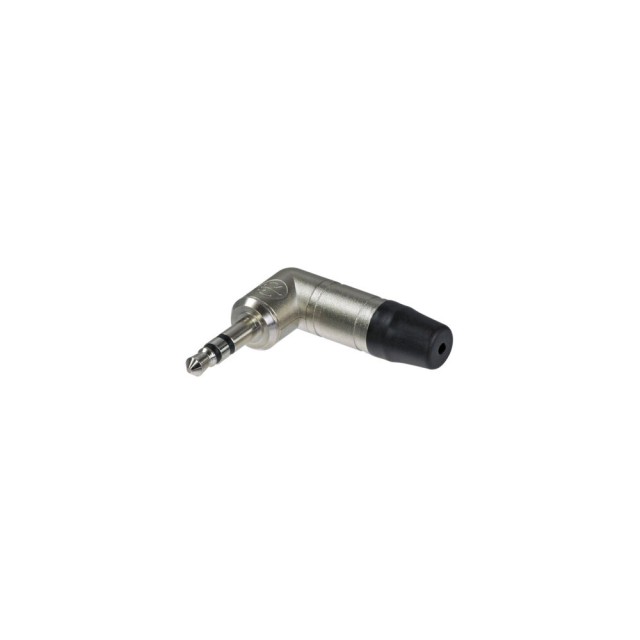

Neutrik NTP3RC - 3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts
5.3 € with VAT
4.38 € without VAT
Personal pickup: 07. 09. from 09:00
Shipment day: 07. 09.
Shipment day: 07. 09.
In stock 1 pcs
Praha 1 pcs, Bratislava 4 pcs
Praha 1 pcs, Bratislava 4 pcs
Top accessories for Neutrik NTP3RC
Canare MS202
Canare MS202 is small size and light weight Two-Conductor cable, ideal for analog
2.2 €
In stock 439 m
Rean NYS240BG
Rean NYS240BG - 3 pole 3.5 mm cable jack, black metal handle, gold plated contacts,
2.1 €
In stock > 5 pcs
Product description
Product description
Neutrik NTP3RC - 3 pole 3.5 mm audio plug, solder termination, chuck type strain relief, bushing, nickel housing, nickel contacts
The only right-angled metal bodied 3.5 mm jack plug with chuck type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
Features & Benefits
All metal housing - robust and reliableChuck type cable clamp and rubber gland - excellent cable protectionSlim design - space saving
All metal housing - robust and reliableChuck type cable clamp and rubber gland - excellent cable protectionSlim design - space saving
Technical Information
Product
Title - NTP3RC
Connection Type - Plug
Gender - male
Title - NTP3RC
Connection Type - Plug
Gender - male
Electrical
Contact resistance - depends on mating connector mΩ
Dielectric strength - 1 kVdc
Insulation resistance - > 2 GΩ (initial)
Rated voltage - <50 V
Contact resistance - depends on mating connector mΩ
Dielectric strength - 1 kVdc
Insulation resistance - > 2 GΩ (initial)
Rated voltage - <50 V
Mechanical
Cable O.D. - 2 - 4.5 mm
Wiresize - 0,22 mm²
Wiresize - 24 AWG
Wiring - Solder contacts
Cable O.D. - 2 - 4.5 mm
Wiresize - 0,22 mm²
Wiresize - 24 AWG
Wiring - Solder contacts
Material
Bushing - Brass (CuZn39Pb3) + PU, Ni
Contact plating - 2 µm Ni (Su)
Contacts - Brass (CuZn39Pb3)
Insert - Polyamide (PA 6.6 15 % GR)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Strain relief - Polyacetal (POM)
Bushing - Brass (CuZn39Pb3) + PU, Ni
Contact plating - 2 µm Ni (Su)
Contacts - Brass (CuZn39Pb3)
Insert - Polyamide (PA 6.6 15 % GR)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Strain relief - Polyacetal (POM)
Environmental
Solderability - Complies with IEC 68-2-20
Temperature range - -20 °C to +65 °C
Solderability - Complies with IEC 68-2-20
Temperature range - -20 °C to +65 °C
Parameters
Parameters
| Manufacturer: | Neutrik |
| Category: | Audio connectors |
Main parameters
| Type | Jack 3.5mm |
| Number of poles | 3 |
| Colour | Nickel |
| Typ konektoru | Jack 3.5 mm |
| Pohlaví konektoru | Male / samec |
| Způsob montáže | Na kabel |
Other parameters
| Version | On the cable · Soldering · Male · Hooked |
