Neumann N248 EU

The Neumann N 248 EU is a professional dual-channel phantom power supply designed to provide stable 48 V power for one stereo microphone or two mono condenser microphones. Featuring Neumann’s patented remote polar pattern control technology, it enables convenient adjustment of compatible TLM 127 and TLM 170 R microphones directly from the front panel. Compact, reliable, and suitable for cable runs up to 300 meters, the N 248 EU is an ideal solution for studio, broadcast, and professional recording environments.

The Neumann N 248 EU is a high-quality dual-channel phantom power supply engineered for professional studio and broadcast applications. Designed to power one stereo microphone or two mono condenser microphones simultaneously, the N 248 EU delivers stable 48 V phantom power while offering advanced remote control functionality for compatible Neumann microphones.

A standout feature of the N 248 EU is its ability to remotely control the polar patterns of Neumann TLM 127 and TLM 170 R microphones. Using Neumann’s patented technology, the unit adjusts the phantom power voltage by ±3 V, allowing users to change microphone directivity patterns directly from the power supply without physically accessing the microphone. This feature is particularly valuable in professional recording environments where microphones may be mounted in difficult-to-reach locations.

When set to standard P48 operation, the N 248 EU can power virtually any professional condenser microphone requiring phantom power. The unit also supports mixed microphone setups, allowing one channel to operate a remotely controlled TLM 127 or TLM 170 R while the second channel powers a conventional condenser microphone.

Equipped with XLR 3-pin input and output connectors, the N 248 EU supports microphone cable lengths of up to 300 meters without compromising performance. Its compact design, low power consumption, and robust construction make it a practical and dependable addition to any professional recording, broadcast, or production facility.

Key Features

• Dual-channel phantom power supply
• Powers one stereo microphone or two mono microphones
• Provides stable 48 V phantom power
• Compatible with most professional condenser microphones
• Remote polar pattern control for TLM 127 and TLM 170 R microphones
• Neumann patented voltage-control technology

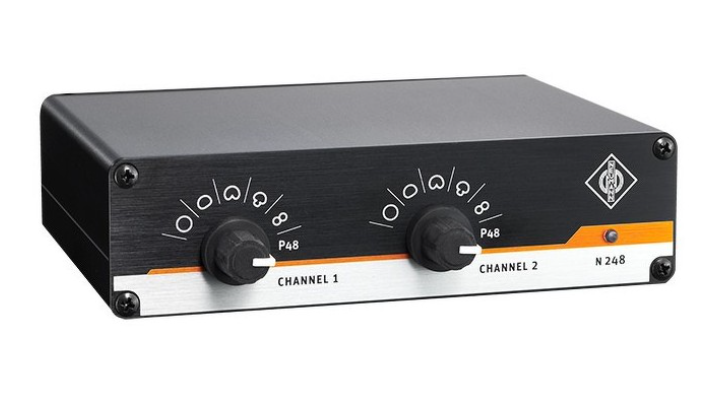

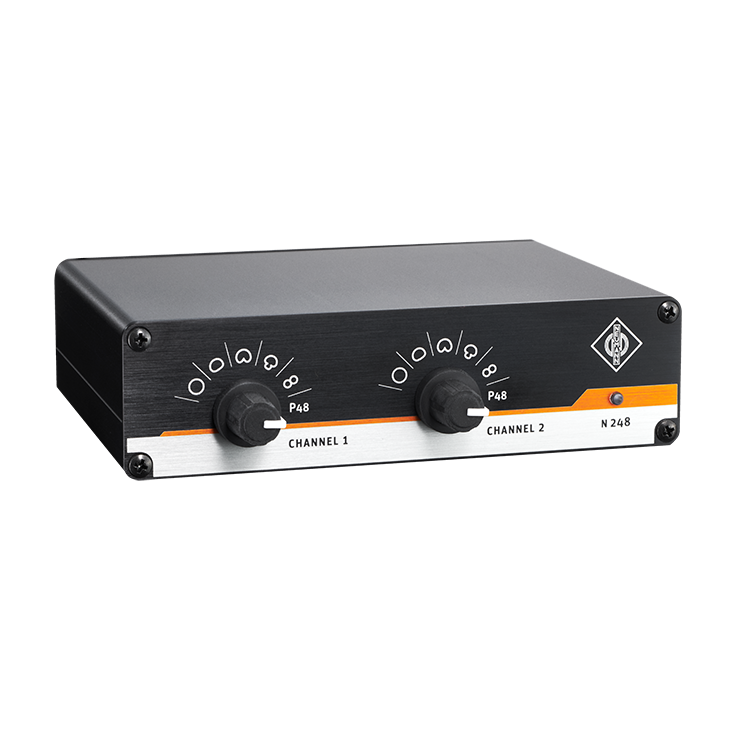

• Independent front-panel rotary controls
• Supports mixed microphone configurations

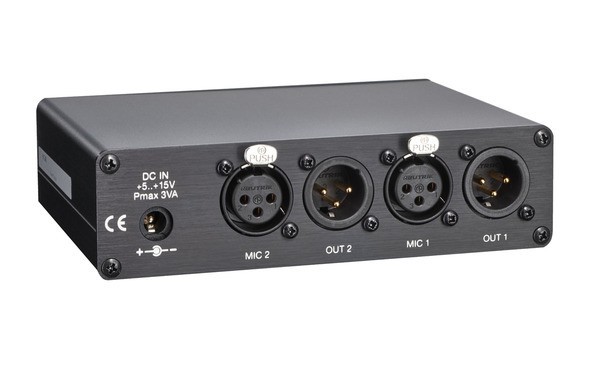

• XLR 3-pin input and output connectors
• Supports cable lengths up to 300 meters
• Compact and space-saving design
• Ideal for studio, broadcast, and recording applications
• Reliable low-noise operation
