Neumann MCM114 brass

The Neumann MCM 114 Brass Set is a premium miniature microphone system designed for close-miking brass and wind instruments. Equipped with the innovative KK 14 cardioid capsule, flexible SH 150 gooseneck, and versatile MC 6 universal clip, it delivers exceptional clarity, consistent tonal accuracy, and outstanding dynamic range…

More information

819 € with VAT 676.86 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Neumann MCM 114 Brass Set is a premium miniature microphone system designed for close-miking brass and wind instruments. Equipped with the innovative KK 14 cardioid capsule, flexible SH 150 gooseneck, and versatile MC 6 universal clip, it delivers exceptional clarity, consistent tonal accuracy, and outstanding dynamic range for both live performance and studio recording applications.

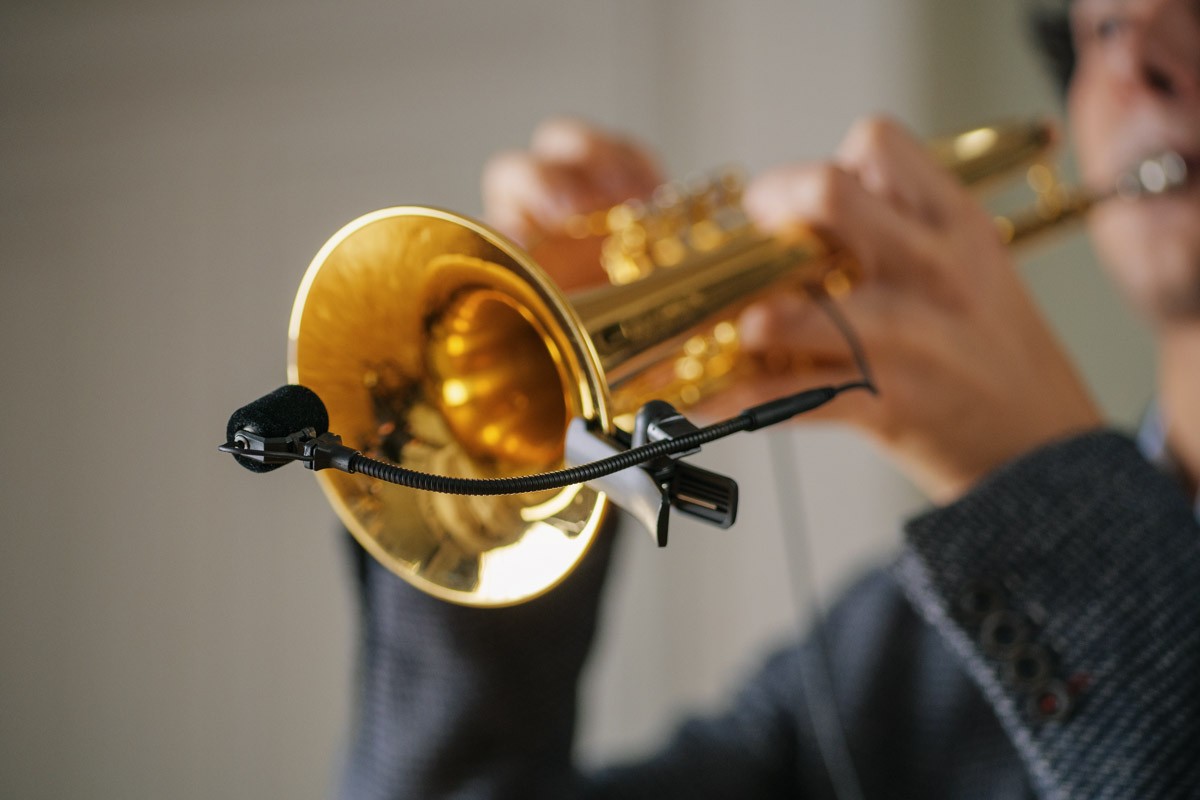

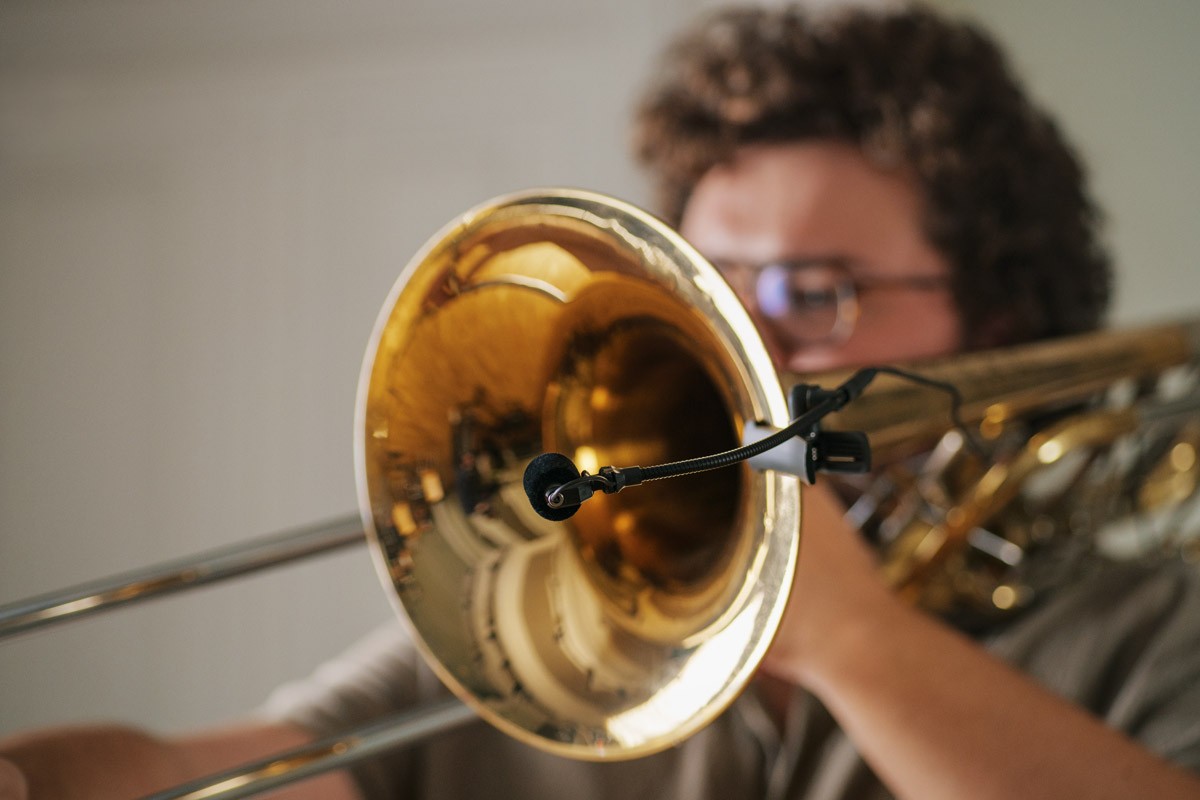

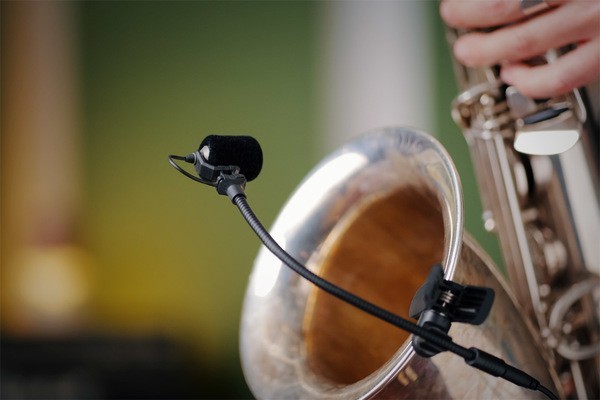

The Neumann MCM 114 Brass Set is a professional miniature microphone solution specifically developed for close-miking brass instruments and other high-SPL acoustic sources. Ideal for flugelhorn, saxophone, trombone, French horn, percussion instruments, and even microphone stand mounting, this complete system combines Neumann's renowned sound quality with a highly adaptable mounting system.

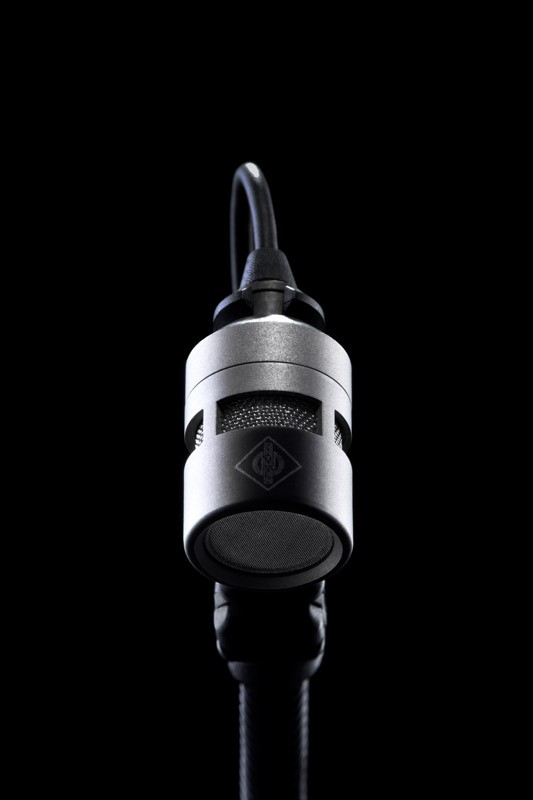

At the core of the MCM 114 Brass Set is the groundbreaking KK 14 miniature condenser capsule. Utilizing Neumann's advanced layered electret technology, the KK 14 overcomes the traditional limitations of electret microphones to provide exceptional detail, natural tonal balance, and remarkable consistency. Each capsule is handcrafted in Germany using eight individually optimized components, ensuring identical sonic performance across every microphone.

The cardioid polar pattern delivers focused sound capture while reducing unwanted ambient noise and stage bleed. Its robust titanium capsule housing ensures long-term durability while maintaining a lightweight design suitable for demanding professional applications.

With an impressive maximum SPL handling capability of up to 152 dB and a low self-noise level of just 23 dB-A, the MCM 114 Brass Set captures everything from delicate musical nuances to the powerful dynamics of brass and percussion instruments without distortion.

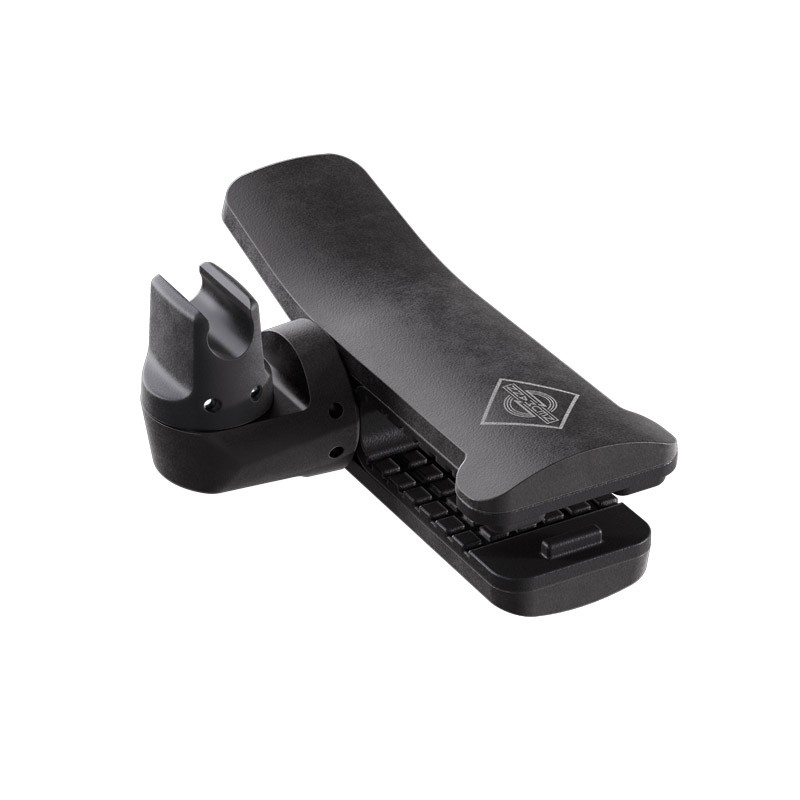

The included MC 6 universal clip offers versatile mounting options for a wide range of instruments, while the SH 150 flexible gooseneck allows precise microphone positioning for optimal sound pickup. Compatibility with Sennheiser wireless bodypack transmitters and other wireless systems makes the MCM 114 Brass Set equally suitable for live performances, touring, and studio environments.

Handmade in Germany and built for years of professional use, the MCM 114 Brass Set provides an uncompromising microphone solution for musicians, sound engineers, and recording professionals.

Key Features

  • Professional miniature microphone system for brass and wind instruments
  • Ideal for flugelhorn, saxophone, trombone, French horn, and percussion
  • Innovative KK 14 cardioid microphone capsule
  • Advanced layered electret condenser technology
  • Exceptional clarity and tonal consistency
  • Hand-assembled capsule for precise matching and reliability
  • Cardioid polar pattern for focused sound capture
  • Durable titanium capsule housing
  • Handles SPL levels up to 152 dB
  • Low self-noise of 23 dB-A
  • Flexible SH 150 gooseneck for accurate positioning
  • Versatile MC 6 universal mounting clip
  • Compatible with Sennheiser wireless bodypack systems
  • Suitable for studio recording and live sound reinforcement
  • Handmade in Germany

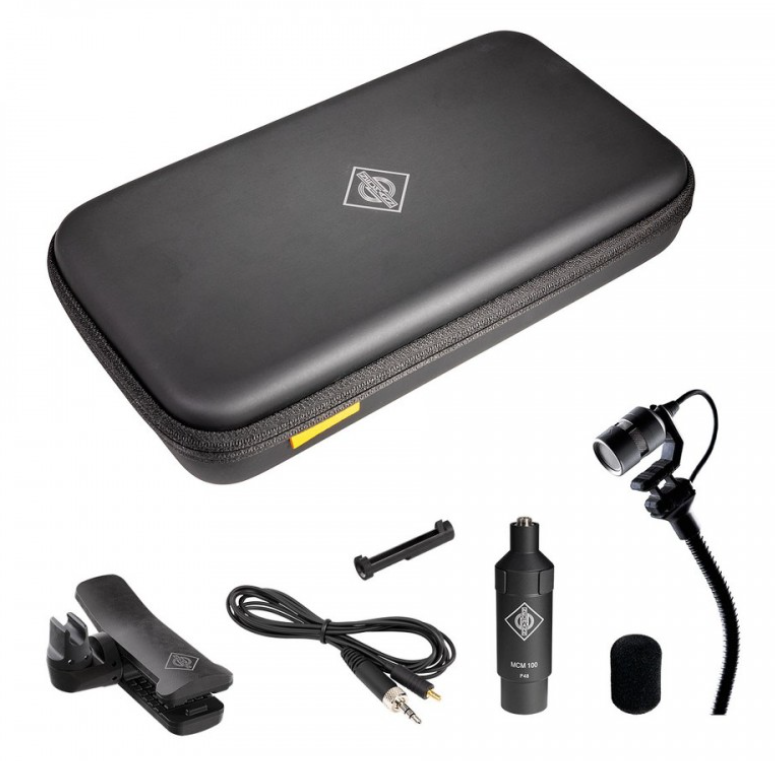

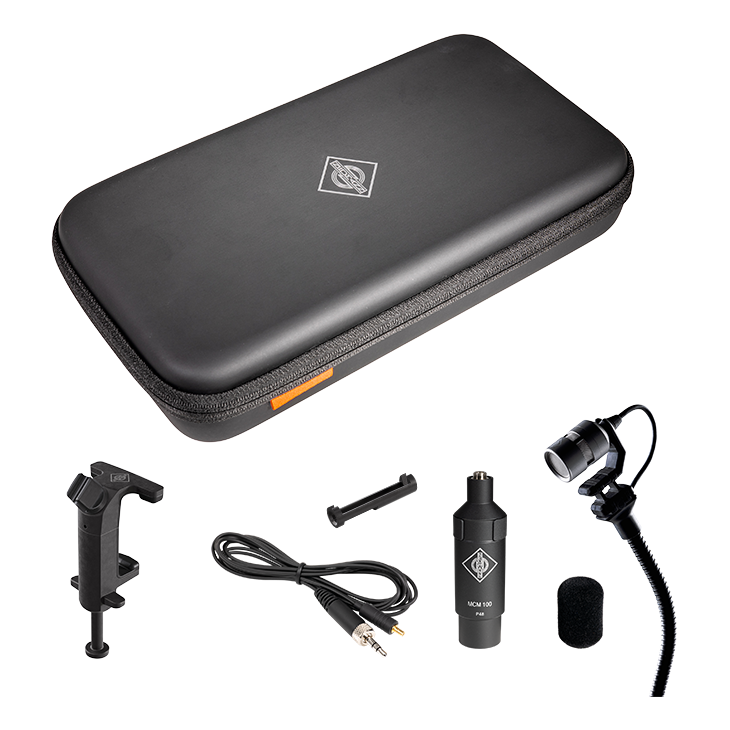

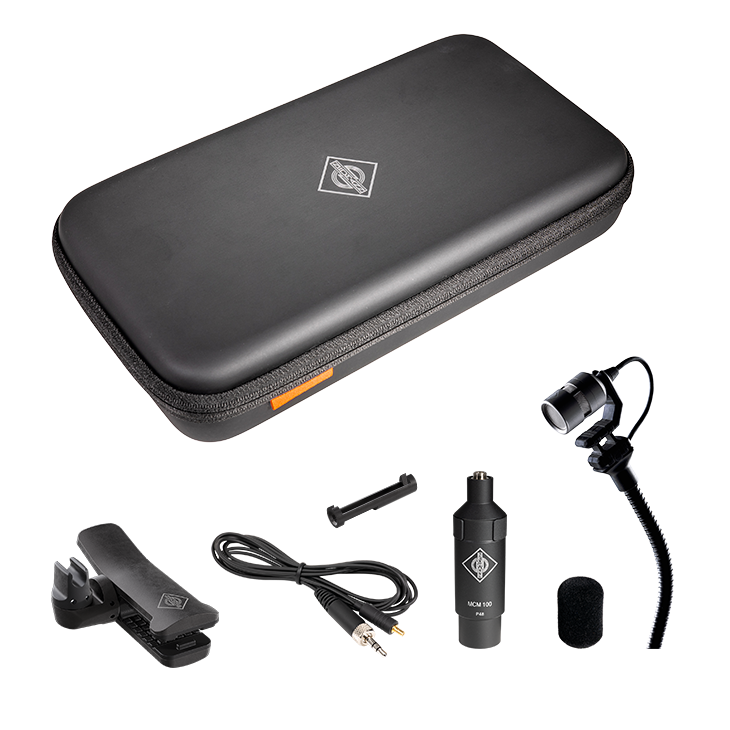

PACKAGE CONTENT

  • 1 × Neumann KK 14 Microphone Capsule
  • 1 × SH 150 Gooseneck
  • 1 × AC 31 Cable (3.5 mm Jack, 1.8 m)
  • 1 × WS 110 Windscreen

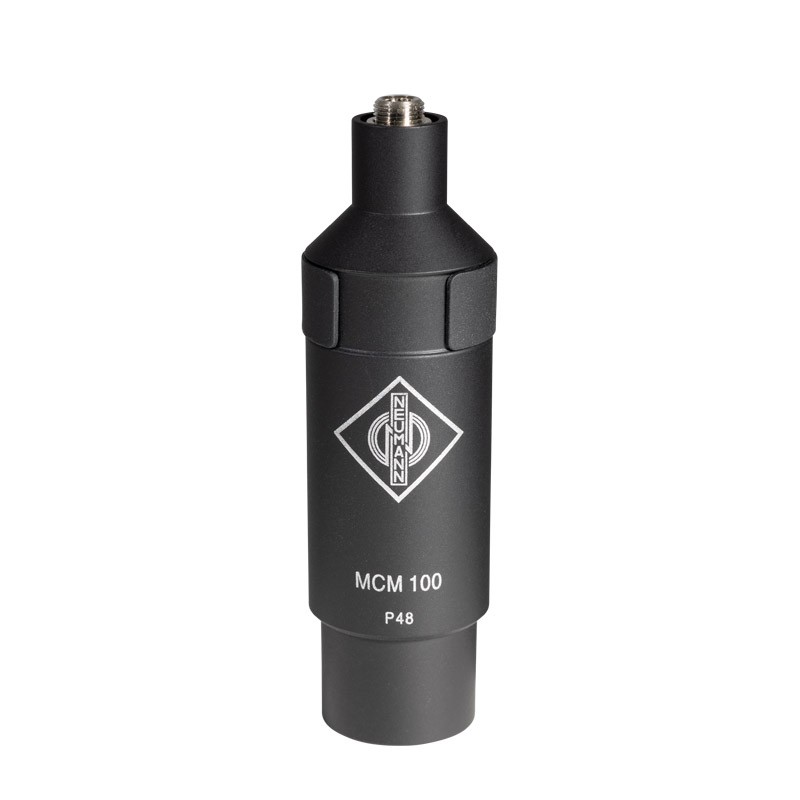

  • 1 × 3.5 mm Jack to XLR3-M Adapter
  • 1 × MC 6 Universal Instrument Clip
  • 1 × Transport Case
  • User Instructions

SPECIFICATIONS

  • Product Type: Miniature Instrument Microphone System
  • Model: MCM 114 Brass Set
  • Capsule: Neumann KK 14
  • Acoustic Principle: Pressure Gradient Transducer
  • Polar Pattern: Cardioid
  • Frequency Response: 20 Hz – 20 kHz
  • Sensitivity: 3.6 mV/Pa (-49 dBV)
  • Rated Impedance: 10 Ohms
  • Equivalent Noise Level (A-Weighted): 23 dB-A
  • Signal-to-Noise Ratio (A-Weighted): 71 dB
  • Maximum SPL: 152 dB SPL
  • Capsule Housing Material: Titanium
  • Gooseneck: SH 150 Flexible Gooseneck
  • Cable: AC 31 (3.5 mm jack, 1.8 m)
  • Wireless Compatibility: Sennheiser Bodypack Systems and Other Compatible Wireless Systems
  • Manufacturing: Handmade in Germany

Applications

  • Flugelhorn
  • Saxophone
  • Trombone
  • French Horn
  • Brass Ensembles
  • Percussion Instruments
  • Live Performance
  • Studio Recording
  • Broadcast Production
  • Stage Reinforcement
  • Acoustic Instrument Amplification
Parameters

Parameters

Manufacturer: Neumann
Category: Microphones

Main parameters

TypeMiniature instrument microphone
CharacteristicsCardioid
