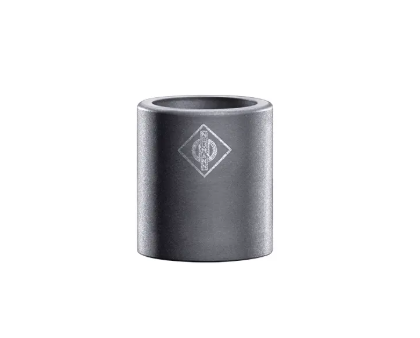

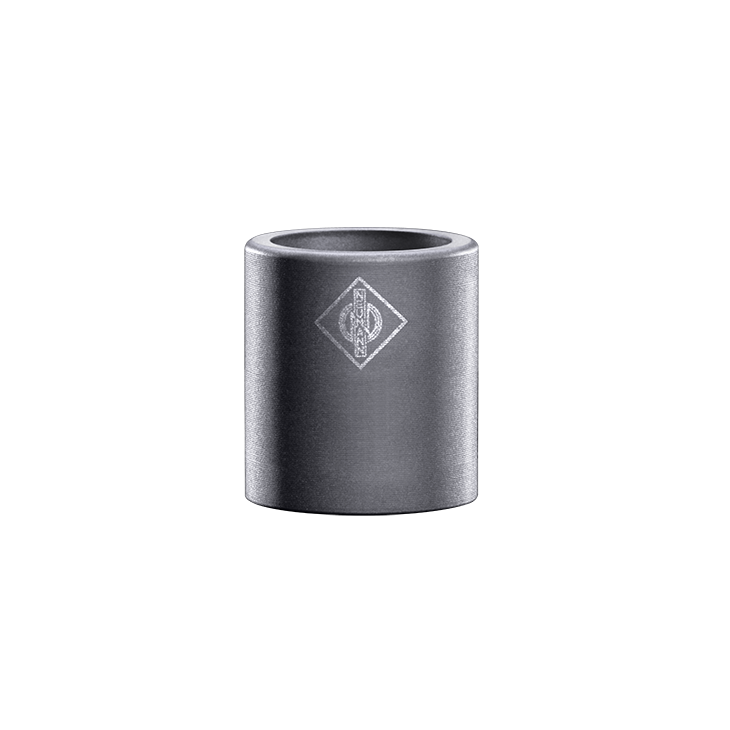

Neumann KK13

The Neumann KK 13 is a premium omnidirectional capsule head for the Neumann Miniature Clip Mic (MCM) system, designed to capture acoustic instruments with exceptional naturalness and openness. Featuring a lightweight titanium housing, extended low- and mid-frequency response, and an impressive maximum SPL of 153 dB, the KK 13…

More information

345 € with VAT 285.12 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Neumann KK 13 is a premium omnidirectional capsule head for the Neumann Miniature Clip Mic (MCM) system, designed to capture acoustic instruments with exceptional naturalness and openness. Featuring a lightweight titanium housing, extended low- and mid-frequency response, and an impressive maximum SPL of 153 dB, the KK 13 delivers pristine sound reproduction in both live and studio environments. Its compact 12 mm diameter and ultra-light 2.8 g construction make it ideal for discreet instrument miking while maintaining the renowned audio quality expected from Neumann.

The Neumann KK 13 is an omnidirectional capsule developed specifically for the Neumann Miniature Clip Mic (MCM) system, providing highly accurate and natural sound reproduction for acoustic instruments and professional audio applications.

Utilizing a pressure transducer design, the KK 13 captures sound with an open, transparent character and an extended low- and mid-frequency response that faithfully preserves the tonal qualities of the source. Its omnidirectional polar pattern ensures consistent pickup from all directions, making it particularly suitable for situations where natural ambience and realistic instrument reproduction are desired.

The capsule is housed in a durable titanium enclosure that combines exceptional strength with minimal weight. At only 2.8 grams and measuring just 12 mm in diameter, the KK 13 offers an extremely discreet microphone solution that remains virtually invisible during performances while maintaining superior acoustic performance.

One of the capsule's standout features is its remarkable maximum sound pressure handling capability of 153 dB SPL. This allows the KK 13 to accurately reproduce even the loudest instruments without distortion, making it suitable for a wide range of live sound and recording applications.

The capsule delivers low self-noise, wide dynamic range, and excellent signal-to-noise performance, ensuring clean and detailed recordings in both studio and stage environments. Designed to integrate seamlessly with the Neumann MCM system, the KK 13 provides professional musicians, engineers, and sound designers with a flexible and reliable microphone solution.

Key Features

  • Omnidirectional capsule for the Neumann MCM system
  • Natural and open sound reproduction
  • Extended low- and mid-frequency response
  • Pressure transducer acoustic design
  • Ultra-light titanium housing
  • Extremely compact 12 mm diameter
  • High maximum SPL of 153 dB
  • Wide dynamic range
  • Low self-noise performance
  • Ideal for acoustic instruments and natural ambience capture
  • Suitable for studio recording and live sound applications
  • Discreet and lightweight design

PACKAGE CONTENT

  • 1 × Neumann KK 13 Omnidirectional Capsule Head
  • Documentation

SPECIFICATIONS

  • Product Type: Microphone Capsule Head
  • Model: KK 13
  • Brand: Neumann
  • Compatible System: Neumann MCM (Miniature Clip Mic)
  • Acoustic Operating Principle: Pressure Transducer
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20 Hz – 20 kHz
  • Sensitivity: 3.3 mV/Pa (-49.6 dBV)
  • Nominal Impedance: 10 Ω
  • Signal-to-Noise Ratio (CCIR, re. 94 dB SPL): 62 dB
  • Signal-to-Noise Ratio (A-Weighted, re. 94 dB SPL): 74 dB
  • Equivalent Noise Level (CCIR): 32 dB
  • Equivalent Noise Level (A-Weighted): 20 dB-A
  • Maximum SPL (0.5% THD): 153 dB SPL
  • Dynamic Range (A-Weighted): 133 dB
  • Maximum Output Voltage: 12 dBu
  • Power Supply: Maximum 10 V
  • Current Consumption: 0.22 mA
  • Diameter: 12 mm
  • Length: 13.5 mm
  • Weight: 2.8 g
  • Housing Material: Titanium
  • Color: Black

Environmental Specifications

  • Operating Temperature: 0°C to +40°C
  • Operating Humidity: 0% to 90%
  • Storage Temperature: -20°C to +70°C
  • Storage Humidity: 0% to 95%
Parameters

Parameters

Manufacturer: Neumann
Category: Accessories

Main parameters

TypeMicrophone Capsule
CharacteristicsOmnidirectional
