MIPRO MJ-53

SKU: MJ-53

This product is no longer offered. Please select from the alternatives below.

DESCRIPTION AND PARAMETERS
ACCESSORIES 2

Top accessories for MIPRO MJ-53

Sony MDR-7506/1

This extremely high quality, unobtrusive, lightweight reference headphone has been

105.32 €

To be sent > 5 pcs

Sennheiser wireless set

Free transport

Sennheiser set allowing transmission of 4 independent channels. The mobile installation

Price from 2 974.74 €

Configuration

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

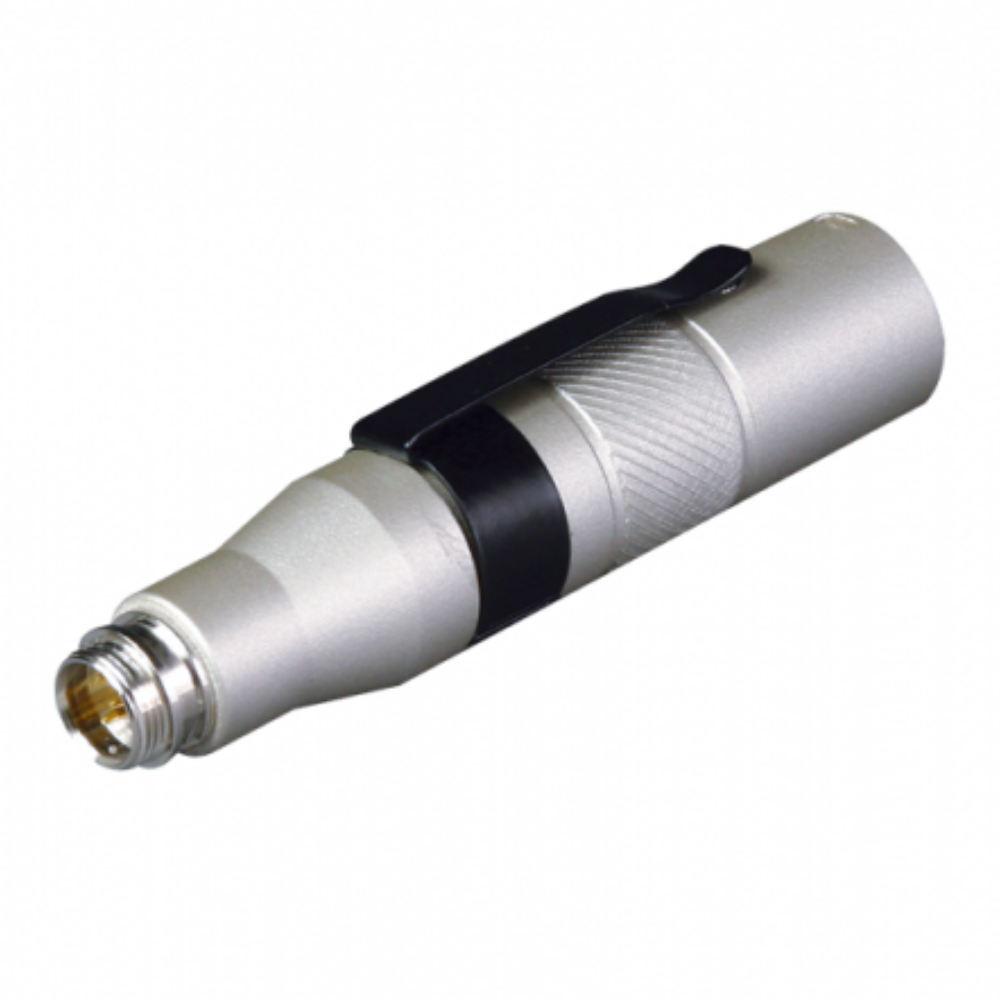

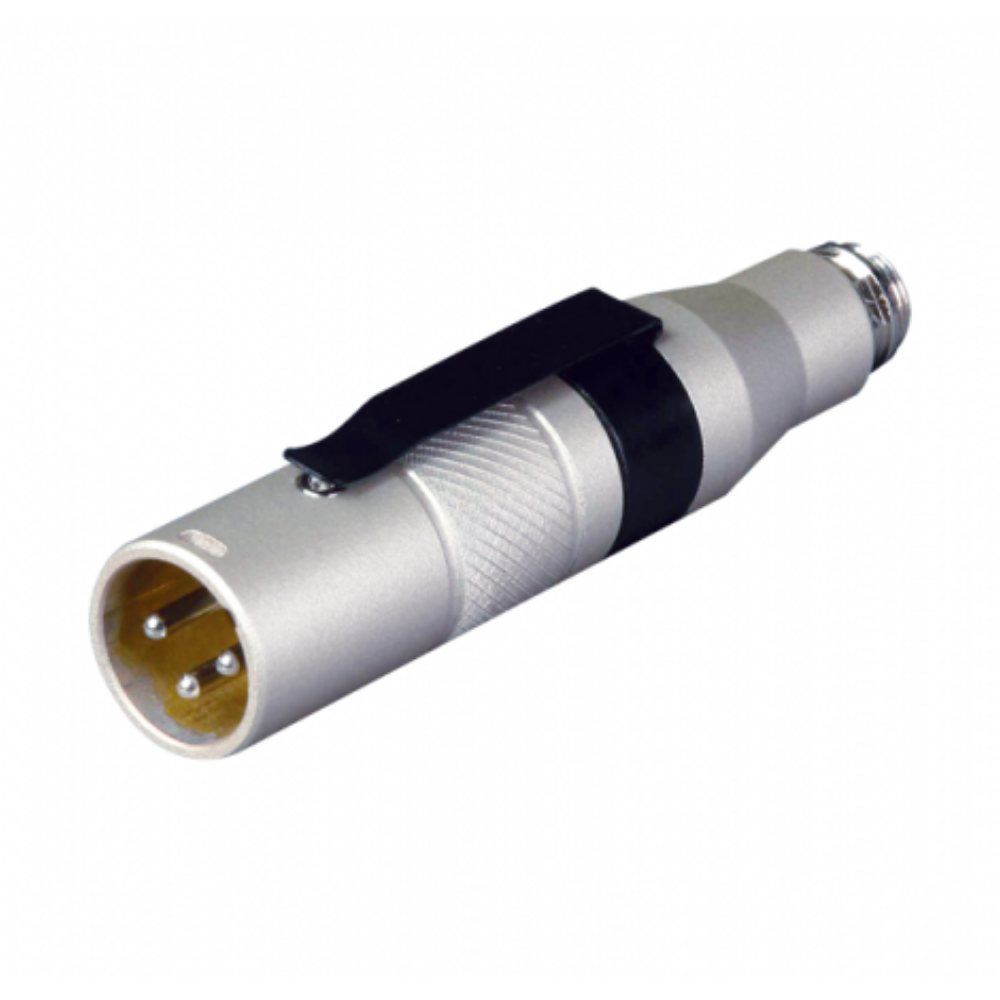

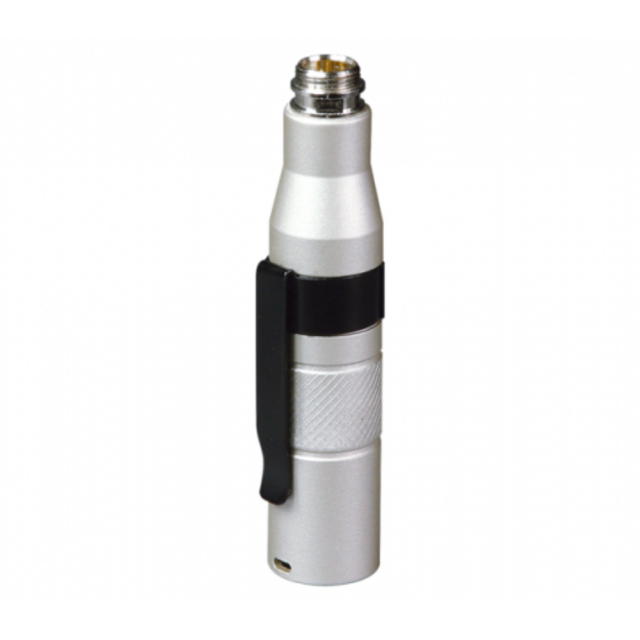

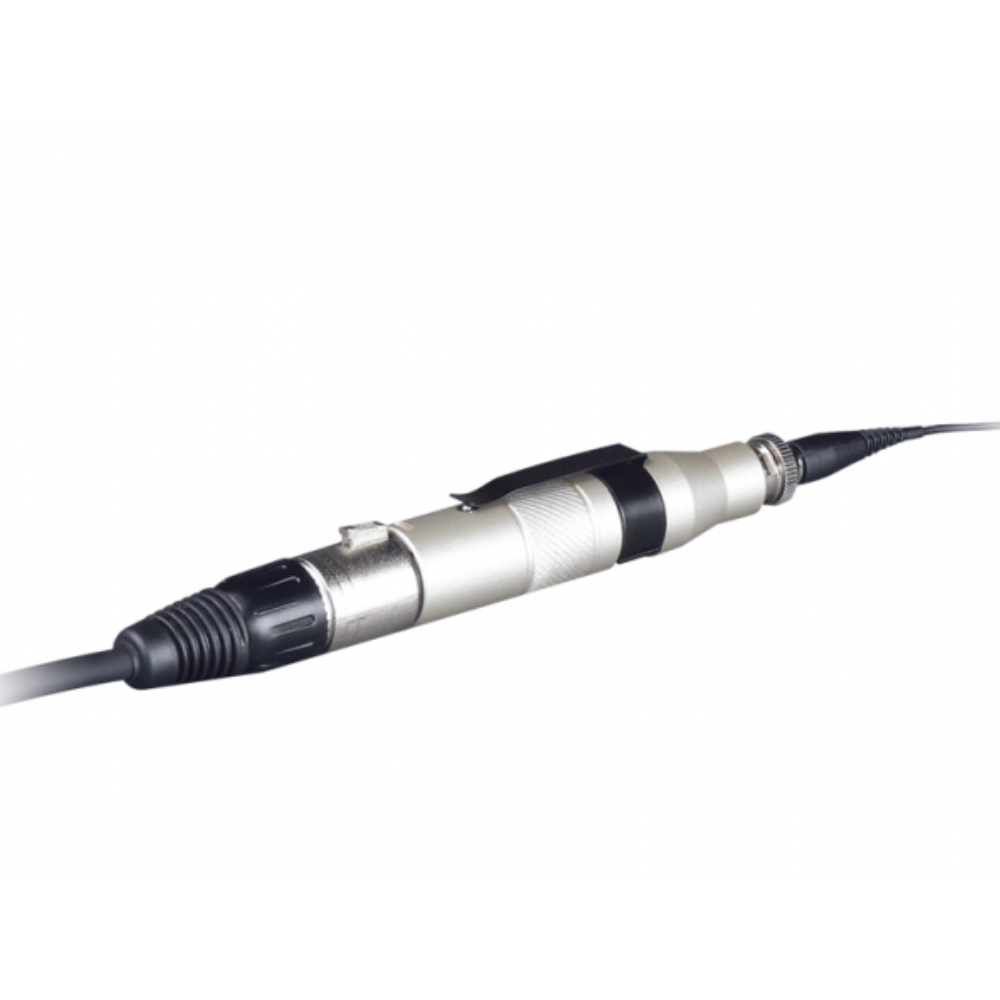

The MJ-53 enables a condenser microphone with a Mini XLR plug to connect directly to the XLR jack input of a mixer which provides 12 ~ 48 V DC phantom power.

Balanced output transforms the high output impedance of a condenser microphone to a wide frequency response, high dynamic range, high S/N ratio and low output impedance at about 200 Ω. It prevents noise interference in long-distance transmission. Its rugged metal housing ensures long operating life and its belt clip provides for easy wearing.

PACKAGE CONTENT

MIPRO MJ-53

SPECIFICATIONS

Model: MJ-53
Name: Condenser Microphone Adaptor
Frequency Response: 80 Hz (-3dB) ~ 20 kHz (0dB) @ 94 dB SPL
Output Impedance: 200 Ω ＠ 1 V / 1 kHz (Balanced)
Max. Output Voltage: 2.52 V ＠ 1.0% T.H.D. 1 kHz
Dynamic Range: 120 dB (A-weighting)
Power Supply: Phantom Power: 12 ~ 48 V DC | Current Drain: 2.0 mA

Parameters

Manufacturer:	MIPRO
Category:	Lapel microphones

Main parameters

Connecting Mic	XLR
Connecting Mic	Mini XLR
Power Mic	48V Phantom

Other parameters

VLOG Mikrofon
