Manfrotto T-Bar 1,200mm long

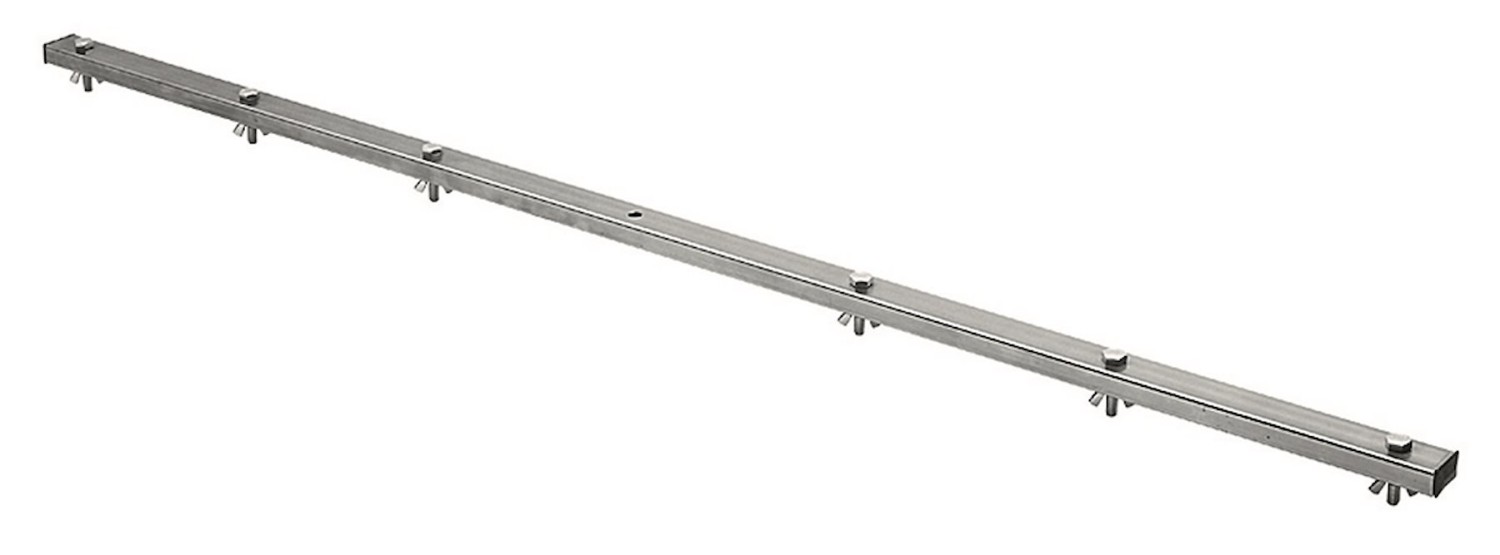

The Manfrotto 614 is a heavy-duty 1.2 m (122 cm) zinc-plated steel T-bar designed to hang up to four lighting fixtures from a single stand, C-stand, or overhead pipe. Featuring four 10 mm (M10) threaded holes spaced 40 cm apart and a central M10 female thread underneath for direct mounting, it’s the classic studio and theater solution for creating quick 4-head arrays without multiple stands.

The Manfrotto 614 T-bar is the industry-standard way to mount four lights on one support. The 120 cm long, 25 mm diameter steel tube has four M10 female threads on top (perfect for standard lighting yoke bolts) and a reinforced M10 female thread in the center underside for attaching to a stand, grip head, or clamp. Zinc-plated finish resists corrosion and the 2.3 kg weight ensures rock-solid stability even with heavy fixtures. Ideal for background lights, hair lights or building large overhead sources in photography and video studios.

Key Features

• Holds up to 4 lighting fixtures simultaneously
• 1.2 m (122 cm) long zinc-plated steel tube
• Four M10 female threads on top (40 cm spacing)
• Central M10 female thread underneath for stand mounting
• Perfect with C-stands, Junior stands, Super Clamps, or pipe grids
