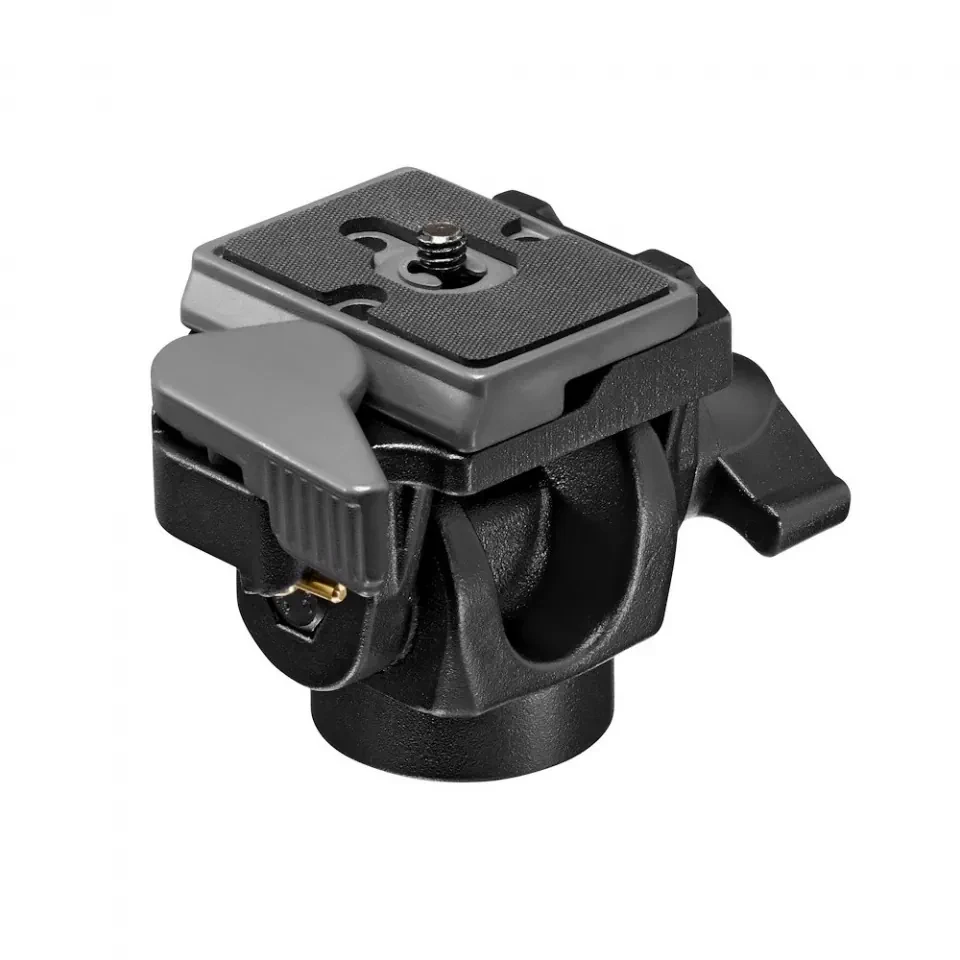

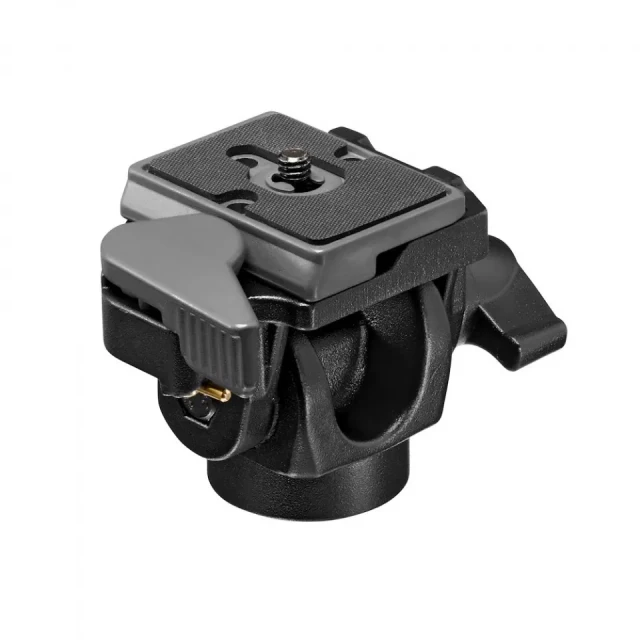

Manfrotto 234RC Monopod Head with Quick Release

The compact aluminium Manfrotto 234RC monopod head tilts a camera from −90° to +90° for fast switching between horizontal and vertical composition. It includes the 200PL-14 quick-release plate, a secondary safety lock, a 3/8″ monopod socket and a 5 kg safety payload.

More information

50 € with VAT 41.32 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The compact aluminium Manfrotto 234RC monopod head tilts a camera from −90° to +90° for fast switching between horizontal and vertical composition. It includes the 200PL-14 quick-release plate, a secondary safety lock, a 3/8″ monopod socket and a 5 kg safety payload.

FAST ORIENTATION CHANGES ON A MONOPOD

The Manfrotto 234RC is a simple, precise tilt head designed for photographic monopods. A single lock sets the camera anywhere from −90° to +90°, enabling a quick move from horizontal to vertical framing without rebuilding the support.

5 kgUNI/PdR 105:2021
±90°tilt
200PL-14RC2
Rear view of Manfrotto 234RC with 200PL-14 plate

RC2 QUICK RELEASE

The included 200PL-14 plate with a 1/4″ camera screw speeds up mounting. A secondary safety lock helps prevent accidental plate release.

STRONG AND LIGHT

The aluminium body weighs 306 g, has a 38 mm base diameter and carries a 5 kg safety payload under UNI/PdR 105:2021.

PACKAGE CONTENT

Side view of Manfrotto 234RC tilt lock

PRECISE TILT WITHOUT UNNECESSARY COMPLEXITY

This head has no pan or fluid drag; its role is deliberately direct. The independent tilt lock holds the selected angle, while the 3/8″ female base thread connects to a standard photographic monopod.

SPECIFICATIONS

PACKAGE CONTENTS AND SPECIFICATIONS

  • 1× Manfrotto 234RC monopod head
  • 1× 200PL-14 quick-release plate
  • Working height: 6 cm
  • Lateral tilt: −90° to +90°
  • Weight: 0.306 kg
  • Safety payload: 5 kg
  • Material / colour: aluminium / black
  • Bottom attachment: 3/8″ female thread
  • Top attachment: 1/4″ screw on 200PL-14 plate
  • Working temperature: −30 to +60 °C

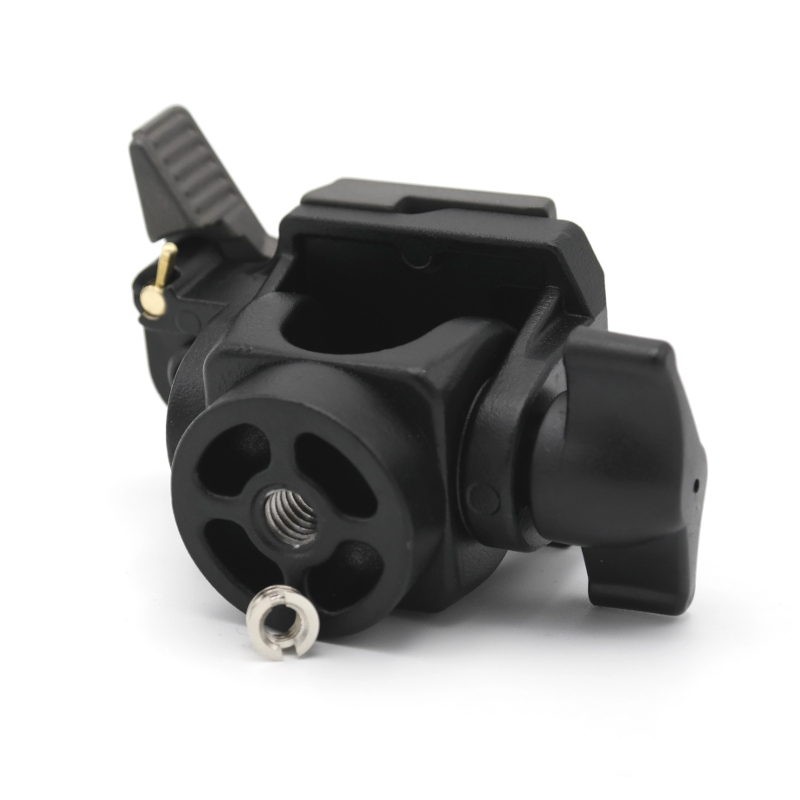

Manfrotto 234RC bottom 3/8 inch thread
Parameters

Parameters

Manufacturer: Manfrotto
Category: Heads

Main parameters

Payload5
Weight0.3kg
Max height6cm
Tirpod Payload5kg
