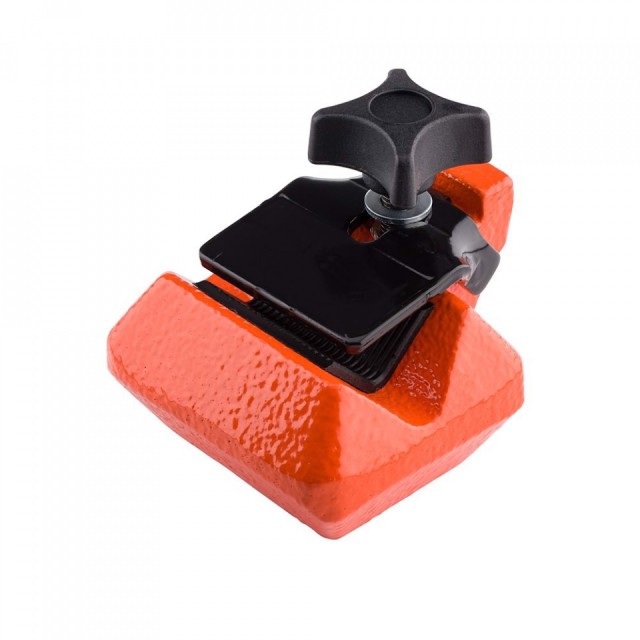

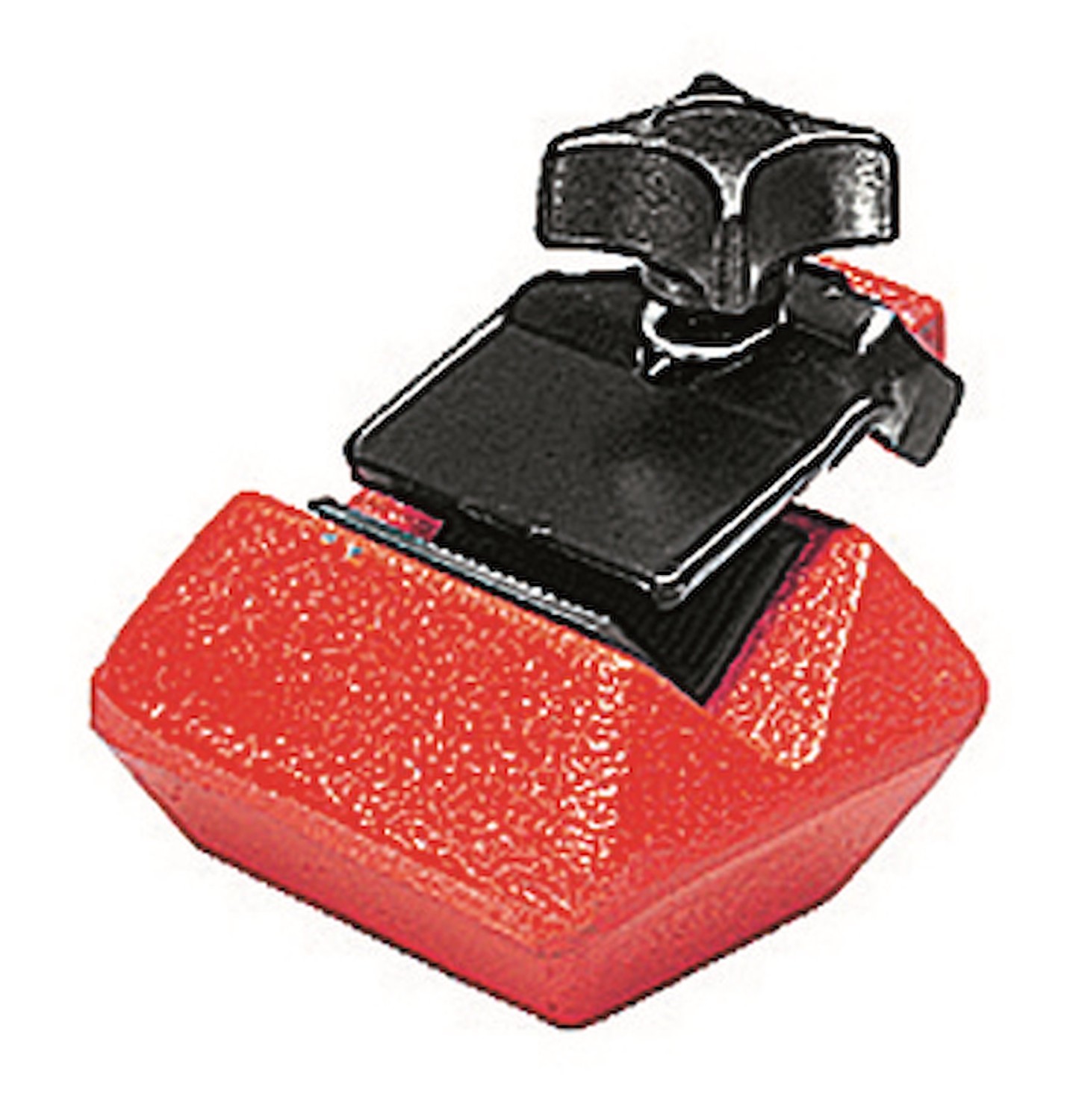

Manfrotto 172 – 1.3 kg Mini Counterweight for 13–30 mm Bars

The Manfrotto 172 is a compact, painted iron counterweight designed to balance studio arms and lighting stands. The locking clamp attaches directly to round poles with a diameter of 13–30 mm, allowing you to adjust the weight’s position according to the load on the arm and then secure it with a large control knob. The model is sold as a 1.3 kg version; the exact catalog weight is 1.26 kg. It therefore complements, for example, the Manfrotto 173B 20 mm mini arm.

Mini Counterweight for the Studio

Balance the arm without complicated assembly

The Manfrotto 172 attaches directly to the round pole of a boom arm or light stand, slides into the desired position, and locks into place with a control knob. The compact iron body adds a nominal 1.3 kg to the opposite side of the boom arm and helps balance equipment positioned off-axis from the stand.

1.3 kg nominal1.26 kg exact13–30 mm barsmodel 172

Simple and Controlled Adjustment

Range: 13–30 mm

The clamp grips standard round rods on studio arms and stands across a wide range of diameters without requiring a special adapter.

Sliding counterweight

The loose counterweight can be slid along the rod closer to or farther from the axis depending on the position and weight of the equipment at the opposite end of the arm.

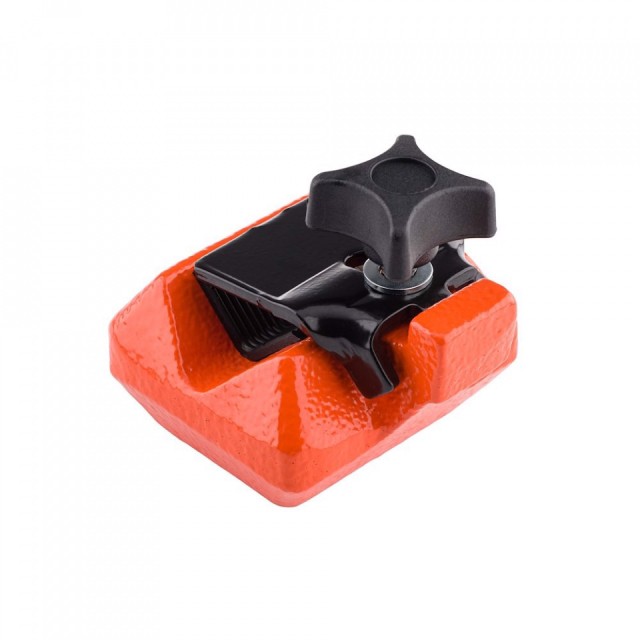

Large locking knob

The contoured control knob makes it easy to tighten the clamp and keeps the counterweight securely in place on the rod.

Painted cast iron for studio use

The durable painted iron body combines concentrated weight with a compact footprint. The black clamp features contact surfaces that adapt to the diameter of the inserted rod.

The counterweight helps with balancing but does not replace proper positioning and securing of the stand, nor does it ensure compliance with the load capacity of the arm and all joints.

The lightest model in the series

Model 172 is designed for rods measuring 13–30 mm. Larger counterweights in the same family—the Manfrotto 023 L-Peso and 022 G-Peso—are heavier and clamp onto rods measuring 22–35 mm; therefore, they are linked on the page as actual weight variants.

Technical Specifications

Model	172
Type	mini counterweight for arms and light stands
Commercial weight options	1.3 kg / 3 lb
Exact catalog weight	1.26 kg
Material	painted iron
Compatible rod diameter	13–30 mm
Locking mechanism	clamp with locking knob
Intended use	Studio arms and light stands

Package Contents

• 1× Manfrotto 172 counterweight with clamp and locking knob
