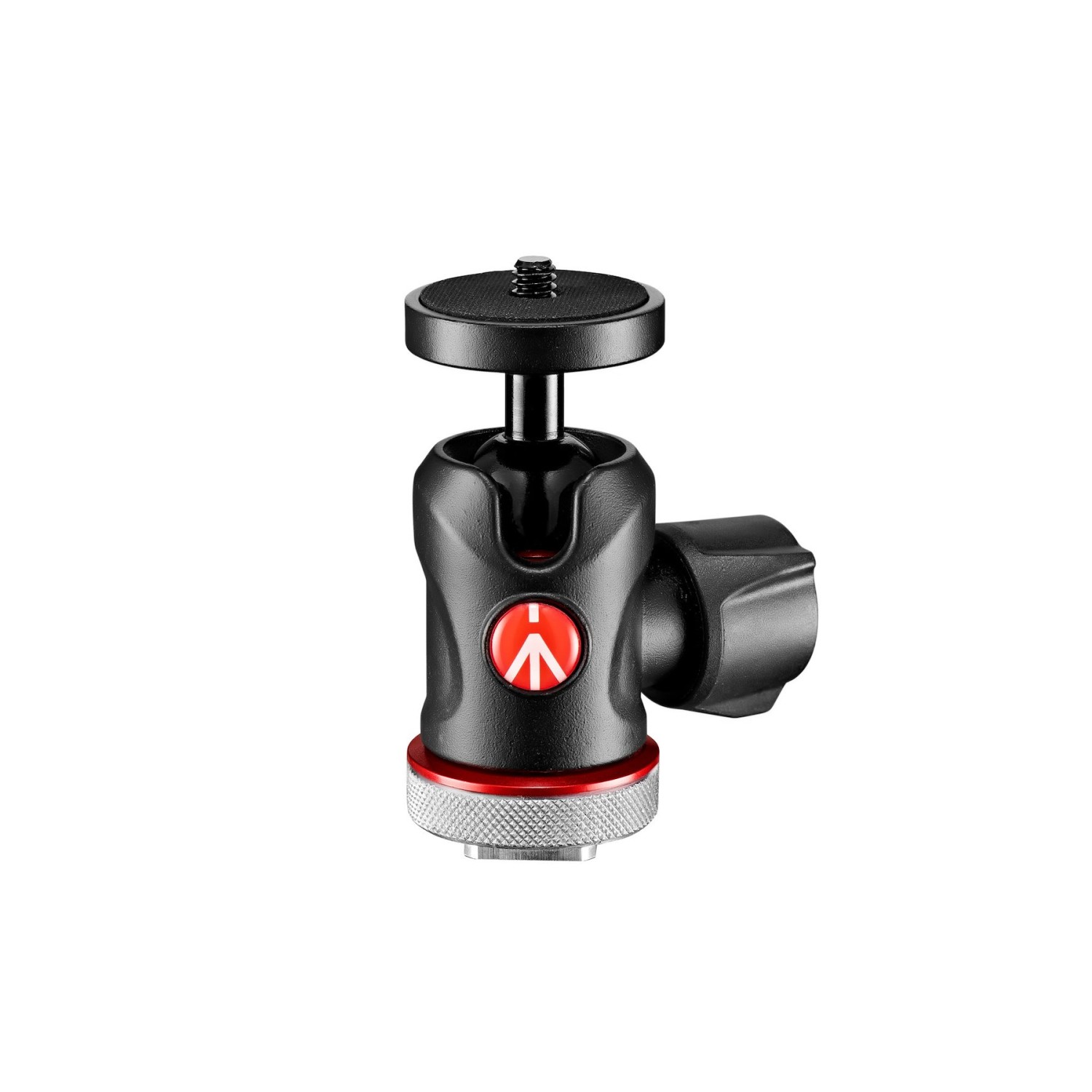

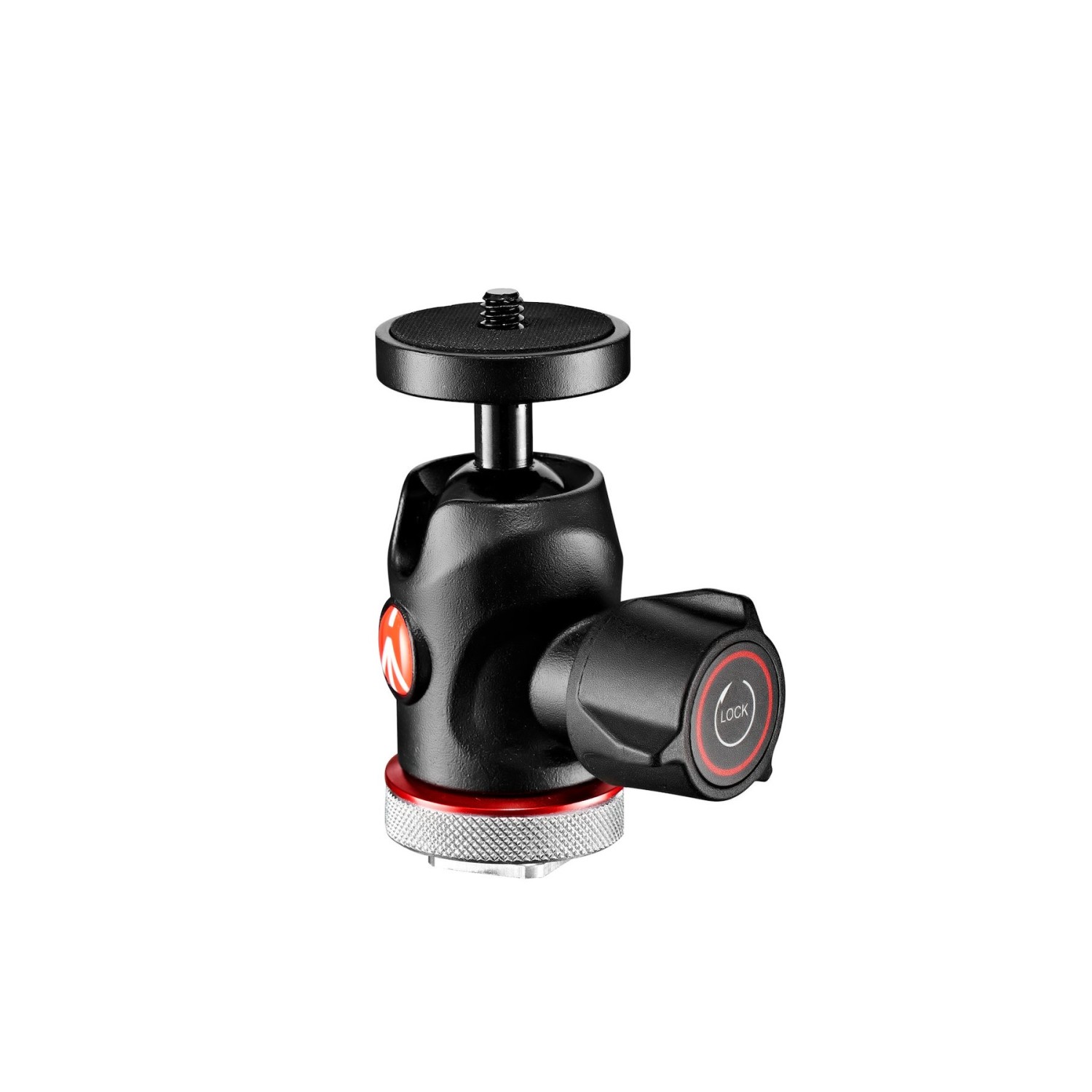

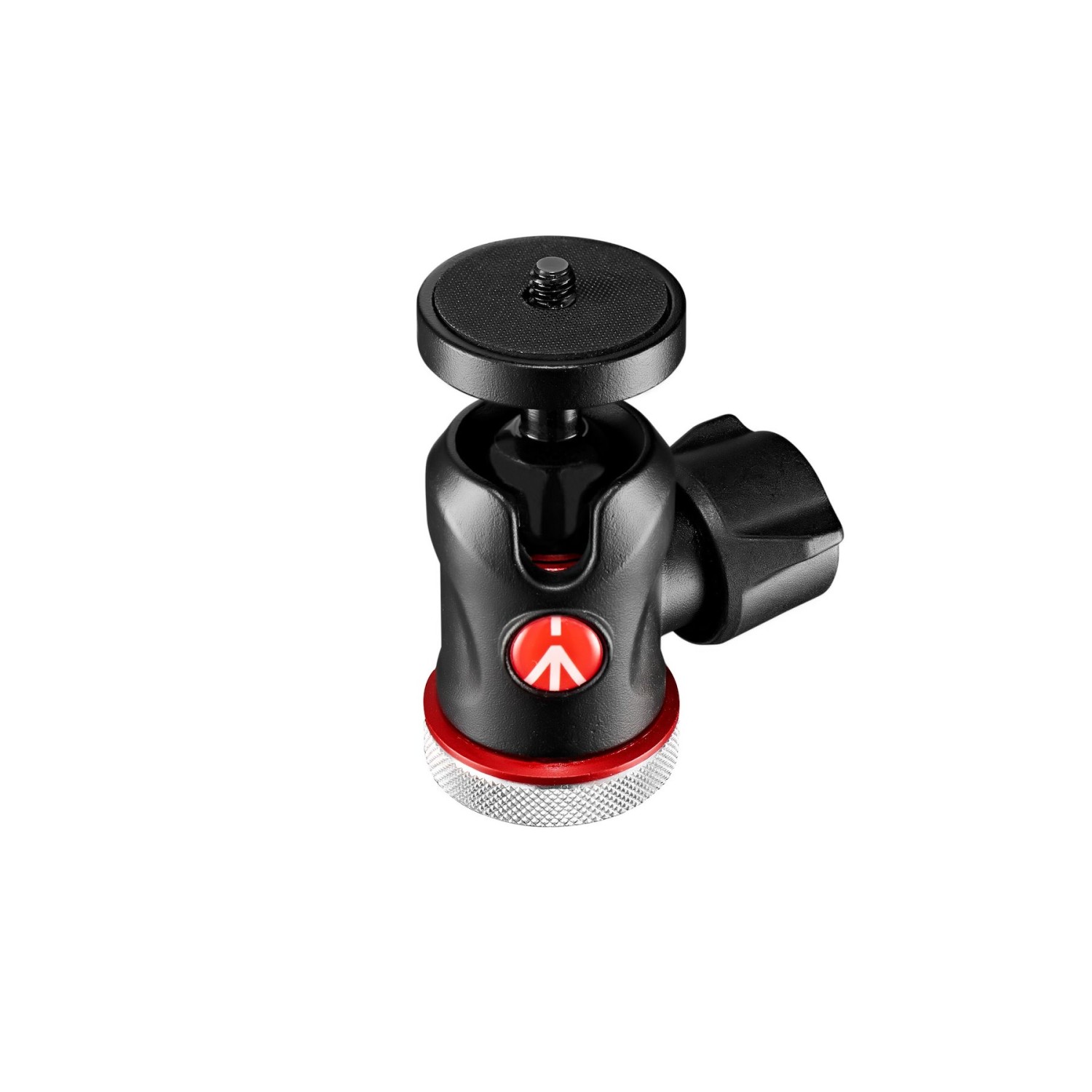

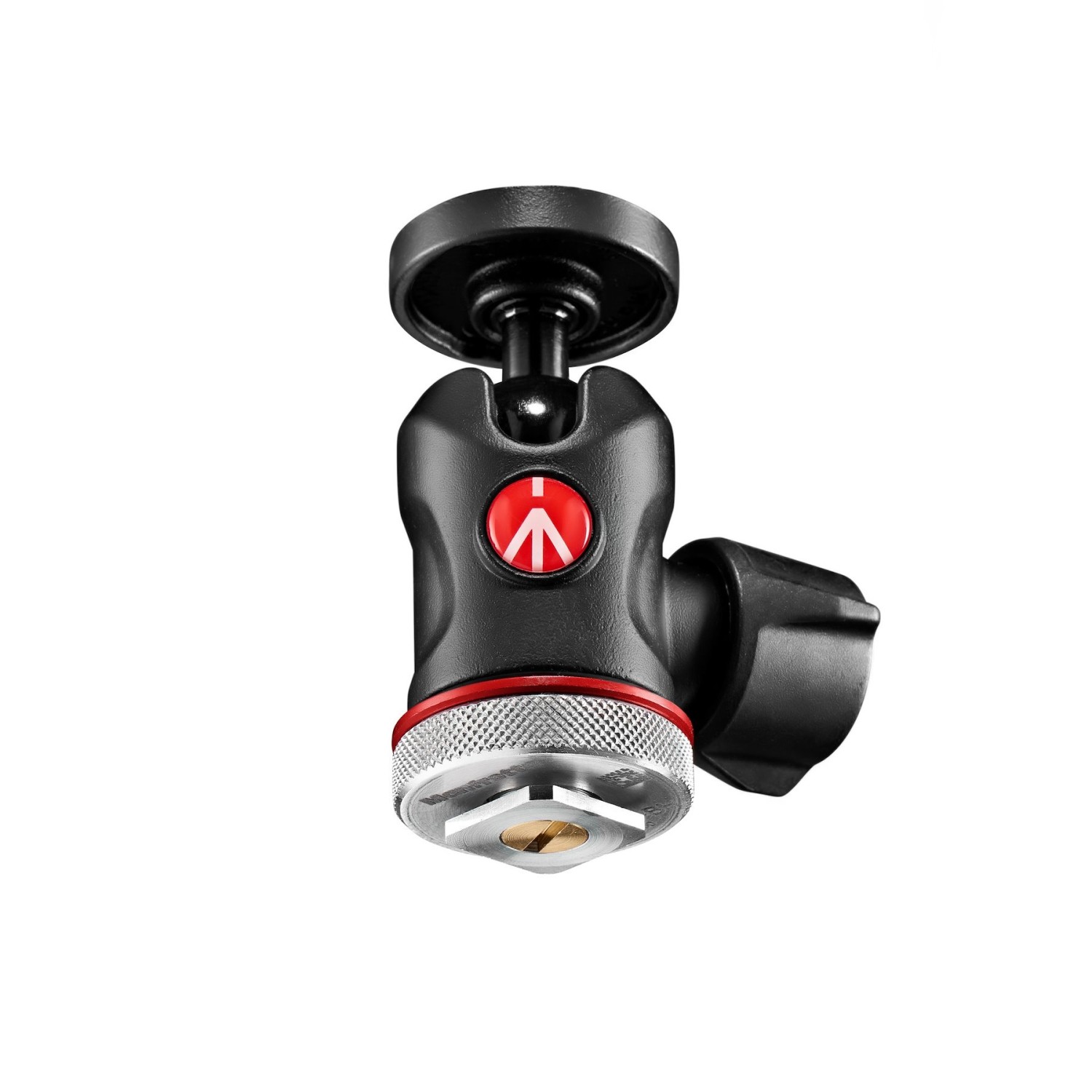

Manfrotto 492 Centre Ball Head with Cold shoe mount

Manfrotto 492 LCD BH center ball head with integrated cold shoe mount offers smooth 360 degree pan and tilt for precise camera positioning. Catalog number MH492LCDBH. Ideal for DSLRs, mirrorless cameras and accessories requiring secure mounting and flexible adjustments. Features a quick release plate and a reliable locking mechanism for stability.

More information

94 € with VAT 77.69 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Manfrotto 492 LCD BH center ball head with integrated cold shoe mount offers smooth 360 degree pan and tilt for precise camera positioning. Catalog number MH492LCDBH. Ideal for DSLRs, mirrorless cameras and accessories requiring secure mounting and flexible adjustments. Features a quick release plate and a reliable locking mechanism for stability.

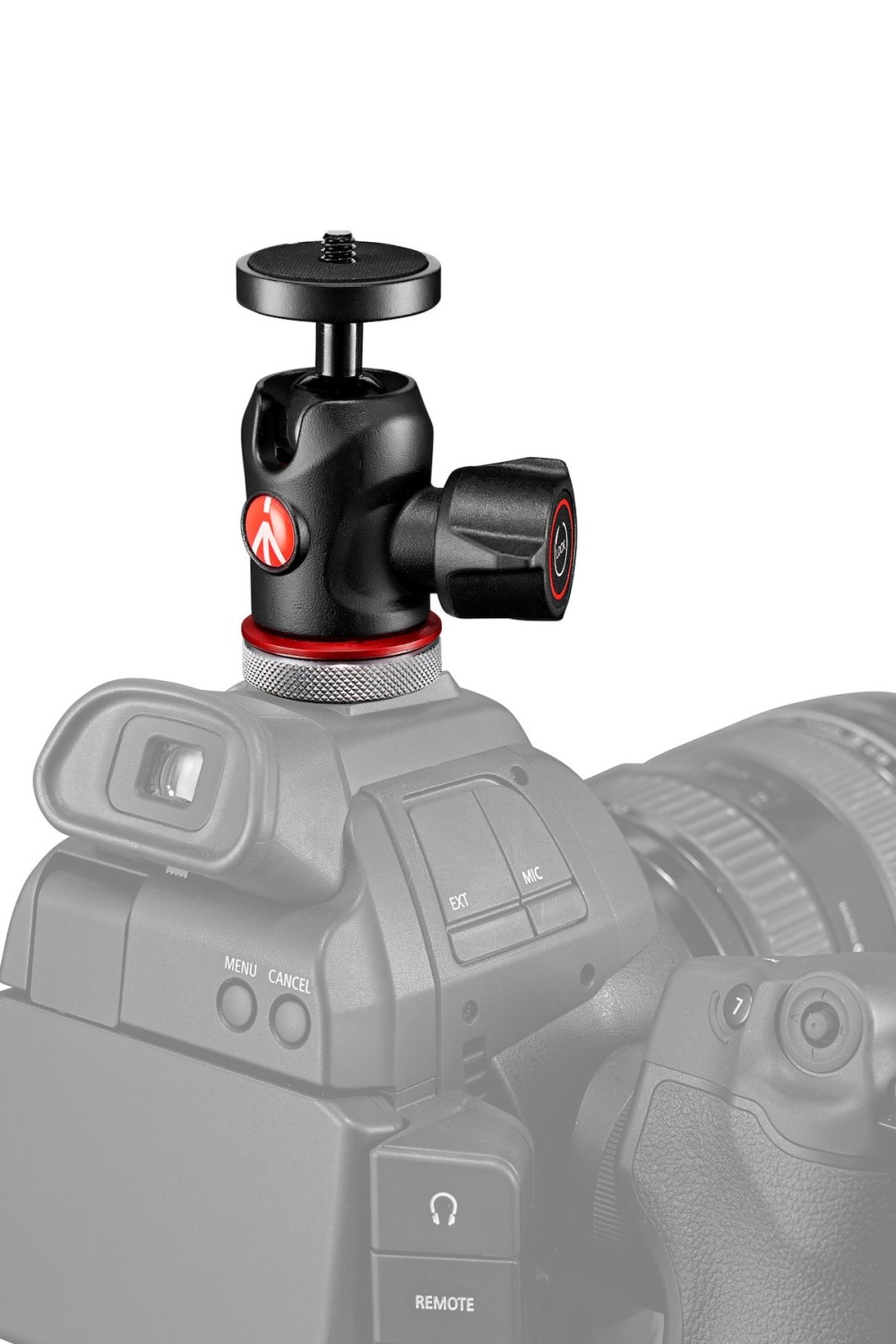

For all videographers looking for a fully portable yet reliable ball head, the Manfrotto MH492LCD-BH is the ideal way to connect your camcorder to a monitor. This tripod head is made of highly durable and lightweight aluminum, making it portable yet sturdy enough to handle an impressive load capacity of up to 4 kg. With a single ergonomic lever that controls panning and tilting movements, you'll be ready to shoot while keeping track of what you're doing. The head is equipped with a standard cold shoe mount for attaching a camera. A universal 1/4" screw for attaching an external monitor also makes it easy to get into the right position. With the MH492LCD-BH, your shooting will be easier and more efficient.

Key Features:

  • Tough and durable aluminium body
  • Standard cold shoe in aluminium for easy camera attachment
  • Includes universal screws for external monitors
  • Easy locking and full pan and tilt movement
  • Can support up to 4kg

PACKAGE CONTENT

  • 1 × 492 Centre Ball Head with Cold shoe mount (MH492LCD-BH)

SPECIFICATIONS

  • Model: MH492LCD-BH
  • Official product name: 492 Centre Ball Head with Cold shoe mount
  • Weight: 0.17 kg
  • Base Diameter: 35 mm
  • Material: Aluminum
  • Front Tilt: -90° / +40° tiltrange
  • Safety Payload Weight: 4 kg
  • Plate Type: fixed - with 1/4″ screw
  • Color: Black
  • Base Type: 22 mm
  • Ball Locking: Yes
  • Top Attachment: 1/4″ screw attachmenttype
  • Easy Link: No
  • Friction Control: No
  • Head Type: Ball Head
  • Independent Pan Lock: no
  • Independent Tilt Lock: no
  • Lateral Tilt: -90° / +40° tiltrange
  • Maximum Working Temperature: 70 °C
  • Minimum Working Temperature: -30 °C
  • Pan Bar Included: No
  • Pan Drag: NONE
  • Panoramic Rotation: 360 °
  • Quick Release: No
  • Tilt Drag: NONE
  • Working Height: 7.6 cm
Parameters

Parameters

Manufacturer: Manfrotto
Category: Ball heads

Main parameters

Payload4
Tirpod Payload4kg
