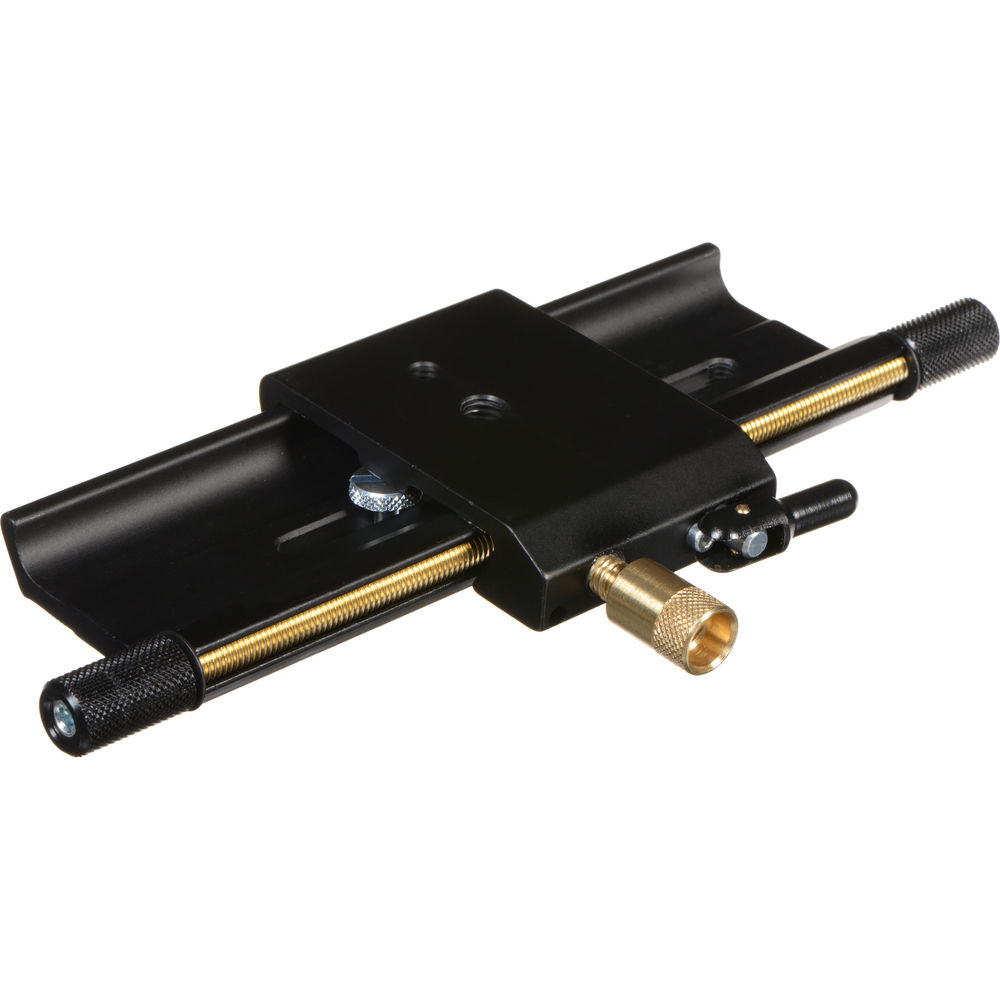

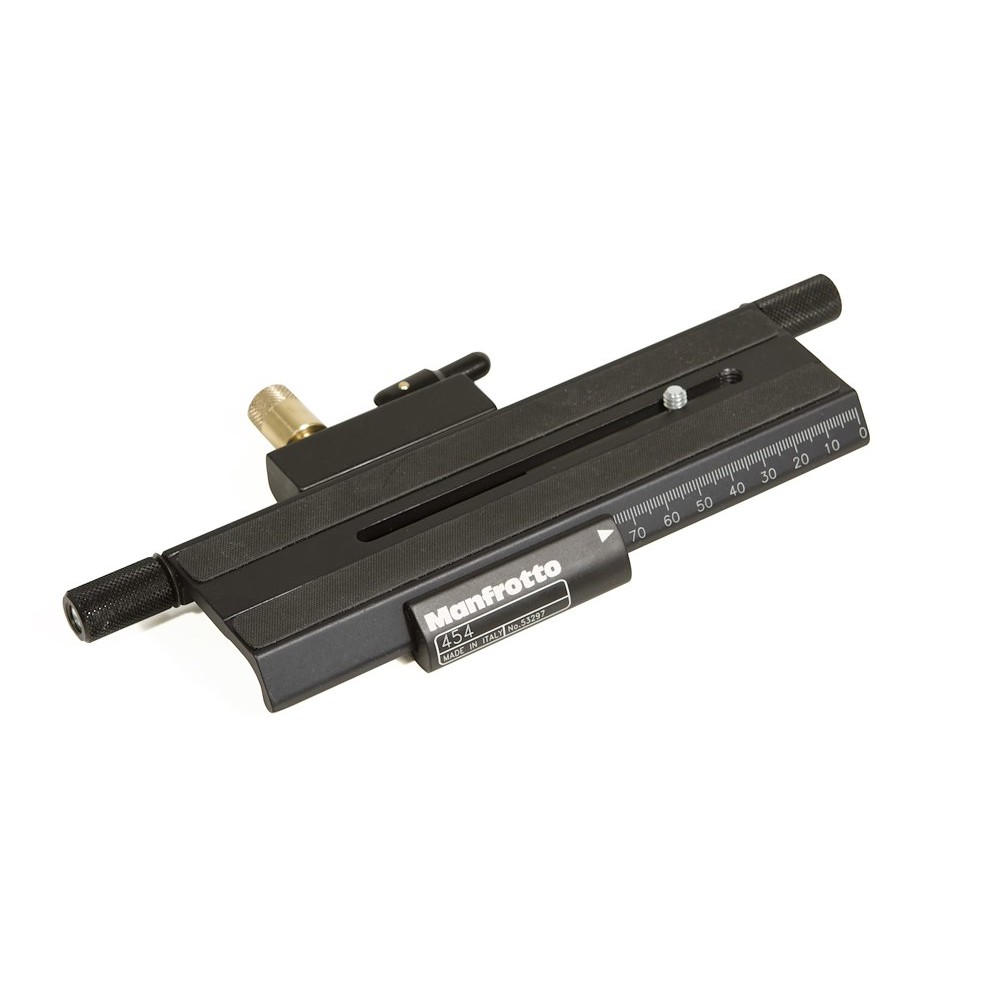

Manfrotto 454 – 120 mm Micrometric Macro Rail

Manfrotto 454 is an aluminium micrometric macro rail for precise camera positioning in macro photography, QTVR and copy or repro work. Its fingertip control provides fine adjustment, while a lock-release lever speeds up coarse repositioning. Travel exceeds 120 mm, and two units can interlock at 90° for movement on two axes. The rail provides 1/4″ and 3/8″ holes and fittings, supports a safety payload of 8 kg, and is designed and made in Italy.

PRECISE CAMERA POSITIONING

MICROMETRIC MOVEMENT FOR MACRO

Manfrotto 454 fine-tunes camera distance without moving the tripod, making precise framing, macro and copy work easier.

FINE OR FAST

Use the knob for precise travel, or release the lock lever for a quick coarse change of position.

OVER 120 MM OF TRAVEL

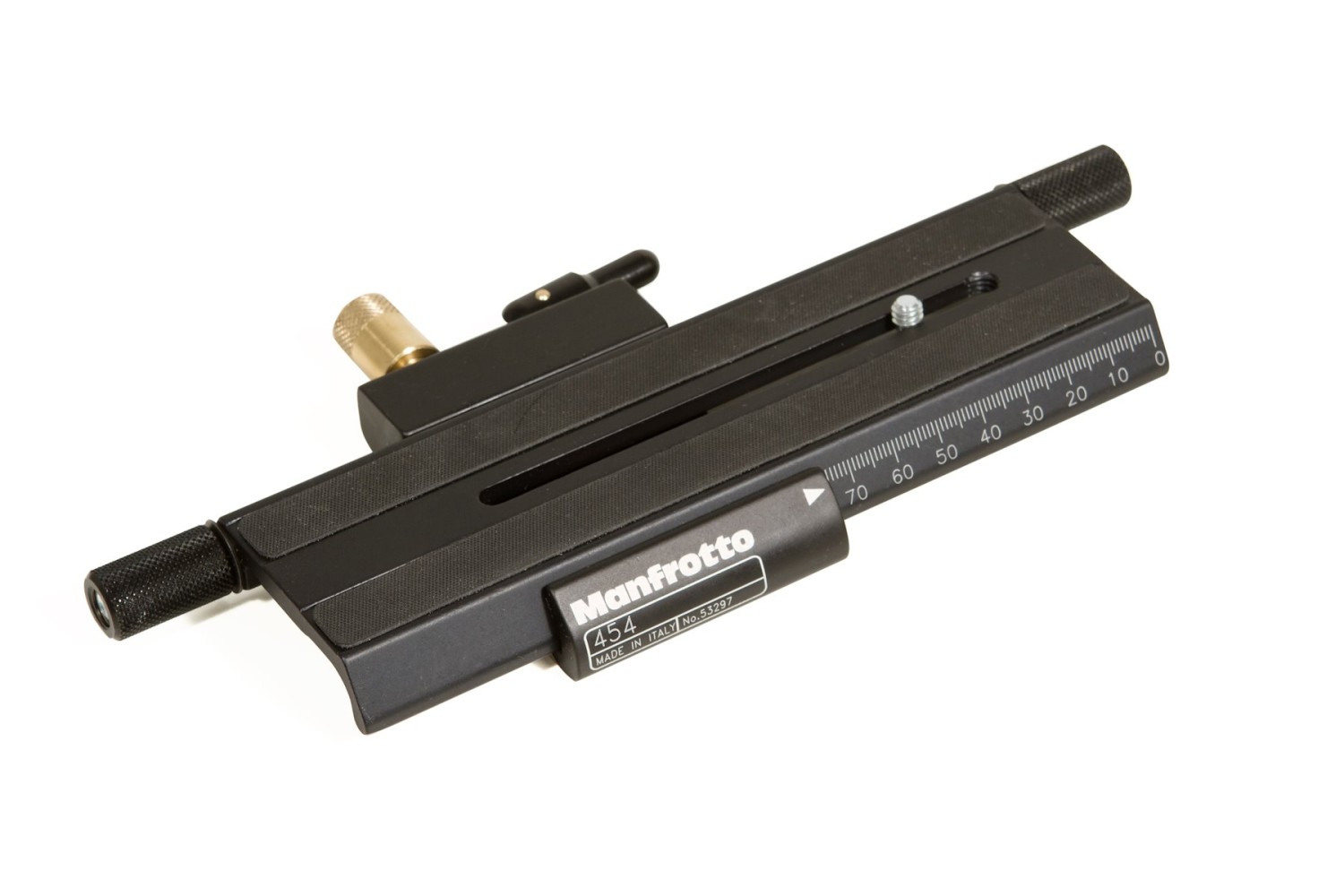

The long scale helps repeat settings and monitor forward or backward movement.

TWO-AXIS OPTION

Interlock two 454 rails at 90° to add both fore-aft and lateral movement.

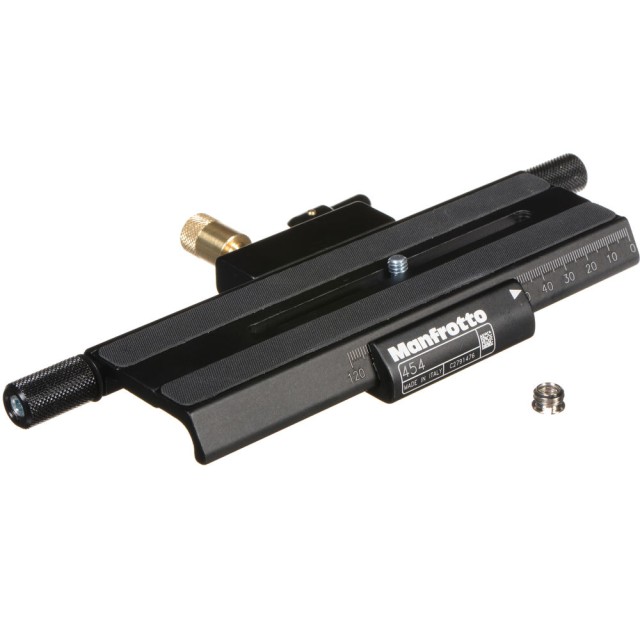

PACKAGE CONTENTS

• 1× Manfrotto 454 micrometric rail
• 1× 1/4″-20 camera screw
• 1× 1/4″ to 3/8″ reducing bushing

TECHNICAL SPECIFICATIONS

• Model: 454
• Travel: over 120 mm
• Material: extruded aluminium
• Weight: 0.52 kg
• Dimensions: 180 × 57.5 × 15 mm
• Safety payload: 8 kg
• Mounting threads: 1/4″ and 3/8″
• Construction: designed and made in Italy
