Manfrotto 16mm Female Adapter 1/4" to 5/8"

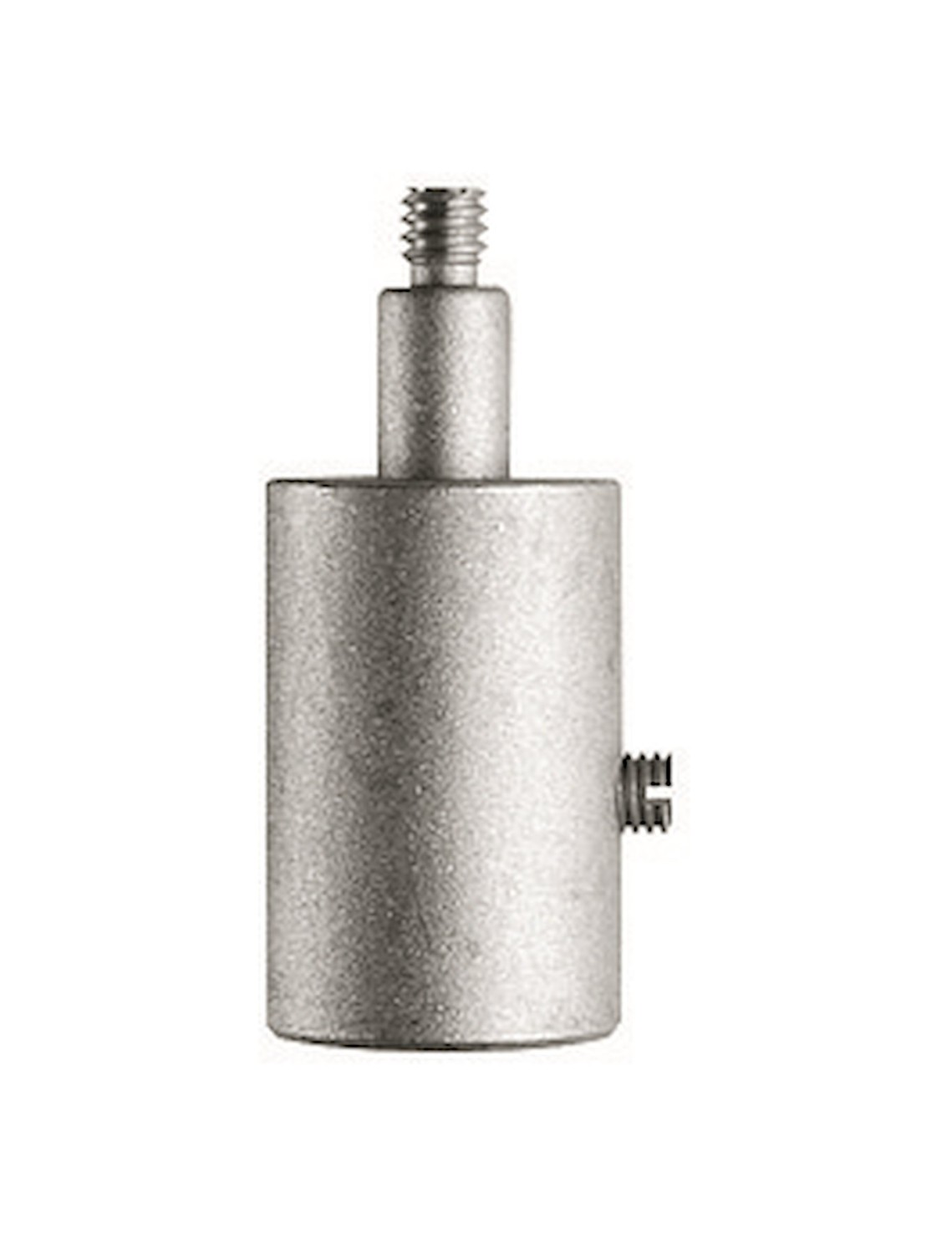

Manfrotto 194 is a lightweight aluminium adapter for connecting a standard 5/8″ (16 mm) Baby pin to equipment with a 1/4″ female thread. The socket is secured with a side screw and the opposite end provides a 1/4″ male screw: “Female” describes the socket, not the 1/4″ thread. Weighing just 30 g, this compact component is a practical addition to photographic, video and lighting grip equipment for attaching compatible accessories in studio or location setups.

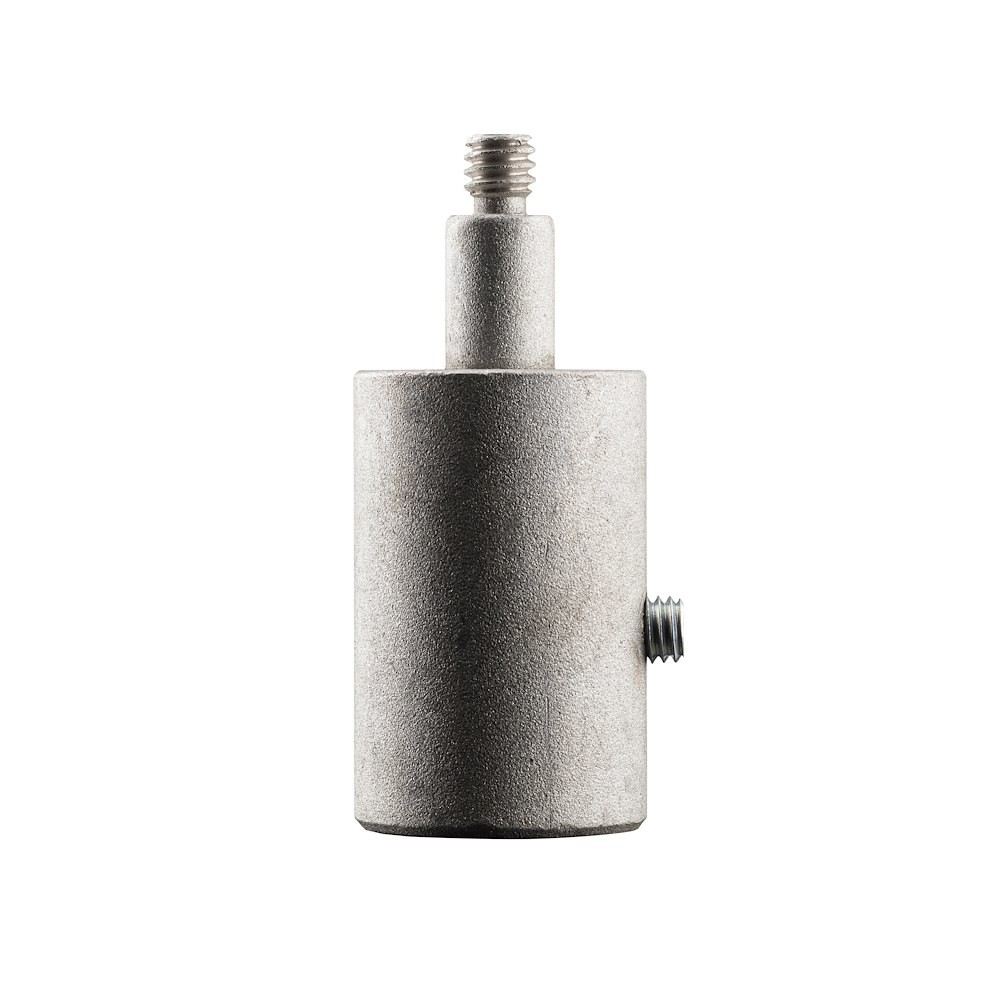

MANFROTTO 194

Connect a Baby pin

Add a 1/4″ male screw to a 5/8″ (16 mm) Baby pin. The Manfrotto 194 combines a female socket, a side securing screw and a lightweight aluminium body weighing just 30 g.

16 mm → 1/4″30 g

Socket, not a female thread

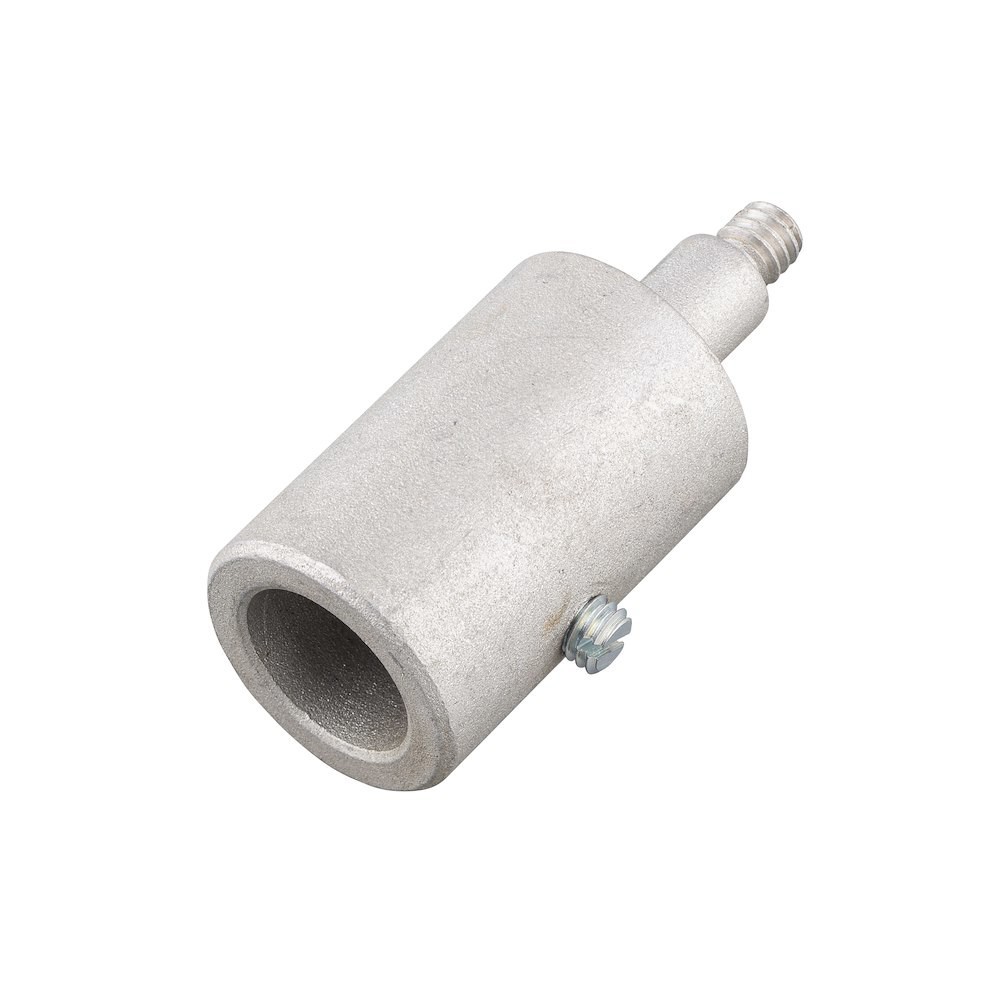

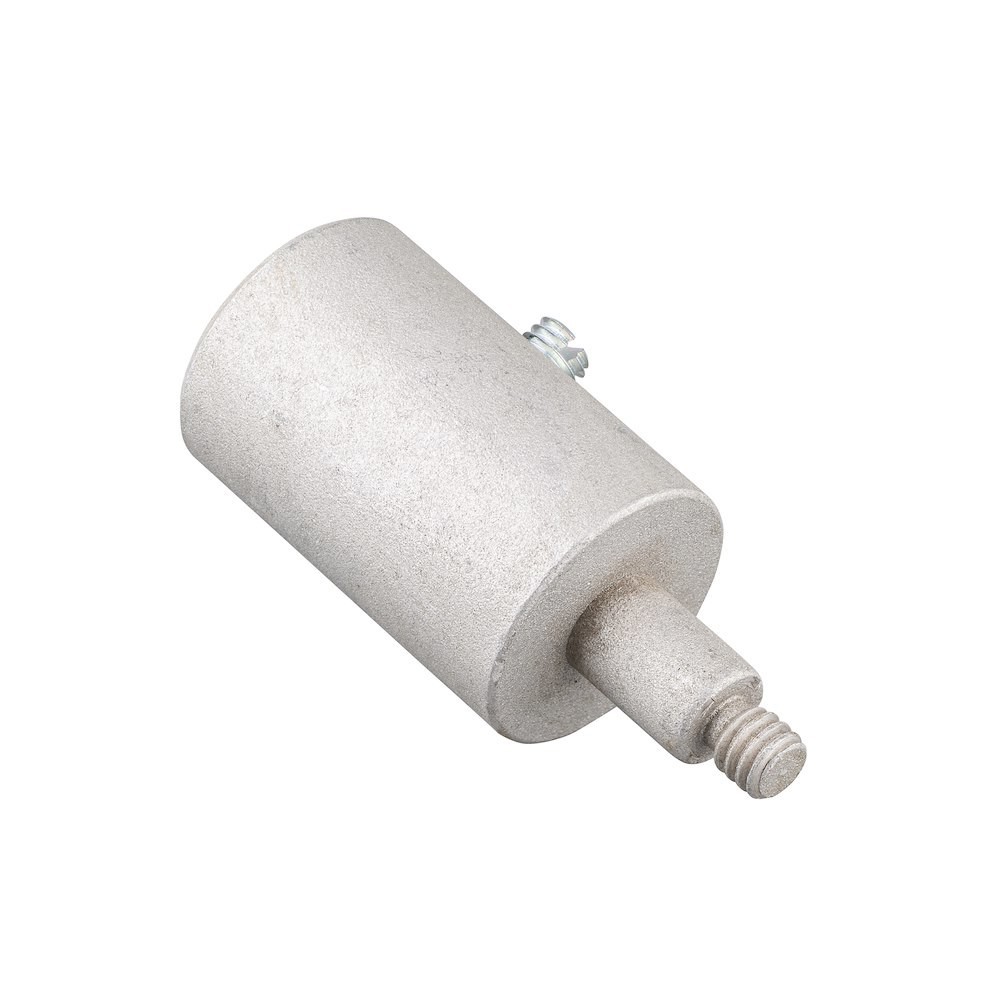

The 5/8″ (16 mm) opening slides over a compatible Baby pin and is secured by the side screw. The 1/4″ connection at the opposite end is a male screw for equipment with a matching female thread. This distinction matters when choosing the rest of the mounting system.

A small part of a versatile kit

The compact aluminium adapter connects compatible photographic, video or lighting accessories to an existing support without adding unnecessary weight. Keep it with your grip equipment for studio and location setups, and check the connection and the supported load of the complete assembly.

The package contains the 194 adapter only. The supporting stand or plate, mounted equipment and any additional safety accessories are sold separately. The smooth 3/8″ male stud section is not a 3/8″ threaded screw.
