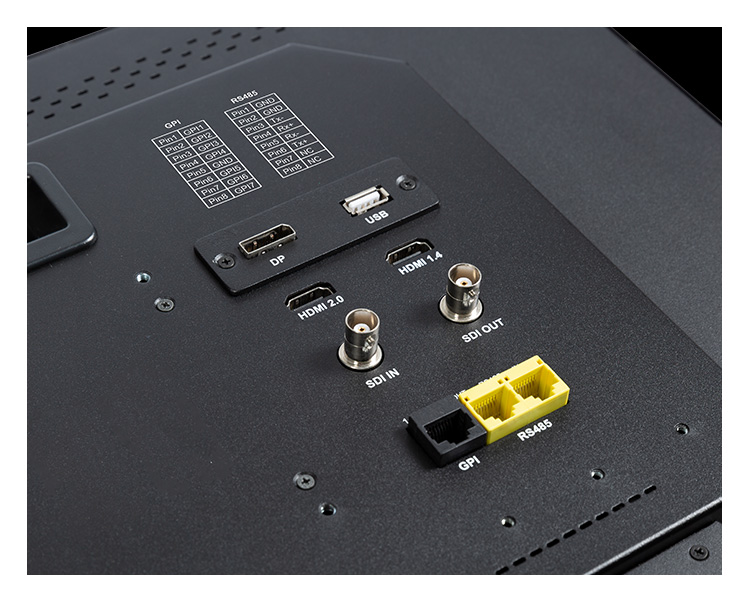

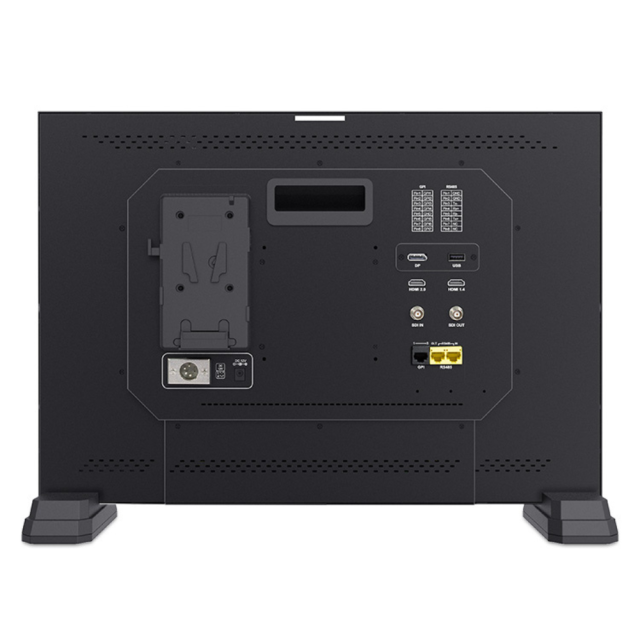

Professional overhead monitor with 21.5 IPC LCD panel (1920x1080, 16:9, 250 cd/m², 3000:1, 178° viewing angles) and 3G-SDI, HDMI 2.0, HDMI 1.4, RS-485, GPI, DP (DisplayPort) and USB inputs. With a large display area and 3D LUT corrections, this is an ideal candidate for post-production, overhead or camera stations on filming locations! 3D LUT corrections include C-Log Standard, C-Log Full, S-log2, S-log3, BMD-4Klog (supports import of up to 16 17x17x17, 33x33x33 and 65x65x65 tables via USB interface). The monitor also offers a signal light, SDI output, integrated speaker, headphone output, V-Mount battery plate (optional Gold Mount), power input with XLR4 connector, and a rugged aluminum bezel. Of course, there are features for focus assist, zoom, pixel-to-pixel, image rotation, half-frame checking, audio meter display, etc. Optionally, a customized aluminum case can be supplied.

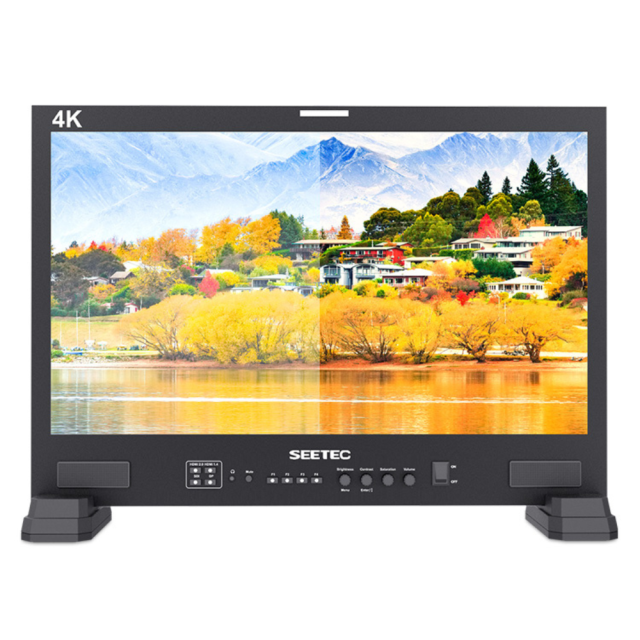

The Seetec LUT215 is a professional 21.5" monitor with Full HD resolution and 3D LUT support, offering a wide range of inputs including 3G-SDI, HDMI, and DisplayPort. For optimal integration into a studio environment and to ensure compatibility between different video standards, it is recommended to supplement the monitor with signal converters and capture cards.
Signal converters - Devices that enable flexible conversion between SDI and HDMI standards for seamless connection of the monitor to various signal sources.
Video capture and streaming - Accessories for digitizing video signals from a monitor or camera to a computer via a USB 3.0 interface.
| Manufacturer: | SEETEC |
| Category: | Studio Monitors |
| Size | 21.5" |
| Monitor inputs | HDMI |
| Monitor inputs | SDI |
| Monitor inputs | Display Port |
| Monitor power supply | V-Mount |
| Monitor power supply | 12V XLR |
| Panel resolution | 1920x1080 |
| Other features | Tally |
| Other features | 3D LUT correction |
