Lilliput RM-503S 5" 3G-SDI/HDMI Rackmount Monitor
SKU: Lilli-RM-503S
The Lilliput RM-503S is a 2U rackmount monitor with three 5″ Full HD displays, 450 cd/m² brightness and 98% DCI-P3 color space. Each display has its own 3G-SDI and HDMI 2.0 input (up to 4K 60 Hz) with loop outputs plus 3D LUT, waveform, vectorscope, false color and time code. The metal chassis with handles fits easily into a video wall or broadcast…
1 069 € with VAT
883.47 € without VAT
Availability
14-30 days
Top accessories for Lilliput RM-503S 5" 3G-SDI/HDMI Rackmount Monitor
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Canare HDMI Cable 2 m
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Canare HDMI Cable 3 m
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs
Infinitek L-2.5CHWS 4m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 4 m long, terminated with BNC (M) and BNC
20 €
In stock 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

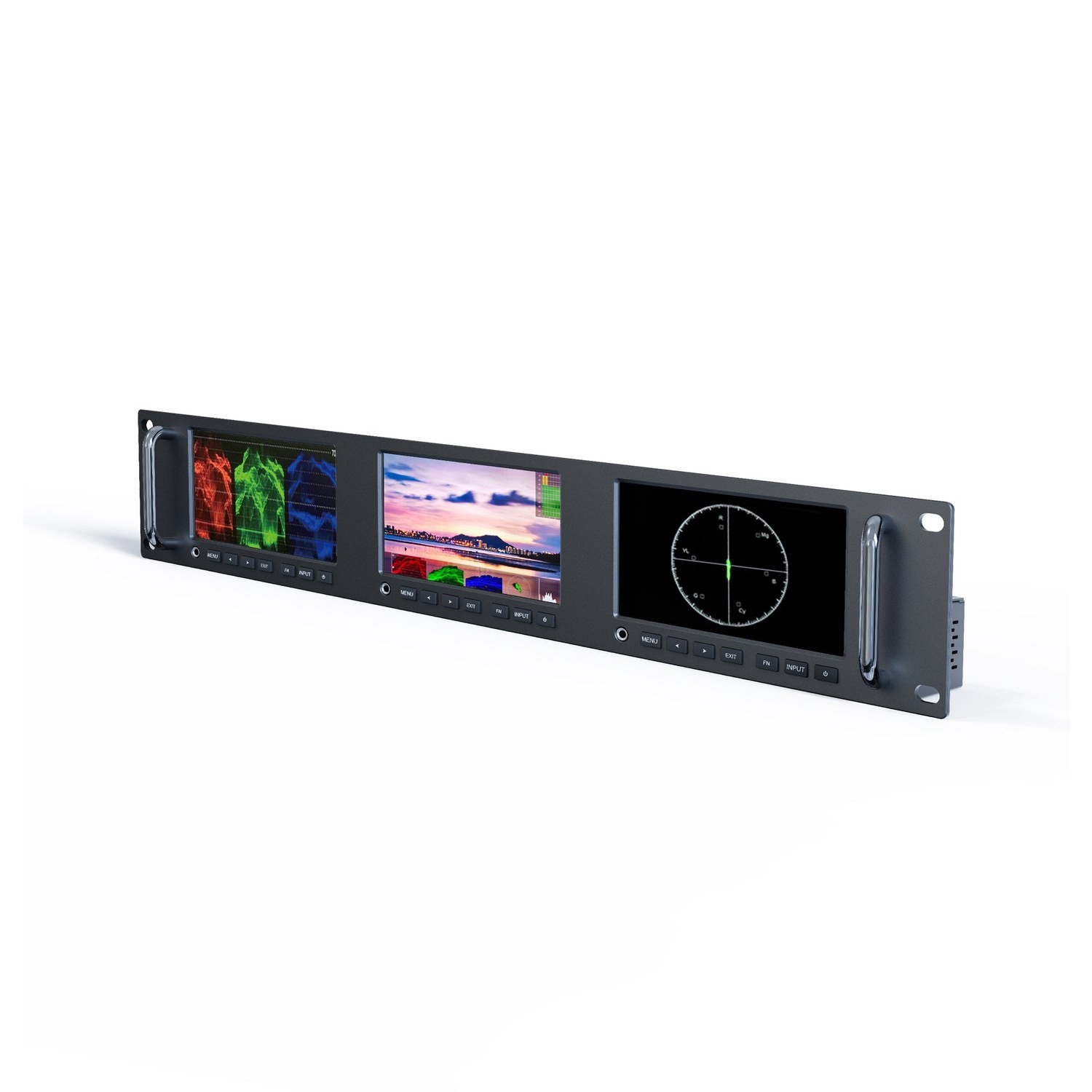

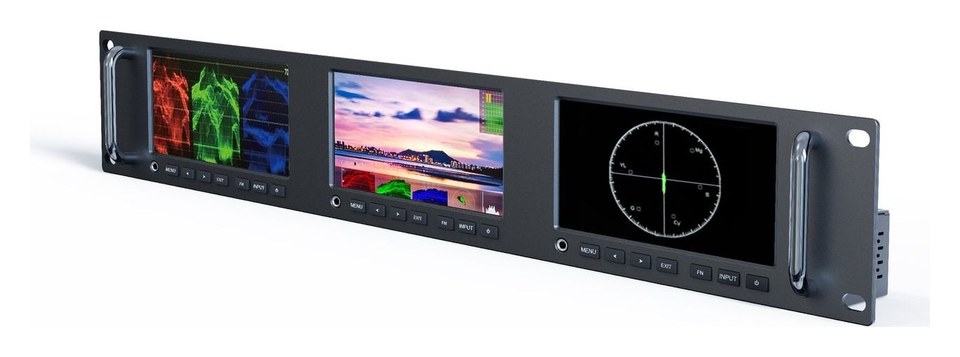

The Lilliput RM-503S is a 2U rackmount monitor with three 5″ Full HD displays, 450 cd/m² brightness and 98% DCI-P3 color space. Each display has its own 3G-SDI and HDMI 2.0 input (up to 4K 60 Hz) with loop outputs plus 3D LUT, waveform, vectorscope, false color and time code. The metal chassis with handles fits easily into a video wall or broadcast truck and can be controlled over LAN.

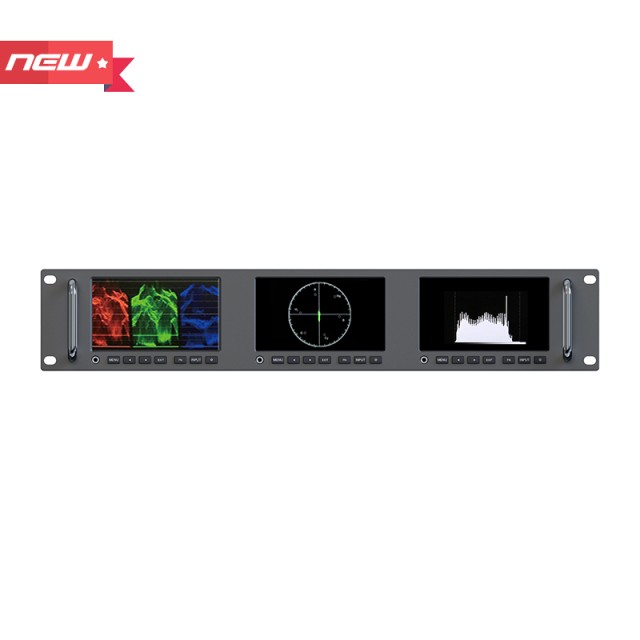

Three 5" Full HD displays in 2U
A compact rackmount monitor for three sources at once – with DCI-P3 color, 3D LUT and scopes for every image.
3× 5" Full HD450 cd/m²98% DCI-P33G-SDI + HDMI 2.02U rackmount

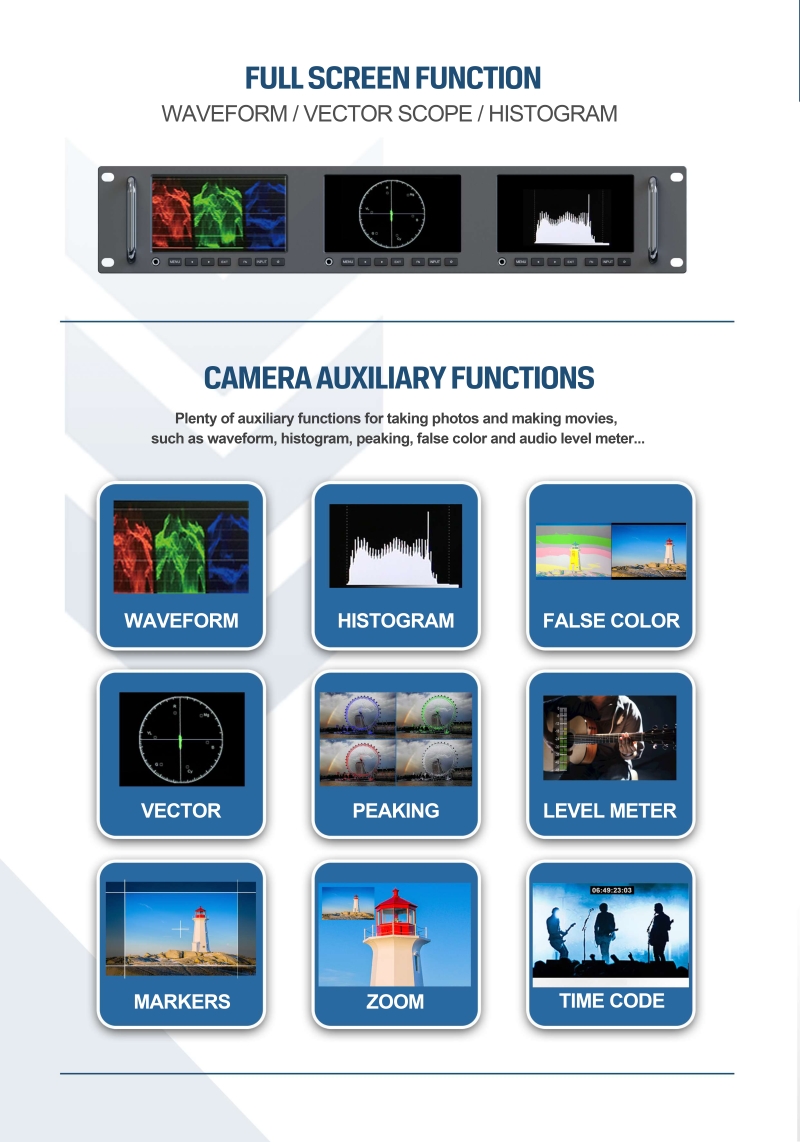

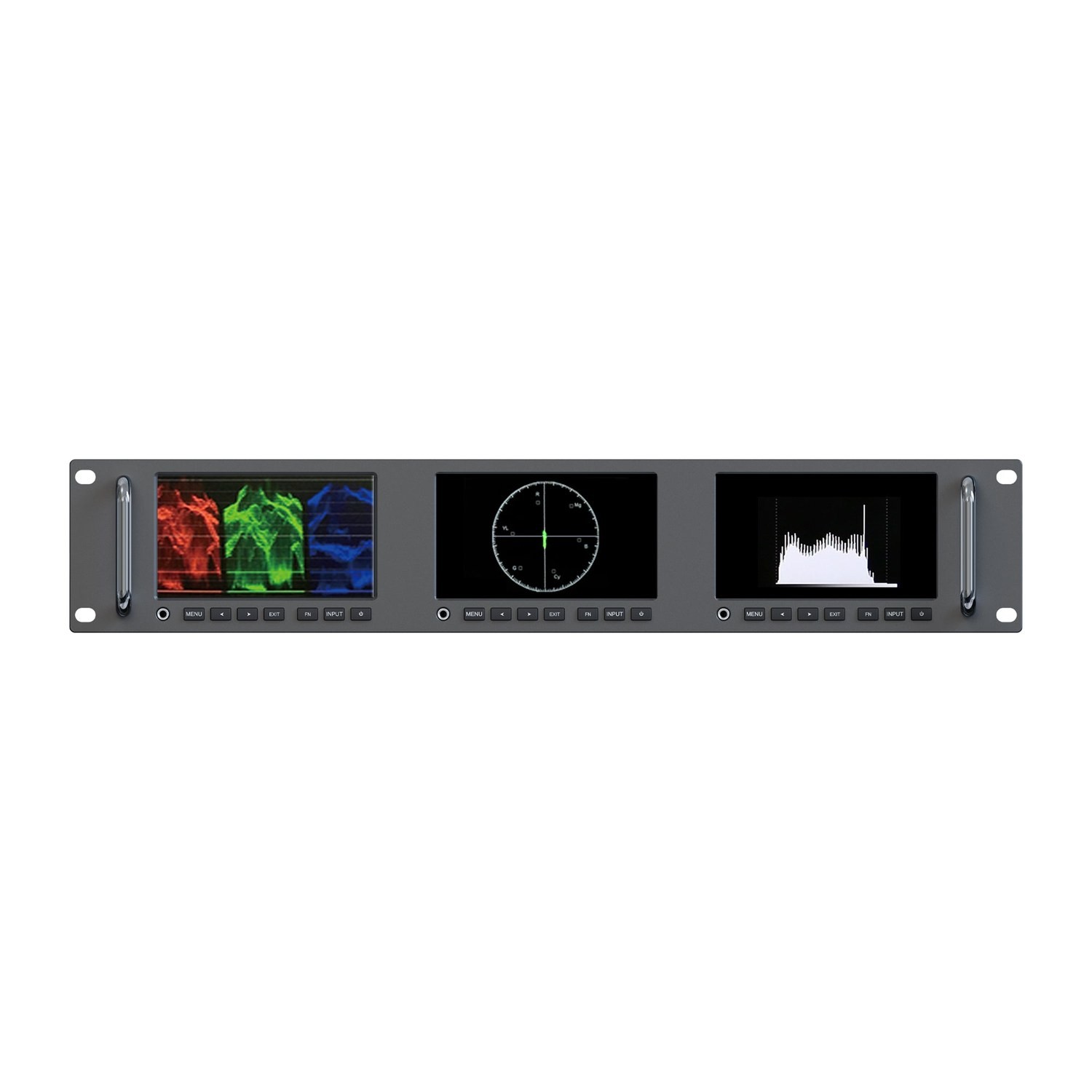

Full-screen scopes
Waveform, vectorscope and histogram can fill the whole display, alongside peaking, false color, level meter, markers, zoom and time code for precise control of every image.

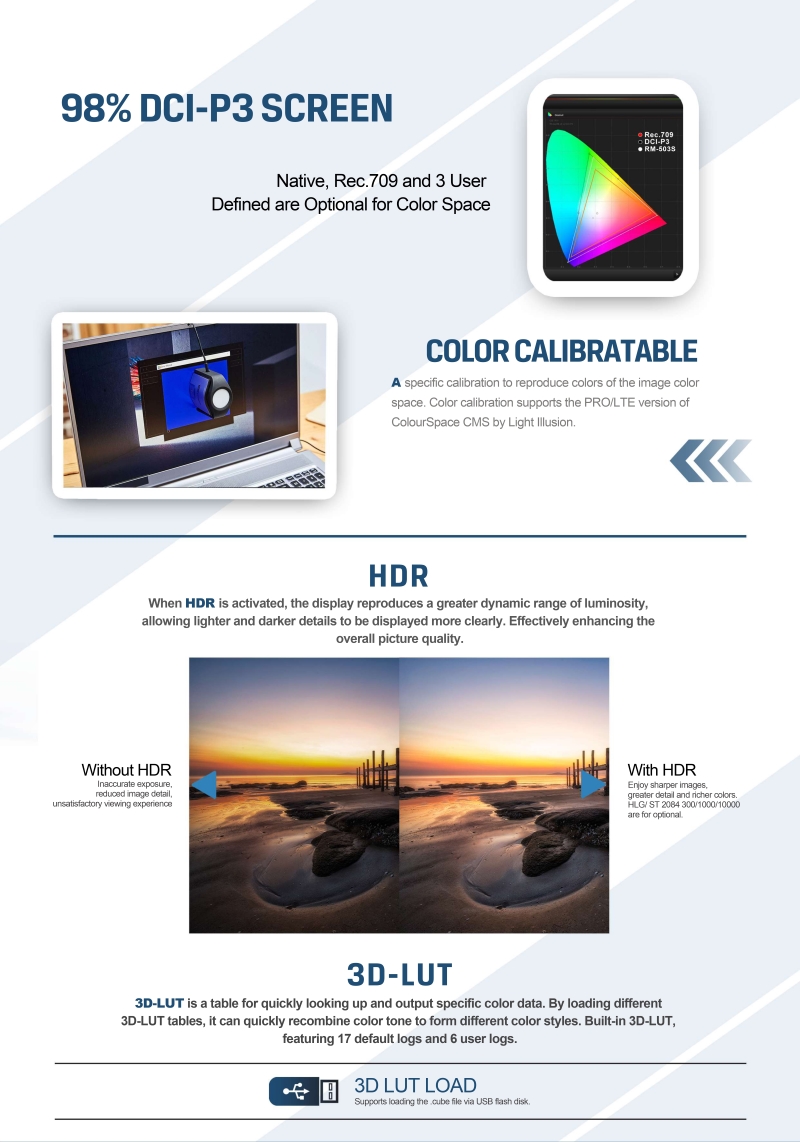

DCI-P3 screens
Native, Rec.709 and 3 user color spaces to choose from.
Color calibration
Supports ColourSpace CMS by Light Illusion, PRO/LTE version.

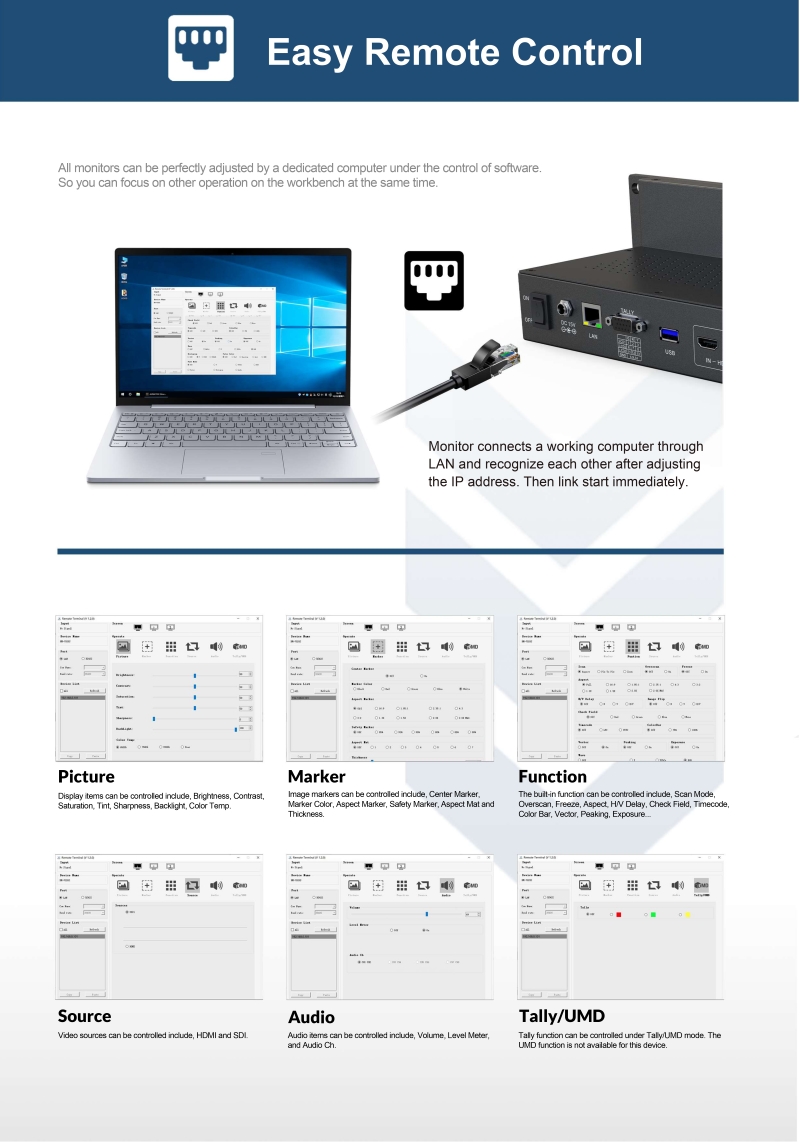

Remote control
Adjust all monitors from a connected computer over LAN.

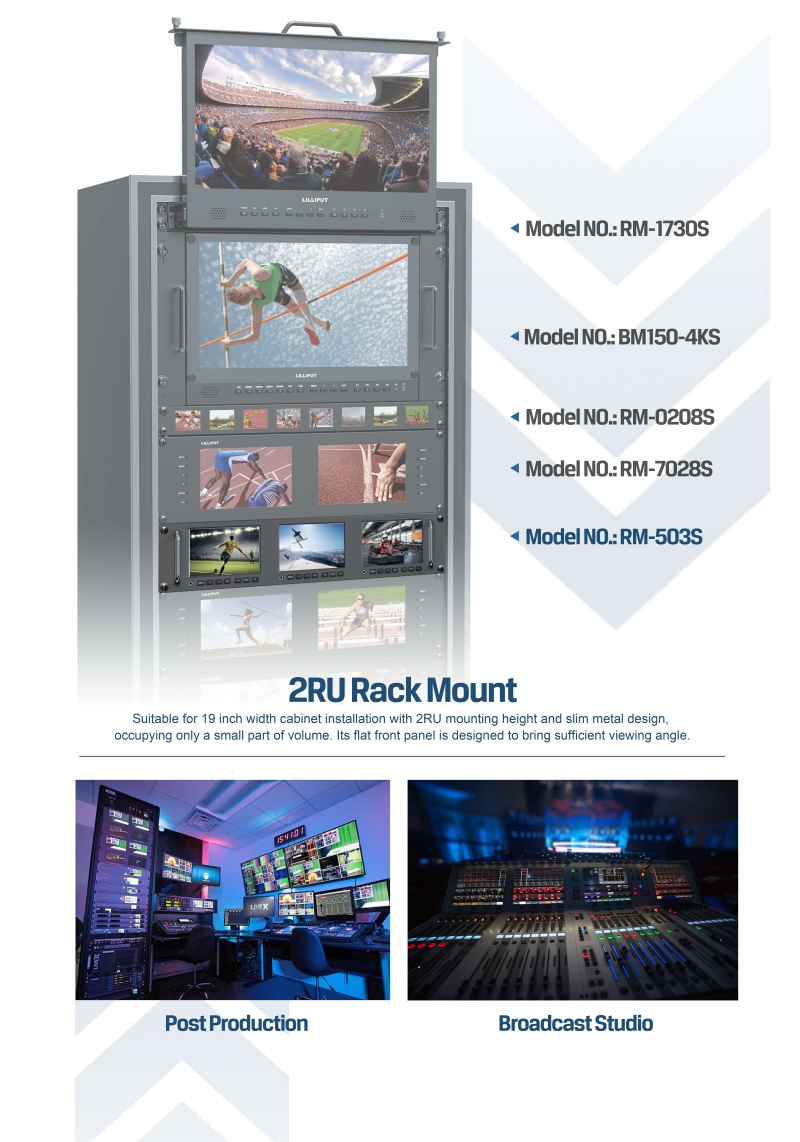

2U mounting
For 19" cabinets, slim metal design with a flat front.
More information
About the monitor

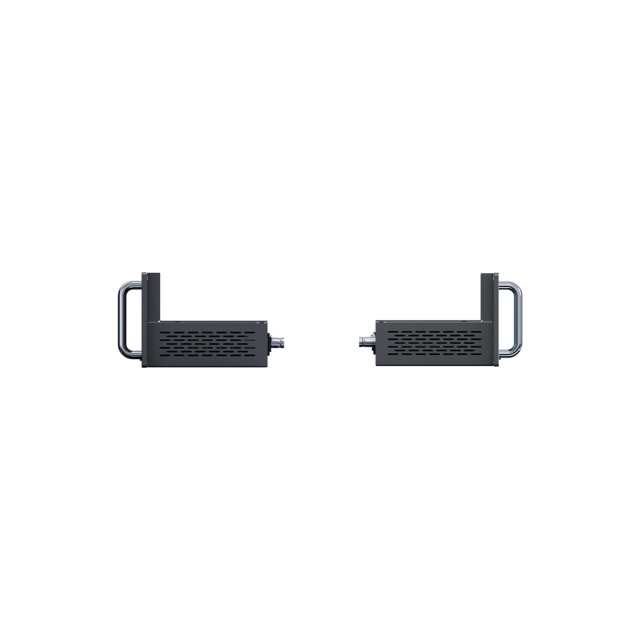

The RM-503S features three 5" displays, each with 450 cd/m² brightness and Full HD 1920 × 1080 resolution. The 2U rack-mountable metal chassis has two built-in handles to facilitate mounting and dismounting from your video wall or mobile broadcast system. With integrated 3D LUT support it is tailor-made for broadcast, post-production and live streaming.
PACKAGE CONTENT
- 1× monitor Lilliput RM-503S

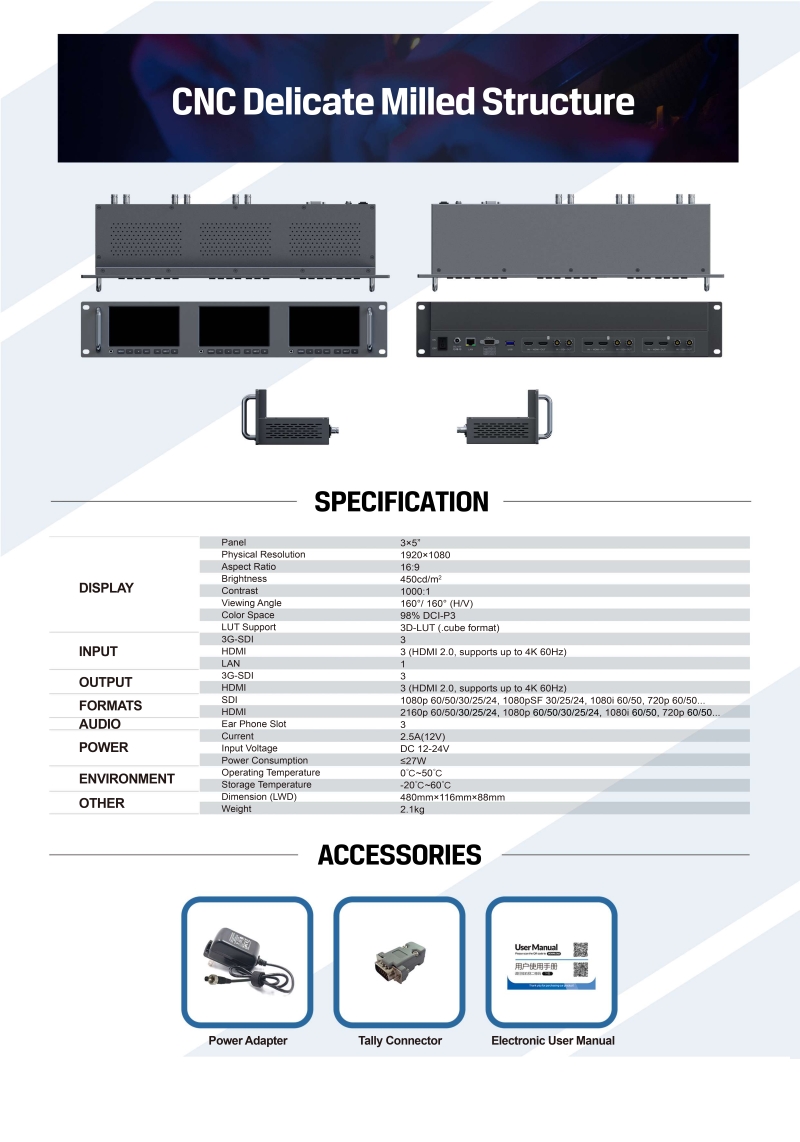

SPECIFICATIONS
- Brand: Lilliput
- Model: RM-503S
- Display: 3× 5"
- Resolution: 1920 × 1080 (per display), 16:9
- Brightness: 450 cd/m²
- Contrast: 1,000:1
- Viewing angle (H/V): 160° / 160°
- Color space: 98% DCI-P3
- LUT: 3D LUT (.cube format) via USB

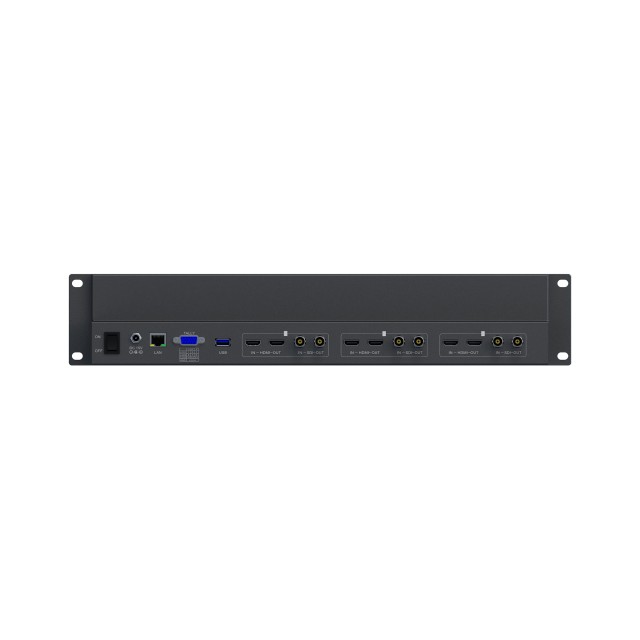

- Video inputs: 3× 3G-SDI, 3× HDMI 2.0 (up to 4K 60 Hz)
- Video outputs: 3× 3G-SDI, 3× HDMI 2.0 (loop)
- SDI formats: 720p 60/50, 1080i 60/50, 1080PsF 24/25/30, 1080p 24/25/30/50/60
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- Audio: 3× 3.5 mm headphones
- Other interfaces: LAN (remote control), tally
- Functions: waveform, vectorscope, histogram, peaking, false color, level meter, markers, zoom, time code, HDR, color calibration (ColourSpace CMS)
- Power: DC 12–24 V (2.5 A at 12 V)
- Power consumption: ≤ 27 W
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Dimensions (L × W × D): 480 × 116 × 88 mm
- Weight: 2.1 kg
- Mounting: 2U 19" rack
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p · Ultra HD up to 60p |
| Size | 5" |
| Monitor inputs | HDMI · SDI · 4K HDMI · 3G-SDI · HDMI 2.0 |
| Luminosity | 450cd/m2 |
| Panel resolution | 1920x1080 |
| Monitor power supply | DC 12–24 V |
Other parameters
| Tally | Yes |
| Other features | HDR · Rack-mountable · Tally · 3D LUT correction · Vectorscope |
