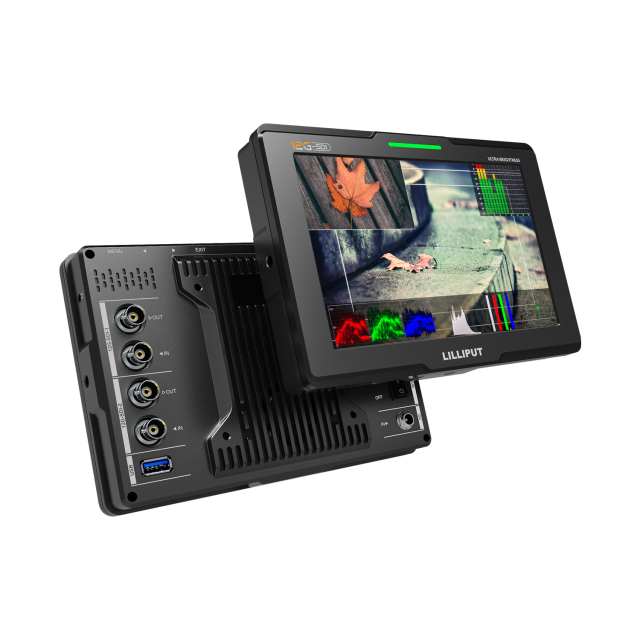

Lilliput Q7-12G 7" 12G-SDI/HDMI 2.0 Ultra-Bright On-Camera Monitor

Add crisp daylight viewing to your video or photo shoot with the Lilliput Q7-12G 7″ monitor. With 2000 cd/m² it is bright enough to be seen outdoors, supports video up to DCI 4K60, has dual 12G-SDI and HDMI 2.0 inputs and outputs, and offers pro functions such as 3D LUTs, HDR, compatibility with many log curves, imaging tools and a Sony NP-F battery plate…

More information

729 € with VAT 602.48 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Add crisp daylight viewing to your video or photo shoot with the Lilliput Q7-12G 7″ monitor. With 2000 cd/m² it is bright enough to be seen outdoors, supports video up to DCI 4K60, has dual 12G-SDI and HDMI 2.0 inputs and outputs, and offers pro functions such as 3D LUTs, HDR, compatibility with many log curves, imaging tools and a Sony NP-F battery plate.

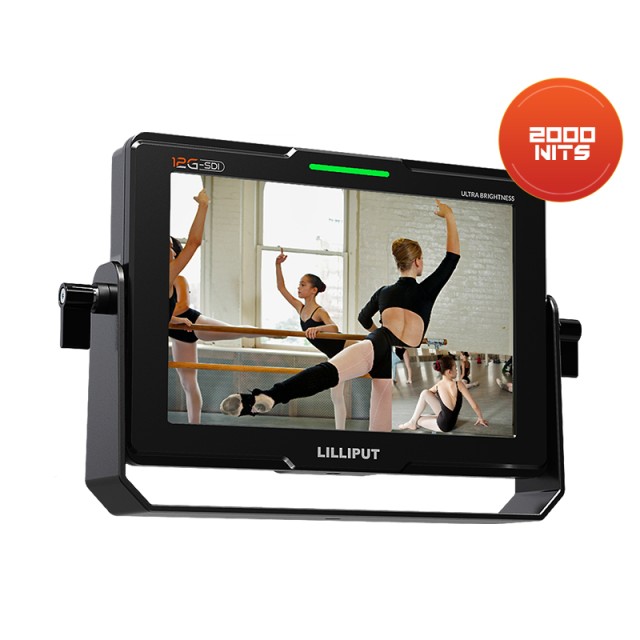

7" 12G-SDI monitor with 2000 cd/m²

The Q7-12G carries 4K60 over a single 12G-SDI coax cable, shows two inputs at once in picture-in-picture, and its CNC-machined aluminum body stands up to daily use.

Lilliput Q7-12G
7" 1920 × 12002000 cd/m²2× 12G-SDIHDMI 2.0 4K60HDR and 3D LUT

4K60 over one SDI cable

12G-SDI carries up to 4096 × 2160 at 60 fps over a single coax cable, and the loop-through outputs pass it on to a recorder or the control room. Together with HDMI 2.0, the Q7-12G is ready for modern 4K cameras.

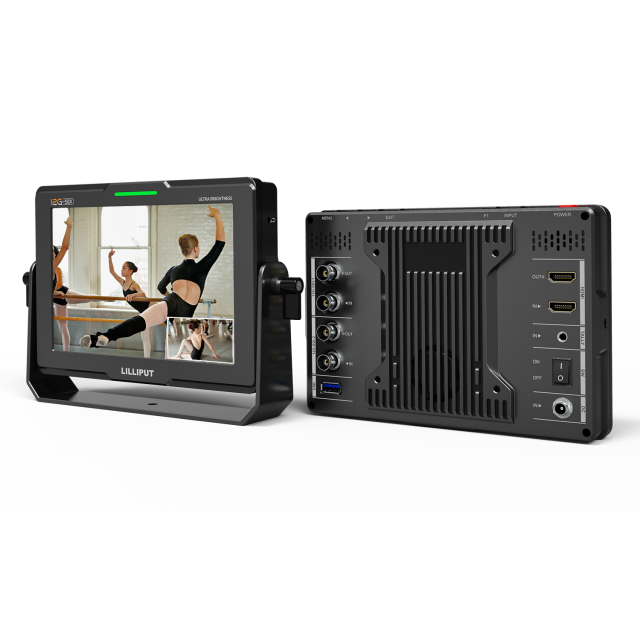

Picture-in-picture

Two 12G-SDI inputs at once; size and position of the inset are adjustable.

HDR and log

ST2084 and HLG, 17 default log curves and 6 user LUTs.

Complete kit

Carrying case, U-shaped bracket, VESA 75 mm NP-F plate and tally connector.

Picture and sound tools

Waveform, audio vectorscope, histogram, false color and level meter.

Lilliput Q7-12G – infographic 1Lilliput Q7-12G – infographic 2Lilliput Q7-12G – infographic 3Lilliput Q7-12G – infographic 4

PACKAGE CONTENT

  • 1× Lilliput monitor Q7-12G
  • 1× 12 V / 2 A power adapter
  • 1× carrying case
  • 1× U-shaped bracket
  • 1× VESA 75 mm battery plate (Sony NP-F)
  • 1× tally connector

SPECIFICATIONS

  • Brand: Lilliput
  • Model: Q7-12G
  • Display: 7" LCD
  • Resolution: 1920 × 1200
  • Aspect ratio: 16:10
  • Brightness: 2000 cd/m²
  • Contrast: 1200:1
  • Viewing angle: 170°/170° (H/V)
  • HDR: ST2084 300/1000/10000, HLG
  • Log formats: S-Log2, S-Log3, C-Log, N-Log, ArriLog, J-Log or user
  • LUT: 3D LUT (.cube format)
  • Inputs: 2× 12G-SDI, 1× HDMI 2.0, 1× tally
  • Loop outputs: 2× 12G-SDI, 1× HDMI 2.0
  • HDMI formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60
  • SDI formats: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60
  • Audio: SDI (16 ch, 24-bit), HDMI (8 ch, 24-bit), 3.5 mm headphones, speaker
  • Assist functions: waveform, audio vectorscope, focus peaking, histogram, audio level meter, false color, picture-in-picture (PIP)
  • Power: DC input 7–24 V, Sony NP-F (rear plate)
  • Power consumption: ≤ 20 W (12 V)
  • Operating temperature: 0 to 50 °C
  • Storage temperature: −20 to 60 °C
  • Housing: CNC-machined aluminum housing
  • Mounting: VESA 75 mm, U-shaped bracket included
  • Dimensions (L × W × D): 186 × 128 × 32.5 mm
  • Weight: 785 g

WE RECOMMEND

Parameters

Parameters

Manufacturer: Lilliput
Category: Camera monitors

Main parameters

Video outputs12G-SDI · HDMI 2.0
Display aspect ratio16:10
Size7"
Monitor inputs12G SDI · 4K HDMI · HDMI · HDMI 2.0 · SDI
Luminosity2000cd/m2
Panel resolution1920x1200
For monitorOn-camera / field video production monitor
Monitor power supplyDC 7-24V · Sony NP-F

Other parameters

Weight785g
Dimensions (W × H × D)186x128x32.5mm
MaterialAluminium alloy
Viewing angle (horizontal × vertical)170x170°
Touchscreen displayNo
TallyYes
Display typeLCD
Other features3D LUT correction · HDR · Tally
SDR/HDRSDR / HDR
High BrightnessYes
Power supply typebatteries · power supply
Battery typeSony NP-F
Supported LOGArri Log C · Canon CLog · JVC JLog · Nikon N-Log · Sony SLog2 · Sony SLog3
