Lilliput PVM210S - 21.5" Professional Video Monitor

The Lilliput PVM210S SDI / HDMI input monitor is a sturdy and solid addition to your performance capture or exhibition showplace setup. Designed for use as an assistant or confidence monitor in live show production, or as a preview/editing display in a video editing suite, it will fit into any number of workflows and production environments.

More information

576.14 € with VAT 476.15 € without VAT
-+
Availability
14-30 days
Product description ARTICLES SPECIFICATIONS

Product description

The Lilliput PVM210S SDI / HDMI input monitor is a sturdy and solid addition to your performance capture or exhibition showplace setup. Designed for use as an assistant or confidence monitor in live show production, or as a preview/editing display in a video editing suite, it will fit into any number of workflows and production environments.

11

High brightness Monitor with FHD Resolution, 101% Rec.709 color space. Application for live events, conference presentation, public view monitoring, etc.
PVM210S DM

Layout and Composition

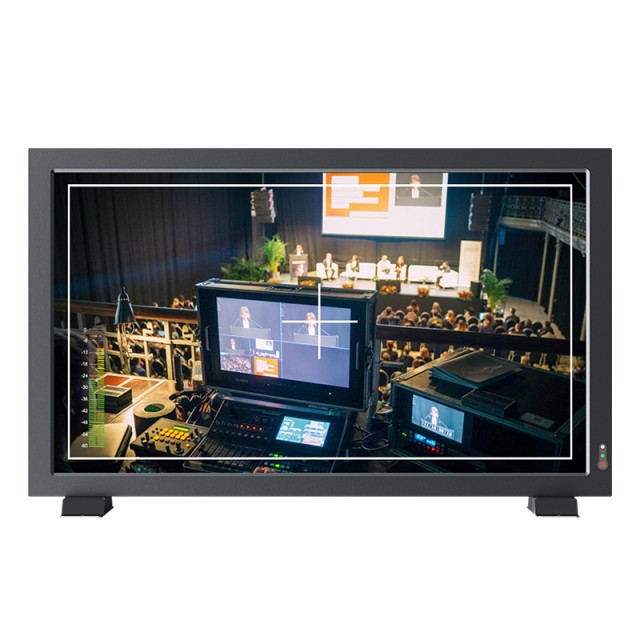

The image output from the camera to TV live is often slashed. This monitor comes with Center Markers and Safety Markers, allowing to adjust the best angle of cameras in real time to show the most important images in center of shot.

3

Audio Level Monitoring

With Audio Level Meter turned on, it is used to monitor current audio output and avoid being indifferent after an audio interruption as well as keep the sound within a reasonable DB range.

PVM210S DM
6

SPECIFICATIONS

  Model PVM210S PVM210
DISPLAY Panel 21.5 ” LCD 21.5 ” LCD
Physical Resolution 1920*1080 1920*1080
Aspect Ratio 16:9 16:9
Brightness 1000 cd/m² 1000 cd/m²
Contrast 1500:1 1500:1
Viewing Angle 170°/170°(H/V) 170°/170°(H/V)
Color Space 101% Rec.709 101% Rec.709
HDR Supported HLG;ST2084 300/1000/10000 HLG;ST2084 300/1000/10000
INPUT SDI 1 x 3G SDI -
HDMI 1 x HDMI 1.4b 1 x HDMI 1.4b
VGA 1 1
AV 1 1
OUTPUT SDI 1 x 3G-SDI -
SUPPORTED FORMATS SDI 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… -
HDMI 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60… 2160p 24/25/30, 1080p 24/25/30/50 /60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT Speaker 2 2
SDI 16ch 48kHz 24-bit -
HDMI 8ch 24-bit 8ch 24-bit
Ear Jack 3.5mm-2ch 48kHz 24-bit 3.5mm-2ch 48kHz 24-bit
POWER Input Voltage DC12-24V DC12-24V
Power Consumption ≤36W (15V) ≤36W (15V)
ENVIRONMENT Operating Temperature 0℃~50℃ 0℃~50℃
Storage Temperature -20℃~60℃ -20℃~60℃
Dimension Dimension(LWD) 524.8*313.3*19.8mm 524.8*313.3*19.8mm
Weight 4.8kg 4.8kg

ARTICLES

Parameters

Parameters

Manufacturer: Lilliput
Category: Surveillance monitors

Main parameters

Size21.5"
Monitor inputsHDMI
Monitor inputsSDI
Monitor inputs4K HDMI
Monitor inputs3G-SDI
Monitor inputsHD-SDI
Monitor power supply15V DC

Other parameters

Other featuresHDR
