Head for the Libec HS-450 system with 4.5 to 10.5 kg counterbalance range, 12 kg payload capacity, and a standard sliding plate compatible with Manfrotto and Sachtler heads (and Libec TH-M, TH-X, TH-Z, and NX Series) plus a Long Plate S. Weight 2.8 kg. Drag offers a free position plus three steps for pan and tilt. Tilt +90° to −70°, operation from −40 to +60…
Head for the Libec HS-450 system with 4.5 to 10.5 kg counterbalance range, 12 kg payload capacity, and a standard sliding plate compatible with Manfrotto and Sachtler heads (and Libec TH-M, TH-X, TH-Z, and NX Series) plus a Long Plate S. Weight 2.8 kg. Drag offers a free position plus three steps for pan and tilt. Tilt +90° to −70°, operation from −40 to +60 °C.

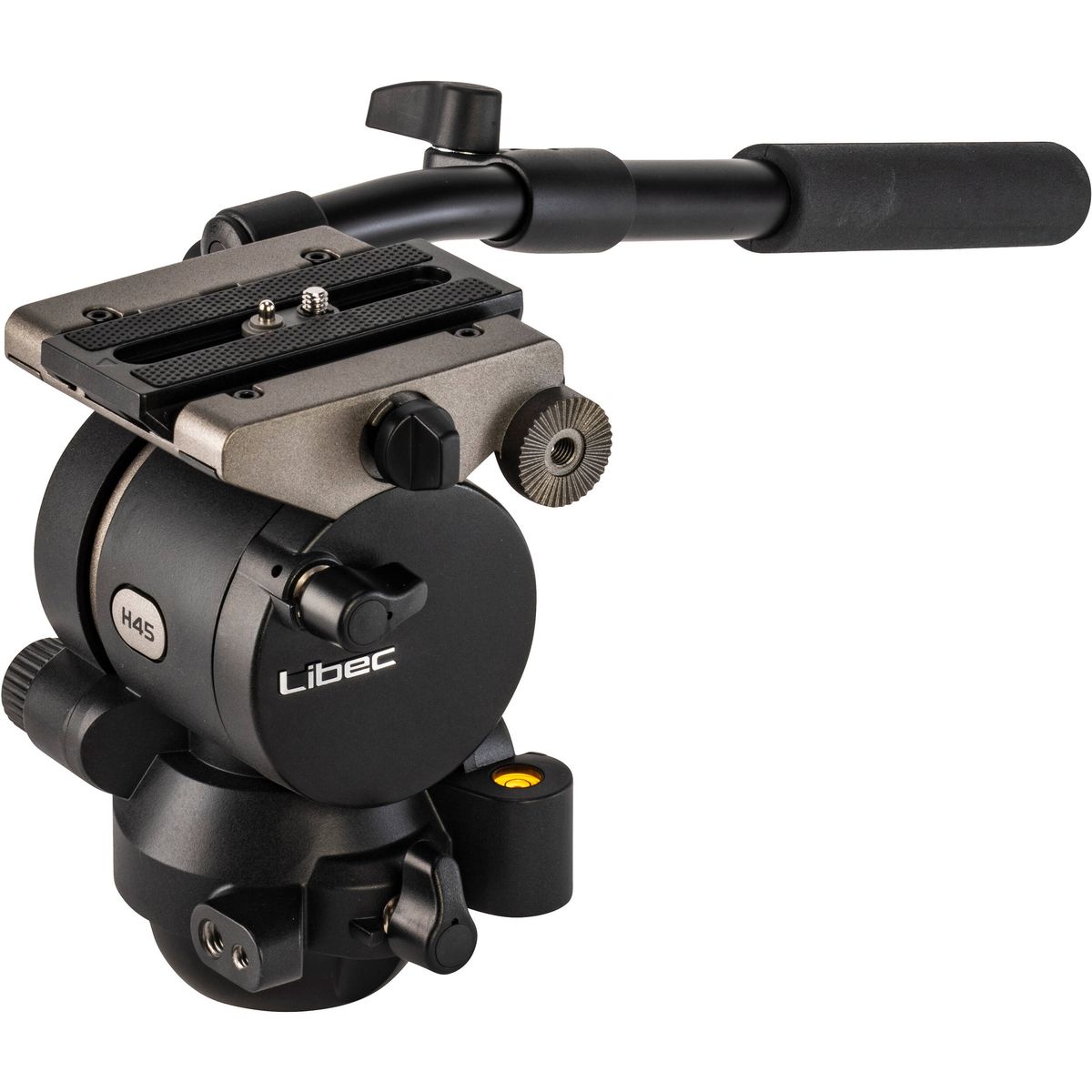

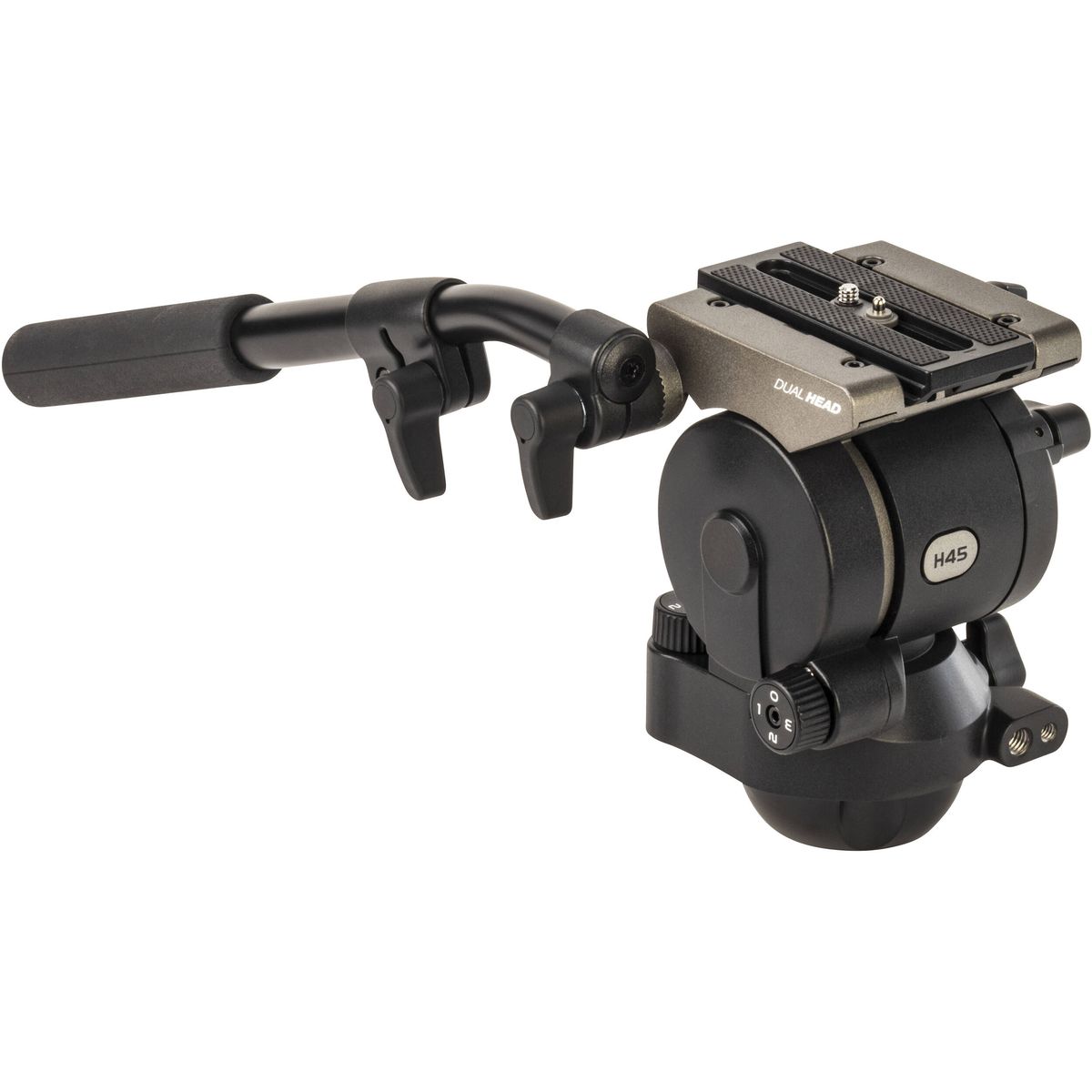

The Libec H45 is a fluid video head for cameras up to 12 kg with continuous Perfect Balance counterbalance across a 4.5–10.5 kg range. Its 75 mm ball base fits a bowl tripod as well as a flat base, and the head weighs 2.8 kg.
Continuous Perfect Balance, 3-step drag and a sliding plate compatible with Manfrotto and Sachtler, plus a Long Plate S.

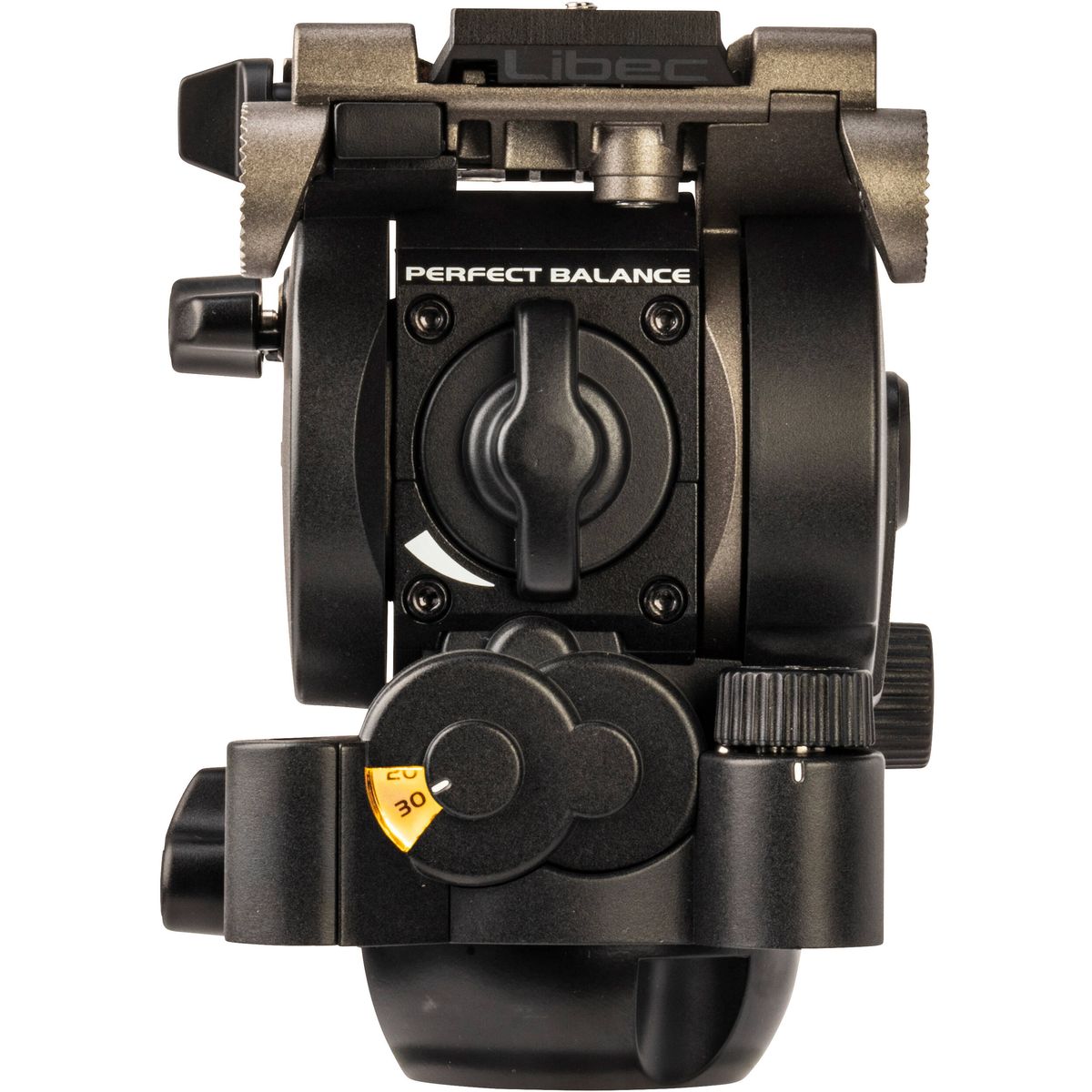

Continuous Perfect Balance counterbalance keeps the camera balanced at any tilt angle across a 4.5 to 10.5 kg range. An illuminated meter on the back of the head shows the setting.
The head mounts on a 75 mm bowl tripod as well as on a flat base, so it also fits sliders, skater dollies and photo tripods. Removing the spacer from the bowl clamp extends the insertion thread for even more equipment options.

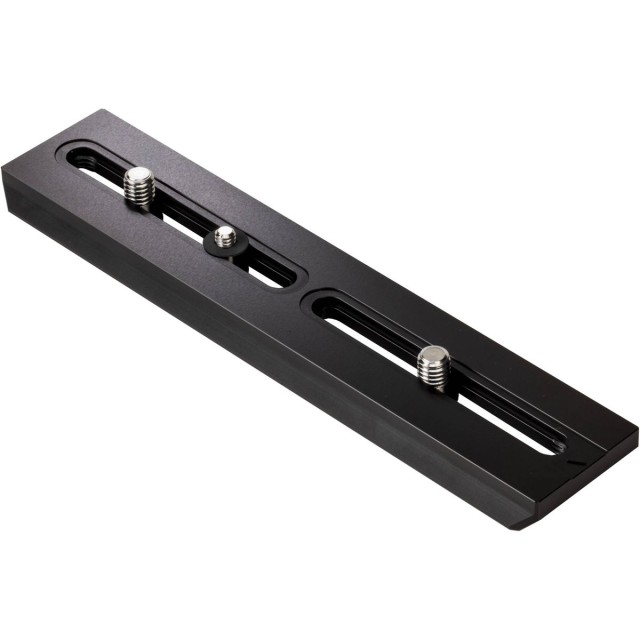

The head comes with a Long Plate S long sliding plate. The camera plate attaches and releases with a single touch.
The head was designed from scratch to reduce play in the pan and tilt drag units and extend its service life. Movements are smooth from start to finish.
A multilayered metal drag unit offers a free position plus three steps for pan and tilt.
The head works from −40 to +60 °C, and both the bubble level and the meter are illuminated.
The ±30 mm sliding plate fits Manfrotto, Sachtler and the Libec TH-M, TH-X, TH-Z and NX Series.

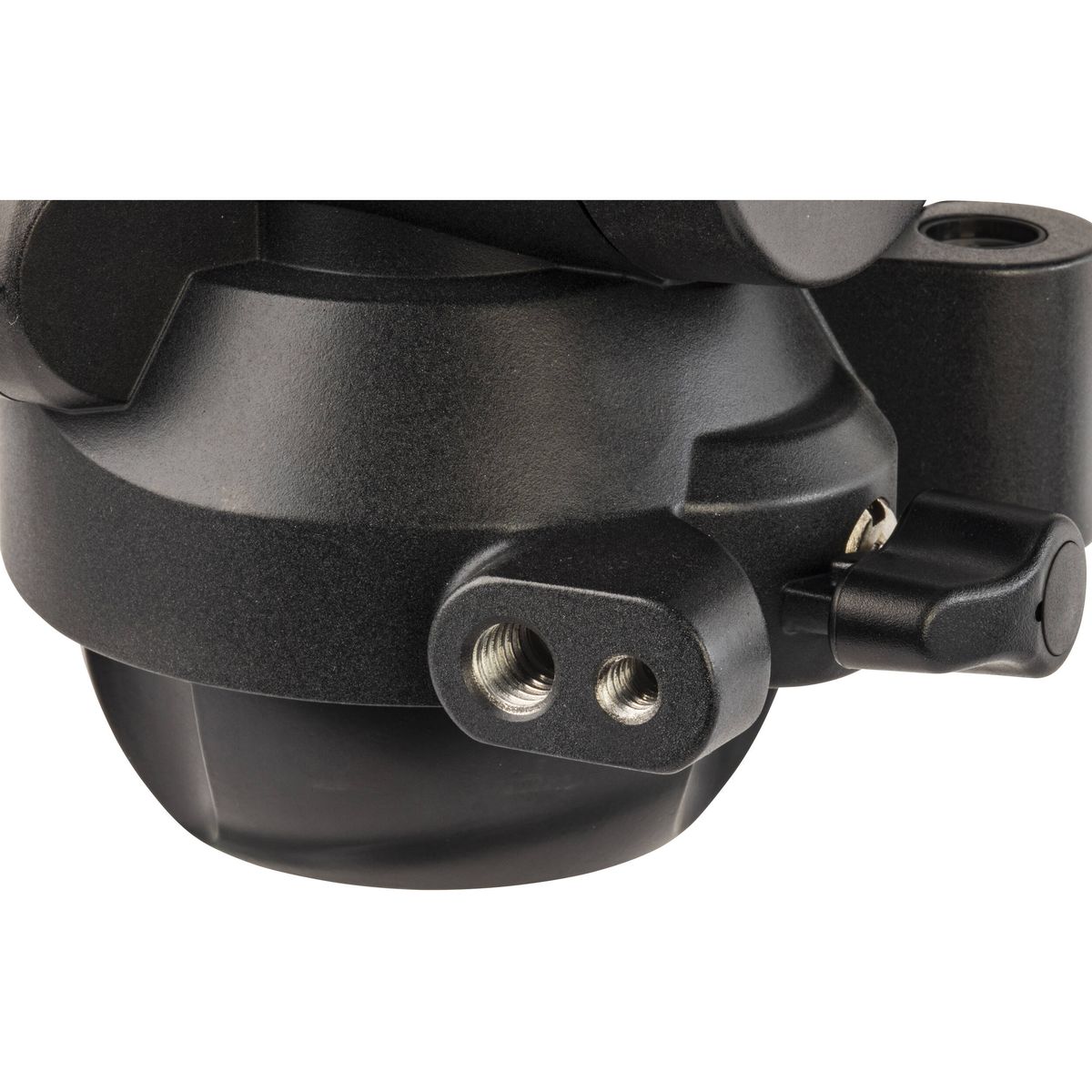

The side of the base has 1/4" and 3/8" holes for an arm with a monitor or light.
Perfect Balance. Libec's unique continuous counterbalance keeps the camera balanced at any tilt angle. You can concentrate on precise camera moves, even with a telephoto lens at full zoom.

Advanced drag unit. The layered metal unit with fine silicone grease gives smoother starts and better backlash control from −40 to +60 °C. The free mode has zero friction, and the head does not need to be stored in it.

Accessory port. The 1/4" and 3/8" holes on the side of the base take an arm with a monitor or light. Since they sit on the base, they do not affect the payload, centre of gravity or balance of the head.

Highly compatible slide plate. The plate follows the industry standard, so you can quickly move the camera between Libec and other brands' tripods and accessories.

H45 counterbalance chart. The chart shows the camera weight the head balances depending on the height of the centre of gravity. With the inner spring set to maximum strength, the tilt angle is limited to ±40°.
