Libec H25

Head for the Libec HS-250 system with 1.7 to 4.5 kg counterbalance range, 5 kg payload capacity, and a standard sliding plate compatible with Manfrotto and Sachtler heads (and Libec TH-M, TH-X, TH-Z, and NX Series). Weight 2.8 kg. Drag offers a free position plus three steps for pan and tilt. Both the bubble level and the counterbalance meter are illumina…

More information

819 € with VAT 676.86 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Head for the Libec HS-250 system with 1.7 to 4.5 kg counterbalance range, 5 kg payload capacity, and a standard sliding plate compatible with Manfrotto and Sachtler heads (and Libec TH-M, TH-X, TH-Z, and NX Series). Weight 2.8 kg. Drag offers a free position plus three steps for pan and tilt. Both the bubble level and the counterbalance meter are illuminated.

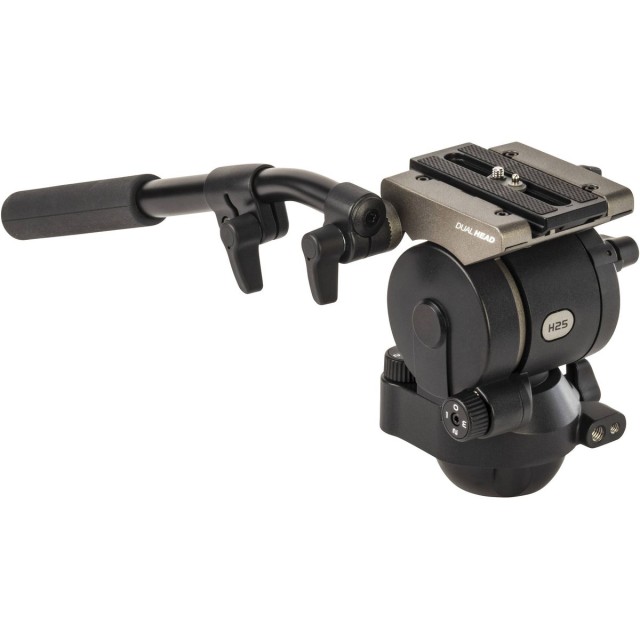

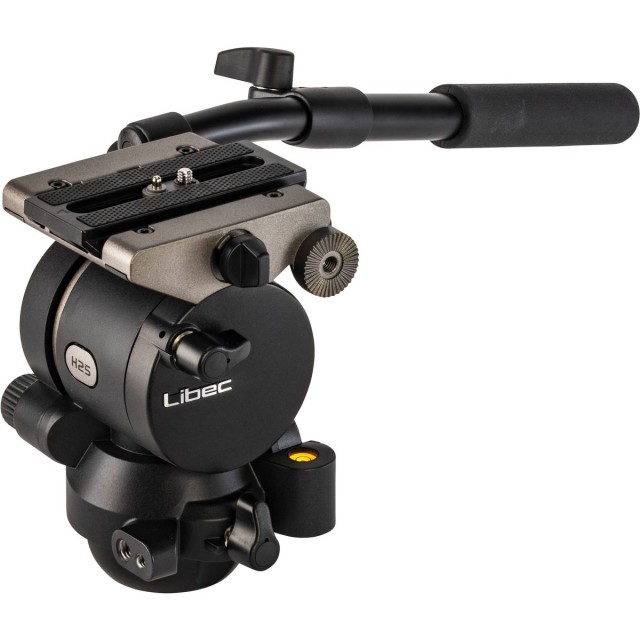

The Libec H25 is a fluid video head for cameras up to 5 kg with continuous Perfect Balance counterbalance across a 1.7–4.5 kg range. Its 75 mm ball base fits a bowl tripod as well as a flat base, and the head weighs 2.8 kg.

A fluid head for cameras up to 5 kg

Continuous Perfect Balance, 3-step drag and a sliding plate compatible with Manfrotto and Sachtler.

5 kg payloadPerfect BalanceBalance 1.7–4.5 kg3-step drag75 mm ball baseWeight 2.8 kg

Balanced at any angle

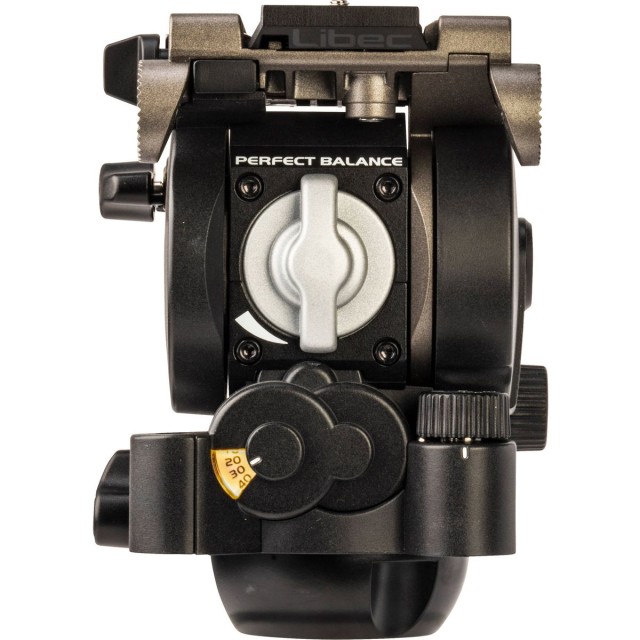

Continuous Perfect Balance counterbalance keeps the camera balanced at any tilt angle across a 1.7 to 4.5 kg range. An illuminated meter on the back of the head shows the setting.

Dual head base

The head mounts on a 75 mm bowl tripod as well as on a flat base, so it also fits sliders, skater dollies and photo tripods. Removing the spacer from the bowl clamp extends the insertion thread for even more equipment options.

One-touch plate

The camera plate attaches and releases with a single touch, so the camera is on the tripod in seconds. A ±30 mm sliding range makes precise balancing easy.

Newly designed, ultra-smooth

The head was designed from scratch to reduce play in the pan and tilt drag units and extend its service life. Movements are smooth from start to finish.

3-step drag

A multilayered metal drag unit offers a free position plus three steps for pan and tilt.

Tilt +90° to −70°

The head works from −40 to +60 °C, and both the bubble level and the meter are illuminated.

Sliding plate

The ±30 mm sliding plate fits Manfrotto, Sachtler and the Libec TH-M, TH-X, TH-Z and NX Series.

Accessory threads

The side of the base has 1/4" and 3/8" holes for an arm with a monitor or light.

Perfect Balance. Libec's unique continuous counterbalance keeps the camera balanced at any tilt angle. You can concentrate on precise camera moves, even with a telephoto lens at full zoom.

Advanced drag unit. The layered metal unit with fine silicone grease gives smoother starts and better backlash control from −40 to +60 °C. The free mode has zero friction, and the head does not need to be stored in it.

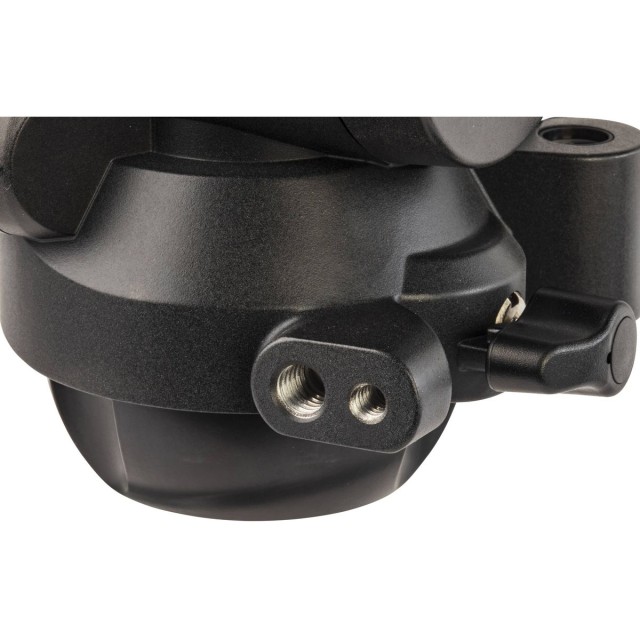

Accessory port. The 1/4" and 3/8" holes on the side of the base take an arm with a monitor or light. Since they sit on the base, they do not affect the payload, centre of gravity or balance of the head.

Highly compatible slide plate. The plate follows the industry standard, so you can quickly move the camera between Libec and other brands' tripods and accessories.

H25 counterbalance chart. The chart shows the camera weight the head balances depending on the height of the centre of gravity. With the inner spring set to maximum strength, the tilt angle is limited to ±50°.

PACKAGE CONTENT

  • Libec H25 video head ×1
  • Sliding camera plate ×1
  • Spare 1/4" and 3/8" screws

SPECIFICATIONS

  • Brand: Libec
  • Model: H25
  • Type: fluid video head
  • Payload: 5 kg
  • Counterbalance range: 1.7–4.5 kg (C.G. 100 mm)
  • Counterbalance: Perfect Balance, continuous, with illuminated meter
  • Drag: free + 3 steps (pan and tilt), multilayered metal structure
  • Tilt angle: +90° to −70° (±50° with the spring at maximum)
  • Operating temperature: −40 to +60 °C
  • Bubble level: illuminated
  • Camera plate: sliding, compatible with Manfrotto and Sachtler
  • Sliding range: ±30 mm
  • Long sliding plate: optional
  • Head base: 75 mm ball / flat base
  • Plate attachment: 1/4" screw with video pin
  • Accessory threads: 1/4" and 3/8" on the head base
  • Spare screws: 1/4" and 3/8"
  • Weight: 2.8 kg
Parameters

Parameters

Manufacturer: Libec
Category: Heads

Main parameters

Payload5
Bowl75 · Flat base
TypeFluid
