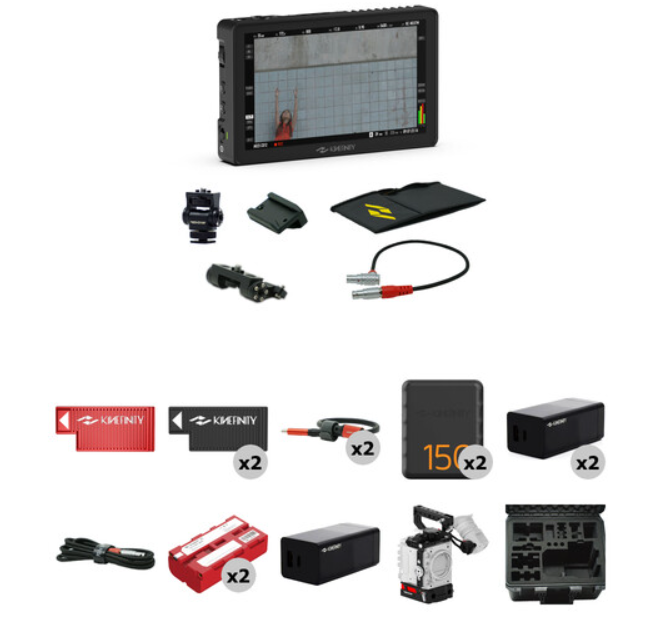

Kinefinity Camera Core Pack

• Kinefinity KineMON 5U II Monitor
• Kinefinity Kine Monitor Cable for KineMON (12")
• Kinefinity Swivel Mount for KineMON
• 2 x Camera Mounting Screw
• Kinefinity Cold Shoe Adapter Mount for KineMON
• Kinefinity KineEVF Wedge Block for KineMON
• 3 x Mounting Screw
• Kinefinity Sun Hood for 5" KineMON-5U
• Kinefinity KineMAG Nano (1TB)y
• 2 x Kinefinity KineMAG Nano Body
• 2 x Kinefinity Short 10 Gb/s USB Type-C Data Cable for KineMAG
• 2 x Kinefinity KineBAT 150 V-Mount Battery (145Wh)
• 2 x Kinefinity 65W PD Power Adapter
• Kinefinity 100W Power Cord for MAVO Edge 8K
• 2 x Kinefinity GripBAT 2Si L-Series Battery (3500mAh)
• Kinefinity PD Hybrid Dual Charger & Power Adapter Package
• Kinefinity PD Hybrid Dual Charger
• Kinefinity 65W PD Power Adapter
• USB Type-C Cable
• Kinefinity KineKIT Edge Camera Cage for MAVO Edge
• Top Plate
• Top Handle
• NATO Rail
• Side Plate
• EVF Bracket
• Power 15mm Baseplate
• Bottom Adapter Plate
• Kinefinity Hard-Shell Carry Case for MAVO Edge 6K/8K

Cage System – KineKIT-Edge Full

• Top D-shape NATO handle (slide-on, locking lever)
• Top plate with NATO rail + dual 15 mm rod clamps (60 mm spacing)
• Left ARRI rosette side wing + 6× 1/4"-20 threads
• Right mini EVF bracket
• UPS baseplate with dual L-series hot-swap (gold contacts)
• Front & rear 15 mm LWS rod ports
• ARRI-standard dovetail slot (19 mm studio ready)
• Weight: 1.38 kg total

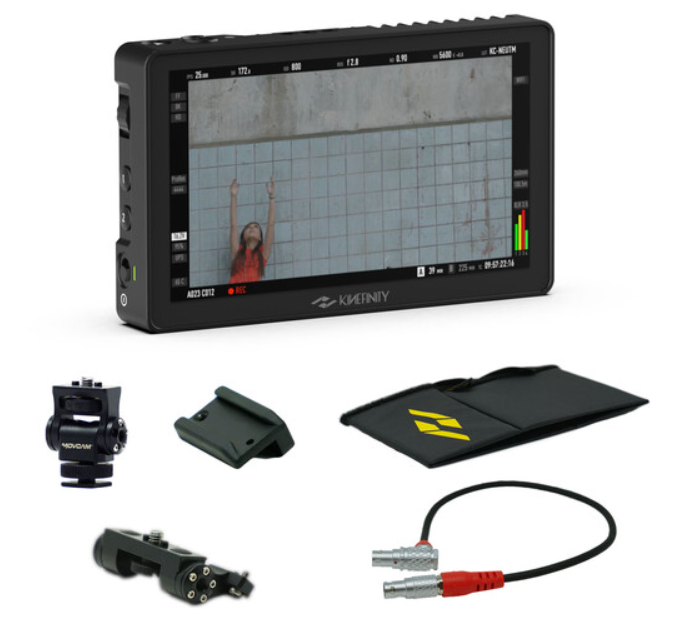

Onboard Monitor – KineMON 5U II

• 5.0" IPS touchscreen, 1920×1080, 2000 cd/m²
• 1000:1 contrast, 100 % Rec.709, 16.7M colors
• Gorilla Glass, 441 ppi, 170° viewing
• 3× 1/4"-20 threads (top/bottom/right)
• Power: 5.5 W (camera-fed via 14-pin)
• Weight: 260 g
• Included: 12" right-angle 14-pin cable

Monitor Mounts & Hood

• Swivel Mount: 90° tilt, captive screws, anti-scratch pad
• Cold-Shoe Adapter: standard shoe foot, tilt lock
• Sun Hood: 4-sided folding, waterproof ripstop, elastic straps, 110 g
• KineEVF Wedge Block: stacks KineEVF2 on monitor side (3× M3)

Media

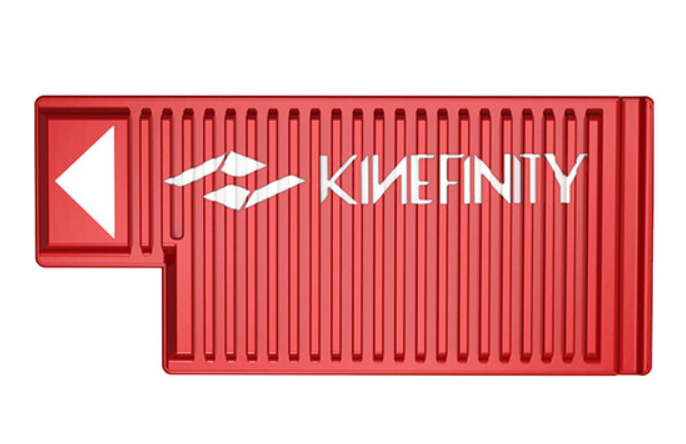

• 1× KineMAG Nano 1 TB
  • NVMe M.2 2280, 10 Gb/s sustained
  • RAID-5 write + read-only switch
  • USB-C 3.2 Gen 2 direct offload
  • Weight: 125 g

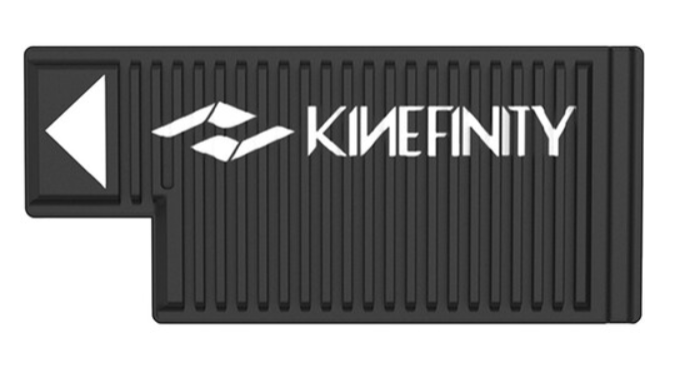

• 2× KineMAG Nano Body (empty shells for third-party SSD)

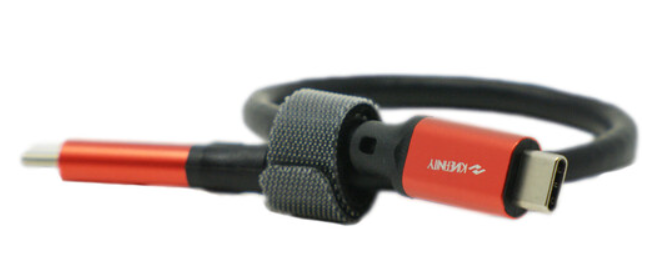

• 1× 25 cm 10 Gb/s USB-C cable

Power System

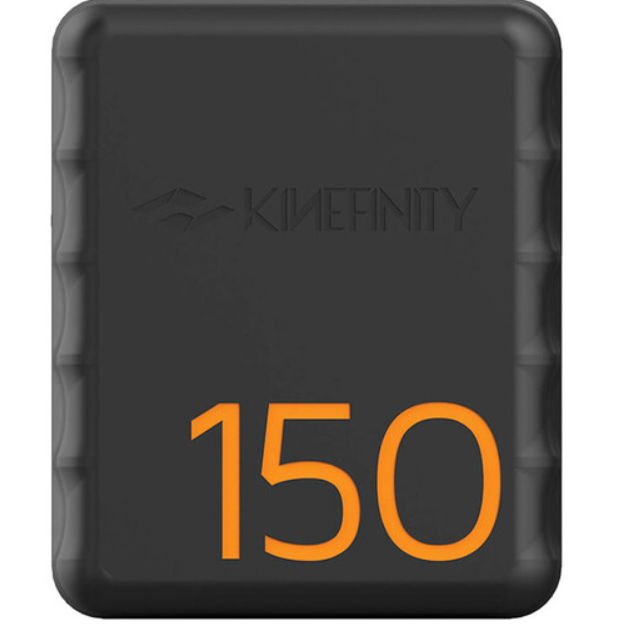

• 2× KineBAT 150 V-mount
  • 145 Wh / 9.8 Ah each
  • 14.8 V, 8 A continuous
  • 2× D-Tap + 2× USB-C PD (45 W + 30 W)
  • 5-LED gauge
  • Weight: 780 g each
• 2× GripBAT 2Si L-series
  • 26 Wh / 3500 mAh each
  • 7.4 V, 5 A
  • Weight: 105 g each

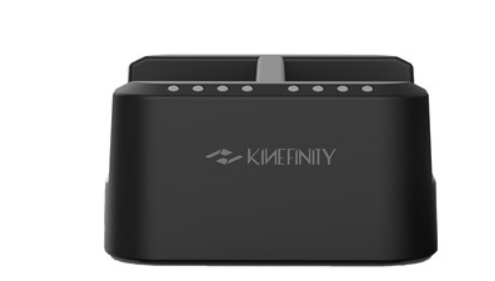

• 1× PD Hybrid Dual Charger (charges 2× L-series or BP-U30 simultaneously)
• 2× 65 W PD Wall Adapter (global plugs)
• 1× 100 W USB-C to 2-pin mains cord (1.5 m braided)

Runtime (MAVO Edge 8K full rig, 120 W draw)

• ~2 h 25 min per KineBAT 150
• Unlimited with hot-swap L-series rotation

Charging Times (65 W PD)

• KineBAT 150: 80 % in 2.5 h, 100 % in 3.2 h
• GripBAT 2Si: full in 60 min

Hard-Shell Case

• External: 63 × 48 × 30 cm
• Internal: 58 × 43 × 26 cm
• Weight empty: 7.8 kg
• IP67 dust/water, pressure valve, stainless hardware
