FieldCast Mux/Demux Three 12G (16x SDI in/out)

Mux/Demux Three 12G allows you to transmit sixteen independent channels of 12G SDI video over just one optical fiber. Availability is expected for late 06/07 2025.

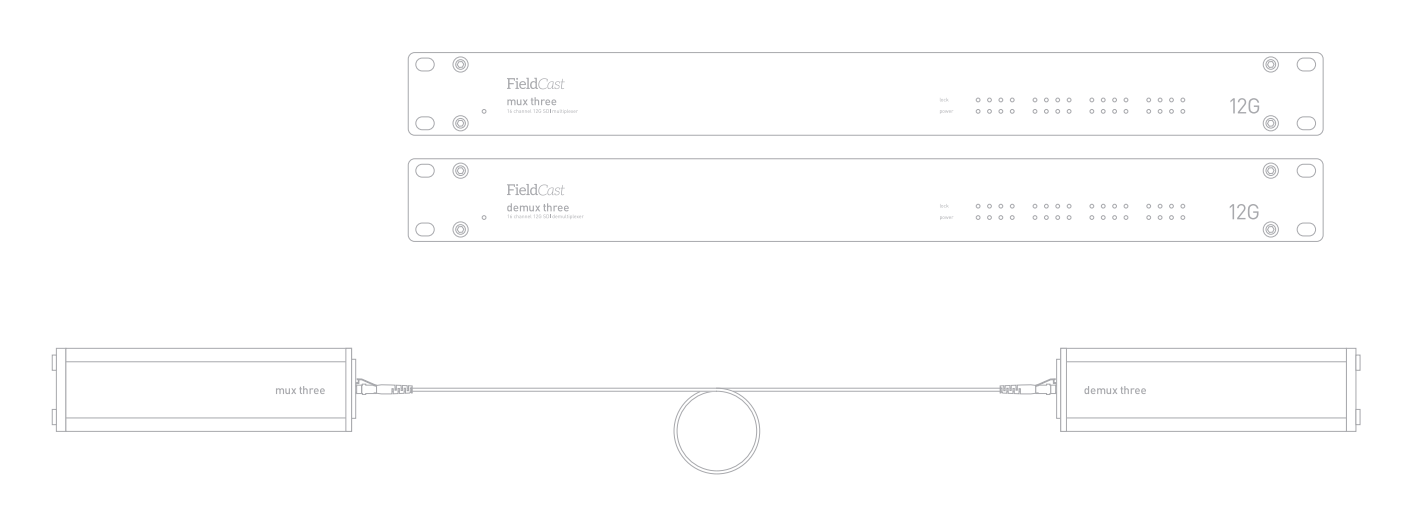

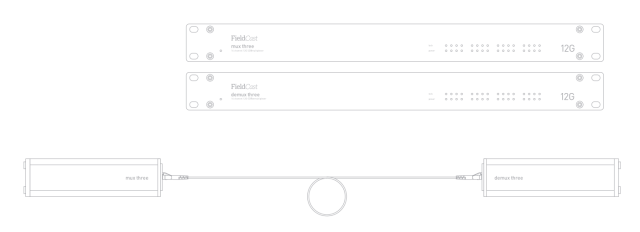

If your infrastructure only allows for a single simplex fibre, Mux/Demux Three Plus simply allows you to handle all the traffic. Or, if you want to lay as little cable as possible for live events, the device can multiplex up to sixteen video channels and transfer all the data from point A to point B using just one fiber. All 12G video feeds retain full data integrity - what goes in comes out unchanged.

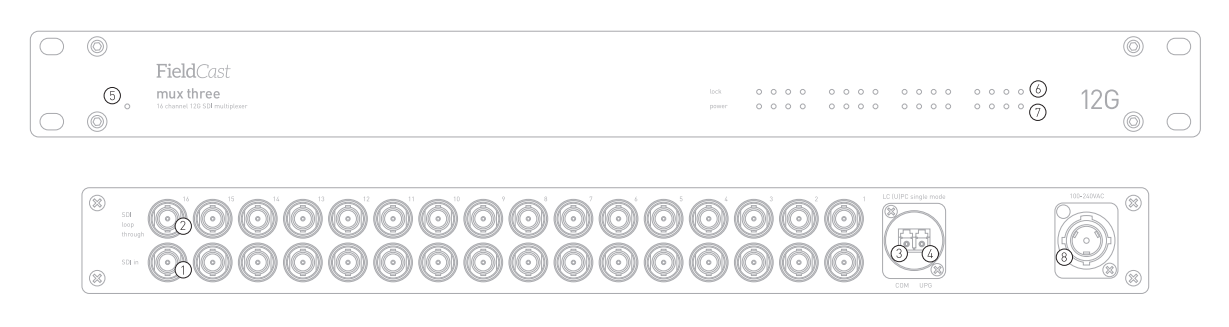

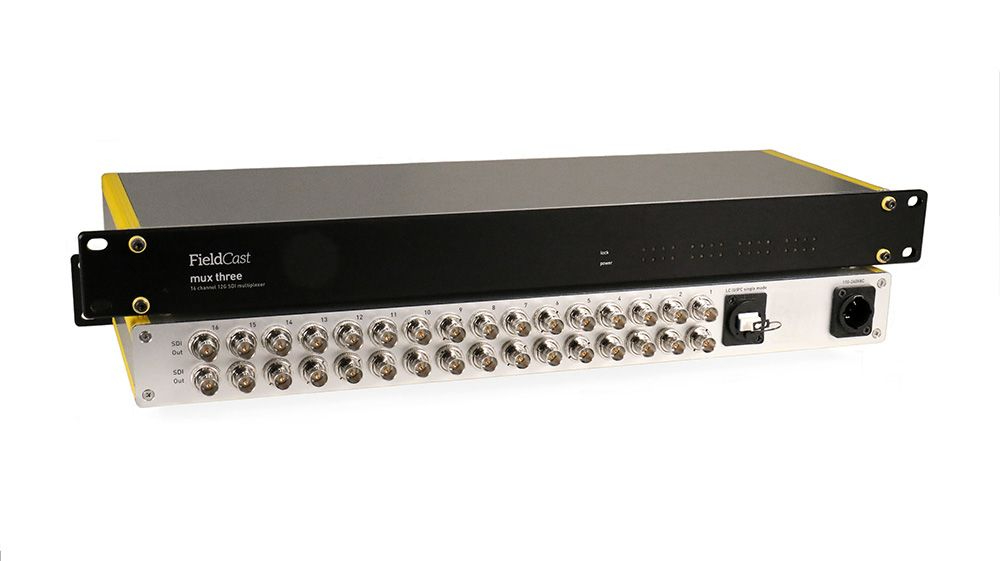

Mux Three 12G

• 16-channel SDI input to 1-channel optical output (multiplexer)
• Design: aluminum, 1U (rack) size
• Fiber optic technology: 9/125 single mode
• 16 12G (11.88 Gbps) SDI input channels, each with loopthrough output
• 75 ohm BNC connectors for all SDI inputs and loopthrough outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD, HD and UHD standards up to 2160p@60
• One LC single mode (U)PC optical channel (COM)
• One LC single mode (U)PC upgrade optical channel (UPG)
• Front panel: black, with 2 mm white LED indicators
• Indications: power, module activity, input signals
• Power consumption: < 50 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 2070 grams
• Manual and power cord included

Demux Three 12G

• Demultiplexor: 1 optical input → 16 SDI output channels
• Design: aluminum, 1U (rack) size
• Fiber optic technology: 9/125 single mode
• 16 12G SDI channels (11.88 Gbps) with dual SDI output
• 75 ohm BNC connectors for all SDI outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support for all SD and HD standards up to 1080p@60
• One LC single mode (U)PC optical channel (COM)
• One LC single mode (U)PC upgrade optical channel (UPG)
• Front panel: black, with 2 mm white LED indicators
• LED indicators: power, module activity, input signal
• Power consumption: < 50 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 40 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 2100 grams
• Manual and power cord included
