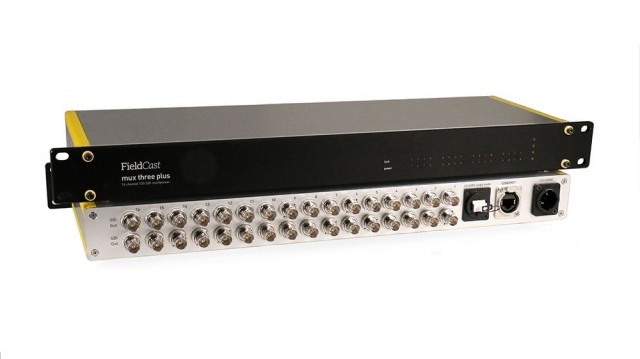

FieldCast Mux/Demux Three 12G Plus (16xSDI in/out + Ethernet over one fiber strand)

Mux/Demux Three 12G Plus allows you to transmit sixteen independent channels of 12G SDI video plus full duplex 1Gb Ethernet over just one optical fiber. Availability is expected for late 06/07 2025.

If your infrastructure only allows for a single simplex fibre, Mux/Demux Three Plus simply allows you to handle all the traffic. Or, if you want to lay as little cable as possible for live events, the device can multiplex up to sixteen video channels plus Ethernet and transfer all the data from point A to point B using just one fiber. All 12G video signals retain full data integrity - what goes in comes out unchanged. The Ethernet connection behaves just like a regular Cat5 cable.

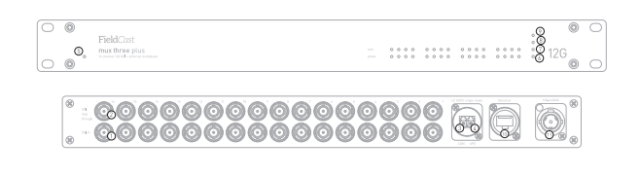

Mux Three Plus 12G

• 16-channel SDI input to 1-channel optical output (multiplexer)
• Design: aluminum, 1U (rack) size
• Fiber optic technology: 9/125 single mode
• 16 12G (11.88 Gbps) SDI input channels, each with loopthrough output
• 75 ohm BNC connectors for all SDI inputs and loopthrough outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD and HD standards up to 1080p@60
• One LC single mode optical channel (COM) for SDI signals and Ethernet
• One LC single mode optical channel (UPG) for upgrades
• Ethernet protocol: IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
• UTP RJ-45 connector for Ethernet (full/half duplex)
• Front panel: black, with 2 mm white LED indicators
• Indications: power, module activity, input signals, TP/LNK and 1Gb
• Power consumption: < 50 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 10 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 2090 grams
• Manual and power cord included

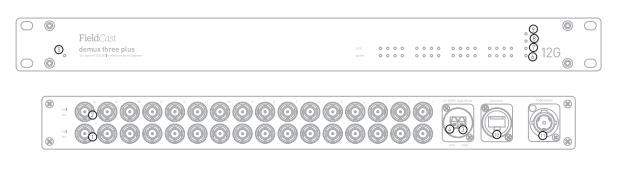

Demux Three Plus 12G

• Demultiplexor: 1 optical input → 16 SDI output channels
• Design: aluminum, 1U (rack) size
• Fiber optic technology: 9/125 single mode
• 16 SDI channels 12G (11.88 Gbps) with dual SDI output
• 75 ohm BNC connectors for all outputs
• Compatibility with SMPTE standards: 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Support SD, HD and Ultra HD standards up to 2160p@60
• One LC single mode (UJPC) optical channel (COM) for SDI and Ethernet
• One LC single mode (UJPC) optical upgrade channel (UPG)
• Ethernet protocol: IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
• UTP RJ-45 connector for Ethernet (full/half duplex)
• Front panel: black, with 2 mm white LED indicators
• LED indicators: power, module activity, input signal, TP/LNK and 1Gb
• Power consumption: < 50 W
• Proprietary hybrid WDM multiplexing technology for very low dispersion
• Minimum distance between Mux and Demux units: > 40 km for all wavelengths
• Power input: 110-240 VAC with PowerCon connector
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 2100 grams
• Manual and power cord included
