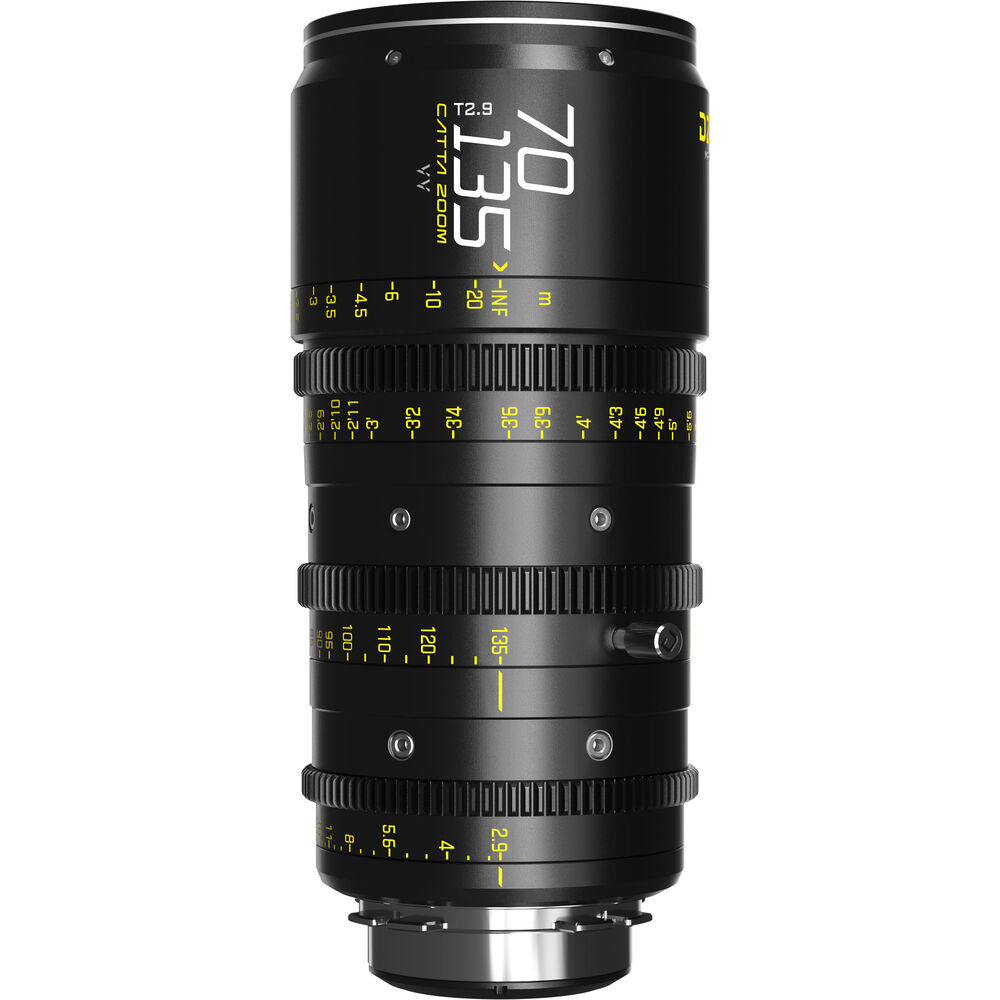

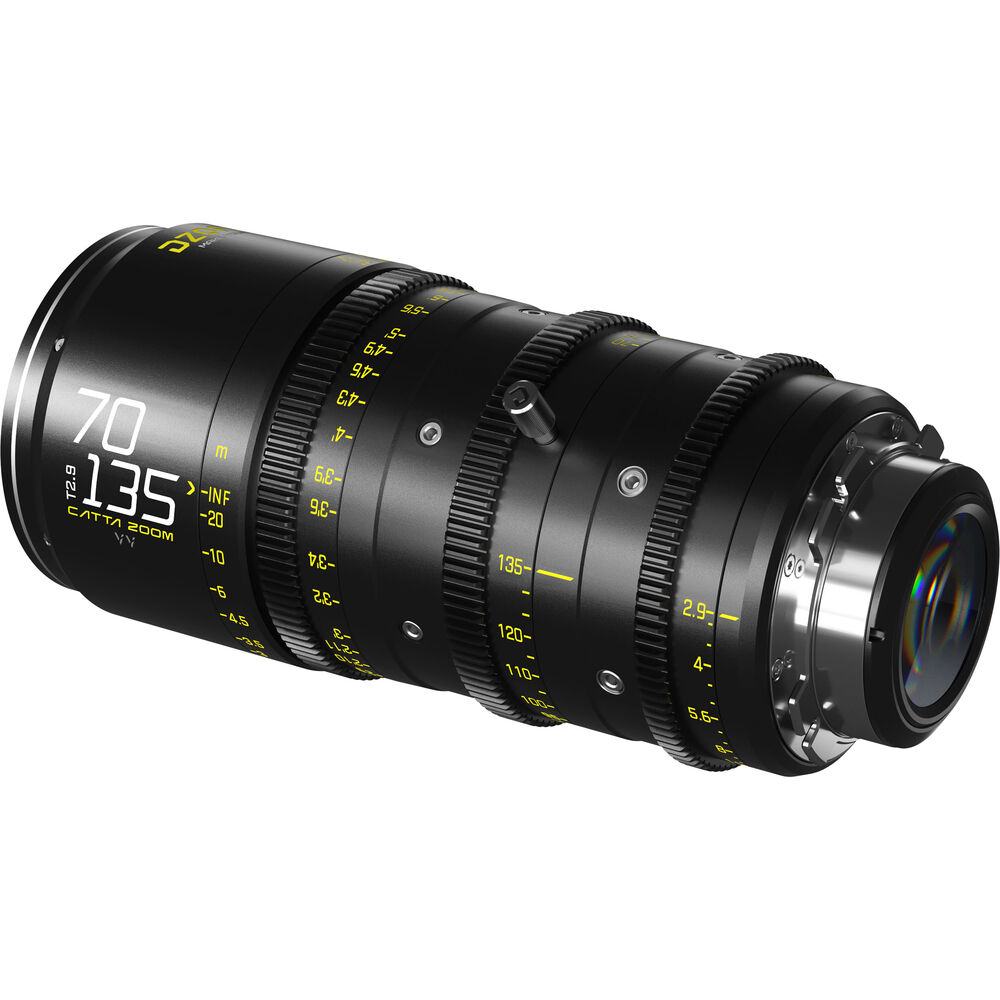

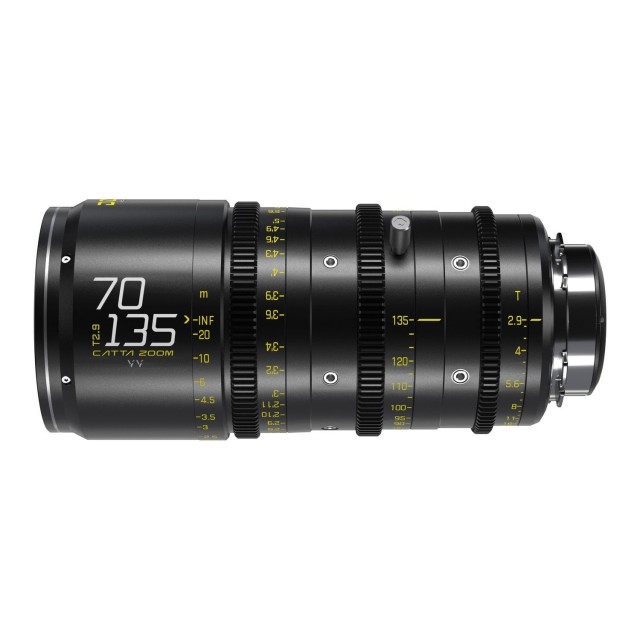

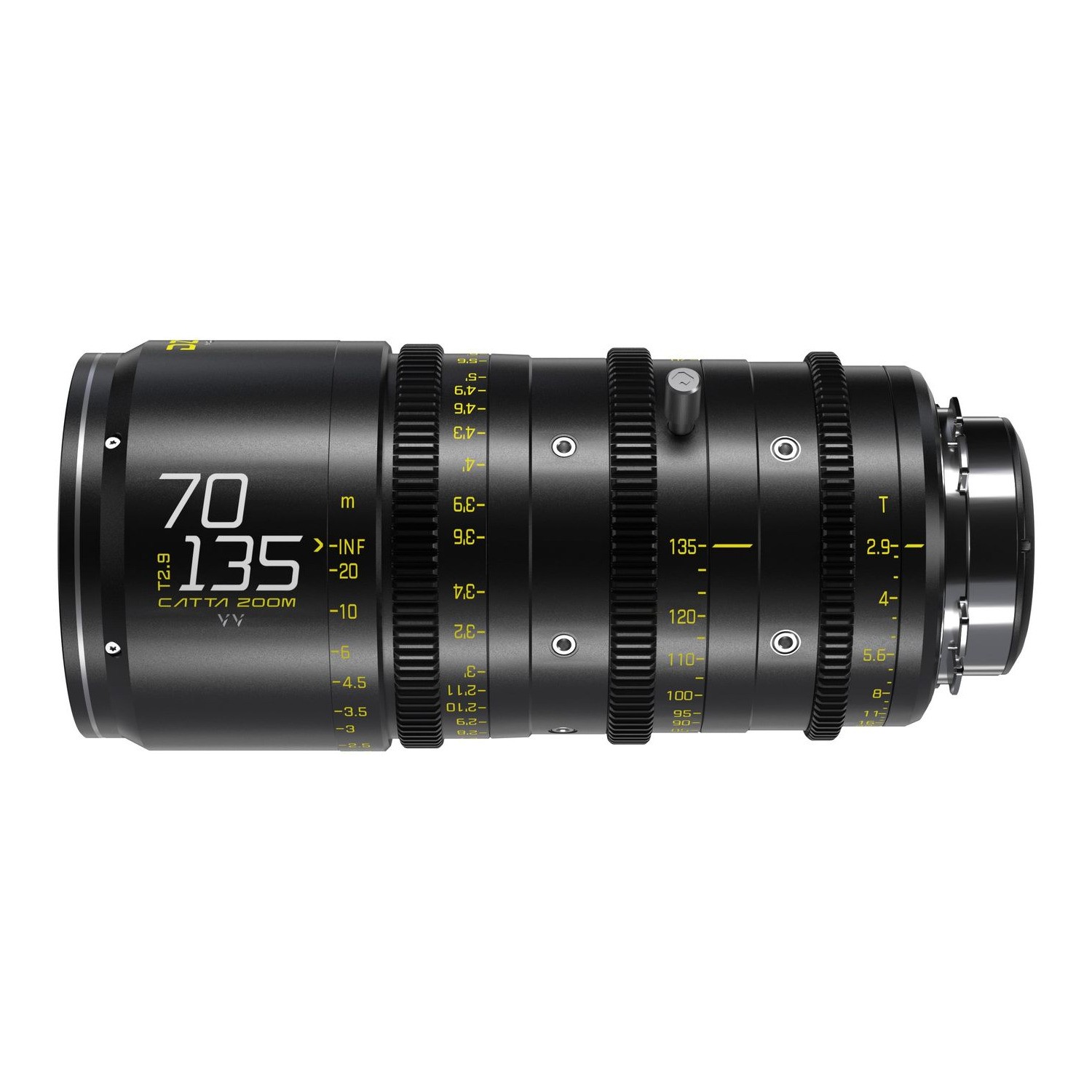

DZOFILM Catta ACE FF Zoom 70-135mm T2.9 Black

The black DZOFilm Catta Ace 70–135mm T2.9 is a full-frame cine zoom with a PL mount and an interchangeable EF mount included. Its parfocal design maintains focus while zooming, the T2.9 to T22 aperture stays constant, and the 16-blade iris produces soft bokeh. It covers a 46.5 mm Full Frame and Vista Vision image circle, focuses from 0.76 m, and its 0.8 MOD gearing integrates easily into a cinema rig.

Catta Ace Cine Zoom

70–135mm T2.9 for the longer shot

The black DZOFilm Catta Ace 70–135mm T2.9 is a full-frame cine zoom for documentary, broadcast, and online production. Its parfocal design maintains focus through a focal-length change, while the constant aperture and natural colour rendering help keep shots visually consistent.

70–135 mmT2.9–T22PL + EF

Controlled detail without reframing

The 70–135mm range with a 1.9× zoom ratio is designed for deliberate telephoto framing. It covers a 46.5 mm Full Frame and Vista Vision image circle, focuses as close as 0.76 m, and its 16-blade iris supports soft bokeh with smooth focus-to-defocus transitions.

• Minimal breathing and parfocal operation
• 270° focus, 100° zoom, 80° iris rotation
• 80 mm front diameter and M77 filter thread

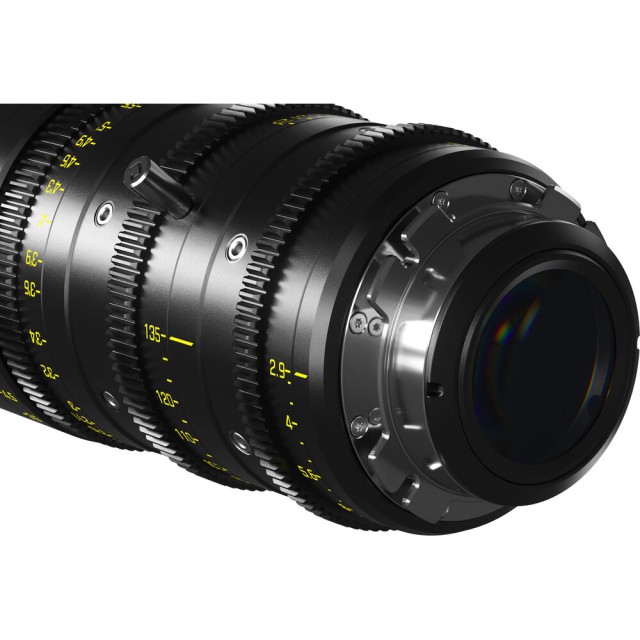

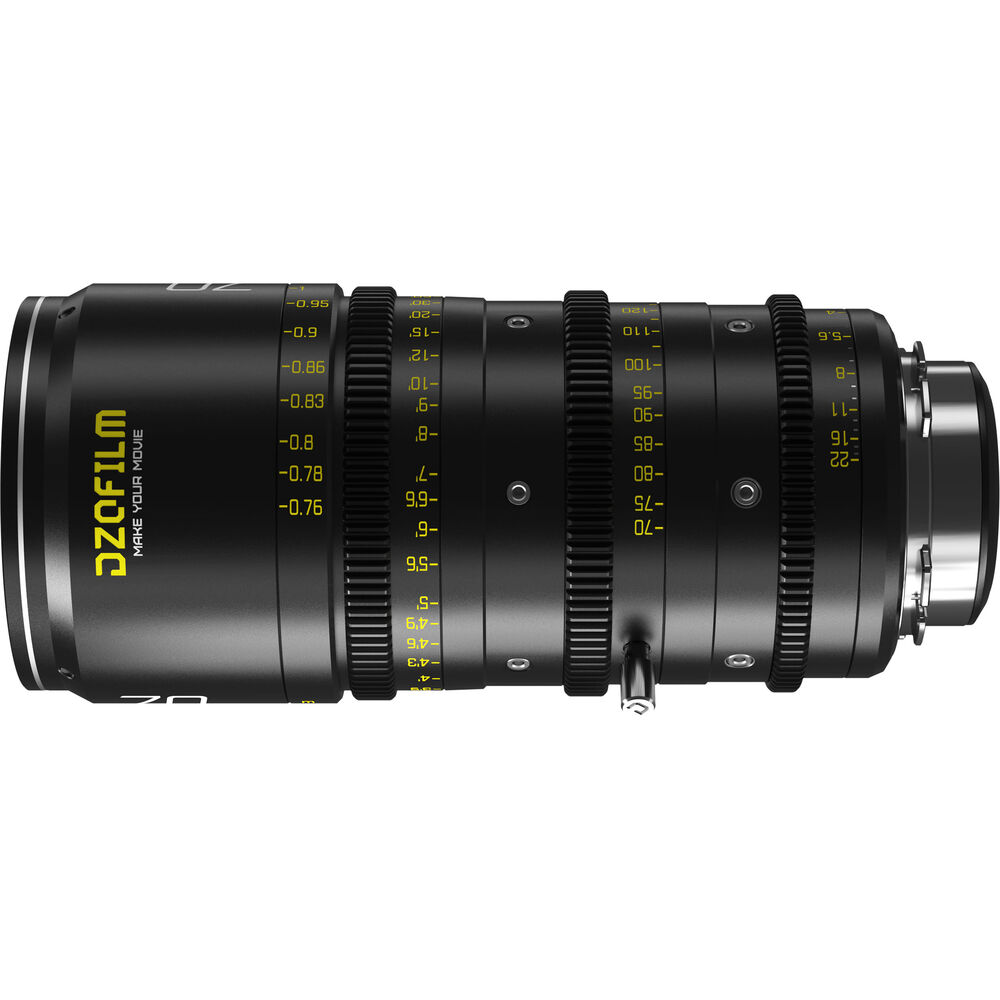

PL as standard, EF included

The lens is supplied with a PL mount and an interchangeable EF mount. The screw and shim set enables the appropriate camera-system configuration. 0.8 MOD gearing on focus, zoom, and iris is ready for follow-focus and motor control.

• 17 elements in 11 groups
• 179.5 mm long in PL / 187.5 mm in EF
• Approx. 1,710 g

An official look at the series character

Sample frame shot on Catta Ace lenses.
