DZOFilm Arles FF/VV Prime Cine 5-Lens Set B (PL) (Metric)

+2
  • Free transport
SKU: DZO-SAP5B14MPL

DZOFILM Arles Prime Set B is a five-lens metric cine set with PL mount: 14, 21, 40, 135 and 180 mm. It covers ultra-wide, wide, standard and telephoto perspectives for FF/VV sensors up to a 46.5 mm image circle. Individual maximum T-stops are T1.9 / T1.4 / T1.4 / T1.8 / T2.4, providing a consistent look across the set.

More information

11 159 € with VAT 9 222.31 € without VAT
Add to Compare Price history
Availability
on request
SKU:
DZO-SAP5B14MPL
Add to Compare Price history

DZOFilm Arles FF/VV Prime Cine 5-Lens Set A (PL) (Metric)

In stock 3 pcs9 989 €without VAT 8 255.37 €

DZOFilm Arles Prime 8-Lens Cine Set 14–135mm PL, Metric

16 189 €without VAT 13 379.34 €

DZOFilm Arles Prime 10-Lens Cine Set 14–180mm PL, Metric

In stock 1 pcs21 109 €without VAT 17 445.45 €

DZOFilm Arles Prime 18/25/35/50/75/100mm T1.4 PL 6-Lens Set – Metric

11 499 €without VAT 9 503.31 €

Top accessories for DZOFilm Arles FF/VV Prime Cine 5-Lens Set B (PL) (Metric)

K&F 3pcs* Microfiber Cleaning cloth Kit, 15*15cm, White, Dry, in vacuum

Imported optical microfiber cleaning cloth is used to ensure that the coating of
6.2 €
In stock > 5 pcs

K&F Concept 86mm Variable ND Filter ND2-ND400 (9 Stop)

Nano-X — variable ND filter 86 mm, changes the amount of light steplessly as you
143 €
In stock > 5 pcs

K&F Concept 23-in-1 Camera Lens Cleaning Kit

K&F Concept 23-in-1 Camera Lens Cleaning Kit with Replacement Cleaning Pen, 15ml
55 €
In stock > 5 pcs

DZOFilm Koop Rear Filter Kit for Vespid / Catta Ace PL-Mount Lenses (Artistic Set)

  • -3 %
Promotion: -3%
The DZOFILM KOOP Artistic Set is a set of magnetic rear filters for Vespid Prime
325.82 €
337.59 €
In stock > 5 pcs

K&F Concept 4-In-1 Camera Lens Cleaning Kit for DSLR Camera

KF 4-in-1 Cleaning Kit (1*Cleaning pen + 1*Silicone air blower + 6*vacuum cleaning
27 €
To be sent 2 pcs

K&F 86MM XU06 Nano-X B270 MCUV Filter, HD, Waterproof, Anti Scratch, Green Coated

Shield your lens from dirt, scratches, fingerprints, and accidental damage with UV
37 €
In stock 2 pcs

K&F 86MM Nano-X Black Mist Filter 1/4, HD, Waterproof, Anti Scratch, Green Coated

Nano-X — Black Mist filter 86 mm, softens the highlights and takes off digital sharpness.28
112 €
In stock 3 pcs

K&F Concept Lens Air Blower, Rubber Bulb Air Pump Dust Blower Cleaner, with Long Nozzle for Cell

  • SHOWROOM PRAHA
The K&F Concept Lens Air Blower is a versatile and efficient dust blower cleaner
7.7 €
Backordered > 5 pcs

K&F 86MM XC16 Nano-X B270 CPL Filter, HD, Waterproof, Anti Scratch, Green Coated

  • -33 %
  • LAST PIECE
Promotion: -33% ends in: 10d: 11h: 55m
Nano-X — polarising filter 86 mm, cuts reflections and deepens colour.28 anti-reflective
55.71 €
83.59 €
In stock 1 pcs

PolarPro 86mm - FX GoldMorphic Filter

  • LAST PIECE
The QuartzLine FX GoldMorphic streak filter adds professional anamorphic-style warm
110 €
In stock 1 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

DZOFILM Arles Prime Set B is a five-lens metric cine set with PL mount: 14, 21, 40, 135 and 180 mm. It covers ultra-wide, wide, standard and telephoto perspectives for FF/VV sensors up to a 46.5 mm image circle. Individual maximum T-stops are T1.9 / T1.4 / T1.4 / T1.8 / T2.4, providing a consistent look across the set.

Arles Prime Set B

Five focal lengths from 14 to 180 mm provide deliberate coverage from ultra-wide establishing shots to telephoto details. Every lens in this set is PL mount, metric-scaled and part of the Arles Prime image family.

  • Ø 46.5 mm FF/VV image circle
  • 16-blade iris
  • 270° manual focus rotation
  • 0.8 MOD gears

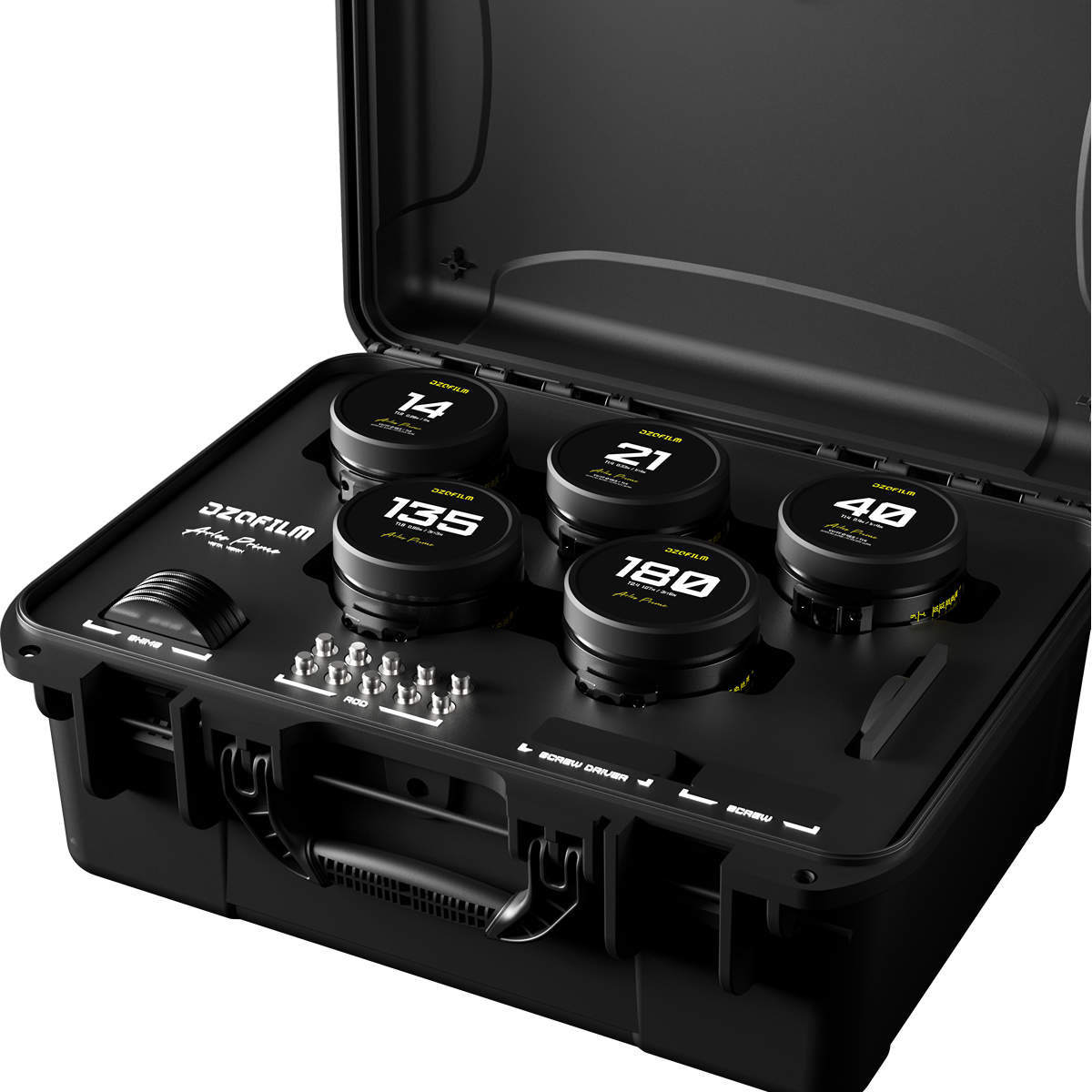

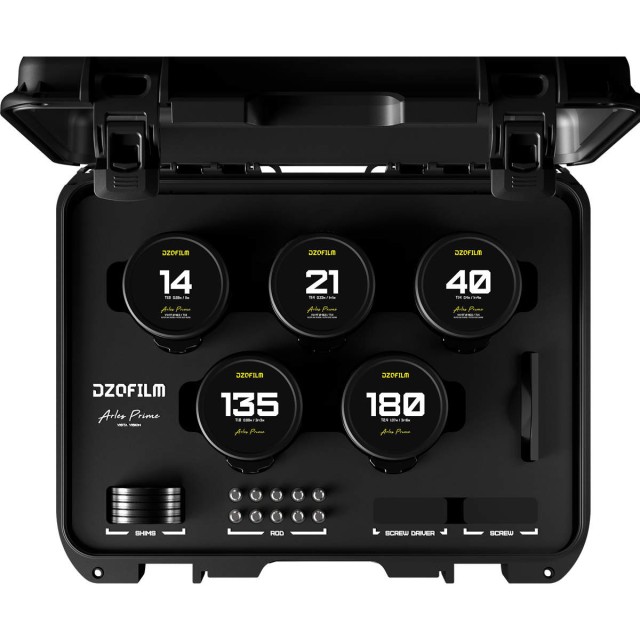

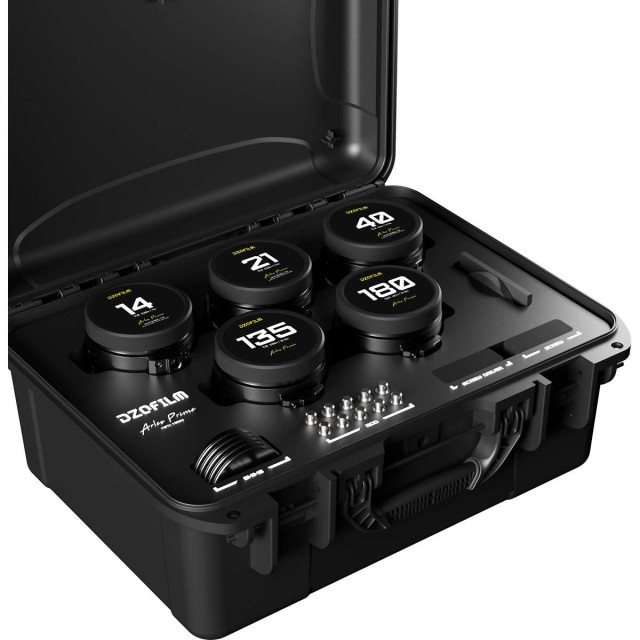

DZOFILM Arles Prime Set B – five PL lenses
ARLES PRIME SERIES IMAGE SAMPLE

ARLES PRIME SERIES IMAGE SAMPLE

This official manufacturer sample illustrates the image character of the Arles Prime series. It represents the series, not output from a particular focal length in this five-lens set.

PACKAGE CONTENT

  • 1× DZOFILM Arles Prime 14 mm T1.9, PL mount, metric scale
  • 1× DZOFILM Arles Prime 21 mm T1.4, PL mount, metric scale
  • 1× DZOFILM Arles Prime 40 mm T1.4, PL mount, metric scale
  • 1× DZOFILM Arles Prime 135 mm T1.8, PL mount, metric scale
  • 1× DZOFILM Arles Prime 180 mm T2.4, PL mount, metric scale

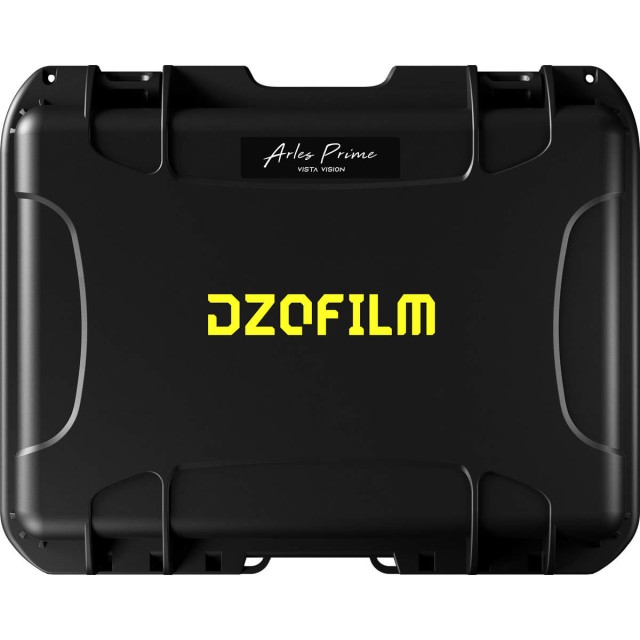

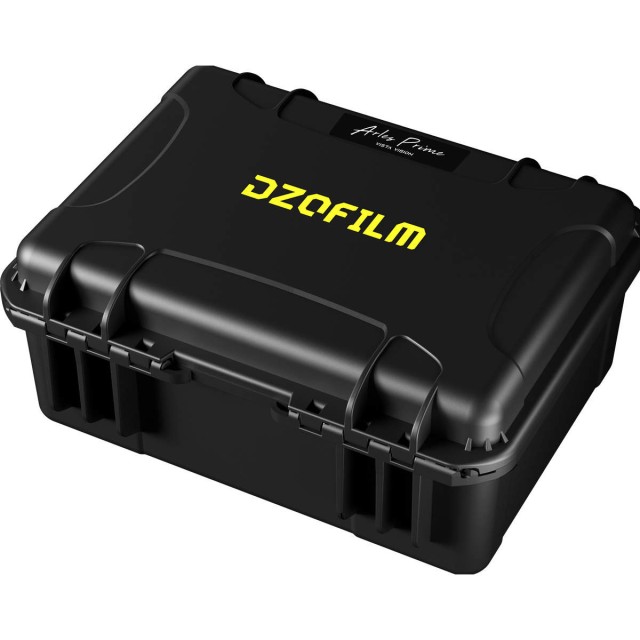

  • 1× hard transport case

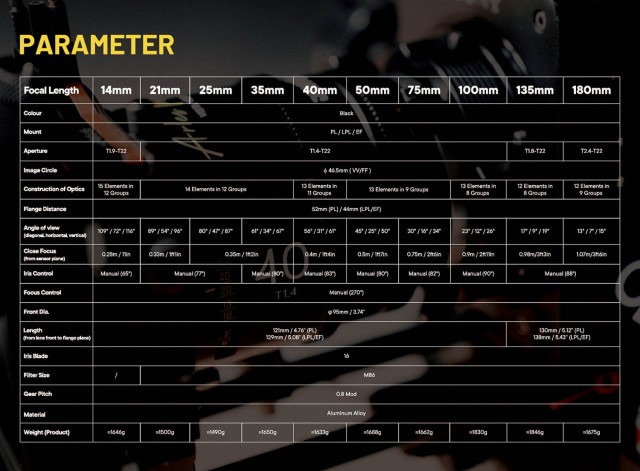

SPECIFICATIONS

  • Lenses in the set
  • 14 mm T1.915 elements / 12 groups, 0.28 m close focus, 1,646 g.
  • 21 mm T1.414 elements / 12 groups, 0.33 m close focus, 1,500 g.
  • 40 mm T1.413 elements / 11 groups, 0.40 m close focus, 1,633 g.
  • 135 mm T1.812 elements / 8 groups, 0.98 m close focus, 1,846 g.
  • 180 mm T2.412 elements / 9 groups, 1.07 m close focus, 1,675 g.
  • The range uses multi-layer coatings and floating optical elements to control aberrations through focus changes. The 14 and 21 mm wide-angle lenses use two aspherical elements to correct wide-angle distortion, astigmatism and coma.
  • Rig-friendly shared design
  • Image circle: Ø 46.5 mm (VV/FF)
  • Mount and scales: PL mount, metric scales
  • Front diameter: 95 mm
  • Filter: 14 mm has no screw-in thread; 21 / 40 / 135 / 180 mm: M86
  • Body length: 14 / 21 / 40 mm: 121 mm (PL); 135 / 180 mm: 130 mm (PL)
  • Focus: Manual, 270° rotation
  • Iris: Manual, 16 blades; T1.9 to T2.4 according to focal length
  • Material: Aluminium alloy

ARTICLES

Parameters

Parameters

Manufacturer: DZO Optics
Category: Lenses

Main parameters

Filter thread86mm
BayonetPL
Lens colorBlack
Lens TypeFixed Glass
Lens suitable forFull frame

Other parameters

SeriesDZOFilm Arles
