DJI Power Solar Panel Adapter Module (MPPT)

The DJI Power Solar Panel Adapter Module (MPPT) lets you recharge DJI Power stations from solar panels via an XT60 connector. Connect up to three panels: one channel handles 200 W and the whole module up to 400 W (300 W with DJI Power 500). Compatible with DJI Power 1000 V2, 2000, 1000 and 500. The power station and panels are not included.

More information

62 € with VAT 51.24 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock 2 pcs
Praha 2 pcs, Bratislava 2 pcs
SKU:
CP.DY.00000041.01
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The DJI Power Solar Panel Adapter Module (MPPT) lets you recharge DJI Power stations from solar panels via an XT60 connector. Connect up to three panels: one channel handles 200 W and the whole module up to 400 W (300 W with DJI Power 500). Compatible with DJI Power 1000 V2, 2000, 1000 and 500. The power station and panels are not included.

Solar energy for DJI Power

The module connects to a DJI Power station and provides XT60 inputs for solar panels. DJI recommends panels from the certified brand Zignes; other brands need an adapter to XT60.

DJI Power Solar Panel Adapter Module (MPPT)
Up to 3 panelsUp to 400 W12–30 V DC inputXT60 connector

Safe limits

With other brands the panel open-circuit voltage must be below 30 V and each panel may supply at most 200 W. Fit the included metal heat dissipation bracket when using panels.

Single channel 200 W

Max. input current 10 A per channel.

Three channels 400 W

Up to 20 A in total; at most 300 W with DJI Power 500.

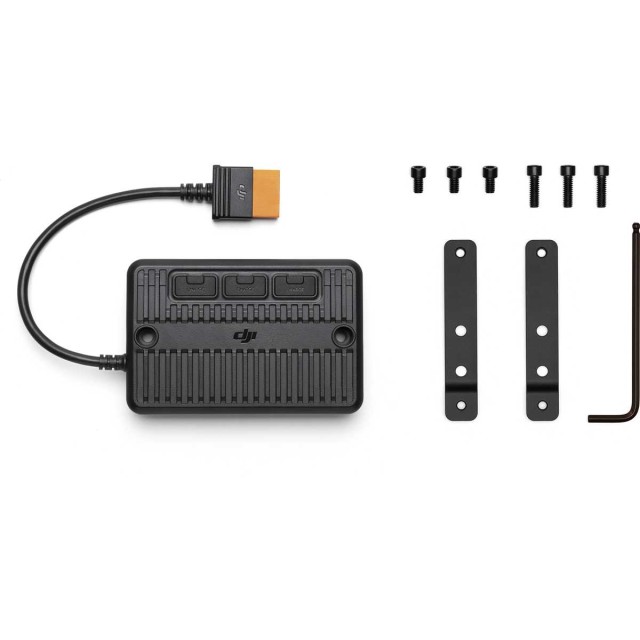

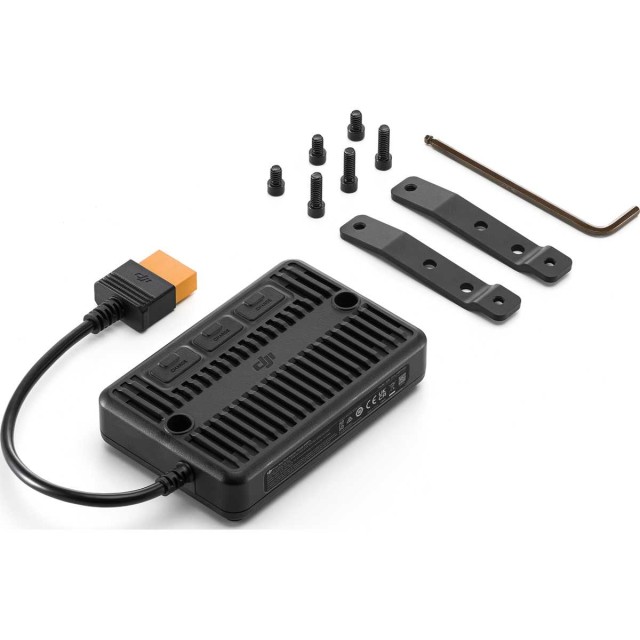

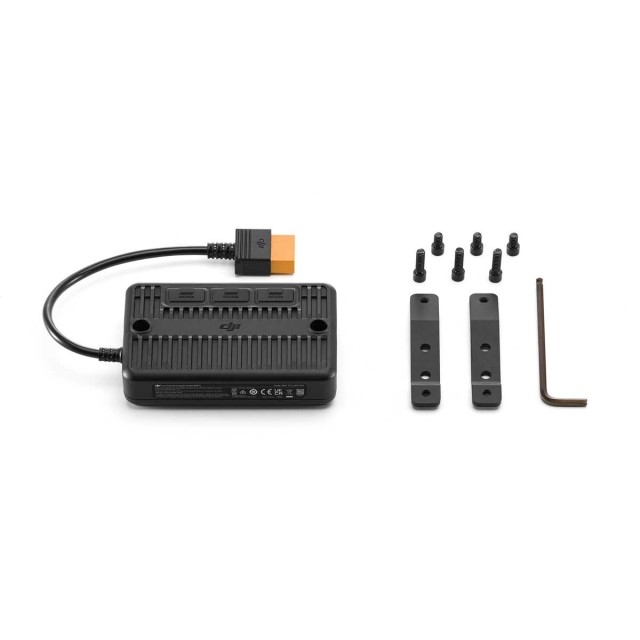

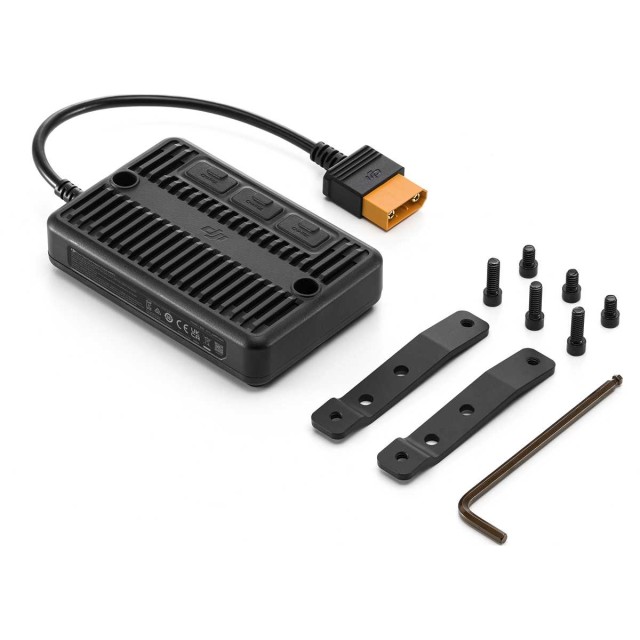

PACKAGE CONTENT

  • 1× DJI Power Solar Panel Adapter Module (MPPT)
  • 2× Metal Heat Dissipation Bracket
  • 1× Ball-End Hex Key
  • 3× 10mm Screw
  • 3× 20mm Screw

SPECIFICATIONS

  • Brand: DJI
  • Model: DJI Power Solar Panel Adapter Module (MPPT)
  • Manufacturer code: CP.DY.00000041.01
  • Output power: 1 channel max. 200 W; 3 channels max. 400 W (DJI Power 1000), 300 W (DJI Power 500)
  • Input voltage: 12–30 V DC
  • Max. input current: 1 channel 10 A, 3 channels 20 A
  • Operating temperature: −10 to 45 °C
  • Compatibility: DJI Power 1000 V2, DJI Power 2000, DJI Power 1000, DJI Power 500
Parameters

Parameters

Manufacturer: DJI
Category: Power Cables
