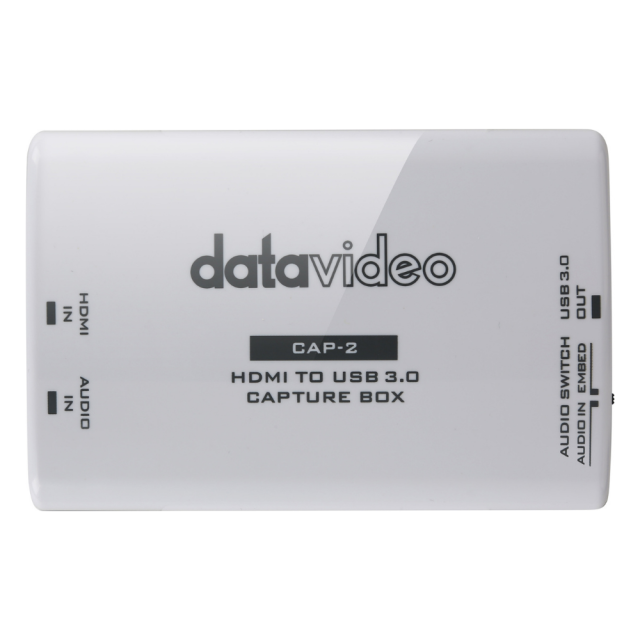

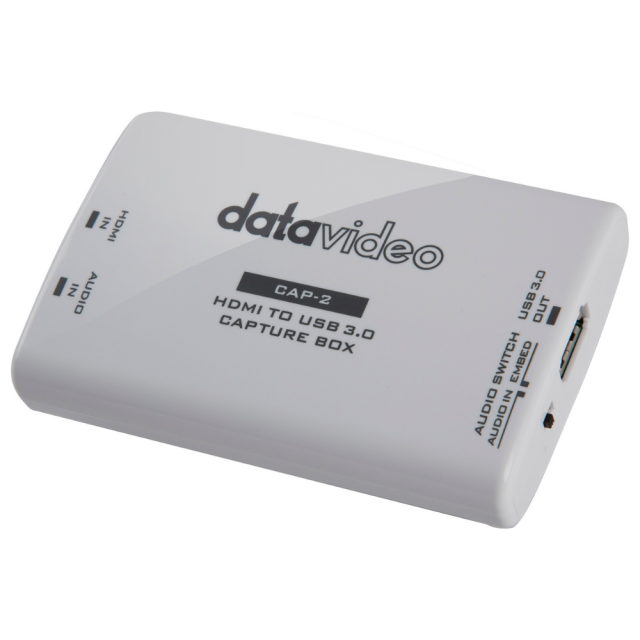

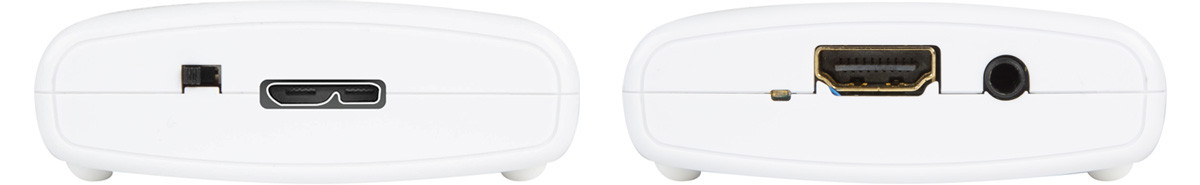

Datavideo CAP-2 HDMI to USB 3.0 Capture Box
SKU: 2510-8520
CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.
369 € with VAT
304.96 € without VAT
Personal pickup within 90 minutes
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for Datavideo CAP-2 HDMI to USB 3.0 Capture Box
HDMI cable 2.0b UHD 4K High Speed + Ethernet 5,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
17 €
In stock 1 pcs
Infinitek HDMI TO HDMI ultra thin flixible 4K cable, 80cm
Infinitec ultra tenký a flexibilný 4K HDMI v 2,0 kábel pre kreatívnych profesionálov.
23 €
In stock > 5 pcs
HDMI cable 2.0b UHD 4K High Speed + Ethernet 2,0m
Propojovací HDMI 2,0b kabel UHD 4K High Speed + Ethernet kabel
8.1 €
In stock 3 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.
HDMI capture over USB 3.0

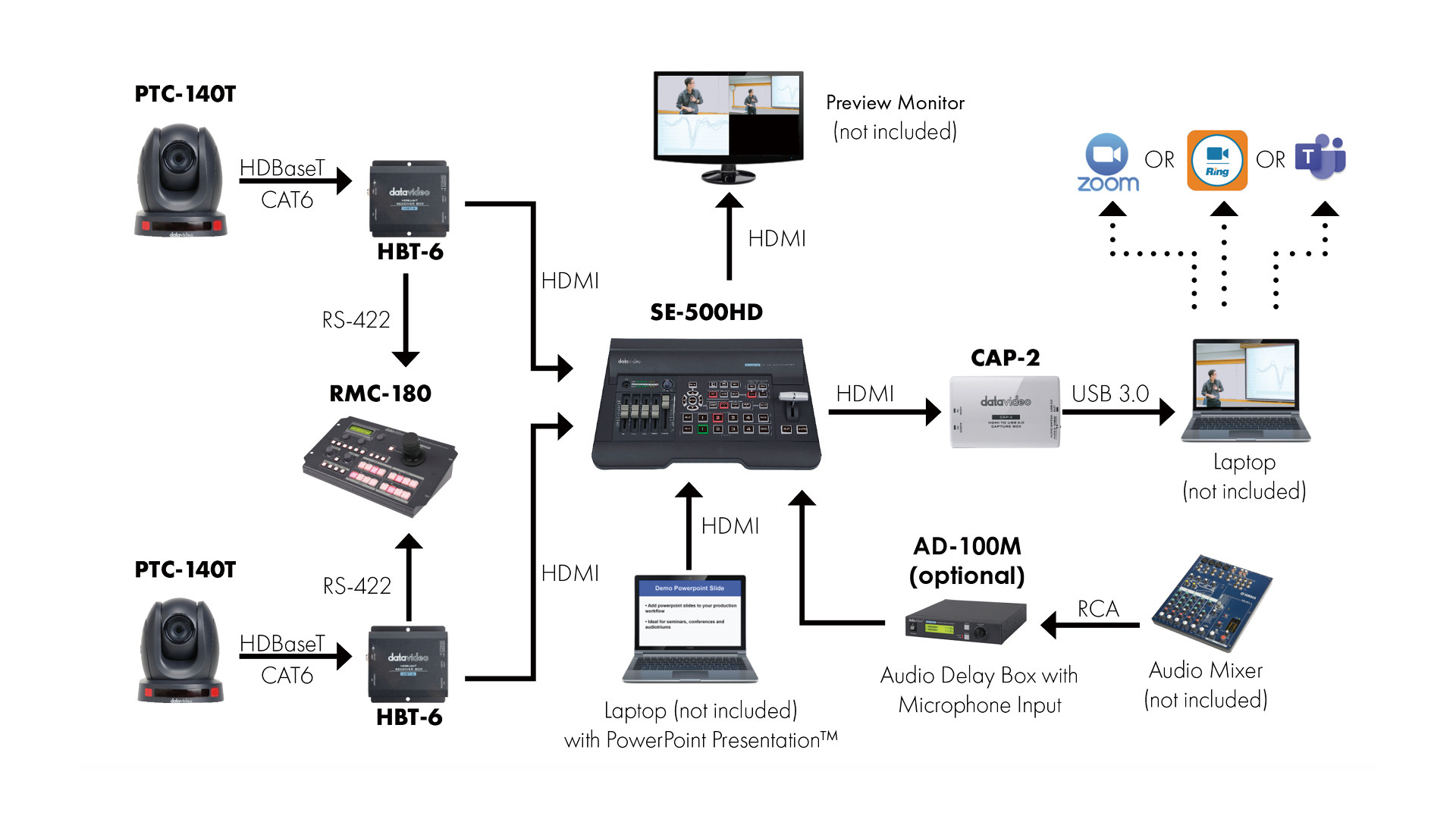

Datavideo CAP-2 converts an HDMI source to USB 3.0, where a computer recognises it as a UVC device. It makes it easy to capture or stream video up to 1080p50/60 in compatible software such as OBS, VLC, Skype, XSplit or Zoom. The unit needs no external power and offers plug-and-play operation for everyday use.
Capture audio to match your source

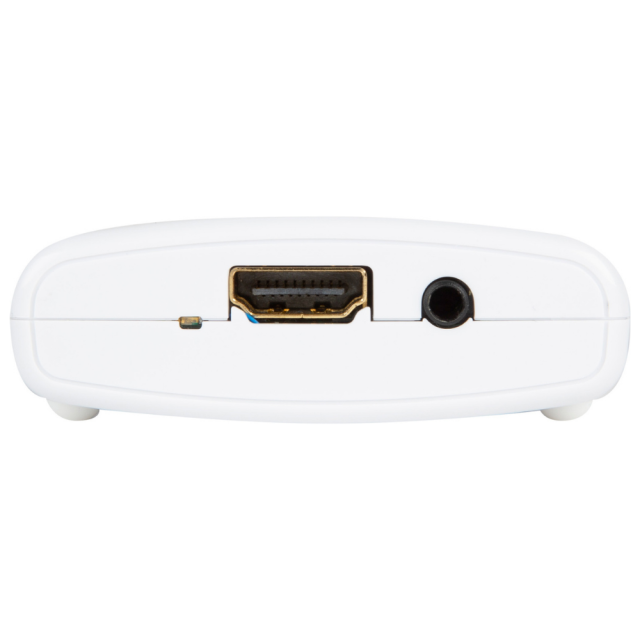

Audio can come from HDMI or the external 3.5 mm stereo input. CAP-2 captures two-channel PCM audio up to 24-bit and supports 44.1 and 48 kHz sample rates. Its USB 3.0 Micro-B connection suits recording and live streaming from cameras, players and other HDMI output devices.
PACKAGE CONTENT
- 1× Datavideo CAP-2
- 1× USB 3.0 cable
SPECIFICATIONS
- Input: 1× HDMI
- Output: 1× USB 3.0 (Micro-B)
- Input video bandwidth: 150 MHz (pixel clock)
- USB video bitrate: Up to 350 Mbps
- Supported input formats: 1080p 60/59.94/50/30/29.97/25/24/23.976; 1080i 60/59.94/50 (de-interlaced output); 1680×1050p 60; 1600×1200p 60; 1440×900p 75/60; 1400×1050p 60; 1366×768p 60; 1360×768p 60; 1280×1024p 75/60; 1280×720p 60/59.94/50; 1024×768p 75/60; 800×600p 75/60; 720×576p 50; 720×480p 60; 640×480p 60
- Supported output formats: 1920×1080p 60/50/30/25/24; 1680×1068p 60; 1440×1080p 60; 1440×896p 60; 1360×768p 60; 1280×768p 60; 1280×720p 60/50; 1024×768p 60; 960×536p 60; 848×480p 60; 768×576p 60; 720×480p 60/50; 640×480p 60; 640×360p 60
- Audio input: HDMI embedded or 3.5 mm stereo input
- Audio format: 2 channels, 44.1/48 kHz, up to 24-bit PCM; fixed 48 kHz output
- Video capture formats: YUY2 (USB 3.0), MJPG (USB 2.0/3.0)
- Compatible software: Windows – Amcap, Google Hangouts, OBS, Skype, VLC, XSplit Broadcaster, Zoom; Linux – VLC, OBS; macOS – OBS, QuickTime Player, VLC, FaceTime
- Supported systems: Windows 7 SP1, Windows 8.1, Windows 10, macOS 10.10 or later, Linux Ubuntu 14.04
- Minimum computer requirements: PC with Intel Core i5-4440 3.10 GHz and NVIDIA GeForce GTX 660 or higher; laptop with Intel Core i7-4810MQ and NVIDIA GeForce GTX 870M or higher; at least 4 GB RAM. A driver is required for Windows 7.
- Power: USB bus powered; no external supply
- Power consumption: 2 W
- Firmware update: Via USB
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 60 °C
- Humidity: 20–90% RH, non-condensing
- Dimensions (L × D × H): 105 × 68 × 23 mm
- Weight: 70 g
Parameters
Parameters
| Manufacturer: | Datavideo |
| Category: | Capture cards external USB/TB |
Main parameters
| Maximum resolution | 1920×1080 @ 60 fps |
| Inputs | HDMI |
| Interface type | USB 3.0 |
Other parameters
| Other | Plug-and-play |
