Cartoni Focus 10 Red Lock System MS

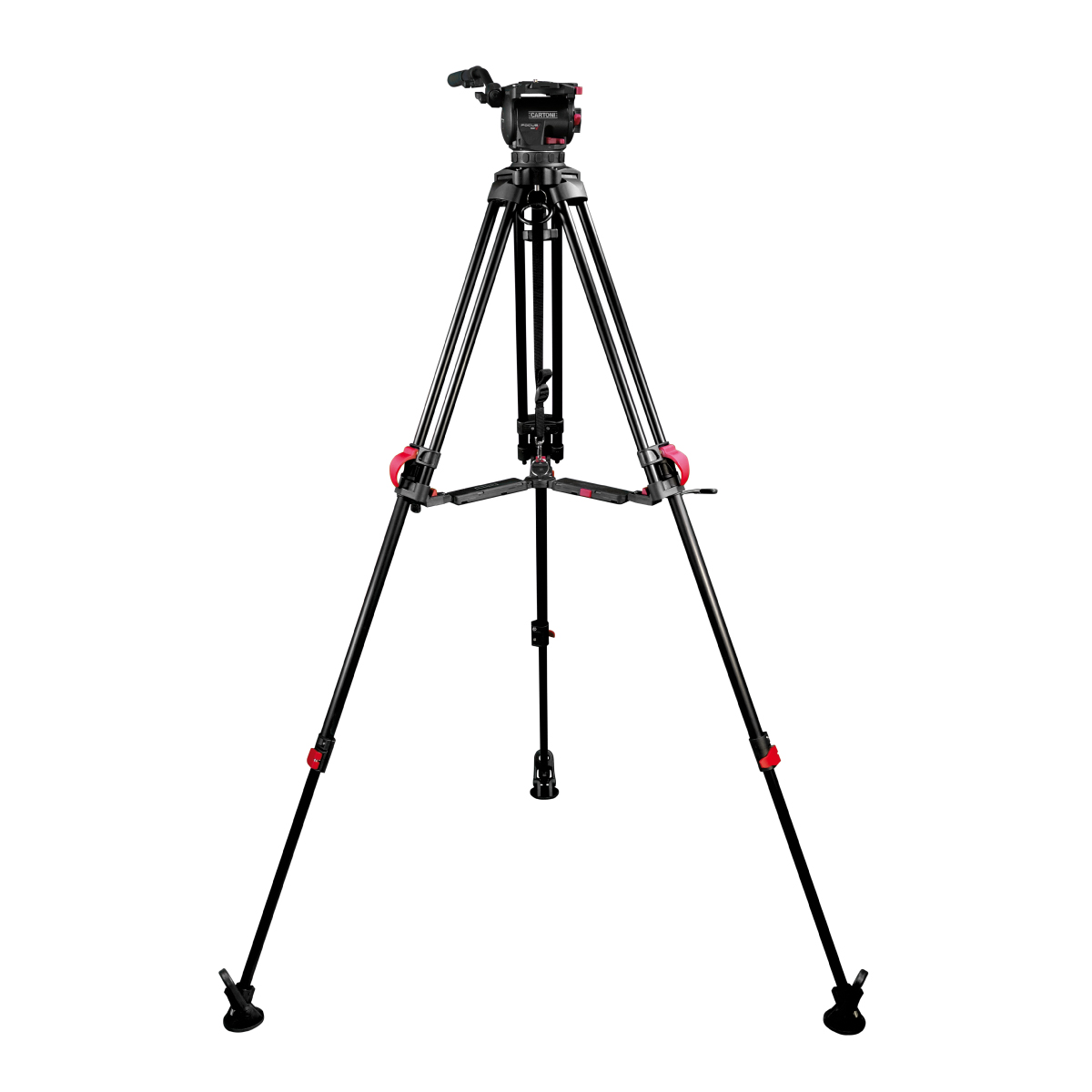

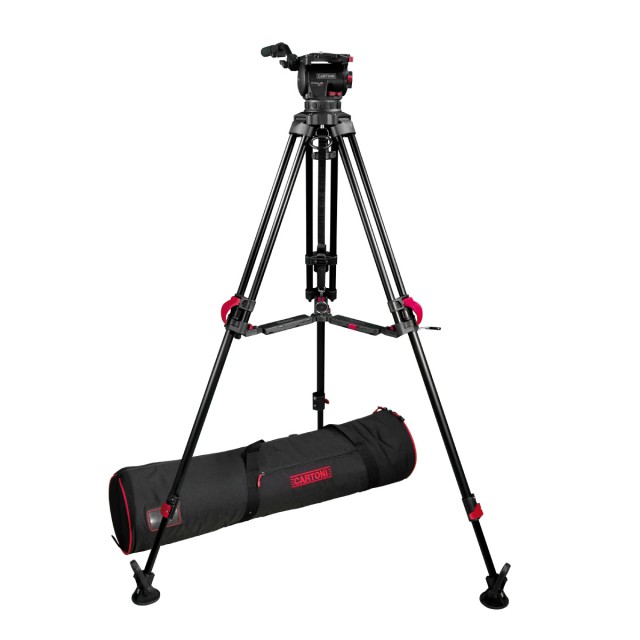

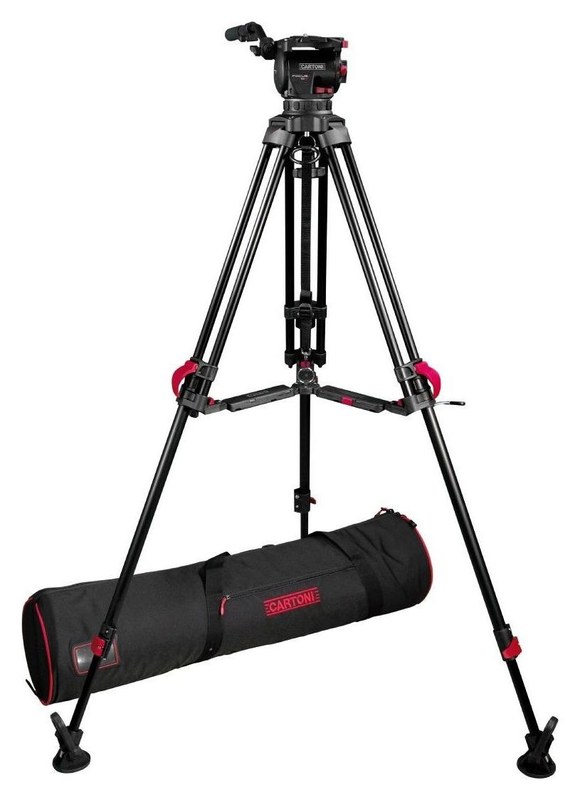

The Cartoni Focus 10 Red Lock System MS is a complete camera support for set-ups of up to 12 kg. It combines the Focus 10 fluid head with a two-stage aluminium Red Lock tripod, a Smart Lock mid-level spreader, pivoting rubber feet and a soft carrying bag. The whole system weighs 6.5 kg and works at heights of 66.5–167.5 cm. It suits lightweight digital cinema and news cameras.

Cartoni Focus 10 Red Lock System MS

Extreme ruggedness and versatility together with a superior quality/price ratio make it a dependable support for news, documentary and fast work in the field.

12 kg payload6.5 kg weightHeight 66.5–167.5 cm100 mm bowlAluminium tripod

Red Lock: fast to deploy, locked solid

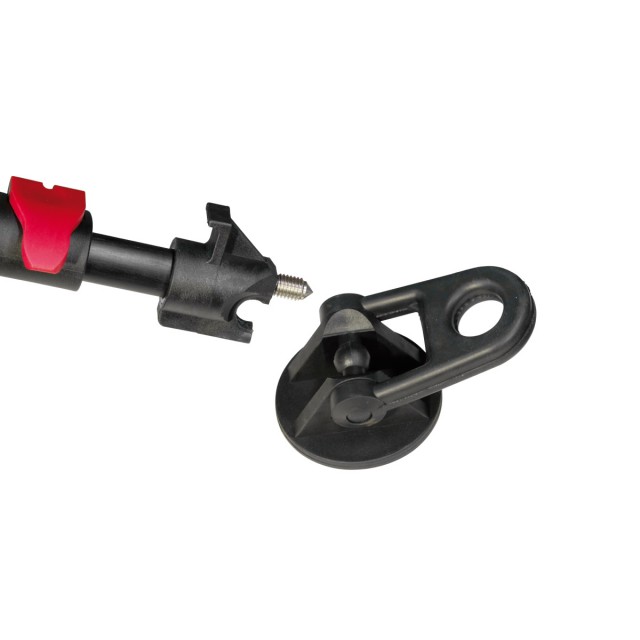

The two-stage Red Lock tripod is light, deploys superfast and its positive position locks hold the legs firmly, so speed never comes at the cost of stability. The Smart Lock mid-level spreader and pivoting rubber feet are included.

Patented counterbalance

The Focus 10 head features patented continuously variable counterbalance and fluid drag on both pan and tilt.

Side-load quick release

The camera mounts on a side-load quick release plate; the head also has an illuminated bubble level.

±90° tilt

The head works across a ±90° tilt range and at temperatures from −40 to +60 °C.

66.5–167.5 cm

Working height measured from the ground to the camera plate.

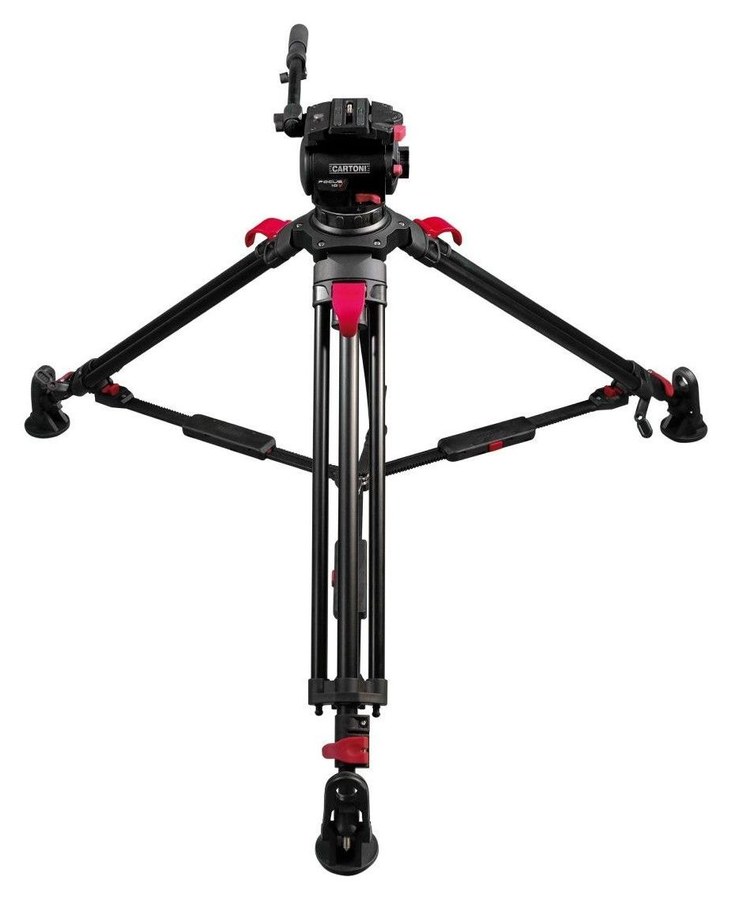

Smart Lock mid-level spreader

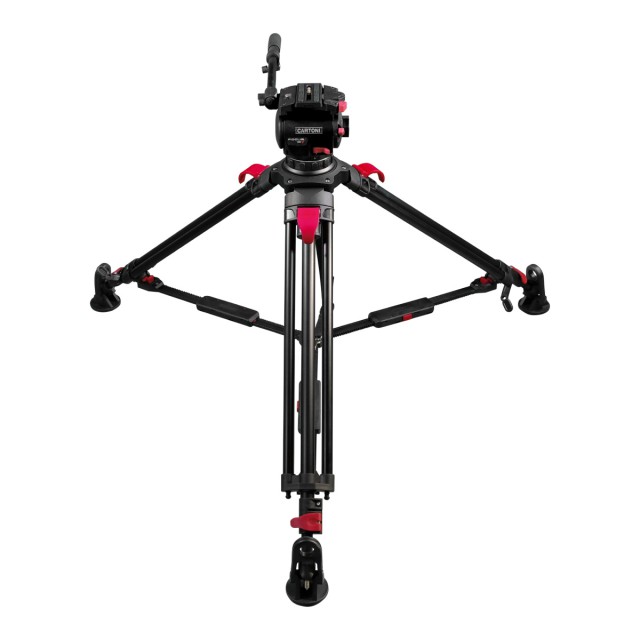

A top view of the Smart Lock mid-level spreader, which keeps the legs spread at mid height.

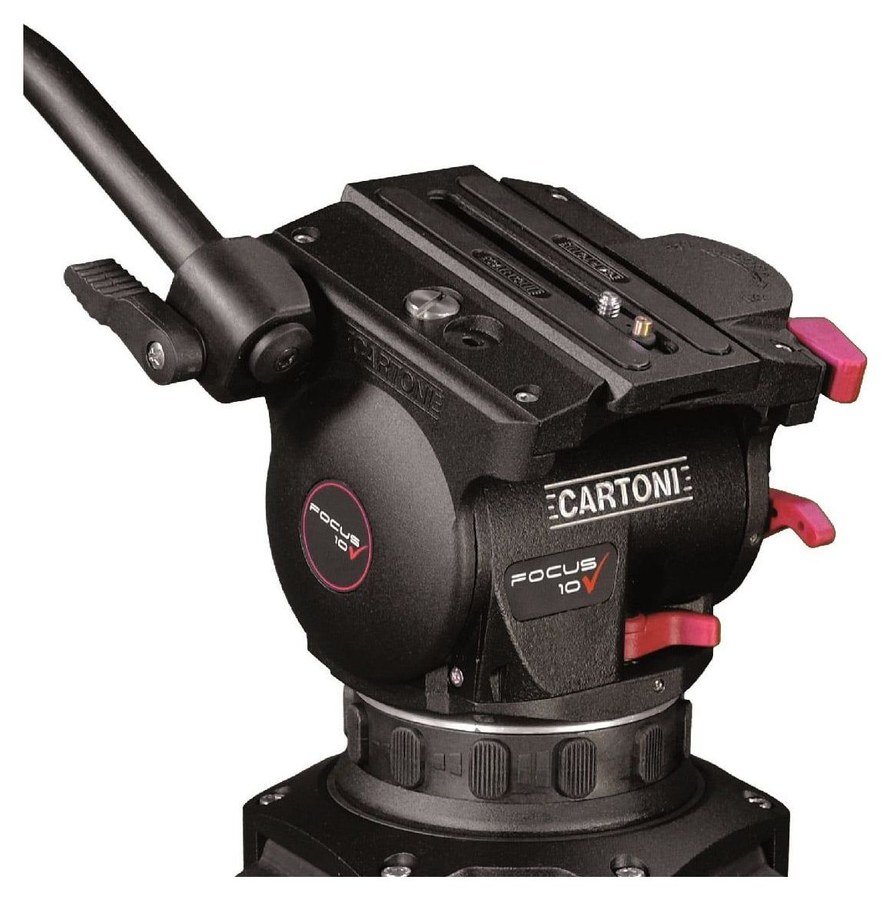

Focus 10 fluid head

Continuously variable counterbalance and fluid drag on both axes, a telescopic pan bar and a 100 mm bowl.

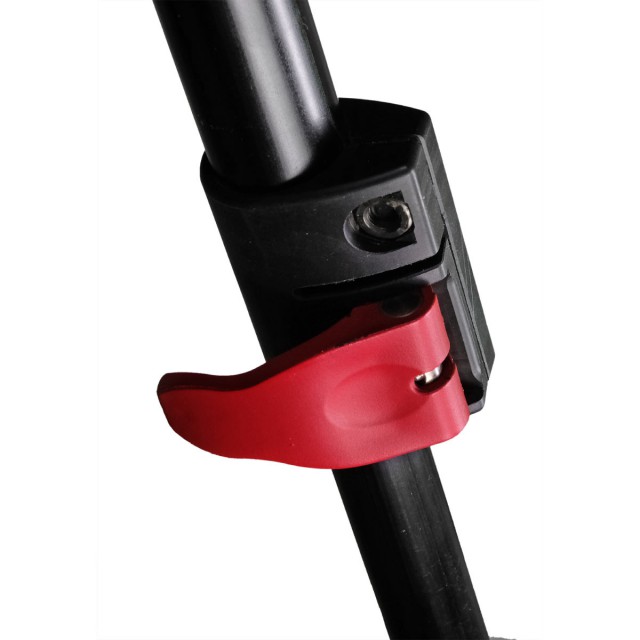

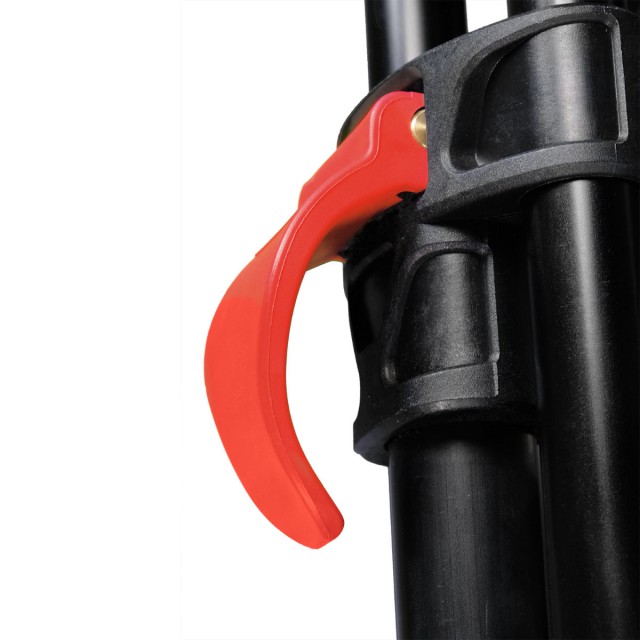

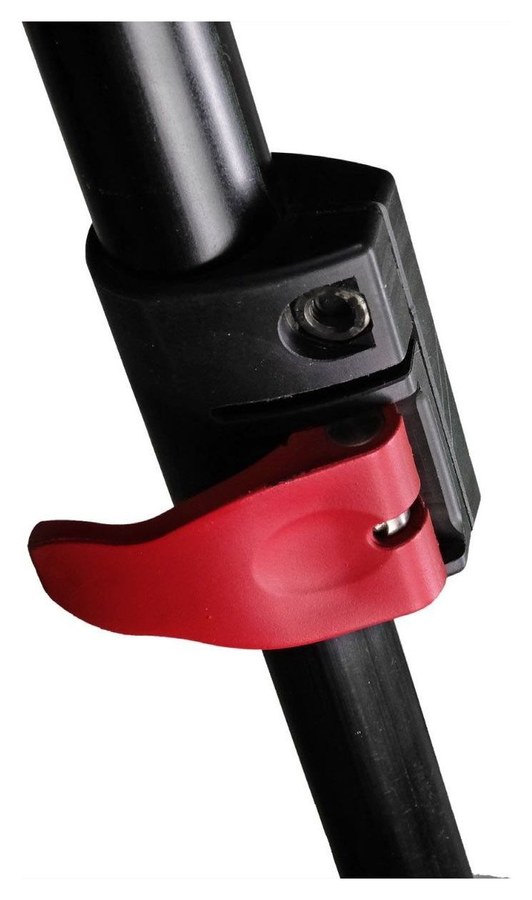

Red Lock locks

Bold red levers lock the tripod leg sections quickly and securely.

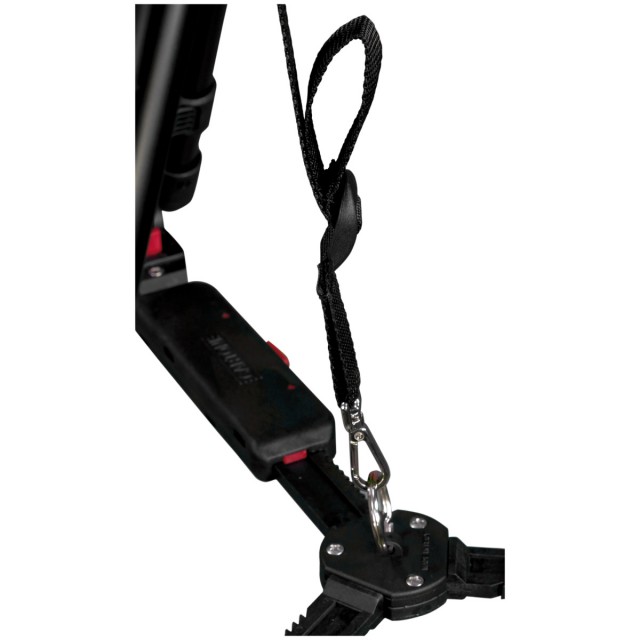

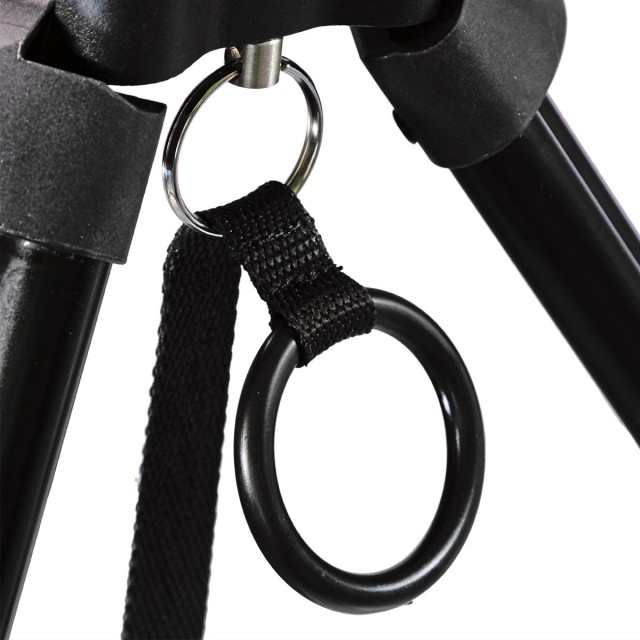

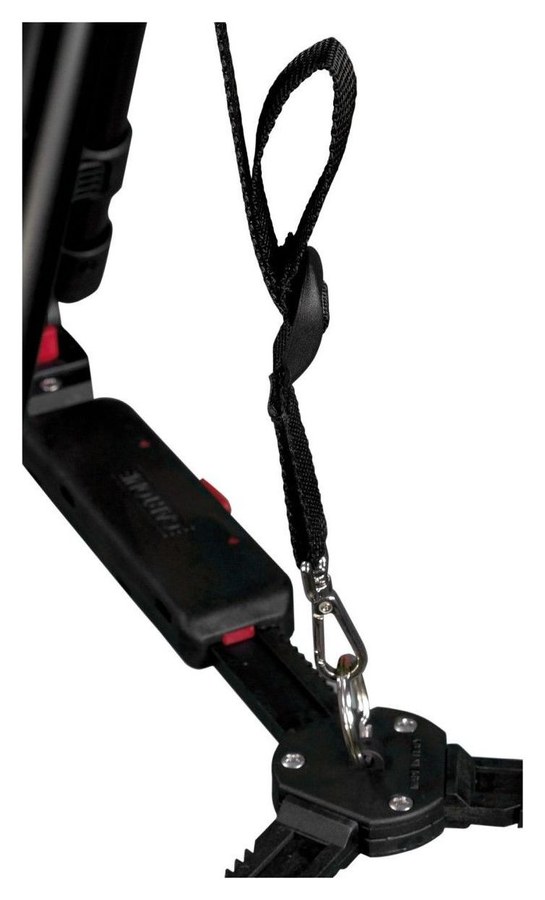

Carrying strap

The strap on the tripod makes the folded system easier to carry.

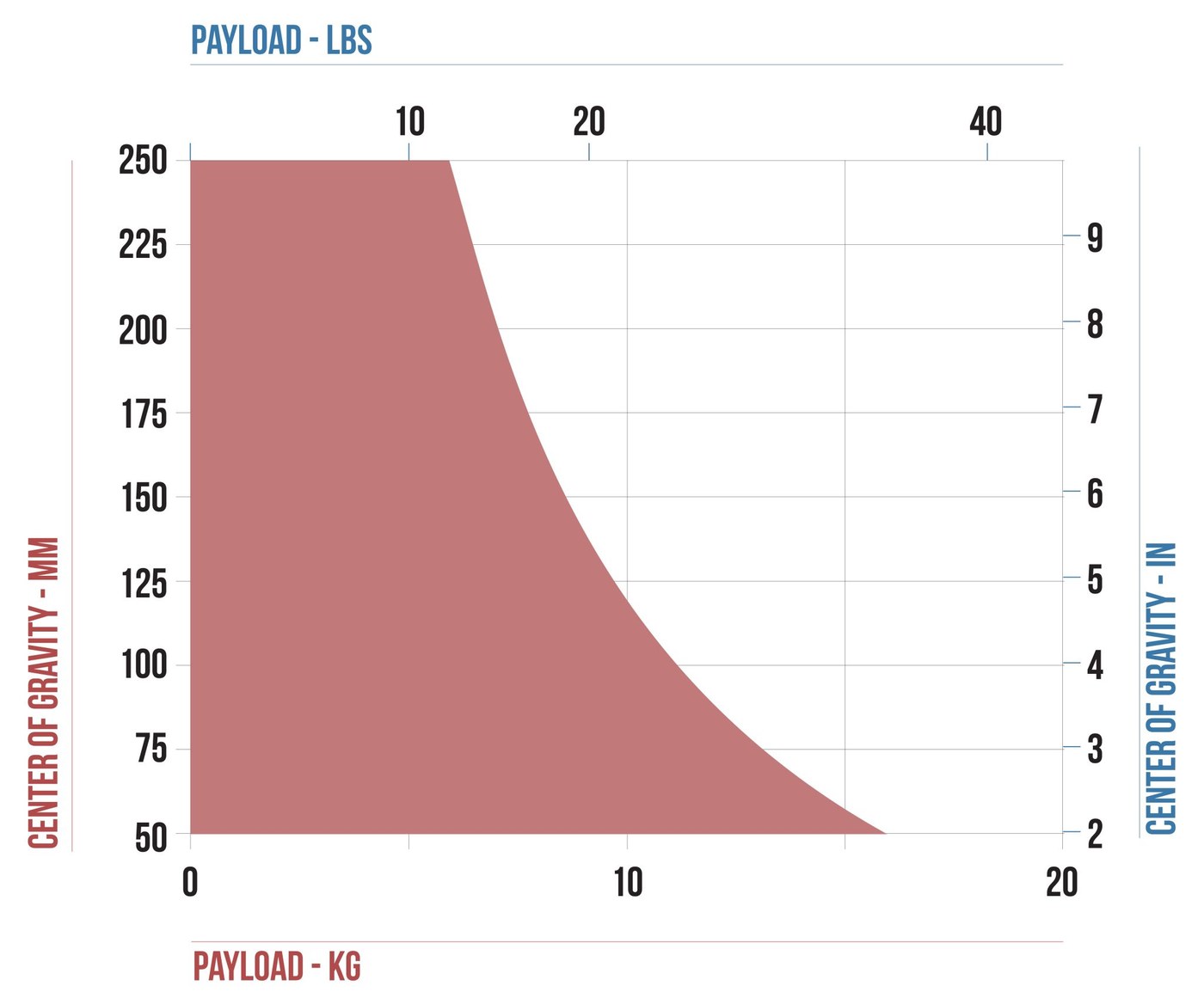

Focus 10 counterbalance chart

The chart shows how much camera weight the head balances depending on the height of the centre of gravity above the camera plate.
