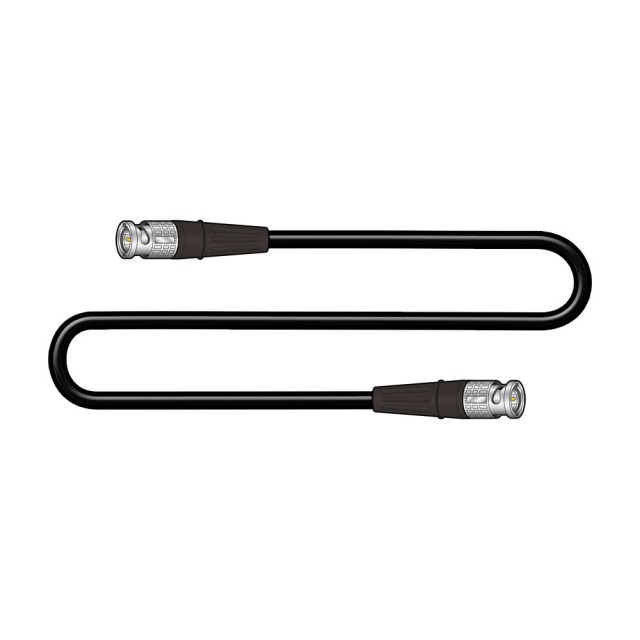

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 3m
SKU: CV-45W-M/M-BLK-3
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.
19.72 € with VAT
16.3 € without VAT
Availability
Shipment day: 23. 04.
Shipment day: 23. 04.
To be sent > 5 pcs
Bratislava > 5 pcs, Budapest 2 pcs
Bratislava > 5 pcs, Budapest 2 pcs
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 20m
In stock > 5 pcs81.43 €without VAT 67.3 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 10m
In stock > 5 pcs45.13 €without VAT 37.3 €
Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 80m
In stock 3 pcs298.87 €without VAT 247 €
Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 70m
In stock 3 pcs262.69 €without VAT 217.1 €
Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 60m
In stock > 5 pcs226.39 €without VAT 187.1 €
Canare L-4.5CHWS Flexible 3G, 6G-SDI Cable, BNC-BNC 50m
To be sent 2 pcs190.21 €without VAT 157.2 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 40m
In stock 3 pcs153.91 €without VAT 127.2 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 30m
To be sent 5 pcs117.61 €without VAT 97.2 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 15m
In stock > 5 pcs63.28 €without VAT 52.3 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 25m
In stock > 5 pcs99.58 €without VAT 82.3 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 35m
In stock > 5 pcs135.76 €without VAT 112.2 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 45m
In stock > 5 pcs172.06 €without VAT 142.2 €
Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 55m
208.24 €without VAT 172.1 €
Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 65m
In stock 4 pcs244.54 €without VAT 202.1 €
Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 75m
280.84 €without VAT 232.1 €
Canare L-4.5CHWS Flexible 3G-SDI Cable, BNC-BNC 85m
317.02 €without VAT 262 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 2m
In stock > 5 pcs16.09 €without VAT 13.3 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 5m
In stock > 5 pcs26.98 €without VAT 22.3 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 7,5m
In stock > 5 pcs36.06 €without VAT 29.8 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 4m
In stock > 5 pcs23.35 €without VAT 19.3 €
Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 1m
In stock > 5 pcs12.58 €without VAT 10.4 €Top accessories for Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 3m
Canare BCJ-JRK 12G-SDI Panel Mount Bulkhead BNC Receptacle
Panel Mount Bulkhead BNC Receptacle
4.84 €
In stock > 5 pcs
Blackmagic Design Micro Converter SDI/HDMI 12G BiDirectional (incl PS)
New family of Micro Converter 12G models lets customers use HDMI equipment with professional
211.75 €
To be sent 4 pcs
Adhesive tape Gaffa black 50m
Adhesive tape Gaffa black, matt finish. Width 50 mm, tape length 50m.
11.8 €
In stock > 5 pcs
Blackmagic Design DeckLink Mini Monitor HD
Blackmagic Design DeckLink Mini Monitor HD and DeckLink Mini Recorder HD are new
147.62 €
In stock 3 pcs
Blackmagic Design Micro Converter SDI to HDMI 12G (without PS)
New family of Micro Converter 12G models lets customers use HDMI equipment with professional
175.45 €
In stock 1 pcs
Blackmagic Design DeckLink Mini Recorder HD
Blackmagic Design DeckLink Mini Monitor HD and DeckLink Mini Recorder HD are new
147.62 €
In stock > 5 pcs
Blackmagic Design Micro Converter SDI/HDMI 12G BiDirectional (without PS)
New family of Micro Converter 12G models lets customers use HDMI equipment with professional
192.39 €
To be sent 4 pcs
Stage Tape Neon Pink 19mm, 25m
Gaffa tape fluorescent, width 19mm length 25mm
7.11 €
In stock > 5 pcs
Blackmagic Design Micro Converter HDMI to SDI 12G (incl PS)
New family of Micro Converter 12G models lets customers use HDMI equipment with professional
163.35 €
In stock 4 pcs
Product description
Product description
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.
Use of flexible 12G/3G/HD-SDI cable Canare L-4.5CHWS:
- compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
- HDTV
- 4K/HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment

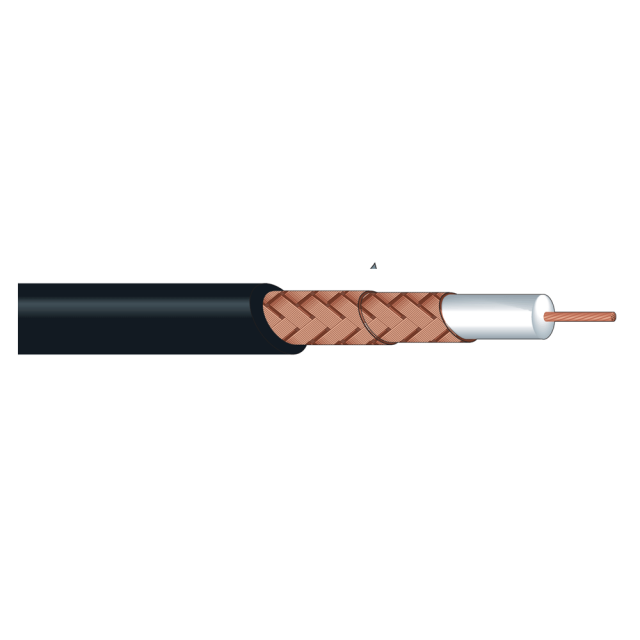

Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm:7.2
- Cable weight in kg/100m: 6.6
- Central conductor - number and diameter of stranded wire in mm: 7/0,34
- Total diameter of central conductor in mm: 1.02
- Foam dielectric - diameter in mm: 4,57
- Resistance of central conductor in Ω/100m:3,3
- Resistance of outer conductor in Ω/100m:0,8
- Temperature range: -30°C ~ +60°C
- Static capacitance in pF/m:53
- Attenuation in dB/100m:22.8
Maximum transmission distance depending on video format:
| Maximum transmission distance of Canare L-4.5CHWS depending on video format | |||||||
| Data transfer rate: | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s | 3 Gb/s |
| Specification: | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE ST 344M | SMPTE ST 292M | SMPTE ST 424M |
| Application: | nTSC composite | pAL composite | components 4:2:2 | 4:2:2 16x9 components | SDI | HD-SDI 1080i | 3G-SDI 1080p |
| Maximum cable length: | 447m | 405m | 322m | 280m | 225m | 87m | 90m |
