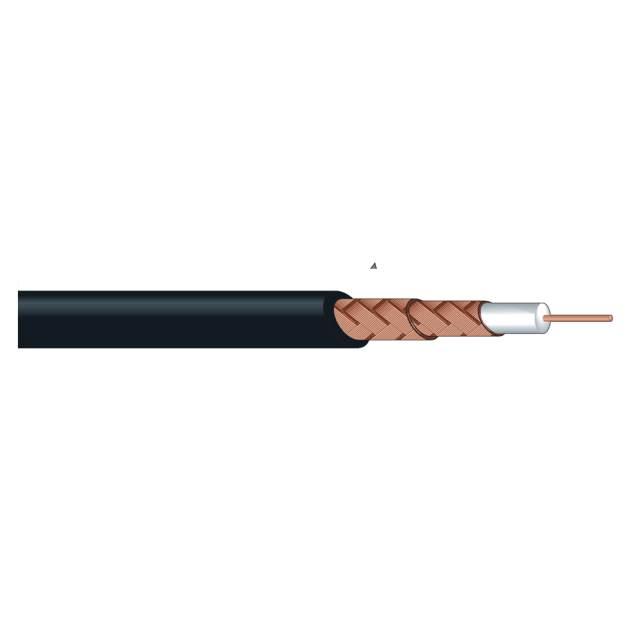

Canare L-3CFW flexible 3G/HD-SDI coaxial cable, by meter

Canare L-3CFW is a "Low Loss" flexible and durable 75 ohm coaxial 3G/HD/SD-SDI cable, outer diameter 5.8 mm - metre. Price per meter.

More information

2.54 € with VAT 2.1 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Tomorrow
In stock 450 m
Praha 450 m, Bratislava 200 m

Show all accessories

Product description

Product description

Canare L-3CFW is a "Low Loss" flexible and durable 75 ohm coaxial 3G/HD/SD-SDI cable, outer diameter 5.8 mm - metre. Price per meter.

Usage:

  • compliant with SMPTE 424M & 292M specification
  • HDTV
  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Specifications:

  • Standard manufactured lengths: 100/200m
  • Sheath diameter (overall diameter) in mm: 5.8
  • Cable weight in kg/100m: 5.1
  • Central conductor - number and diameter of cores in mm: 1/0.65
  • Total diameter of central conductor in mm: 0.65
  • Foam dielectric - diameter in mm: 3,10
  • Resistance of central conductor in Ω/100m: 5.5
  • Resistance of the outer conductor in Ω/100m: 0,7
  • Temperature range: -30°C ~ +60°C
  • Static capacitance in pF/m: 33.1
  • Attenuation in dB/100m: 19.4

Maximum transmission distance depending on video format

Distance in (m) 288m 230m 197m 158m 60m 60m
Frequency 177 Mbps 270 Mbps 360 Mbps 540 Mb/s 1.5 Gb/s 3.0 Gb/s
SMPTE ITU-R BT.601 SMPTE 259M SMPTE 259M SMPTE 344M SMPTE ST-292

SMPTE ST-424

Cable loss @ 1/2 Frequency 30Db @88MHz 30Db @135MHz 30Db @180MHz 30Db @270MHz 20Db @750MHz 30Db @1.5GHz
Usage PAL composite 525/625 (4:3) 525/625 (16:9) 525/625 (4:3) p60 SDI HD-SDI 1080i HD-SDI 1080p

The above values are based on SMPTE standards and may vary depending on the receiving device.

Our criteria: Cable attenuation value does not exceed SMPTE cable loss at 1/2 frequency.



Parameters

Parameters

Manufacturer: Canare
Category: Video cables

Main parameters

Cable type12G SDI
Cable typeSDI
Cable type3G-SDI/HD-SDI
VersionFlexible
ShieldingDouble braid
Core / ConductorWire
Cable diameter7.7mm
ColourBlack
