Canare L-3C2VS RED BNC 1m

Canare L-3C2VS RED BNC (M-samec) / BNC (M-samec) 1m

More information

10.31 € with VAT 8.52 € without VAT
-+
Availability
E-shop in stock > 5 pcs
Praha 5 pcs, Bratislava > 5 pcs
SKU:
CV05080804040000100
Add to Compare
Product description

Product description

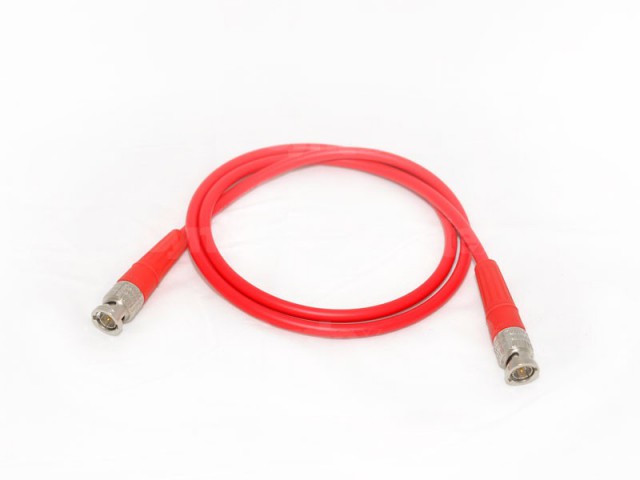

Canare L-3C2VS RED BNC (M-samec) / BNC (M-samec) 1m

Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDIcoaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. There are crimp-on BNC (M) connectors typeBCP-A3at both ends.

Usage:

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Cable Specifications:

  • Sheath diameter (overall diameter) in mm:5.5
  • Cable weight in kg/100m: 4.5
  • Central conductor - number and diameter of strands in mm: 7/0,18
  • Total diameter of central conductor in mm: 0.54
  • Foam dielectric - diameter in mm: 3.1
  • Resistance of the central conductor in ?/100m:10.5
  • Outer conductor clearance in ?/100m:1.9
  • Static capacitance in pF/m:67
  • Attenuation in dB/100m:4.5
  • Impedance in ?: 75

Connector Specifications:

  • Cable pull in kg:>24.9
  • Insulation resistance at 500V DC in ?:>1000M
  • Rated voltage for 1min: 1500V AC (rms)
  • Resistance of central contact:<6m ohm
  • Resistance of outer contact:<3m ohm
  • Impedance in ? : 75
  • Connector body - material/surface : Brass / Nickel
  • Central contact - material/surface:Brass / Gold
  • External contact - material: Beryllium Copper
  • Dielectric - material: PTFE polytetrafluoroethylene
  • Crimp sleeve - material/surface: Copper / Tin

Maximum transmission distance depending on video format
Data transfer rate 143 Mbps 177 Mbps 270 Mbps 360 Mbps 540 Mbps 1.5 Gb/s
Spec SMPTE 259M ITU-R BT.601 SMPTE 259M SMPTE 259M SMPTE 344M SMPTE 292M
Use Composite NTSC Composite PAL Component 4:2:2 Component 4:2:2 16x9 SDI HD-SDI
Model m m m m m m
L-3C2VS 241 218 174 150 120 46

Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Length1m
VersionFlexible
Connector typeBNC - BNC
Cable diameter5.5mm
ColourRed
