Canare L-3C2VS RED BNC 3m

Canare L-3C2VS RED BNC (M-male) / BNC (M-male) 3m

More information

12.95 € with VAT 10.7 € without VAT
-+
Personal pickup: 17. 06. from 09:00
Shipment day: 17. 06.
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs
Product description

Product description

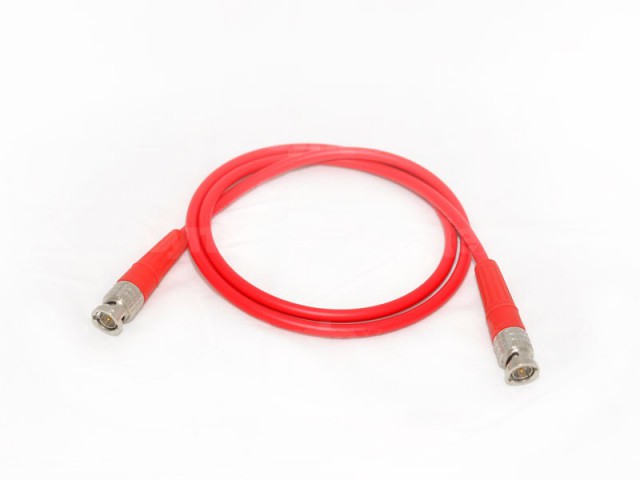

Canare L-3C2VS RED BNC (M-male) / BNC (M-male) 3m

Canare L-3C2VS is a very lightweight and extremely flexible 5.5 mm HD/SD-SDI coaxial cable with a braided center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. Both ends have crimp-on BNC (M) connectors type BCP-A3.

Application:

  • HD/SD-SDI video
  • PAL and NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Patch cables for video

Cable Specifications:

  • Sheath diameter (overall diameter) in mm: 5.5
  • Cable weight in kg/100 m: 4.5
  • Medium conductor - number and diameter of cores in mm: 7/0.18
  • Total diameter of the middle conductor in mm: 0.54
  • Foam dielectric - diameter in mm: 3.1
  • Resistance of the middle conductor in ohms/100 m: 10.5
  • Resistance of outer conductor in Ohm/100m: 1.9
  • Static capacitance in pF/m: 67
  • Attenuation in dB/100m: 4.5
  • Impedance in ohms: 75

Connector specifications: - mains connector, - mains connector:

  • Tensile strength in kg: >24.9
  • Insulation resistance at 500 V DC in Ohms: 24.5 mm: >1000M
  • Rated voltage for 1 min: 1500 V AC (effective value)
  • Center contact resistance: 1.5 mm: <6m ohms
  • External contact resistance: contact strength: <3m ohm
  • Impedance in ohms: 75
  • Connector body - material/surface : brass/nickel
  • Center contact - material/surface: brass/gold
  • Outer contact - material : Beryllium copper
  • Dielectric - material : Material - polytetrafluoroethylene PTFE
  • Crimp sleeve - material/surface: copper/tin

Maximum transmission distance depending on video format
Data transfer rate 143 Mbps 177 Mbps 270 Mbps 360 Mbps 540 Mbps 1.5 Gbps
Specifications SMPTE 259M ITU-R BT.601 SMPTE 259M SMPTE 259M SMPTE 344M SMPTE 292M
Use Composite NTSC Composite PAL Composite 4:2:2 Component 4:2:2 16x9 SDI HD-SDI
Model m m m m m m
L-3C2VS 241 218 174 150 120 46

Parameters

Parameters

Manufacturer: Canare
Category: SDI cables

Main parameters

Cable typeSDI
Length3m
VersionFlexible
Connector typeBNC - BNC
Male / FemaleMale - Male
Cable diameter5.5mm
ColourRed
Connector shapeDirect
Impedance75 Ohm
