Canare L-2.5CHD metráž
SKU: CNRL25CHD
Canare L-2.5CHD -75 ohm Digital Video Coaxial Cable Super Low Loss Coax (Highly-Foamed PE Insulation)
1.33 € with VAT
1.1 € without VAT
Personal pickup: 23. 04. from 09:00
Shipment day: 23. 04.
Shipment day: 23. 04.
In stock 395 m
Praha 395 m, Bratislava 20 m
Praha 395 m, Bratislava 20 m
Top accessories for Canare L-2.5CHD metráž
Canare CB02 Connector Boot for 75 ohm BNC Crimp Plugs/Video Patch Cord Yellow
0.36 €
In stock > 5 pcs
Product description
Product description

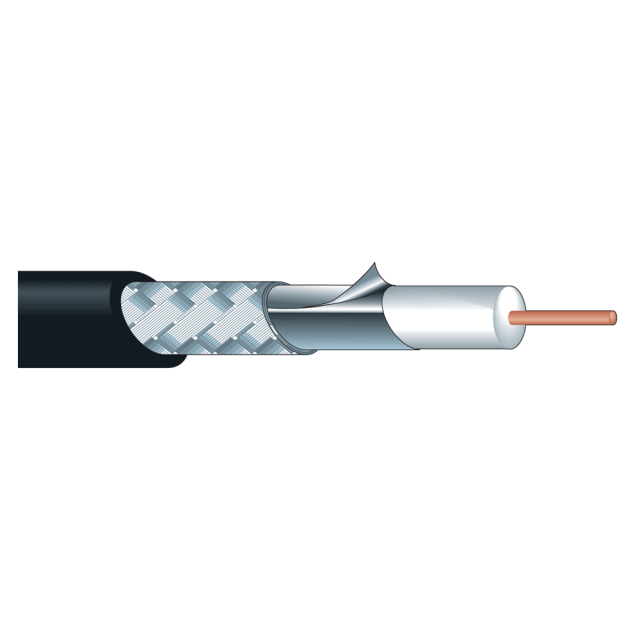

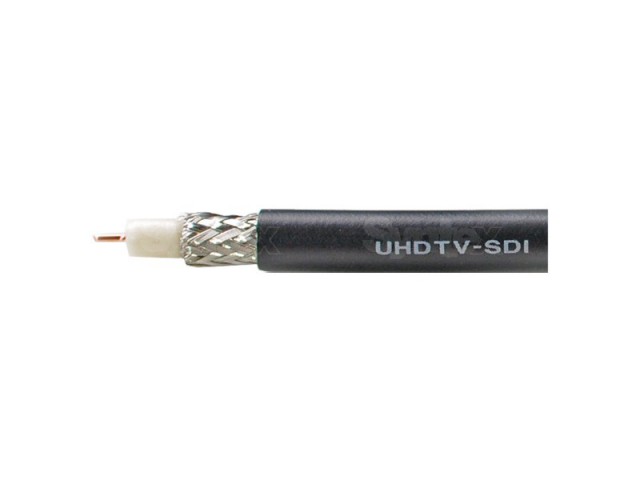

Canare L-2.5CHD -75 ohm Digital Video Coaxial Cable Super Low Loss Coax (Highly-Foamed PE Insulation)
Canare L-2.5CHD - Canare's variety of 75 ohm coaxial cables support full-range of video formats. Our cutting-edge Supper Low Loss Coax and Low Loss Coax are ideal for 3G-SDI / HD-SDI distribution.
Applications:
- HD-Serial Digital Video
- Satellite Head Ends
- HDTV Upgrades
- Broadband Facilities
- SMPTE 259M, 292M,424M
Features
- Best suited to 3G-SDI / HD-SDI transmission.
- Highly-foamed PE insulation allows further improvement in the attenuation characteristics.
- Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength.
- Tinned copper braid with aluminum foil brings excellent shielding.
- L-2.5CHD is ideal for internal rack wiring.
- Flame resistance UL 1666 Riser (L-2.5CHD, L-4CHD, L-4.5CHD, and L-5CHD)
| MECHANICAL SPECIFICATIONS | ||||||
| Model | Std. Lng. ft. (m) |
Nom. O.D. in. (mm) |
Wt Std. Lng. lbs (kgs)/100m |
Inner Cond Conductor Comp. (AWG) Q'ty/mm |
Inner Cond O.D. in. (mm |
Insulation O.D. in. (mm) |
| L-2.5CHD | 328 (100) 656 (200) |
0.17 (4.2) |
3.97 (1.8) |
(23) 1/0.59A |
0.02 (0.59) |
0.10 (2.59) |
| (contd.) MECHANICAL SPECIFICATIONS | ||||||
| Model | Outer Conductors Shield Coverage & Comp. |
Inner Cond. Resistance (ohm/km) |
Outer Cond. Resistance (ohm/km) |
Static Capacity (pF/m) |
Characteristic Impendence ohm |
Attenuation dB/100m(328ft) 750MHz) |
| L-2.5CHD | 0.14TCCA/6/16 (95% or more) |
(66.9) | (21.5) | 53 | 75 | 30.2 |
