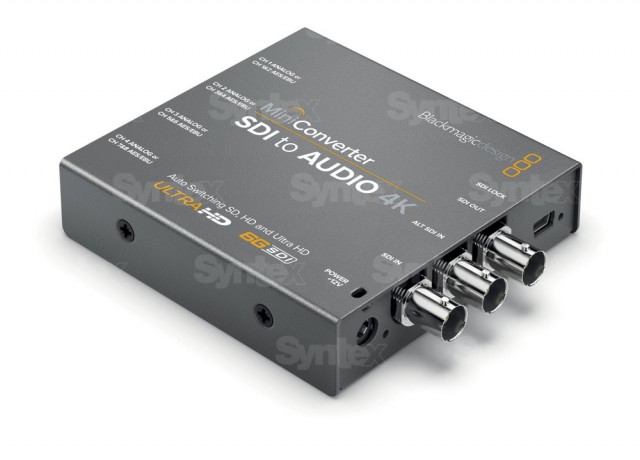

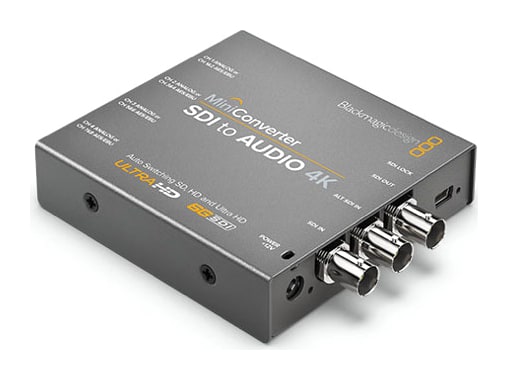

Blackmagic Design Mini Converter SDI to Audio 4K
SKU: CONVMCSAUD4K
Blackmagic Mini Converter SDI to Audio 4K de-embeds audio from an SDI signal in formats up to Ultra HD and 4K DCI to separate outputs. From a 6G-SDI line it provides up to 4 channels of balanced analog audio or 8 channels of digital AES/EBU for mixing desks, audio monitors, recorders and other studio equipment.
409 € with VAT
338.02 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 2 pcs
Praha 2 pcs, Bratislava 1 pcs
Praha 2 pcs, Bratislava 1 pcs
Top accessories for Blackmagic Design Mini Converter SDI to Audio 4K
Canare L-2T2S XLR (M) / JACK TRS (M) 2 m, BLK
Assembled microphone cable, Canare L-2T2S, 2 m long, terminated with XLR (M) and
20 €
In stock 3 pcs
Blackmagic Design Power Supply - Mini Converters 12V12W Locking
Power supply 12 V / 12 W for the converters of the Blackmagic Mini Converters range
31 €
Backordered 2 pcs
Blackmagic Design Power Supply - Converters 12V10W
Power supply 12 V / 10 W for the converters of the Blackmagic Mini Converters range
69 €
In stock 1 pcs
Infinitek L-3.3CUHWS 1m FLEX 12G-SDI cable BNC-BNC
Coaxial cable specially designed for mobile 12G-SDI applications with excellent resistance
20 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Blackmagic Mini Converter SDI to Audio 4K de-embeds audio from an SDI signal in formats up to Ultra HD and 4K DCI to separate outputs. From a 6G-SDI line it provides up to 4 channels of balanced analog audio or 8 channels of digital AES/EBU for mixing desks, audio monitors, recorders and other studio equipment.
4K SDI audio to outputs
Get the audio from a 6G-SDI line on separate analog outputs or AES/EBU. The converter helps with monitoring, metering and passing audio to a mixing desk in Ultra HD and 4K DCI production.
6G-SDIUltra HD4× analog8× AES/EBUPower supply included
4 analog or 8 AES/EBU channels
Each of the four jacks carries one analog channel or a pair of AES/EBU channels. Audio is output at 48 kHz and 24 bit.
Mixing desks
Bring SDI audio into the sound control room.
Monitoring and metering
Connect audio monitors or metering equipment.
Analog recorders
Record the program audio on an analog recorder.
Loop output
The SDI signal continues on unchanged.

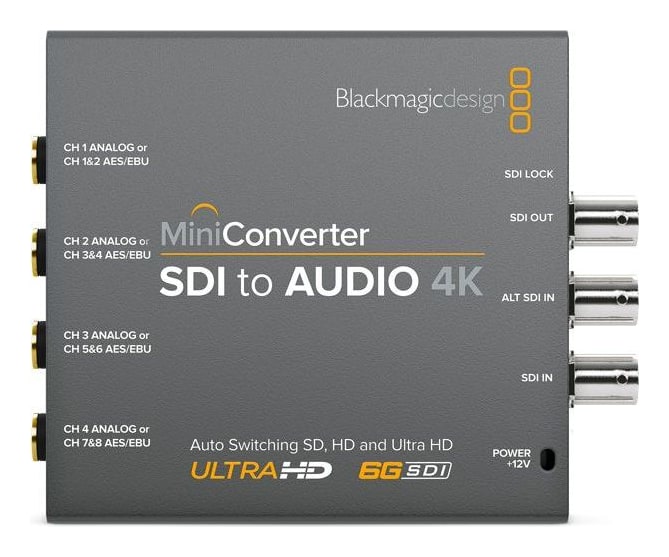

Four analog channels or eight AES/EBU
The converter de-embeds up to 4 channels of balanced analog audio or up to 8 channels of digital AES/EBU from the SDI signal. Each of the four jacks carries either one analog channel or a pair of AES/EBU channels (1 and 2, 3 and 4, 5 and 6, 7 and 8).

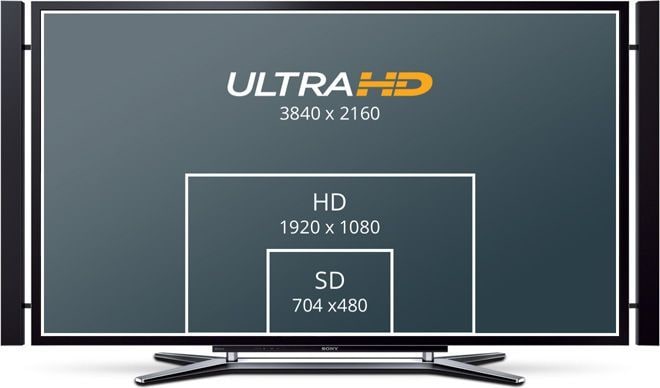

From SD to Ultra HD
The multi-rate 6G-SDI input detects SD, HD, 3G and 6G-SDI automatically and works with SD, HD, 2K DCI, Ultra HD up to 2160p30 and 4K DCI up to 25p.
SDI loop output
The SDI input signal continues through the reclocked loop output to further equipment, so the converter can be inserted into a route without interrupting it. Meanwhile the audio becomes available to the sound control room.

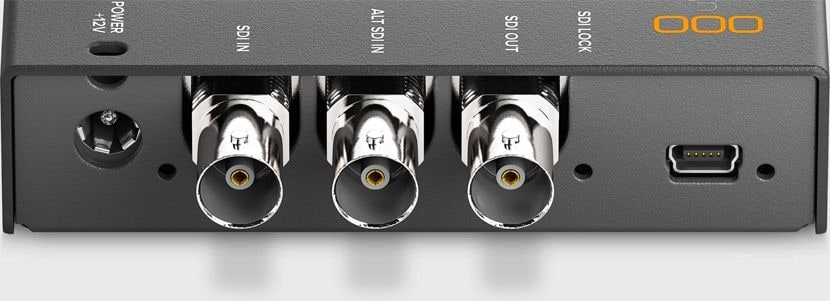

Redundant SDI input
In addition to the main SDI input, the converter has a redundant ALT SDI input. If the main signal is lost, for example when a cable is damaged, the converter automatically switches over to the redundant input and the audio outputs keep working.

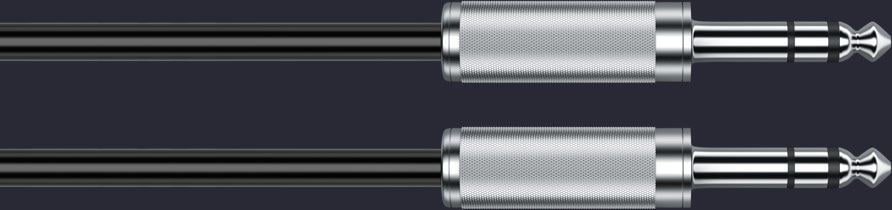

Standard jack connectors
The audio outputs use standard 1/4 inch jacks, so no custom cables are needed. Audio is output at 48 kHz and 24 bit according to the television standard.

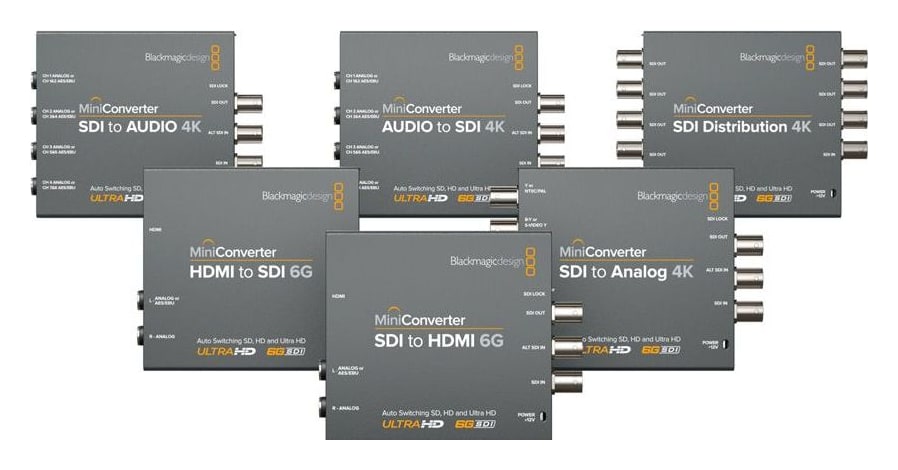

6G-SDI Mini Converter range
The 4K model is designed for Ultra HD production; for SD and HD up to 1080p60 the more affordable Mini Converter SDI to Audio is enough. Both models have the same audio connections and the same setup with mini switches.
Setup with mini switches or over USB

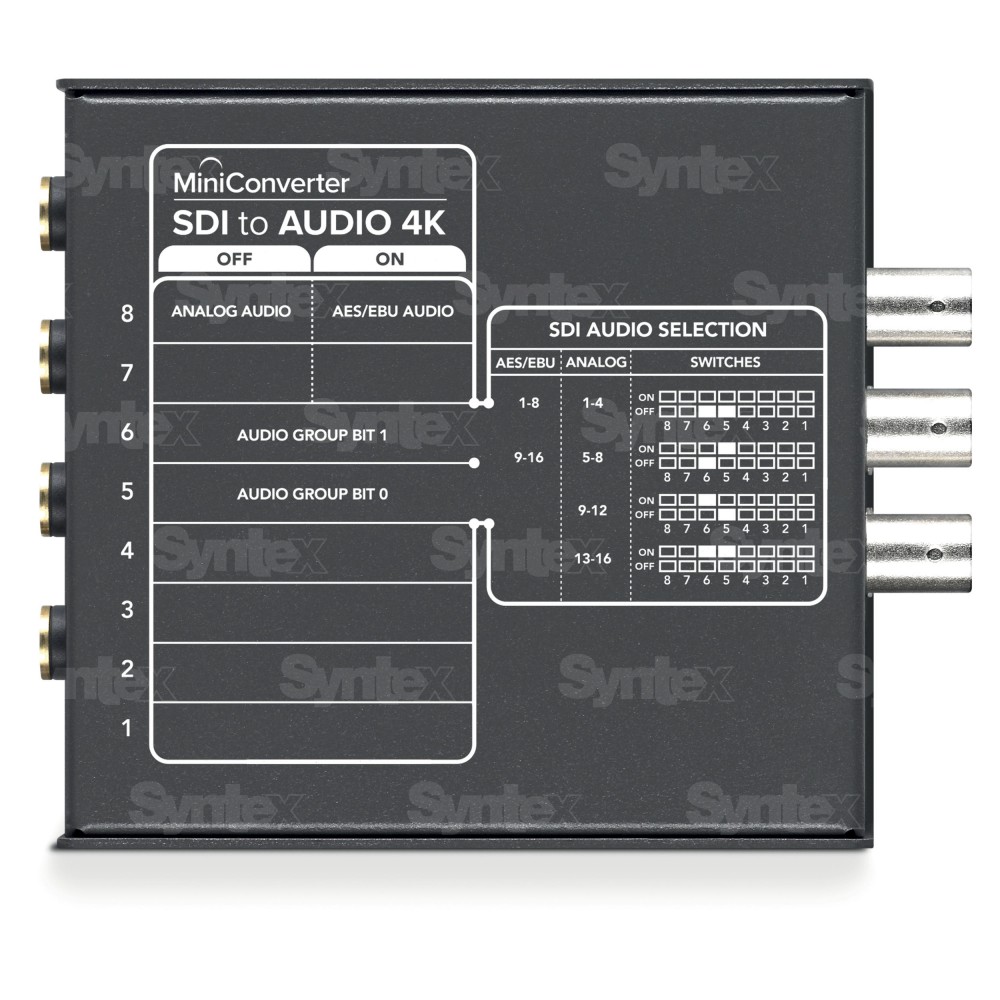

Functions are selected with mini switches using the diagram printed on the converter: analog audio or AES/EBU and the channel group in SDI that the audio comes from. Over USB and the utility for macOS and Windows, settings can be changed from a computer and new software installed.

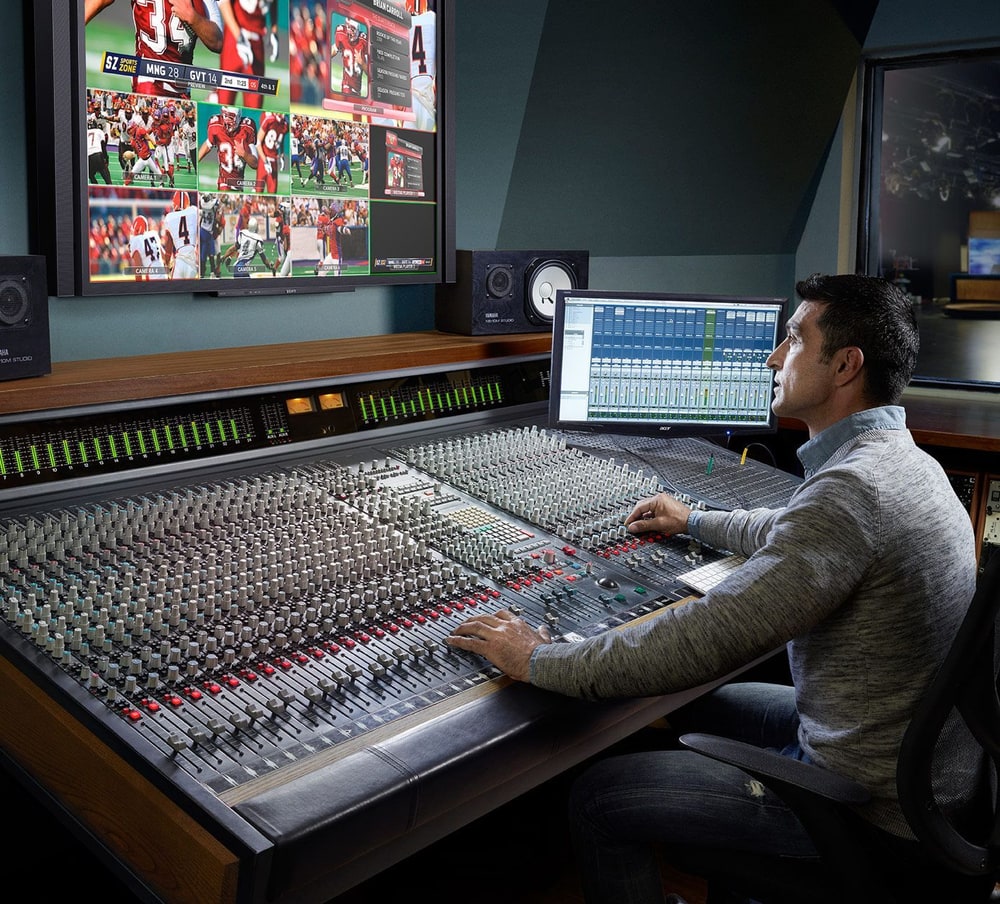

For the sound control room and the studio
The Mini Converter range of converters is built for 24/7 operation: the compact metal body fits into a rack in the sound control room, in the studio or in an outside broadcast truck. The connections are easy to reach and use standard cables.

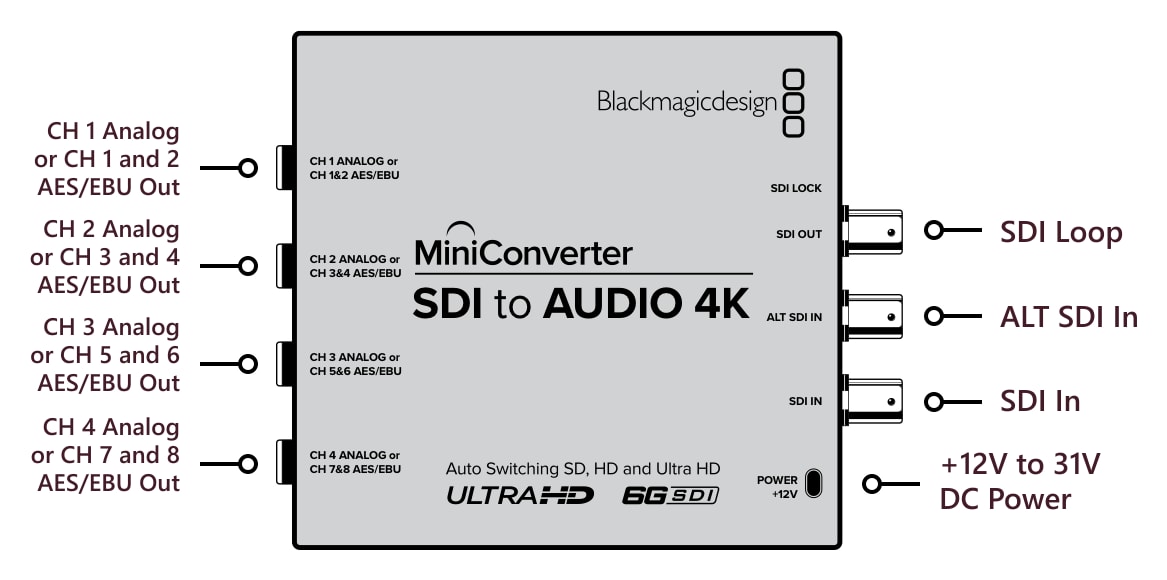

Connections
One side has four audio jacks (each for one analog channel or a pair of AES/EBU channels), the other the SDI input, the redundant ALT SDI input, the SDI loop output and the power input.
More information
About the Mini Converter range
The Mini Converter range is designed for professional broadcast, post-production and AV installations. A compact metal chassis, high-quality connectors and standard cabling make it dependable in studios, control rooms and mobile systems.
Core settings are selected with mini switches using the diagram printed on the unit, while USB is used for configuration and updates. The converter handles supported formats automatically and keeps picture and sound stable throughout the signal chain.
PACKAGE CONTENT
- Mini Converter SDI to Audio 4K
- Universal 12 V power supply with international socket adapters
SPECIFICATIONS
- Conversion: audio de-embedding from SDI
- SDI inputs: 1× SD/HD/6G-SDI and 1× redundant SDI input (ALT SDI)
- Redundant SDI input: automatically switches over if the main input is lost
- SDI output: 1× SDI loop output
- Analog audio outputs: 4 channels of balanced analog audio, 1/4 inch jack
- Digital audio outputs: 8 channels of AES/EBU (a channel pair on each jack)
- Auto detection: SD, HD, 3G-SDI, 6G-SDI
- SD standards: 525i59.94 NTSC, 625i50 PAL
- HD standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K standards: 2K DCI 23.98p, 24p, 25p, 2K DCI 23.98PsF, 24PsF, 25PsF
- Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K DCI standards: 4K DCI 23.98p, 24p, 25p
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, ST 2081, ITU-R BT.656 and BT.601
- SDI sampling and color space: 4:2:2 and 4:4:4, YUV and RGB
- Audio sampling: 48 kHz, 24 bit
- Reclocking: yes
- Settings control: mini switches or USB software
- Software updates: via USB from a Mac or Windows computer
- Operating systems: macOS 10.15 Catalina, macOS 11.1 Big Sur or later, Windows 10 (64-bit)
- Power supply: universal 12 V with international socket adapters, cable tie point
- Operating voltage: 12–31 V DC
- Power consumption: 5.52 W
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90% non-condensing

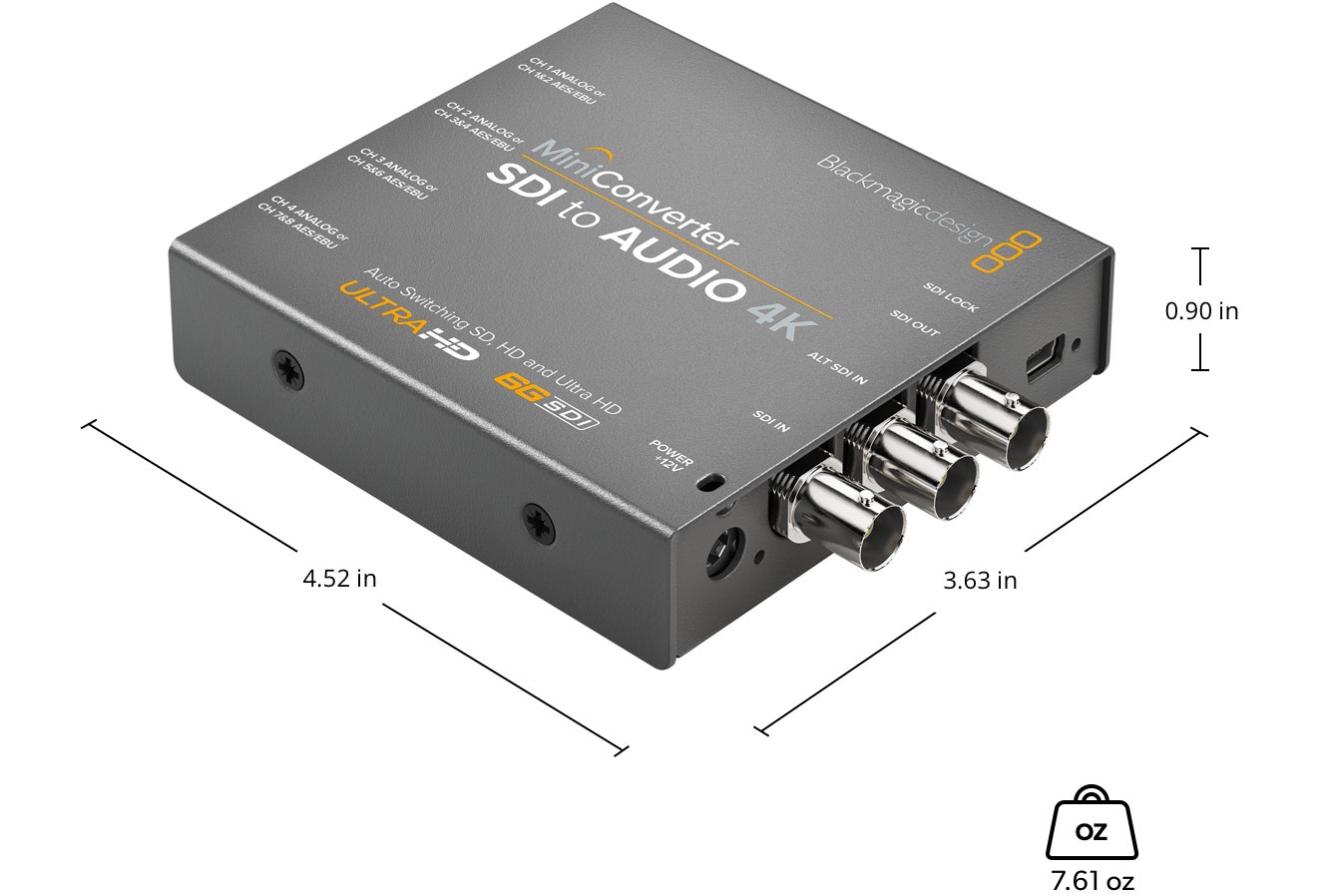

- Dimensions (L × W × H): 4.52 × 3.63 × 0.90 in (115 × 92 × 23 mm)
- Weight: 7.61 oz (216 g)
- Warranty: 3-year limited manufacturer warranty
Parameters
Parameters
| Manufacturer: | Blackmagic Design |
| Category: | Signal converters |
Main parameters
| Other features | SDI LOOP · Audio output · auto format adaptation |
| Source | SDI · 6G SDI |
| Target | Audio |
