Blackmagic Design DeckLink 4K Extreme 12G - Quad SDI

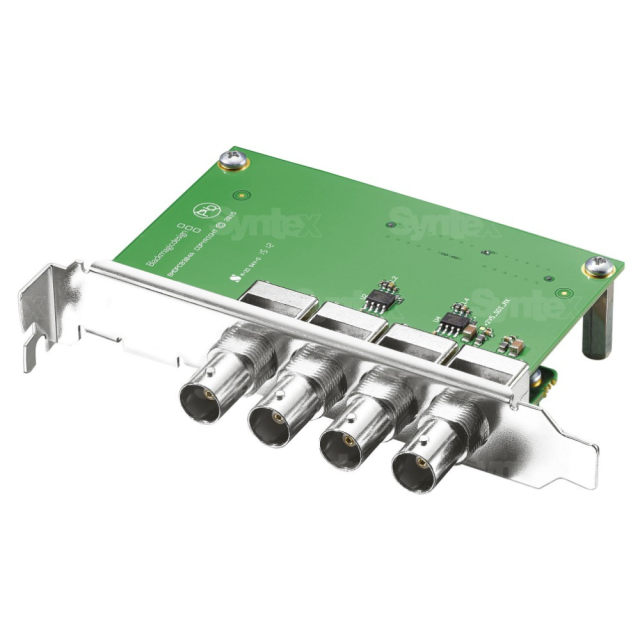

DeckLink 4K Extreme 12G – Quad SDI is a mezzanine card that lets you connect older Ultra HD and 4K equipment using quad link 3G-SDI to the DeckLink 4K Extreme 12G card. It replaces the HDMI mezzanine card that comes standard with DeckLink 4K Extreme 12G. You can easily swap the card yourself and, once installed, capture or play back video over quad link 3G-SDI straight away. In addition to quad link 3G-SDI it adds a built in hardware down converter for outputting 1080p60 from 12G-SDI 2160p60 sources.

Quad link SDI for older 4K equipment

Fast 12G-SDI and four 3G-SDI connectors on one card – older monitors, recorders and digital cinema projectors with quad link stay in service.

Quad link 3G-SDI4× BNC2160p60 → 1080p60For 4K Extreme 12GUser replaceable

A bridge between 12G-SDI and quad link

With this mezzanine card, DeckLink 4K Extreme 12G has both fast 12G-SDI connectors for new equipment and four 3G-SDI connectors for devices that carry Ultra HD and 4K over four cables.

Quad link 3G-SDI

Ultra HD and 4K capture and playback over four 3G-SDI links.

Down conversion to HD

Hardware conversion of 2160p60 from the 12G-SDI inputs to 1080p60.

12-bit RGB

12-bit RGB 4:4:4 up to 2160p30 and keying in 1080p60.

DaVinci Resolve

Monitoring on older monitors and digital cinema projectors.

Replaces the HDMI mezzanine card

The card fits in place of the HDMI mezzanine card that DeckLink 4K Extreme 12G includes as standard (pictured). You can swap it yourself; the card works only with the DeckLink 4K Extreme 12G card and requires Desktop Video 10.4.1 or later, which also adds Deep Color support.
