BLACK LION AUDIO PBR TRS - patchbay 2x24 TRS

patchbay 2x 24 TRS, 48 connection points, gold-plated connectors, high reliability, long lifetime

More information

275.28 € with VAT 227.5 € without VAT
-+
Personal pickup: 23. 04. from 09:00
Shipment day: 23. 04.
In stock 1 pcs
Praha 1 pcs
Product description

Product description

patchbay 2x 24 TRS, 48 connection points, gold-plated connectors, high reliability, long lifetime

professional studio patching panel with TRS 6.3 mm connectors, 48 connection points, high reliability and long life

  • patch panel with TRS 6.3 mm connectors
  • 48 connection points
  • full-Normal and Half-Normal mode switching
  • connectors with gold-plated contacts
  • high mechanical resistance and reliability
  • long service life

Your high-quality studio and home instruments require a high-quality connection. Black Lion Audio has been dedicated to ultimate sound quality for years. That's why it is bringing new PBR patchbays to market - interconnect panels for use in the studio as well as in theaters and other professional sound installations.

Each PBR patchbay uses high-quality metal connectors with gold-plated contacts. This ensures highly reliable interconnection of your equipment. The black anodized aluminum front panel and metal body gives the PBR series patchbays a sleek sophisticated look and, together with the robust connectors, ensures mechanical durability and long life.

PBR TRS

is a patchbay designed to connect devices and cabling using TRS 6.3 mm (large symmetrical jack) connectors. High quality symmetrical patch cables or standard symmetrical TRS cables can be used for interconnection. The patch panel is designed in a 19" 1U format.

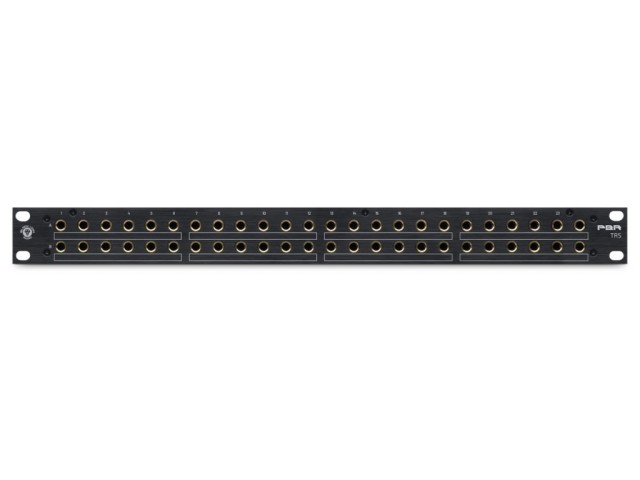

front panel
The TRS patchbay has 48 TRS 6.3 mm connectors on the front panel in two rows A and B (2x24) labeled 1 - 24. For clarity, they are graphically grouped in groups of six with a field for description. The aluminium front panel is fitted with side brackets for installation in a 19" rack.

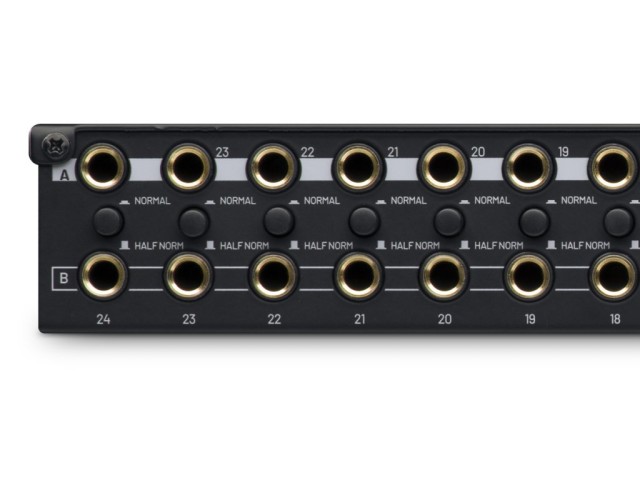

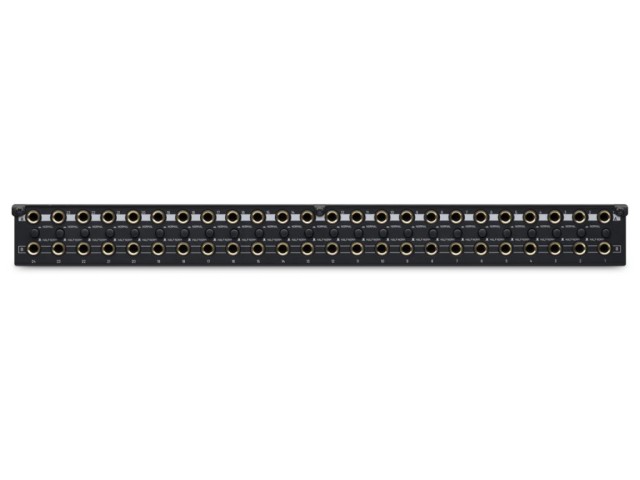

rear panel
Also on the rear panel are 48 TRS 6.3 mm connectors in two rows A and B, which correspond to the connectors on the front panel. A switch allows you to set the Full-Normal or Half-Normal mode for each pair of A-B connectors.*

features:

  • number of connectors: 2x 48
  • connector type: TRS 6.3 mm - gold-plated contacts
  • number of connection points: 48
  • mode switching: Full-Normal and Half-Normal*
  • anodized aluminium front panel
  • robust metal chassis
  • high mechanical resistance and reliability
  • long service life
  • dimensions: 48.5 x 4.5 x X cm (W x H x D)
  • width, height: 19", 1U
  • weight: X kg

-------------------------------------------------------------------------------------

*Connector connection modes:

In most cases, it is useful to use the upper A row for outputs and the lower B row for inputs.

Full-Normal mode
the rear A-B connectors are connected - the output is connected to the corresponding input.
Front panel: If a cable is inserted into either connector, the connection is broken.

Itis ideal for e.g. connecting a paired cable to the inputs of a mixing console.

Half-Normal mode
the rear connectors A-B are connected - the output is connected to the corresponding input.
Front panel: When the cable is plugged into the top connector A the connection remains, when the cable is plugged into the bottom connector B the connection is broken.

It is suitable for branching the signal to multiple inputs - the output of an effects processor to mix and listen, bringing the Aux bus to multiple headphone distributors, etc.

Your quality studio and home instruments require a quality connection. Black Lion Audio has been dedicated to the ultimate in quality sound for years. That's why it is bringing to market new PBR patchbays - interconnect panels for use in the studio as well as in theaters and other professional sound installations.

Each PBR patchbay uses high-quality metal connectors with gold-plated contacts. This ensures highly reliable interconnection of your equipment. The black anodized aluminum front panel and metal body gives the PBR series patchbays a sleek sophisticated look and, together with the robust connectors, ensures mechanical durability and long life.

PBR TRS

is a patchbay designed to connect devices and cabling using TRS 6.3 mm (large symmetrical jack) connectors. High quality symmetrical patch cables or standard symmetrical TRS cables can be used for interconnection. The patch panel is designed in a 19" 1U format.

front panel
The TRS patchbay has 48 TRS 6.3 mm connectors on the front panel in two rows A and B (2x24) labeled 1 - 24. For clarity, they are graphically grouped in groups of six with a field for description. The aluminium front panel is fitted with side brackets for installation in a 19" rack.

rear panel
Also on the rear panel are 48 TRS 6.3 mm connectors in two rows A and B, which correspond to the connectors on the front panel. A switch allows you to set the Full-Normal or Half-Normal mode for each pair of A-B connectors.*

features:

  • number of connectors: 2x 48
  • connector type: TRS 6.3 mm - gold-plated contacts
  • number of connection points: 48
  • mode switching: Full-Normal and Half-Normal*
  • anodized aluminium front panel
  • robust metal chassis
  • high mechanical resistance and reliability
  • long service life
  • dimensions: 48.5 x 4.5 x X cm (W x H x D)
  • width, height: 19", 1U
  • weight: X kg

Parameters

Parameters

Manufacturer: Black Lion
Category: Patch panels
