ATOMOS Ultrasync One

Super compact. Lightweight. The flexibility to configure as a transmitter timecode server or as a receiver client device. The battery life allows a run time to easily last the longest shooting day. Integrating the most features to enable advanced timecode and sync options for multicamera workflows. UltraSync ONE is the smallest and most cost-effective, RF-powered…

More information

338 € with VAT 279.34 € without VAT
-+
Availability
on request
Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

Super compact. Lightweight. The flexibility to configure as a transmitter timecode server or as a receiver client device. The battery life allows a run time to easily last the longest shooting day. Integrating the most features to enable advanced timecode and sync options for multicamera workflows. UltraSync ONE is the smallest and most cost-effective, RF-powered wireless timecode and genlock/wordclock solution on the market.

Atomos UltraSync ONE – bezdrátová jednotka časového kódu
ATOMOS ULTRASYNC ONE

Synchronization for Multiple Cameras

UltraSync ONE connects cameras and audio recorders via a shared timecode over the AirGlu RF network. It functions as both a broadcast server and a receiver, providing genlock and word clock in addition to timecode.

39gRF up to 200m25+ hours

Multiple Devices, One Timecode

AirGlu wirelessly synchronizes compatible cameras and recorders up to 200 m away in line of sight. Server or client mode helps precisely align multi-camera footage and external audio during editing.

Síť Atomos AirGlu s UltraSync ONE a monitory Ninja a Shogun

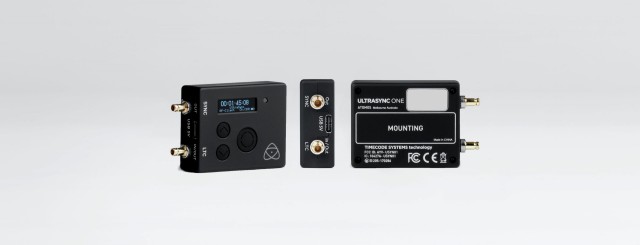

Atomos UltraSync ONE – pohled na přední a zadní panel a konektory

Timecode and Synchronization

Two Mini DIN 1.0/2.3 connectors provide timecode input and output as well as genlock or wordclock output. The unit thus links the video and audio components of a multi-camera setup.

Cables for Specific Setups

The appropriate Mini DIN 1.0/2.3 cable is selected based on the connector on the camera or recorder. The UltraSync ONE can be mounted directly on any device in the setup and assigned server or client mode as needed.

Integration with the Atomos System

Within the Atomos ecosystem, the UltraSync ONE can work with compatible UltraSync BLUE devices and Ninja or Shogun monitors. The specific connection method depends on the supported features of the device in question and the cable used.

Timecode Settings

The 128 × 32-dot OLED display shows status and settings. You can select frame rates of 23.976, 24, 25, 29.97, and 30 fps. The internal oscillator has an accuracy of 0.5 ppm in standalone mode.

Compact Gear for a Full Day

The body measures 55 × 44 × 17 mm and weighs 39 g. The built-in 800 mAh battery provides over 25 hours of operation; it charges via USB-C (5 V). Transmission occurs in the sub-GHz band (865–923 MHz), and available channels vary by region. The UltraSync ONE does not use Bluetooth; it uses AirGlu RF timecode.

PACKAGE CONTENT

  • Atomos UltraSync ONE × 1
  • USB-C charging cable × 1
  • Mini DIN 1.0/2.3 → BNC Cable × 2

SPECIFICATIONS

  • Features: wireless timecode, genlock, and word clock
  • Wireless network: Atomos AirGlu RF, range up to 200 m with line of sight
  • Frequency band: 865–923 MHz, depending on region
  • Connectors: Mini DIN 1.0/2.3 × 2; USB-C for charging
  • Supported fps: 23.976 / 24 / 25 / 29.97 / 30
  • Display: 128 × 32-dot OLED
  • Oscillator: 0.5 ppm in standalone mode
  • Battery: built-in 800 mAh, over 25 hours of operation
  • Power supply: USB-C, 5 V
  • Dimensions and weight: 55 × 44 × 17 mm; 39 g

ARTICLES

Parameters

Parameters

Manufacturer: Atomos
Category: Timecode

Main parameters

Device typeTimecode generator
Wireless syncYes
Battery life25h
Oscillator accuracy0.5ppm
