ATOMOS Shogun AV‑19M

The ATOMOS Shogun AV-19M is a 19-inch rack-mountable 4K HDR hybrid IP and video monitor designed for live production, studio use, and broadcasting.

The Shogun AV-19M is a 19-inch rack-mountable 4K HDR monitor that combines NDI® HX3, 12G-SDI, and HDMI connectivity . It allows you to display a single source in full-screen mode or up to four NDI signals simultaneously in Quad View mode.

Professional on-screen tools, includingEL Zone™ False Color, Focus Peaking, and Waveform, help production teams reliably assess every shot.

The Shogun AV-19M supports both IP monitoring and traditional video monitoring, combining NDI®, 12G-SDI, and HDMI in a single space-saving device. This hybrid approach provides filmmakers and production teams with flexibility when monitoring sources across various workflows.

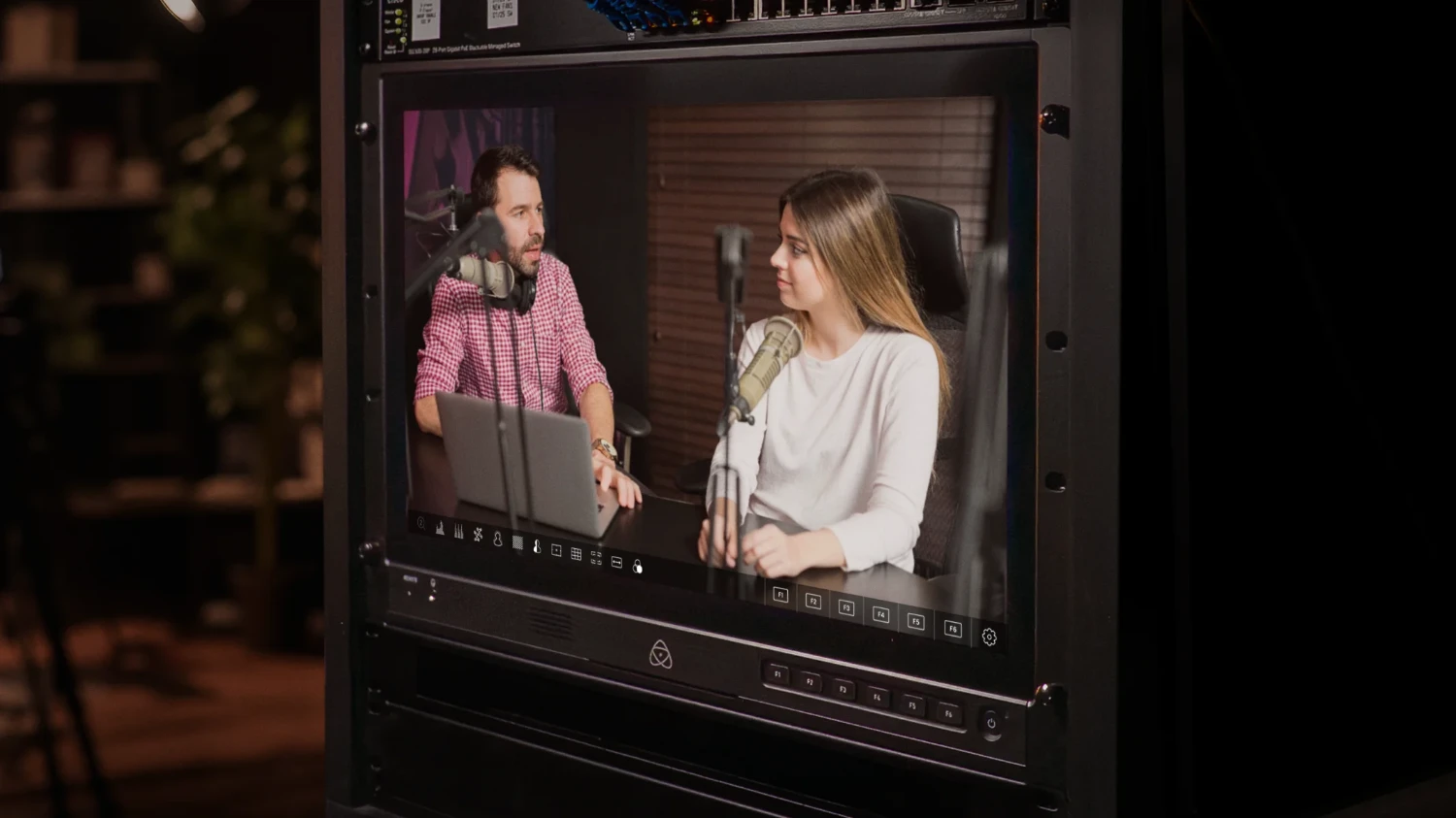

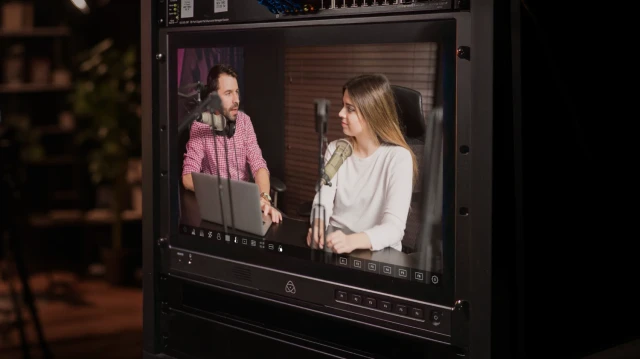

Thelarge 4K HDR touchscreen with DCI-P3 color space coverage provides a detailed and color-accurate preview of every shot. The monitor is therefore ideal for production control rooms, monitoring rooms, OB vans, video villages, and portable flypack systems.

Thanks to its integrated NDI® HX3, the Shogun AV-19M receives high-quality, low-latency video over Ethernet. It allows you to display a single NDI source in full-screen mode or simultaneously view up to four NDI signals in Quad View mode, providing an overview of network video signals.

In addition to its IP capabilities, the Shogun AV-19M also offers 12G-SDI and HDMI input and output for monitoring conventional video signals. Atomos’ comprehensive set of monitoring tools supports precise control over exposure, focus, and composition and includes EL Zone™, False Color, Waveform, Focus Peaking, and other features. Programmable function buttons provide quick access to frequently used functions and allow you to customize the monitor for different roles within a production.

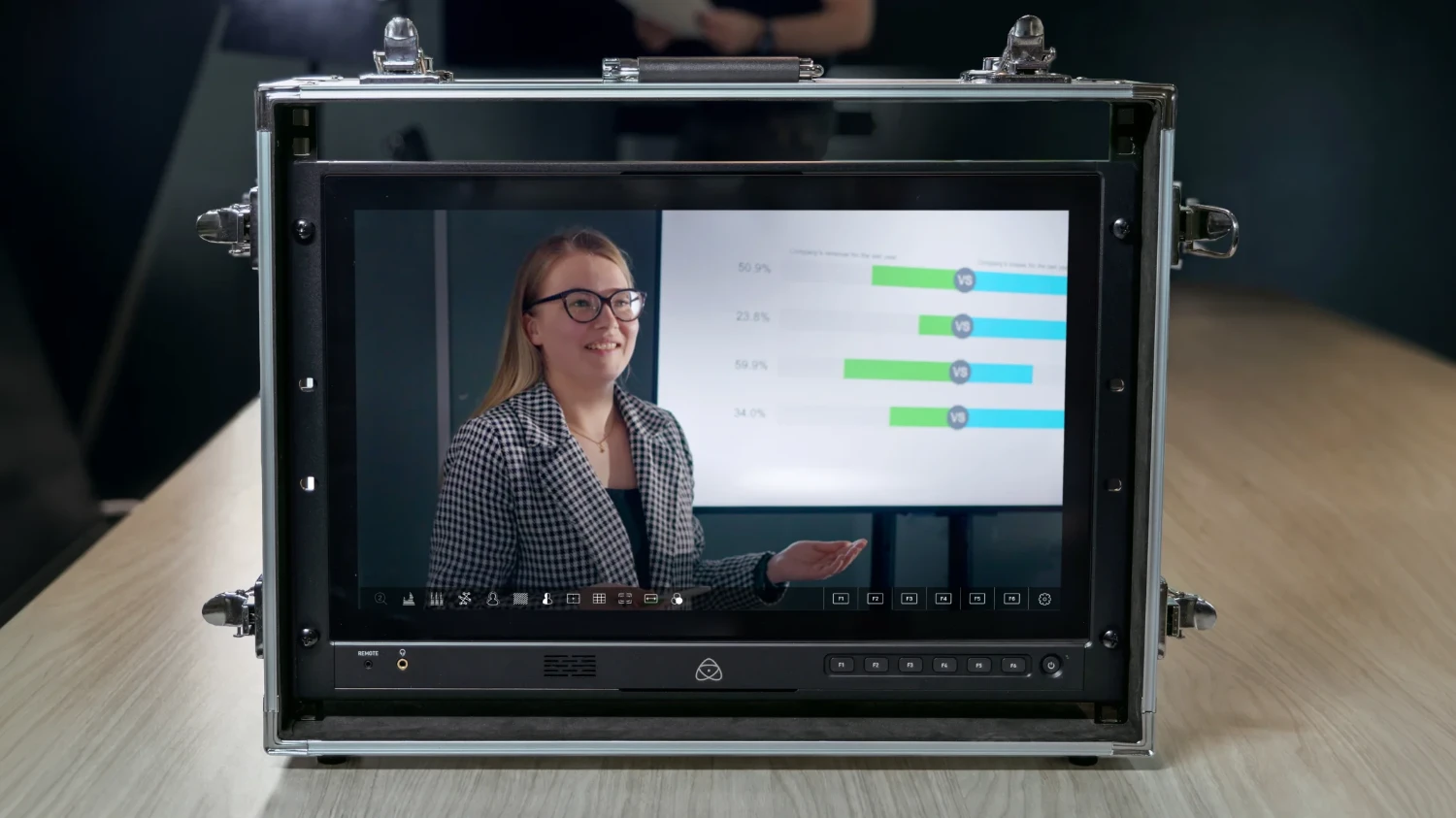

Anoptional custom flypackis also available , providing a practical extension for mobile productions and on-location shoots.

The Shogun AV-19M expands the Atomos lineup with a powerful 19" production monitor and offers flexible multi-camera monitoring within NDI®, SDI, and HDMI workflows in a single rack-mountable unit.

Key Features:

• 19" 4K HDR DCI-P3 touchscreen for rack mounting

• Hybrid NDI®, SDI, and HDMI video monitoring

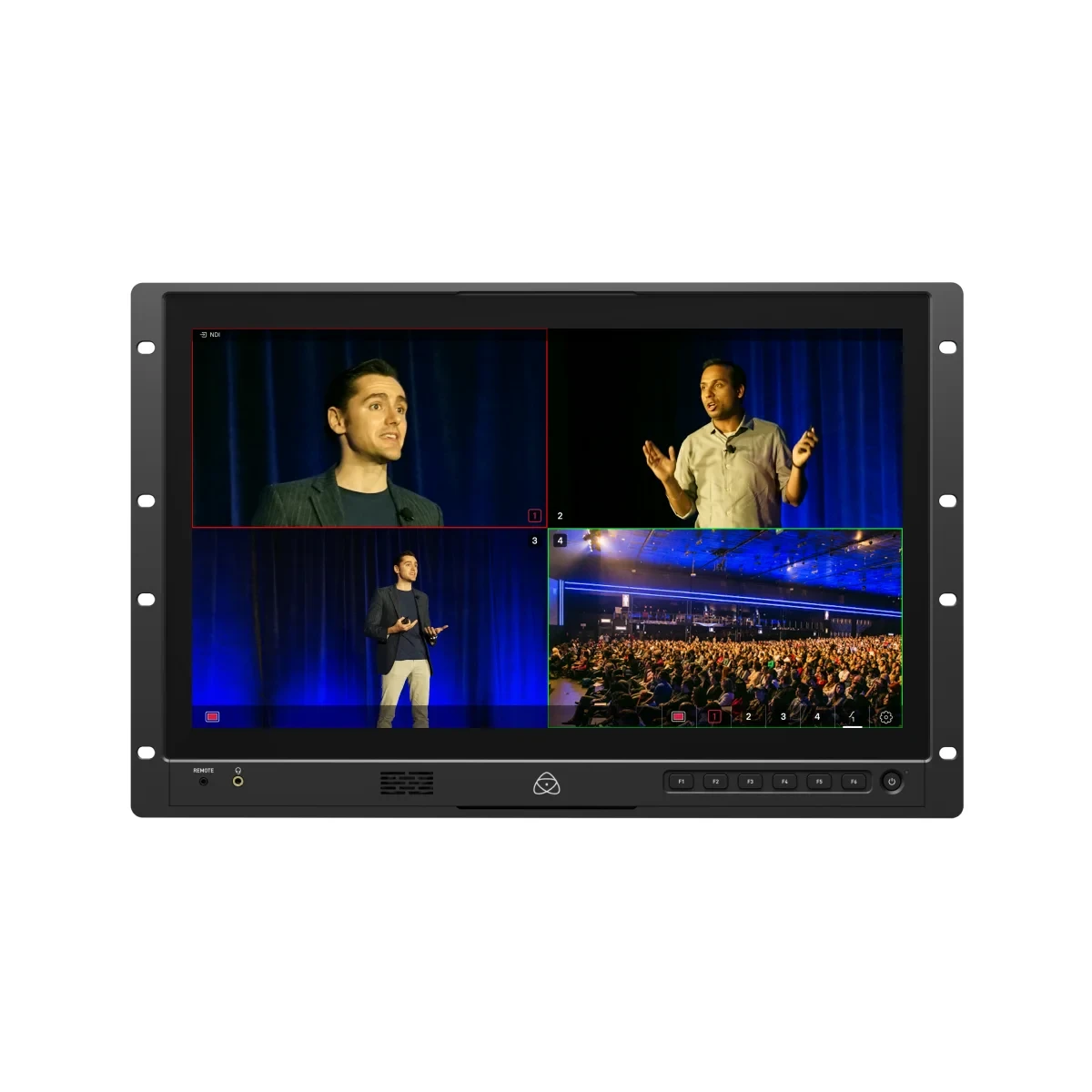

• Full-screen display of a single NDI® HX3 source or up to four NDI sources in Quad View mode

• High-quality, low-latency NDI HX3 video reception over Ethernet

• Full-screen display of a single SDI or HDMI video signal

• Comprehensive set of technical monitoring tools, including EL Zone™ False Color, Focus Peaking, Waveform, and more

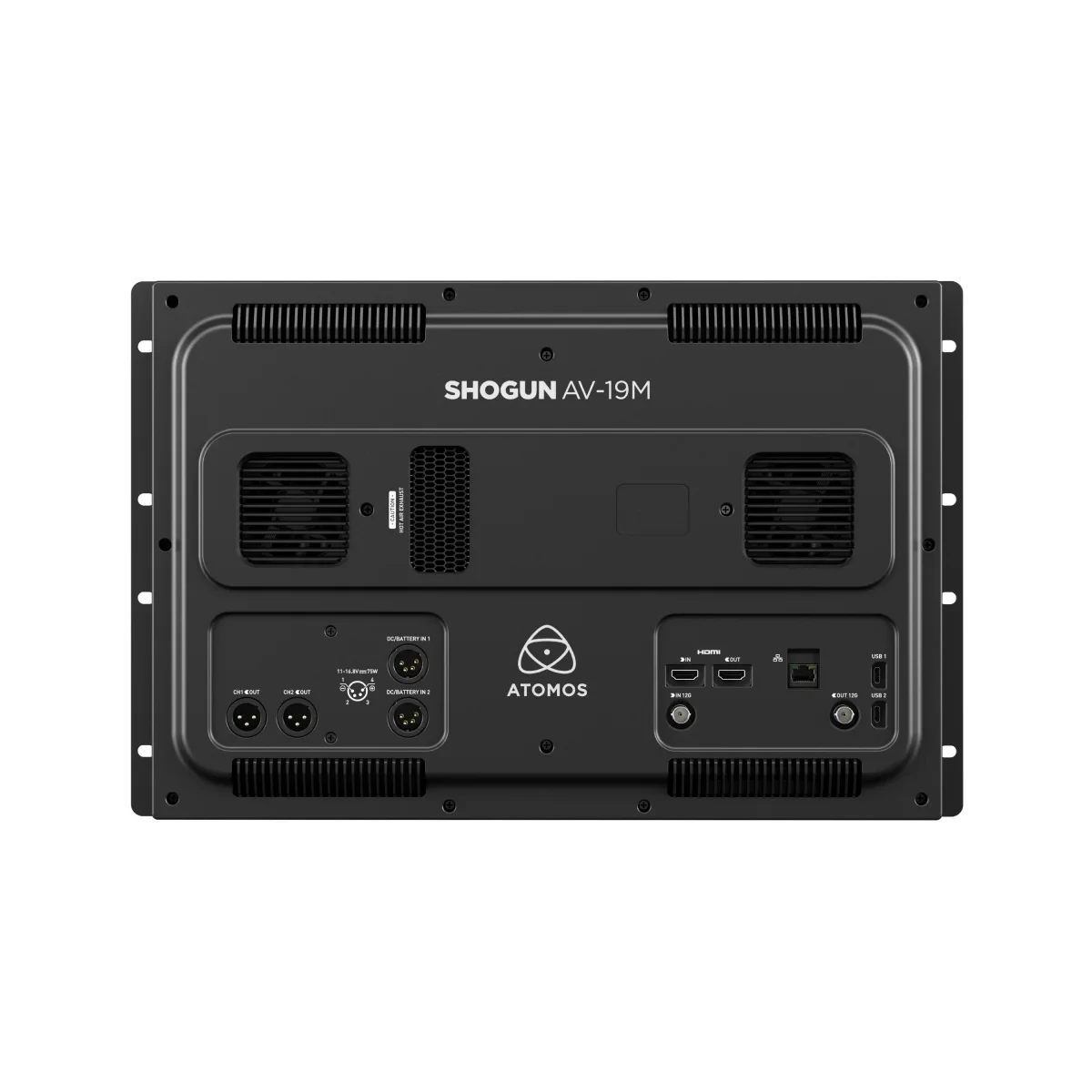

• 1× 12G-SDI input/output, 1× HDMI input/output, XLR audio output

• Programmable function buttons

• Log-to-LUT preview with support for 3D and .cube LUTs

• Optional custom flypack, available separately

Package contents:

• Shogun AV-19M monitor

• Power supply with 4-pin XLR connector

• 5× IEC international power cables

• 10× rack mounting nuts and screws

• Screen cleaning cloth

• Quick Start Guide
