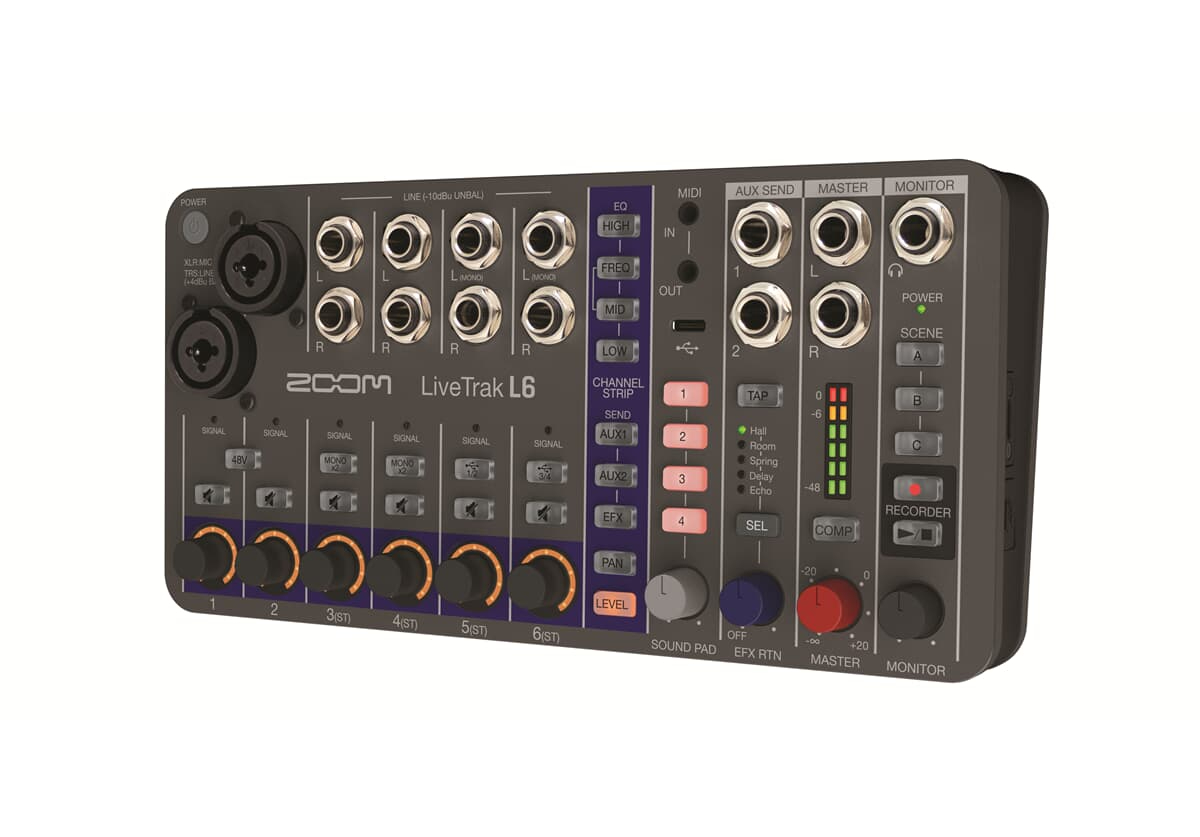

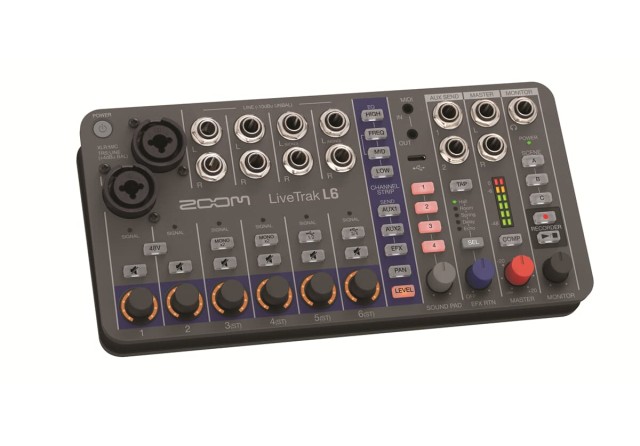

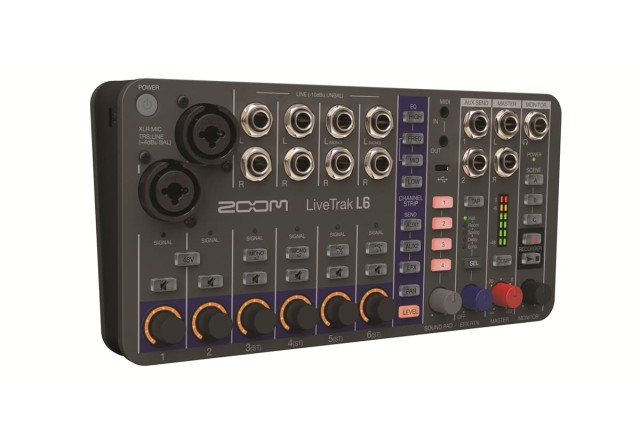

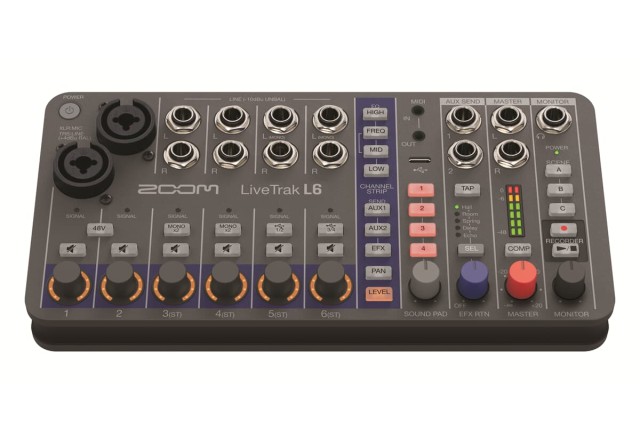

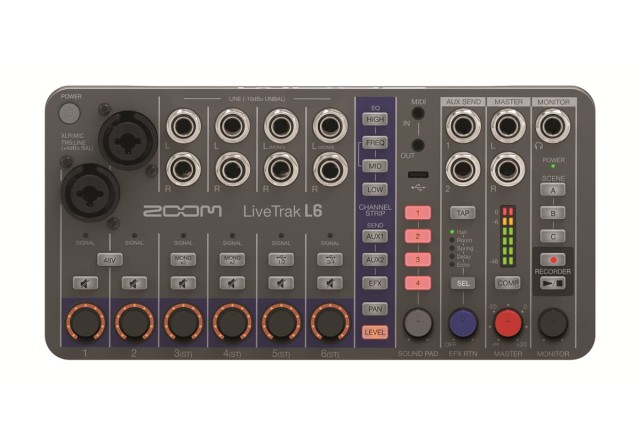

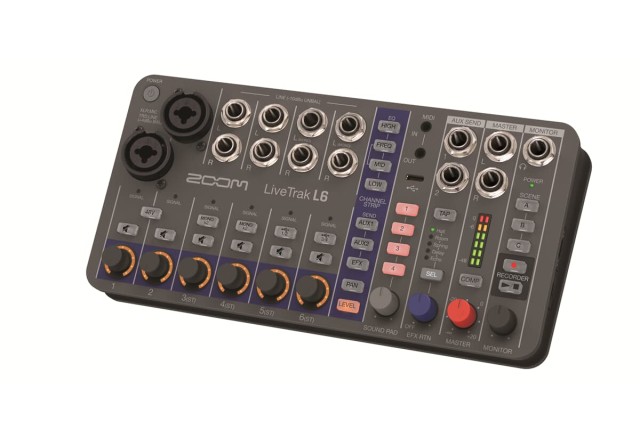

ZOOM LiveTrak L6 10-Track Digital Mixer / Recorder

Small just got very big - The LiveTrak L6 is our most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it’s perfect for bands, synth players, live streaming, and more.

FEATURES

• 10-channel ultra-Compact digital mixer
• 2 XLR/TRS Combo inputs + 4-Stereo inputs
• 12-track simultaneous recording
• MIDI In/Out for mixer control and USB MIDI interface
• 3 Scene memory for storing mixer and tempo setting
• 32-bit float multi-track recording to micro SD card
• 5 Internal Send Effects
• 2 AUX send outputs
• 4 Assignable sound pads (sample player)
• 3-Band EQ with MID freq control for each channel
• Headphone output + Master output
• Eurorack compatible
• 12-in / 4-out Audio interface
• 4 AA battery power operation or USB power

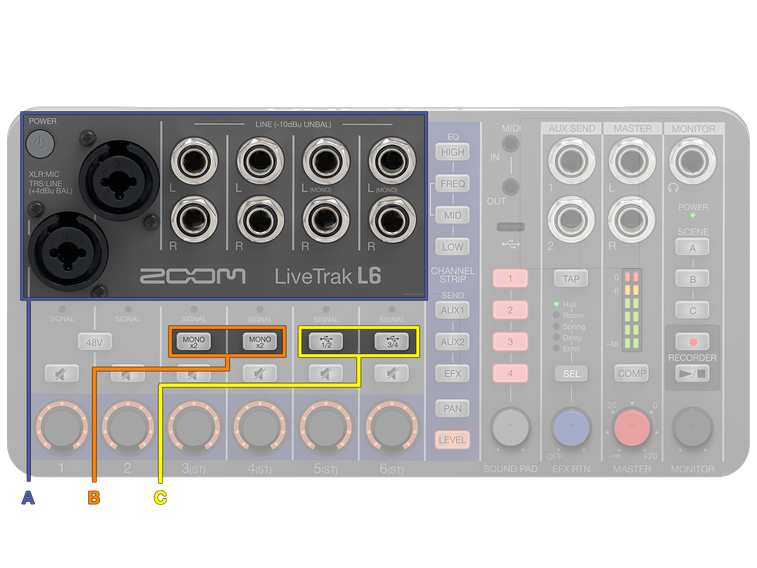

PLENTY OF INPUTS

A. INPUTS | 2 XLR/TRS combo inputs plus 4-stereo ¼” inputs.
B. MONO x2 | Get two additional mono inputs instead of a stereo input.
C. USB RETURN | USB Audio Return for backing tracks and other audio from a laptop.

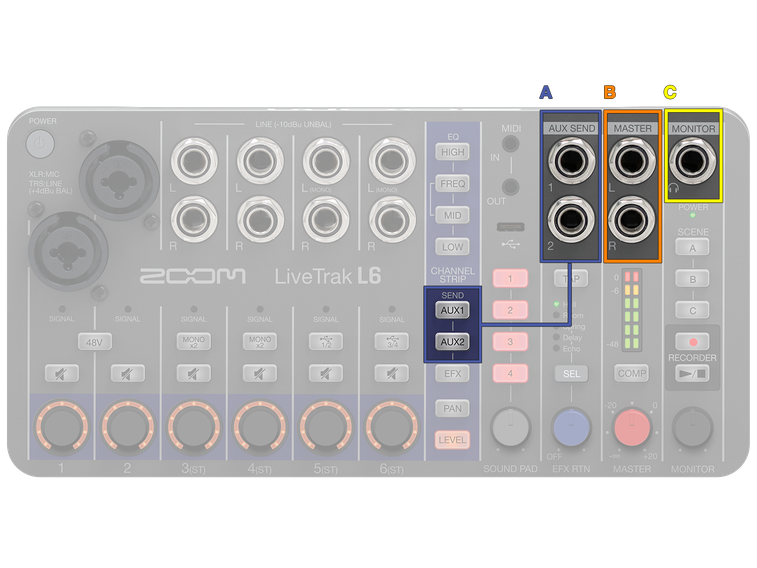

THE RIGHT OUTPUTS

A. AUX OUTPUTS | Send custom mixes to monitors, effects, or external devices.
B. MAIN OUTPUTS | Connect to studio monitors or live speakers
C. HEADPHONE OUTPUT | Headphone output with volume control.

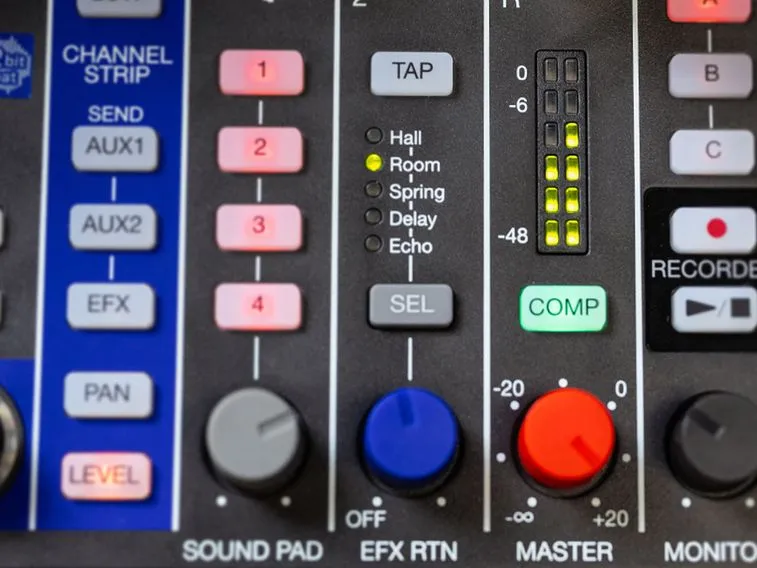

LOADED WITH EFFECTS

Enhance your mix with onboard effects including 3 Reverbs, Delay, and Echo.

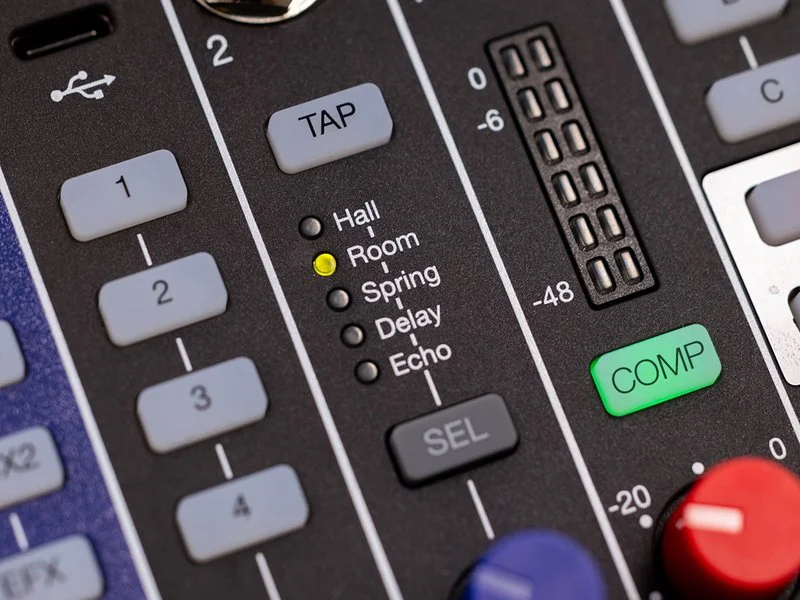

ADVANCED COMPRESSOR

The L6’s main output compressor increases loudness while adding natural saturation. With 32-bit float the audio will never clip, even at high volume.

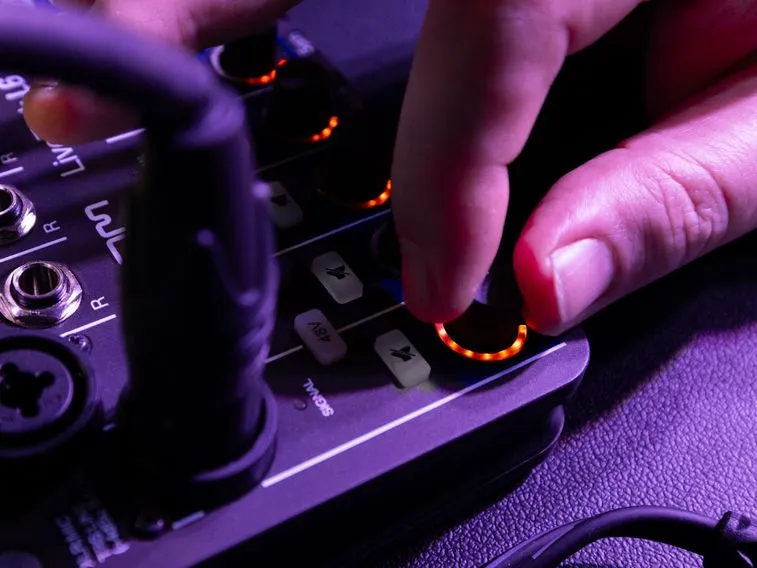

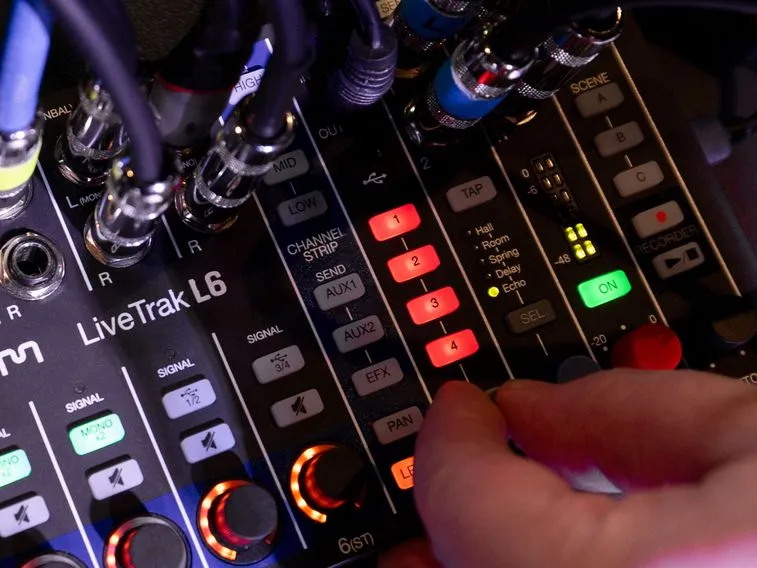

LED CONTROL KNOBS

Adjust levels and parameters quickly and precisely with the LED control knobs.



Specifications

 In- and outputs

Microphone inputs2
Stereo inputs4
Input channels10
Monitor outputs2

 Tracks

Number of tracks12
Number of tracks for simultaneous recording12

 Memory

Storage mediaMicro SD / SDHC / SDXC Card
Maximum capacity storage media1 TB

 Options

Battery mode possibleYes
USBYes
Phantom power supplyYes
Bus-PoweredYes
Audio-InterfaceYes
