Yamaha URX44V Black

The Yamaha URX44V is a professional all-in-one audio and video interface designed for streamers, video creators, and hybrid production setups. In addition to high-quality 32-bit / 192 kHz audio, it features a powerful HDMI-USB interface for capturing and passing through high-resolution video.
With onboard DSP effects, flexible routing, standalone recording, and seamless integration with OBS and Elgato controllers, the URX44V is an ideal solution for streaming, recording, and live content production.

KEY FEATURES

• 32-bit / 192 kHz professional audio quality
• 6-in / 4-out USB-C audio interface with HDMI video support
• HDMI IN / THRU for simultaneous video capture and pass-through
• Video capture and pass-through up to 4K / 60 fps and 1080p / 240 fps
• 4 × combo XLR/TRS inputs with up to 78 dB gain
• Stereo mini AUX input
• Direct monitoring and loopback
• Advanced DSP effects including Ducker, Multi-Band Compressor, Delay (lip-sync)

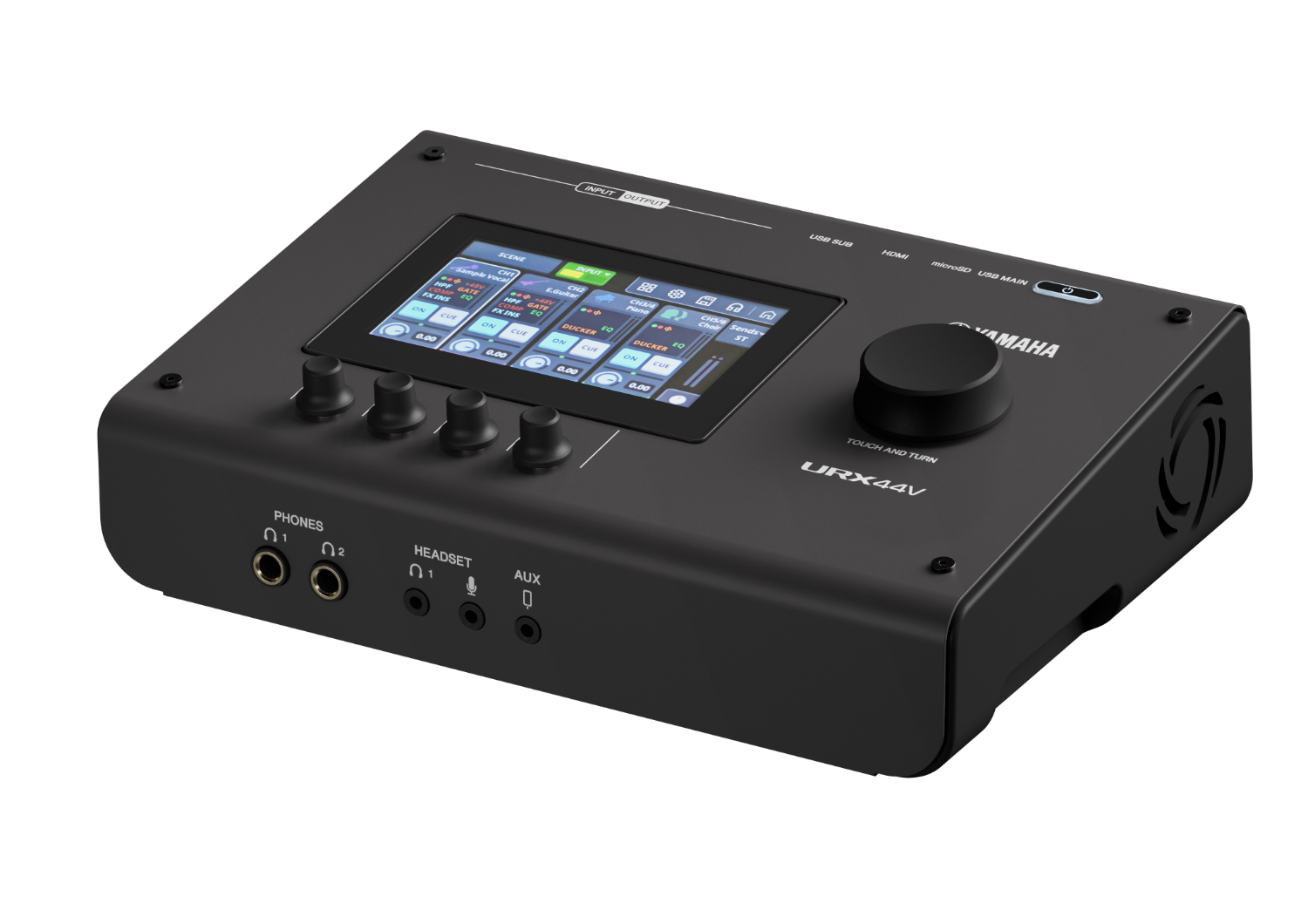

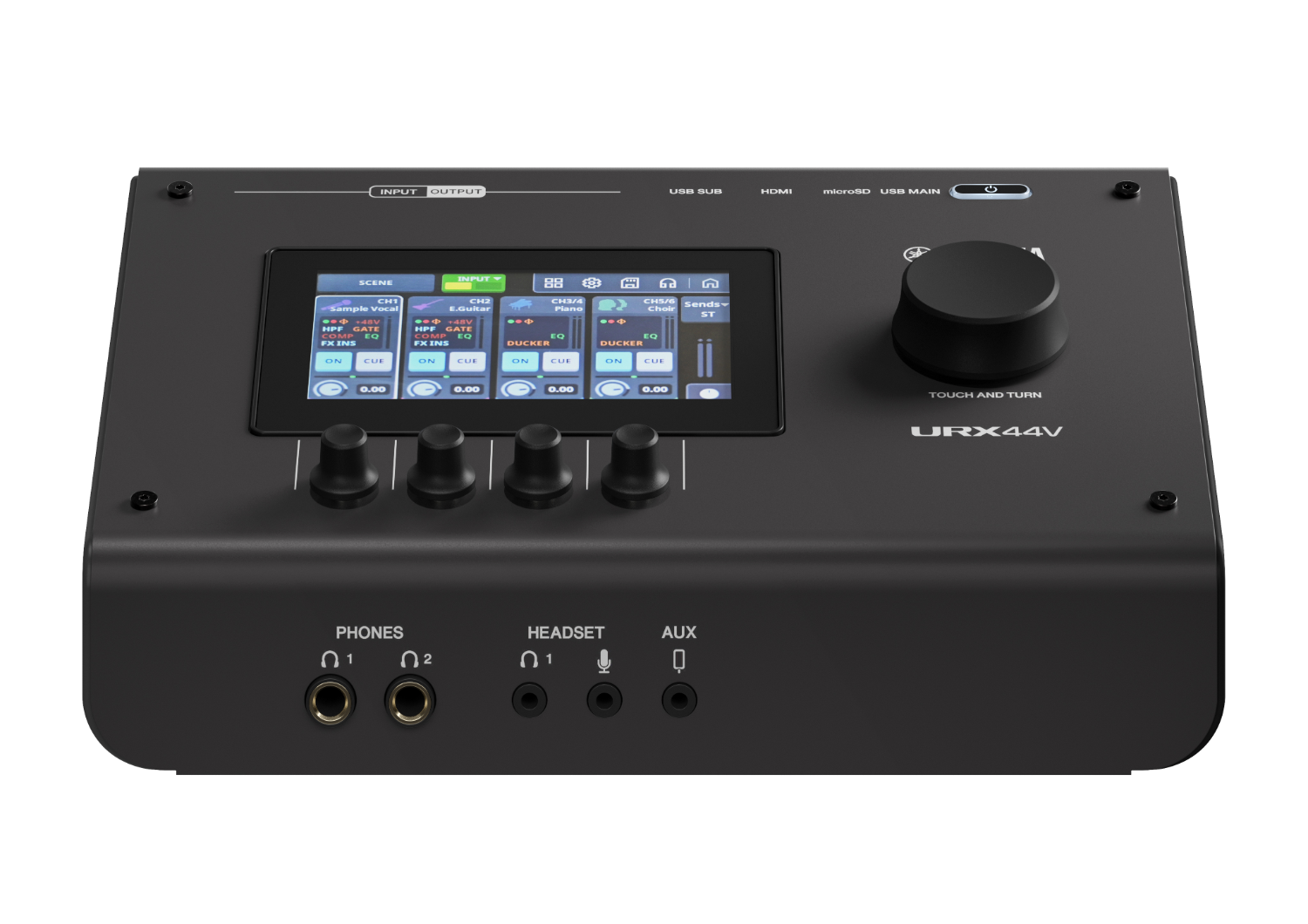

• Touch LCD with intuitive GUI, customizable knobs, and Touch & Turn control
• Scene Recall and Simple Mode for fast configuration changes
• Dual USB routing (MAIN / SUB)
• Standalone recording and playback via microSD
• OBS and Elgato Stream Deck integration
• Steinberg software suite included

TECHNICAL SPECIFICATIONS

• Audio / Video Interface Type: USB-C Audio Interface with HDMI-USB Video
• Audio Resolution: Up to 32-bit / 192 kHz
• Video Capture & Pass-through:
  – 4K / 60 fps
  – 1080p / 240 fps

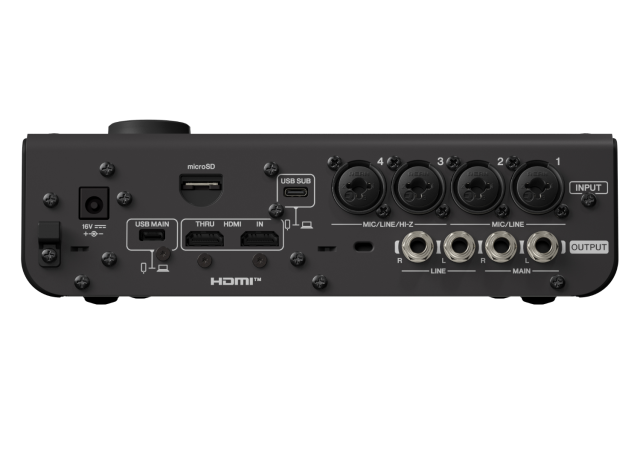

• Inputs: 4 × Combo XLR/TRS, 1 × Stereo Mini AUX, HDMI IN
• Outputs: 4, HDMI THRU
• Monitoring: Direct Monitoring, Loopback
• USB Recording / Playback:
  – MAIN: 18-track recording / playback
  – SUB: 2-track recording / playback
• Standalone Recording: microSD (up to 18 tracks record, 2 tracks playback)
• Power Supply: DC 5V
• Dimensions (W × H × D): 245 × 78 × 182 mm
• Weight: 1.9 kg (4.2 lb)
• Included Software: Steinberg Software Suite
