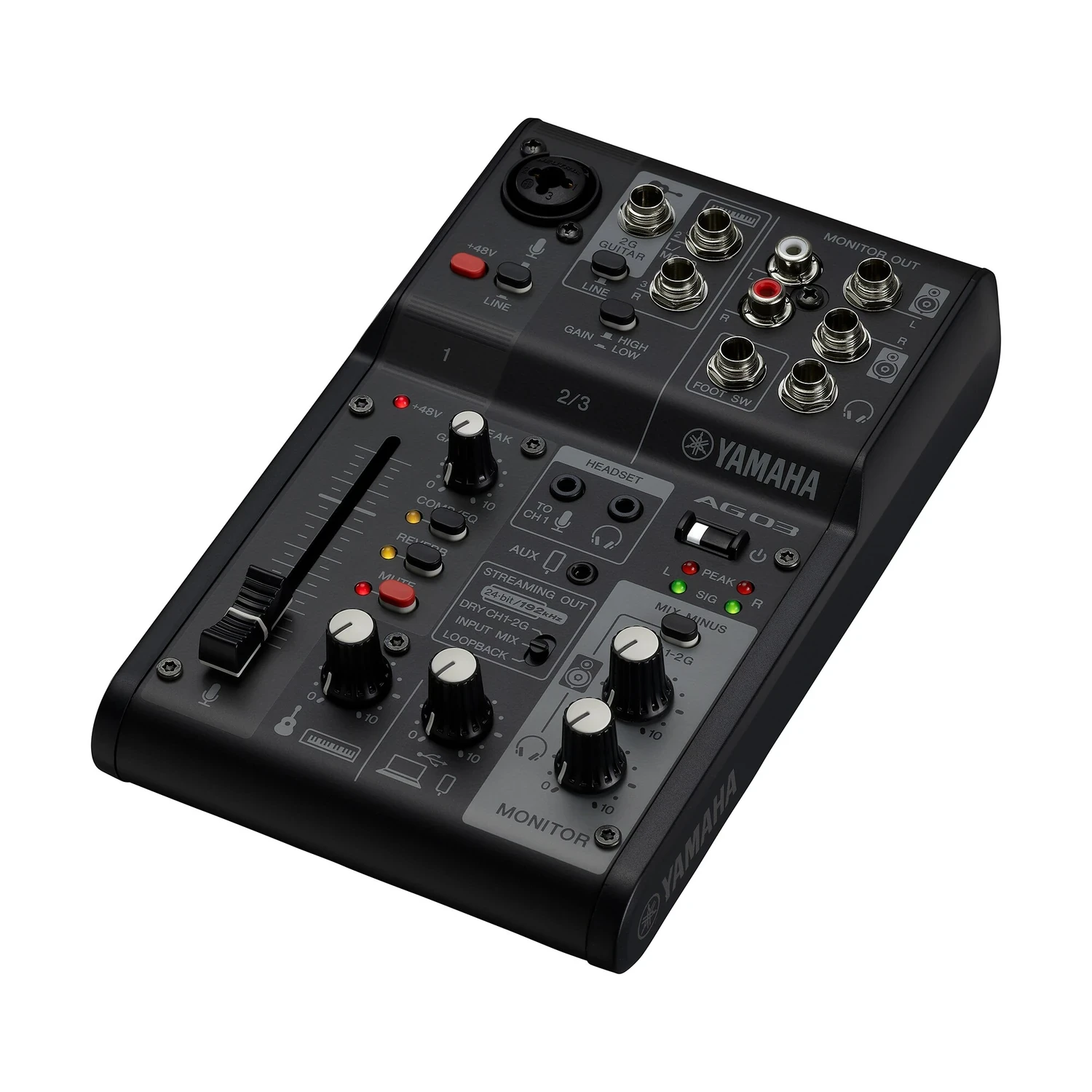

Yamaha AG03 mk2 Black — 3-Channel Live Streaming Mixer

A three-channel mixing console with a built-in USB-C audio interface for live streaming and podcasts. 24-bit/192 kHz resolution, LOOPBACK function, 48 V phantom power, and a Hi-Z input for guitar.

The AG03MK2 is the smaller sibling of the AG06MK2—a three-channel mixing console and audio interface in one, designed for live streaming, podcasts, and one-person recording sessions.

Channel 1 is a microphone channel with +48 V phantom power, so you can connect a condenser microphone or a DI box to it. Channel 2 has a Hi-Z input with a large jack—you can plug a guitar directly into it, without a preamp. The main input features a 60mm pull-type fader for smooth and precise volume control.

The LOOPBACK function mixes audio from a computer with the live inputs, so music, background audio, and a video call guest are all broadcast together with the microphone.

Effects are controlled with a single button: 1-TOUCH COMP/EQ and reverb. The guitar channel features an amp simulation. The mute button silences the microphone during a broadcast.

The console connects to a computer via USB-C (5 V, 900 mA), which also powers the console. It connects to an iPad via the Apple Camera Adapter with an external power source, and to an Android phone via a 3.5 mm 4-pole connector.

The mixer comes with Cubase AI, WaveLab Cast, Cubasis LE, and Rec'n'Share software.
